Unconventional Fractional Phases in Multiband Vortexable Systems

Siddhartha Sarkar1,2,*, Xiaohan Wan1,*, Ang-Kun Wu3, Shi-Zeng Lin4,5,†, and Kai Sun1,‡

  • *These authors contributed equally to this work.
  • †Contact author: szl@lanl.gov
  • ‡Contact author: sunkai@umich.edu
PDF

Phys. Rev. Lett. 135, 216501 – Published 20 November, 2025

DOI: https://doi.org/10.1103/jmk4-46tj

Abstract

We study topological flat bands with distinct features that deviate from conventional Landau level behavior. We show that even in the ideal quantum geometry limit, moiré flat band systems can exhibit physical phenomena fundamentally different from Landau levels without lattices. In particular, we find new fractional quantum Hall states emerging from multiband vortexable systems, where multiple exactly flat bands appear at the Fermi energy. While the set of bands as a whole exhibits ideal quantum geometry, individual bands separately lose vortexability, and thus making them very different from a stack of Landau levels. At certain filling fractions, we find fractional states whose Hall conductivity deviates from the filling factor. Through careful numerical and analytical studies, we rule out all known mechanisms—such as fractional quantum Hall crystals or separate filling of trivial and topological bands—as possible explanations. Leveraging the exact solvability of vortexable systems, we use analytic Bloch wave functions to uncover the origin of these new fractional states, which arises from the commensurability between the moiré unit cell and the magnetic unit cell of an emergent effective magnetic field.

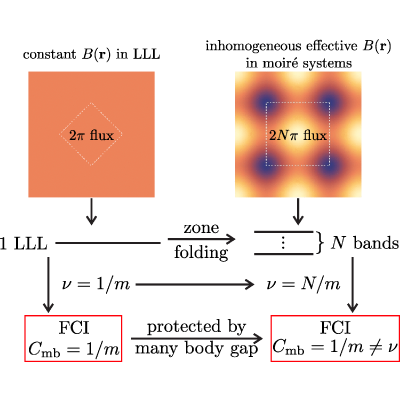

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (73)

  1. H. L. Stormer, D. C. Tsui, and A. C. Gossard, Rev. Mod. Phys. 71, S298 (1999).
  2. R. B. Laughlin, Rev. Mod. Phys. 71, 863 (1999).
  3. F. D. M. Haldane, Phys. Rev. Lett. 61, 2015 (1988).
  4. E. Tang, J.-W. Mei, and X.-G. Wen, Phys. Rev. Lett. 106, 236802 (2011).
  5. K. Sun, Z. Gu, H. Katsura, and S. Das Sarma, Phys. Rev. Lett. 106, 236803 (2011).
  6. T. Neupert, L. Santos, C. Chamon, and C. Mudry, Phys. Rev. Lett. 106, 236804 (2011).
  7. D. Sheng, Z.-C. Gu, K. Sun, and L. Sheng, Nat. Commun. 2, 389 (2011).
  8. N. Regnault and B. A. Bernevig, Phys. Rev. X 1, 021014 (2011).
  9. B. A. Bernevig and N. Regnault, Phys. Rev. B 85, 075128 (2012).
  10. C. Repellin and T. Senthil, Phys. Rev. Res. 2, 023238 (2020).
  11. P. J. Ledwith, G. Tarnopolsky, E. Khalaf, and A. Vishwanath, Phys. Rev. Res. 2, 023237 (2020).
  12. Z. Liu, A. Abouelkomsan, and E. J. Bergholtz, Phys. Rev. Lett. 126, 026801 (2021).
  13. H. Li, U. Kumar, K. Sun, and S.-Z. Lin, Phys. Rev. Res. 3, L032070 (2021).
  14. A.-K. Wu, S. Sarkar, X. Wan, K. Sun, and S.-Z. Lin, Phys. Rev. Res. 6, L032063 (2024).
  15. J. Cai, E. Anderson, C. Wang, X. Zhang, X. Liu, W. Holtzmann, Y. Zhang, F. Fan, T. Taniguchi, K. Watanabe et al., Nature (London) 622, 63 (2023).
  16. Y. Zeng, Z. Xia, K. Kang, J. Zhu, P. Knüppel, C. Vaswani, K. Watanabe, T. Taniguchi, K. F. Mak, and J. Shan, Nature (London) 622, 69 (2023).
  17. H. Park, J. Cai, E. Anderson, Y. Zhang, J. Zhu, X. Liu, C. Wang, W. Holtzmann, C. Hu, Z. Liu et al., Nature (London) 622, 74 (2023).
  18. F. Xu, Z. Sun, T. Jia, C. Liu, C. Xu, C. Li, Y. Gu, K. Watanabe, T. Taniguchi, B. Tong et al., Phys. Rev. X 13, 031037 (2023).
  19. Z. Lu, T. Han, Y. Yao, A. P. Reddy, J. Yang, J. Seo, K. Watanabe, T. Taniguchi, L. Fu, and L. Ju, Nature (London) 626, 759 (2024).
  20. J. Xie, Z. Huo, X. Lu, Z. Feng, Z. Zhang, W. Wang, Q. Yang, K. Watanabe, T. Taniguchi, K. Liu et al., arXiv:2405.16944.
  21. Y.-H. Wu, J. K. Jain, and K. Sun, Phys. Rev. B 86, 165129 (2012).
  22. Y.-L. Wu, B. A. Bernevig, and N. Regnault, Phys. Rev. B 85, 075116 (2012).
  23. A. Sterdyniak, C. Repellin, B. A. Bernevig, and N. Regnault, Phys. Rev. B 87, 205137 (2013).
  24. Y.-H. Wu, J. K. Jain, and K. Sun, Phys. Rev. B 91, 041119(R) (2015).
  25. D. Vanderbilt, Berry Phases in Electronic Structure Theory: Electric Polarization, Orbital Magnetization and Topological Insulators (Cambridge University Press, Cambridge, England, 2018).
  26. S. A. Parameswaran, R. Roy, and S. L. Sondhi, C.R. Phys. 14, 816 (2013).
  27. R. Roy, Phys. Rev. B 90, 165139 (2014).
  28. P. J. Ledwith, E. Khalaf, and A. Vishwanath, Ann. Phys. (Amsterdam) 435, 168646 (2021).
  29. J. Wang, J. Cano, A. J. Millis, Z. Liu, and B. Yang, Phys. Rev. Lett. 127, 246403 (2021).
  30. B. Mera and T. Ozawa, Phys. Rev. B 104, 115160 (2021).
  31. P. J. Ledwith, A. Vishwanath, and D. E. Parker, Phys. Rev. B 108, 205144 (2023).
  32. P. J. Ledwith, A. Vishwanath, and E. Khalaf, Phys. Rev. Lett. 128, 176404 (2022).
  33. G. Tarnopolsky, A. J. Kruchkov, and A. Vishwanath, Phys. Rev. Lett. 122, 106405 (2019).
  34. J. Wang and Z. Liu, Phys. Rev. Lett. 128, 176403 (2022).
  35. X. Wan, S. Sarkar, S.-Z. Lin, and K. Sun, Phys. Rev. Lett. 130, 216401 (2023).
  36. P. M. Eugenio and O. Vafek, SciPost Phys. 15, 081 (2023).
  37. C. Le, Q. Zhang, F. Cui, X. Wu, and C.-K. Chiu, Phys. Rev. Lett. 132, 246401 (2024).
  38. S. Becker, T. Humbert, and M. Zworski, arXiv:2208.01628.
  39. S. Becker, T. Humbert, and M. Zworski, arXiv:2306.02909.
  40. S. Sarkar, X. Wan, S.-Z. Lin, and K. Sun, Phys. Rev. Lett. 135, 016501 (2025).
  41. See Supplemental Material at http://link.aps.org/supplemental/10.1103/jmk4-46tj for details of analytic and numerical calculations including the derivation of the single particle wave functions of the degenerate flatbands and their similarities with lowest Landau level wave functions with multiple flux quanta per magnetic unit cell, expression and properties of the effective magnetic field in the moiré flat bands, construction of maximally localized Wannier band, further results from exact diagonalization, and details of particle entanglement spectrum, which includes Refs. [42–54].
  42. S. Kharchev and A. Zabrodin, J. Geom. Phys. 94, 19 (2015).
  43. D. Guerci, J. Wang, and C. Mora, Phys. Rev. B 112, L041108 (2025).
  44. C. Fang, M. J. Gilbert, and B. A. Bernevig, Phys. Rev. B 86, 115112 (2012).
  45. M. I. Aroyo, J. M. Perez-Mato, D. Orobengoa, E. Tasci, G. de la Flor, and A. Kirov, Bulg Chem Commun 43, 183 (2011), http://www.bcc.bas.bg/BCC_Volumes/Volume_43_ Number_2_2011/Volume_43_Number_2_2011_PDF/2011_ 43_2_1.pdf.
  46. M. I. Aroyo, J. M. Perez-Mato, C. Capillas, E. Kroumova, S. Ivantchev, G. Madariaga, A. Kirov, and H. Wondratschek, Z. Kristallogr. 221, 15 (2006).
  47. M. I. Aroyo, A. Kirov, C. Capillas, J. Perez-Mato, and H. Wondratschek, Acta Crystallogr. Sect. A 62, 115 (2006).
  48. Z.-D. Song and B. A. Bernevig, Phys. Rev. Lett. 129, 047601 (2022).
  49. S. Becker, M. Embree, J. Wittsten, and M. Zworski, Probab. Math. Phys. 3, 69 (2022).
  50. S. Becker, M. Embree, J. Wittsten, and M. Zworski, Phys. Rev. B 103, 165113 (2021).
  51. N. Morales-Durán, N. Wei, J. Shi, and A. H. MacDonald, Phys. Rev. Lett. 132, 096602 (2024).
  52. J. Yu, J. Herzog-Arbeitman, Y. H. Kwan, N. Regnault, and B. A. Bernevig, Phys. Rev. B 112, 075110 (2025).
  53. J. Jung and A. H. MacDonald, Phys. Rev. B 89, 035405 (2014).
  54. X. Wan, S. Sarkar, K. Sun, and S.-Z. Lin, Phys. Rev. B 108, 125129 (2023).
  55. N. Marzari and D. Vanderbilt, Phys. Rev. B 56, 12847 (1997).
  56. I. Souza, N. Marzari, and D. Vanderbilt, Phys. Rev. B 65, 035109 (2001).
  57. G. Pizzi, V. Vitale, R. Arita, S. Blügel, F. Freimuth, G. Géranton, M. Gibertini, D. Gresch, C. Johnson, T. Koretsune et al., J. Phys. Condens. Matter 32, 165902 (2020).
  58. H. Li and F. D. M. Haldane, Phys. Rev. Lett. 101, 010504 (2008).
  59. A. Sterdyniak, N. Regnault, and B. A. Bernevig, Phys. Rev. Lett. 106, 100405 (2011).
  60. F. D. M. Haldane and E. H. Rezayi, Phys. Rev. B 31, 2529 (1985).
  61. J. Dong, J. Wang, P. J. Ledwith, A. Vishwanath, and D. E. Parker, Phys. Rev. Lett. 131, 136502 (2023).
  62. L. Zhu, S.-S. Wang, S. Guan, Y. Liu, T. Zhang, G. Chen, and S. A. Yang, Nano Lett. 16, 6548 (2016).
  63. S.-S. Wang, Y. Liu, Z.-M. Yu, X.-L. Sheng, L. Zhu, S. Guan, and S. A. Yang, Phys. Rev. Mater. 2, 104003 (2018).
  64. S. Park, S. Kang, H. Kim, K. H. Lee, P. Kim, S. Sim, N. Lee, B. Karuppannan, J. Kim, J. Kim et al., Sci. Rep. 10, 20998 (2020).
  65. X. Hu, R.-W. Zhang, D.-S. Ma, Z. Cai, D. Geng, Z. Sun, Q. Zhao, J. Gao, P. Cheng, L. Chen et al., Nano Lett. 23, 5610 (2023).
  66. X. Feng, Z. Zhang, W. Wu, X.-L. Sheng, and S. A. Yang, Phys. Rev. B 109, 045423 (2024).
  67. Y. Jiang, J. Mao, J. Duan, X. Lai, K. Watanabe, T. Taniguchi, and E. Y. Andrei, Nano Lett. 17, 2839 (2017).
  68. Y. Zhang, Y. Kim, M. J. Gilbert, and N. Mason, Appl. Phys. Lett. 115, 143508 (2019).
  69. J. Mao, S. P. Milovanović, M. Anđelković, X. Lai, Y. Cao, K. Watanabe, T. Taniguchi, L. Covaci, F. M. Peeters, A. K. Geim et al., Nature (London) 584, 215 (2020).
  70. C. Cho, J. Wong, A. Taqieddin, S. Biswas, N. R. Aluru, S. Nam, and H. A. Atwater, Nano Lett. 21, 3956 (2021).
  71. Y. Zhang, M. A. Hossain, K. J. Hwang, P. F. Ferrari, J. Maduzia, T. Peña, S. M. Wu, E. Ertekin, and A. M. van der Zande, ACS Nano 18, 4205 (2024).
  72. Y. Zhang, H. L. Zhao, S. Huang, M. A. Hossain, and A. M. van der Zande, ACS Nano 18, 12377 (2024).
  73. J. M. Kim, M. F. Haque, E. Y. Hsieh, S. M. Nahid, I. Zarin, K.-Y. Jeong, J.-P. So, H.-G. Park, and S. Nam, Adv. Mater. 35, 2107362 (2023).
