Next-to-Leading-Order Corrections and Factorization for Transverse Single-Spin Asymmetries

Daniel Rein*, Marc Schlegel†, Patrick Tollkühn‡, and Werner Vogelsang§

  • *Contact author: da.rein@student.uni-tuebingen.de
  • †Contact author: marc.schlegel@uni-tuebingen.de
  • ‡Contact author: patrick.tollkuehn@uni-tuebingen.de
  • §Contact author: werner.vogelsang@uni-tuebingen.de
PDF

Phys. Rev. Lett. 135, 251901 – Published 16 December, 2025

DOI: https://doi.org/10.1103/fhxq-njl2

Abstract

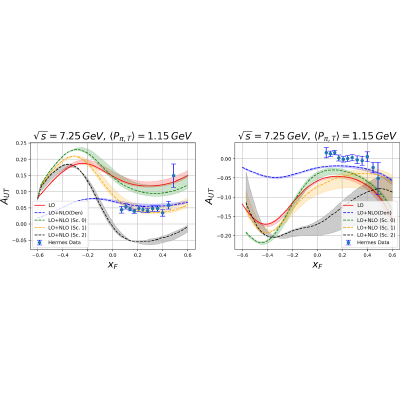

We present next-to-leading-order QCD corrections for the cross sections for ℓp↑→hX and ℓp↑→jetX with transversely polarized initial protons. These cross sections are known to be power-suppressed in QCD and probe twist-3 parton correlation functions in the proton. Our calculation exhibits the full complexity of a perturbative QCD analysis beyond leading power, involving in particular various derivatives of the parton correlation functions. We demonstrate that collinear factorization for these single-spin observables holds at one loop. We also present exploratory phenomenological results for the NLO single-spin asymmetry in ep↑→hX and compare to data from the HERMES experiment.

View figure in article

Physics Subject Headings (PhySH)

See Also

Transverse nucleon single-spin asymmetry for single-inclusive hadron and jet production at NLO accuracy

Daniel Rein, Marc Schlegel, Patrick Tollkühn, and Werner Vogelsang
Phys. Rev. D 112, 114024 (2025)

Article Text

Supplemental Material

References (45)

  1. D. L. Adams et al. (E581 Collaboration), Comparison of spin asymmetries and cross-sections in π0 production by 200-GeV polarized anti-protons and protons, Phys. Lett. B 261, 201 (1991).
  2. K. Krueger et al., Large analyzing power in inclusive π± production at high xF with a 22-GeV/c polarized proton beam, Phys. Lett. B 459, 412 (1999).
  3. C. E. Allgower et al., Measurement of analyzing powers of π+π− produced on a hydrogen and a carbon target with a 22-GeV/c incident polarized proton beam, Phys. Rev. D 65, 092008 (2002).
  4. J. Adams et al. (STAR Collaboration), Cross sections and transverse single-spin asymmetries in forward neutral pion production from proton collisions at s=200-GeV, Phys. Rev. Lett. 92, 171801 (2004).
  5. S. S. Adler et al. (PHENIX Collaboration), Measurement of transverse single-spin asymmetries for mid- rapidity production of neutral pions and charged hadrons in polarized p+p collisions at s=200-GeV, Phys. Rev. Lett. 95, 202001 (2005).
  6. J. H. Lee and F. Videbaek (BRAHMS Collaboration), Single spin asymmetries of identified hadrons in polarized p+p at s=62.4 and 200-GeV, AIP Conf. Proc. 915, 533 (2007).
  7. B. I. Abelev et al. (STAR Collaboration), Forward neutral pion transverse single spin asymmetries in p+p collisions at s=200-GeV, Phys. Rev. Lett. 101, 222001 (2008).
  8. I. Arsene et al. (BRAHMS Collaboration), Single transverse spin asymmetries of identified charged hadrons in polarized p+p collisions at s=62.4  GeV, Phys. Rev. Lett. 101, 042001 (2008).
  9. L. Adamczyk et al. (STAR Collaboration), Transverse single-spin asymmetry and cross-section for π0 and η mesons at large Feynman-x in polarized p+p collisions at s=200  GeV, Phys. Rev. D 86, 051101 (2012).
  10. A. Adare et al. (PHENIX Collaboration), Measurement of transverse-single-spin asymmetries for midrapidity and forward-rapidity production of hadrons in polarized p+p collisions at s=200 and 62.4 GeV, Phys. Rev. D 90, 012006 (2014).
  11. A. Adare et al. (PHENIX Collaboration), Cross section and transverse single-spin asymmetry of η mesons in p↑+p collisions at s=200  GeV at forward rapidity, Phys. Rev. D 90, 072008 (2014).
  12. J. Adam et al. (STAR Collaboration), Measurement of transverse single-spin asymmetries of π0 and electromagnetic jets at forward rapidity in 200 and 500 GeV transversely polarized proton-proton collisions, Phys. Rev. D 103, 092009 (2021).
  13. A. V. Efremov and O. V. Teryaev, On spin effects in quantum chromodynamics, Sov. J. Nucl. Phys. 36, 140 (1982).
  14. A. V. Efremov and O. V. Teryaev, The transversal polarization in quantum chromodynamics, Sov. J. Nucl. Phys. 39, 962 (1984).
  15. A. V. Efremov and O. V. Teryaev, QCD asymmetry and polarized hadron structure functions, Phys. Lett. 150B, 383 (1985).
  16. J.-w. Qiu and G. Sterman, Single transverse spin asymmetries, Phys. Rev. Lett. 67, 2264 (1991).
  17. J.-w. Qiu and G. Sterman, Single transverse spin asymmetries in direct photon production, Nucl. Phys. B378, 52 (1992).
  18. J.-w. Qiu and G. Sterman, Single transverse-spin asymmetries in hadronic pion production, Phys. Rev. D 59, 014004 (1999).
  19. W. Vogelsang and F. Yuan, Next-to-leading order calculation of the single transverse spin asymmetry in the Drell-Yan process, Phys. Rev. D 79, 094010 (2009).
  20. A. P. Chen, J. P. Ma, and G. P. Zhang, One-loop corrections to single spin asymmetries at twist-3 in Drell-Yan processes, Phys. Rev. D 95, 074005 (2017).
  21. Z.-B. Kang, I. Vitev, and H. Xing, Transverse momentum-weighted Sivers asymmetry in semi-inclusive deep inelastic scattering at next-to-leading order, Phys. Rev. D 87, 034024 (2013).
  22. L.-Y. Dai, Z.-B. Kang, A. Prokudin, and I. Vitev, Next-to-leading order transverse momentum-weighted Sivers asymmetry in semi-inclusive deep inelastic scattering: The role of the three-gluon correlator, Phys. Rev. D 92, 114024 (2015).
  23. S. Yoshida, New pole contribution to Ph⊥-weighted single-transverse spin asymmetry in semi-inclusive deep inelastic scattering, Phys. Rev. D 93, 054048 (2016).
  24. A. P. Chen, J. P. Ma, and G. P. Zhang, One-loop corrections of single spin asymmetries in semi-inclusive DIS, Phys. Rev. D 97, 054003 (2018).
  25. S. Benic, Y. Hatta, H.-n. Li, and D.-J. Yang, Single-spin asymmetries at two loops, Phys. Rev. D 100, 094027 (2019).
  26. L. Gamberg, Z.-B. Kang, D. Pitonyak, M. Schlegel, and S. Yoshida, Polarized hyperon production in single-inclusive electron-positron annihilation at next-to-leading order, J. High Energy Phys. 01 (2018) 111.
  27. K. Kanazawa, Y. Koike, A. Metz, D. Pitonyak, and M. Schlegel, Operator constraints for twist-3 functions and Lorentz invariance properties of twist-3 observables, Phys. Rev. D 93, 054024 (2016).
  28. Z.-B. Kang, A. Metz, J.-W. Qiu, and J. Zhou, Exploring the structure of the proton through polarization observables in lp→jet X, Phys. Rev. D 84, 034046 (2011).
  29. L. Gamberg, Z.-B. Kang, A. Metz, D. Pitonyak, and A. Prokudin, Left-right spin asymmetry in ℓN↑→hX, Phys. Rev. D 90, 074012 (2014).
  30. V. M. Braun, A. N. Manashov, and B. Pirnay, Scale dependence of twist-three contributions to single spin asymmetries, Phys. Rev. D 80, 114002 (2009); 86, 119902(E) (2012).
  31. P. Hinderer, M. Schlegel, and W. Vogelsang, Single-inclusive production of hadrons and jets in lepton-nucleon scattering at NLO, Phys. Rev. D 92, 014001 (2015); 93, 119903(E) (2016).
  32. P. Hinderer, Higher order studies in perturbative QCD, Ph.D. thesis, University of Tubingen, 2017.
  33. See Supplemental Material at http://link.aps.org/supplemental/10.1103/fhxq-njl2 for this paper including a Mathematica notebook that contains the analytic expressions for the various 1/ε poles and displays their cancellation.
  34. D. Rein, M. Schlegel, P. Tollkühn, and W. Vogelsang, companion paper, Transverse nucleon single-spin asymmetry for single-inclusive hadron and jet production at NLO accuracy, Phys. Rev. D 112, 114024 (2025).
  35. Z.-B. Kang and J.-W. Qiu, Evolution of twist-3 multi-parton correlation functions relevant to single transverse-spin asymmetry, Phys. Rev. D 79, 016003 (2009).
  36. A. Airapetian et al. (HERMES Collaboration), Transverse target single-spin asymmetry in inclusive electroproduction of charged pions and kaons, Phys. Lett. B 728, 183 (2014).
  37. D. Boer, P. J. Mulders, and F. Pijlman, Universality of t-odd effects in single spin and azimuthal asymmetries, Nucl. Phys. B667, 201 (2003).
  38. M. Gockeler, R. Horsley, D. Pleiter, P. E. L. Rakow, A. Schafer, G. Schierholz, H. Stuben, and J. M. Zanotti, Investigation of the second moment of the nucleon’s g1 and g2 structure functions in two-flavor lattice QCD, Phys. Rev. D 72, 054507 (2005).
  39. S. Bürger, T. Wurm, M. Löffler, M. Göckeler, G. Bali, S. Collins, A. Schäfer, and A. Sternbeck (RQCD Collaboration), Lattice results for the longitudinal spin structure and color forces on quarks in a nucleon, Phys. Rev. D 105, 054504 (2022).
  40. J. M. Bickerton, Transverse properties of baryons using lattice quantum chromodynamics, Ph.D. thesis, University of Adelaide, 2020.
  41. J. A. Crawford, K. U. Can, R. Horsley, P. E. L. Rakow, G. Schierholz, H. Stüben, R. D. Young, and J. M. Zanotti (QCDSF Collaboration), Transverse force distributions in the proton from lattice QCD, Phys. Rev. Lett. 134, 071901 (2025).
  42. M. Anselmino, M. Boglione, U. D’Alesio, A. Kotzinian, S. Melis, F. Murgia, A. Prokudin, and C. Türk, Sivers effect for pion and kaon production in semi- inclusive deep inelastic scattering, Eur. Phys. J. A 39, 89 (2009).
  43. D. de Florian, R. Sassot, M. Epele, R. J. Hernández-Pinto, and M. Stratmann, Parton-to-pion fragmentation reloaded, Phys. Rev. D 91, 014035 (2015).
  44. A. D. Martin, W. J. Stirling, R. S. Thorne, and G. Watt, Parton distributions for the LHC, Eur. Phys. J. C 63, 189 (2009).
  45. S. Fitzgibbons, M. Malda, J. Marsh, D. Pitonyak, and P. Smith, Updated numerical study of transverse single-spin asymmetries in single-inclusive pion production from lepton-nucleon collisions, Phys. Lett. B 852, 138606 (2024).
