Directional conductance of Andreev crystals in hybrid Josephson junction arrays

Anders Enevold Dahl1, Andrea Maiani2,3, Max Geier4, Javad Shabani2, and Karsten Flensberg1

PDF

Phys. Rev. B 113, 184513 – Published 11 May, 2026

DOI: https://doi.org/10.1103/zrt6-971d

Abstract

Andreev bound states are coherent electron-hole superpositions that form in a normal metal through repeated Andreev reflection at a superconducting interface. When the length of a superconducting segment is comparable to the coherence length, the bound states on opposite sides of the segment hybridize through quasiparticle tunneling. In a periodic array, these hybridized Andreev bound states form energy bands below the superconducting gap. We develop a theoretical framework for transport in such Andreev crystals. We demonstrate that, at high interface transparency, a constant phase bias between neighboring superconductors renders the bands directional: one band contains only right-moving and the other only left-moving electronic states. This property leads to a directional conductance that enables the device to operate as a flux- and bias-voltage-tunable filter that allows signal transmission in only one direction.

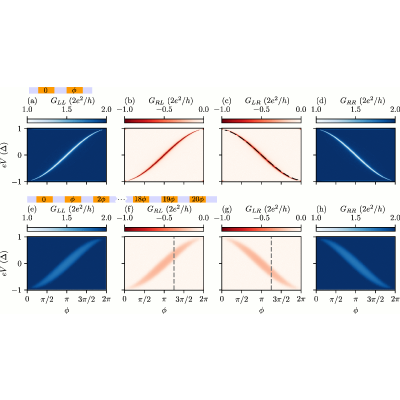

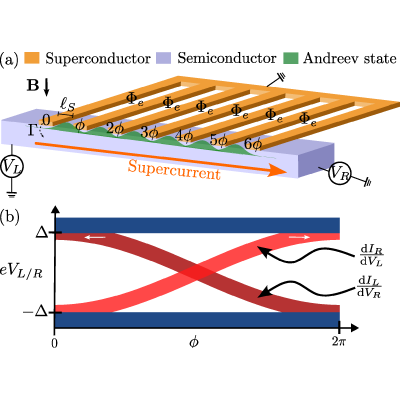

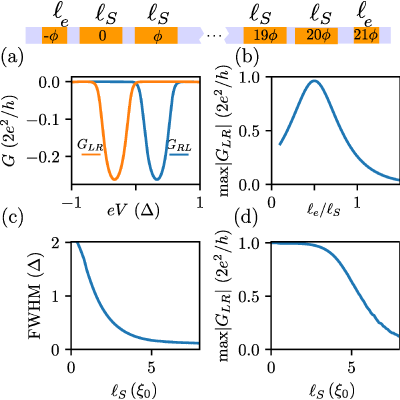

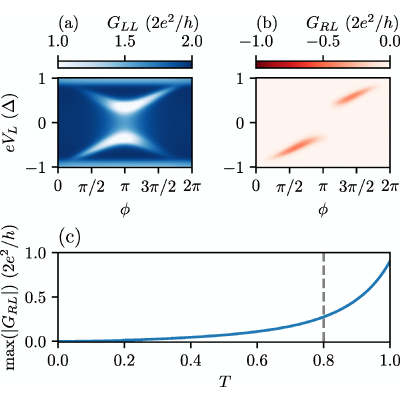

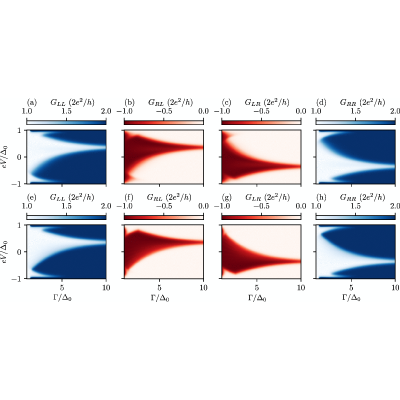

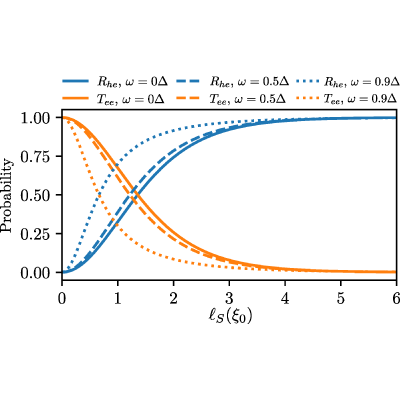

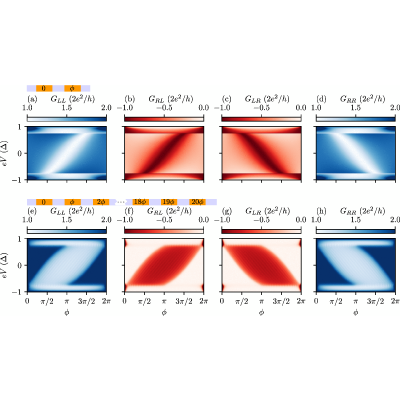

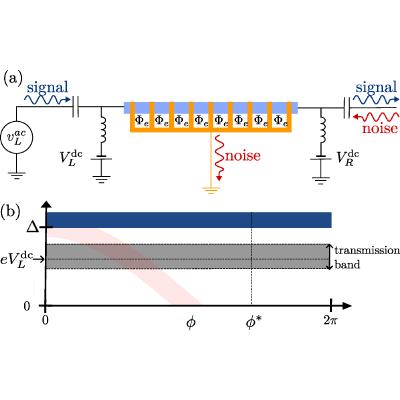

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (59)
