Phase transitions in Zr to 240 GPa

J. D. McHardy*, C. V. Storm, C. M. Lonsdale, C. R. Roy, and M. I. McMahon†

  • SUPA, School of Physics and Astronomy, and Centre for Science at Extreme Conditions, The University of Edinburgh, Peter Guthrie Tait Road, Edinburgh EH9 3FD, United Kingdom

  • *Contact author: J.D.McHardy@ed.ac.uk
  • †Contact author: m.i.mcmahon@ed.ac.uk
PDF

Phys. Rev. B 113, 174115 – Published 18 May, 2026

DOI: https://doi.org/10.1103/zp3m-kjpc

Abstract

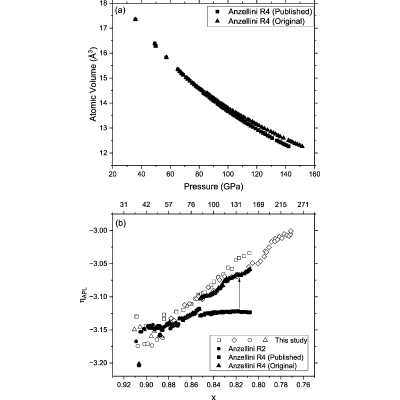

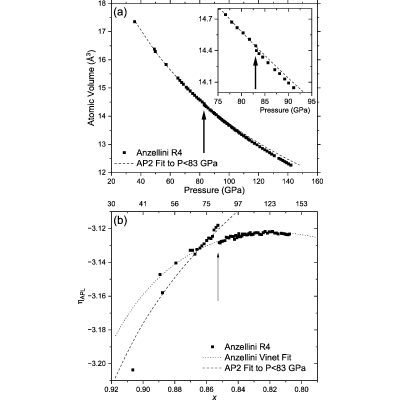

Several recent x-ray diffraction studies have focused on whether the high-pressure body-centered cubic (bcc) phase of zirconium undergoes an isostructural bcc-bcc transition at 58 GPa. The consensus of these studies is that there is no such transition and that a previous claim by Stavrou et al. resulted from issues with the pressure calibration. However, a close analysis of the data from one of the most recent of these diffraction studies by Anzellini et al. shows unremarked evidence of a discontinuity in both atomic volume and compressibility at 83 GPa indicating an isostructural transition is present. Unfortunately, no other previous studies have reached this pressure, and so the question of the bcc-bcc transition is still open. Here we describe a diffraction study of Zr to 240 GPa looking for a bcc-bcc isostructural transition. Our data show no evidence of any discontinuous change in volume or compressibility at 83 GPa. We observe no evidence of a β→β′ transition above 80 GPa, and suggest a possible cause of the discontinuity observed by Anzellini et al.

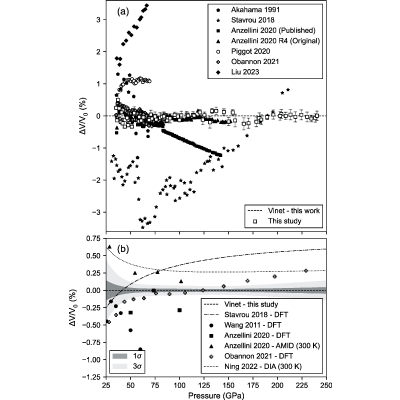

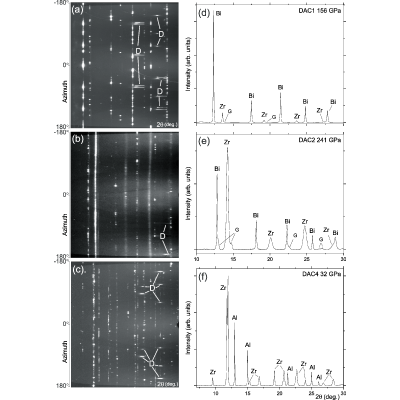

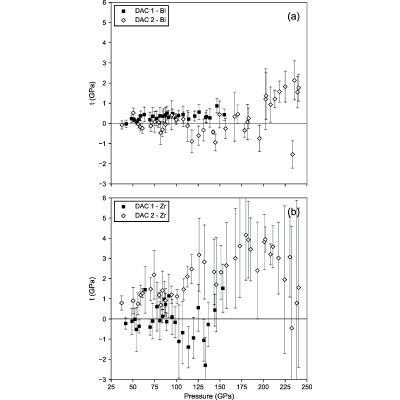

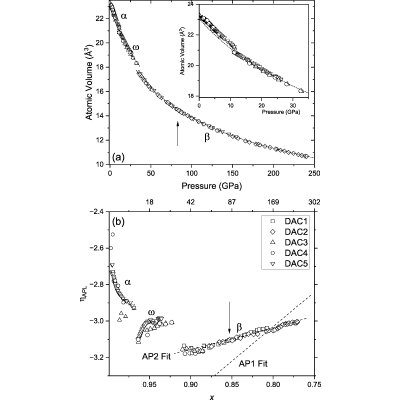

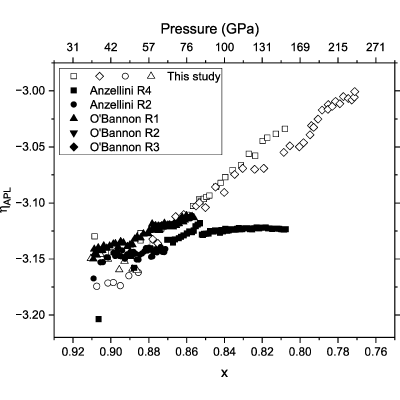

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (48)

  1. B. S. Hickman, The formation of omega phase in titanium and zirconium alloys: A review, J. Mater. Sci. 4, 554 (1969).
  2. J. Ballor, T. Li, F. Prima, C. J. Boehlert, and A. Devaraj, A review of the metastable omega phase in beta titanium alloys: The phase transformation mechanisms and its effect on mechanical properties, Int. Mater. Rev. 68, 26 (2023).
  3. N. Velisavljevic, S. MacLeod, and H. Cy, Titanium alloys at extreme pressure conditions, in Titanium Alloys - Towards Achieving Enhanced Properties for Diversified Applications (InTech, 2012).
  4. S. Sikka, Y. Vohra, and R. Chidambaram, Omega phase in materials, Prog. Mater. Sci. 27, 245 (1982).
  5. Y. Akahama, S. Kawaguchi, N. Hirao, and Y. Ohishi, Observation of high-pressure bcc phase of titanium at 243 GPa, J. Appl. Phys. 128, 035901 (2020).
  6. H. Xia, S. J. Duclos, A. L. Ruoff, and Y. K. Vohra, New high-pressure phase transition in zirconium metal, Phys. Rev. Lett. 64, 204 (1990).
  7. Y. Akahama, M. Kobayashi, and H. Kawamura, High-pressure X-ray diffraction study on electronic s−d transition in zirconium, J. Phys. Soc. Jpn. 60, 3211 (1991).
  8. E. Stavrou, L. H. Yang, P. Söderlind, D. Aberg, H. B. Radousky, M. R. Armstrong, J. L. Belof, M. Kunz, E. Greenberg, V. B. Prakapenka, and D. A. Young, Anharmonicity-induced first-order isostructural phase transition of zirconium under pressure, Phys. Rev. B 98, 220101(R) (2018).
  9. J. S. Pigott, N. Velisavljevic, E. K. Moss, D. Popov, C. Park, J. A. Van Orman, N. Draganic, Y. K. Vohra, and B. T. Sturtevant, Room-temperature compression and equation of state of body-centered cubic zirconium, J. Phys.: Condens. Matter 32, 12LT02 (2020).
  10. S. Anzellini, F. Bottin, J. Bouchet, and A. Dewaele, Phase transitions and equation of state of zirconium under high pressure, Phys. Rev. B 102, 184105 (2020).
  11. E. F. O'Bannon, P. Söderlind, D. Sneed, M. J. Lipp, H. Cynn, J. S. Smith, C. Park, and Z. Jenei, High pressure stability of β-Zr: No evidence for isostructural phase transitions, High Press. Res. 41, 247 (2021).
  12. G. Jyoti and S. C. Gupta, Theoretical analysis of the isostructural transition in Zr at 53 GPa, J. Phys.: Condens. Matter 6, 10273 (1994).
  13. C. W. Greeff, Phase changes and the equation of state of Zr, Modell. Simul. Mater. Sci. Eng. 13, 1015 (2005).
  14. A. W. Lawson and T.-Y. Tang, Concerning the high pressure allotropic modification of cerium, Phys. Rev. 76, 301 (1949).
  15. I.-K. Jeong, T. W. Darling, M. J. Graf, T. Proffen, R. H. Heffner, Y. Lee, T. Vogt, and J. D. Jorgensen, Role of the lattice in the γ→α phase transition of Ce: A high-pressure neutron and x-ray diffraction study, Phys. Rev. Lett. 92, 105702 (2004).
  16. L. Liu, Q. Jing, H. Y. Geng, Y. Li, Y. Zhang, J. Li, S. Li, X. Chen, J. Gao, and Q. Wu, Revisiting the high-pressure behaviors of zirconium: Nonhydrostaticity promoting the phase transitions and absence of the isostructural phase transition in β-zirconium, Materials 16, 5157 (2023).
  17. C. V. Storm, J. D. McHardy, S. E. Finnegan, E. J. Pace, M. G. Stevenson, M. J. Duff, S. G. MacLeod, and M. I. McMahon, Behavior of rubidium at over eightfold static compression, Phys. Rev. B 103, 224103 (2021).
  18. C. V. Storm, G. A. Woolman, C. M. Lonsdale, J. D. McHardy, M. J. Duff, G. J. Ackland, and M. I. McMahon, Experimental and computational study of the core-level crossing transition in iridium at high pressure, Phys. Rev. B 109, 024101 (2024).
  19. W. B. Holzapfel, Physics of solids under strong compression, Rep. Prog. Phys. 59, 29 (1996).
  20. W. B. Holzapfel, Equations of state for solids under strong compression, High Press. Res. 16, 81 (1998).
  21. PlotDigitizer: Version 4.5 (2024).
  22. W. B. Holzapfel, Equations of state for ideal and real solids under strong compression, Europhys. Lett. 16, 67 (1991).
  23. W. B. Holzapfel, Equations of state for solids under strong compression, Z. Kristallogr. 216, 473 (2001).
  24. See Supplemental Material at http://link.aps.org/supplemental/10.1103/zp3m-kjpc for additional figures, data tables, EOS parameters, and strength analysis examples.
  25. R. Boehler, New diamond cell for single-crystal x-ray diffraction, Rev. Sci. Instrum. 77, 115103 (2006).
  26. R. Boehler and K. De Hantsetters, New anvil designs in diamond-cells, High Press. Res. 24, 391 (2004).
  27. C. V. Storm, J. D. McHardy, M. J. Duff, S. G. MacLeod, E. F. O'Bannon, and M. I. McMahon, The stress state in bismuth to 298 GPa and its use as a pressure transmitting medium and pressure marker at multi-megabar pressures, J. Appl. Phys. 133, 245904 (2023).
  28. Y. Akahama, M. Nishimura, K. Kinoshita, H. Kawamura, and Y. Ohishi, Evidence of a fcc-hcp transition in aluminum at multimegabar pressure, Phys. Rev. Lett. 96, 045505 (2006).
  29. K. Glazyrin, S. Khandarkhaeva, T. Fedotenko, W. Dong, D. Laniel, F. Seiboth, A. Schropp, J. Garrevoet, D. Brückner, G. Falkenberg, A. Kubec, C. David, M. Wendt, S. Wenz, L. Dubrovinsky, N. Dubrovinskaia, and H.-P. Liermann, Sub-micrometer focusing setup for high-pressure crystallography at the Extreme Conditions beamline at PETRAIII, J. Synchrotron Radiat. 29, 654 (2022).
  30. C. Prescher and V. B. Prakapenka, Dioptas: A program for reduction of two-dimensional X-ray diffraction data and data exploration, High Press. Res. 35, 223 (2015).
  31. V. Petricek and M. Dusek, The Crystallographic Computing System JANA2000 (Institute of Physics, Praha, Czech Republic, 2000).
  32. T. J. B. Holland and S. A. T. Redfern, Unit cell refinement from powder diffraction data: The use of regression diagnostics, Mineral. Mag. 61, 65 (1997).
  33. A. Dewaele, P. Loubeyre, and M. Mezouar, Equations of state of six metals above 94 GPa, Phys. Rev. B 70, 094112 (2004).
  34. A. K. Singh, The lattice strains in a specimen (cubic system) compressed nonhydrostatically in an opposed anvil device, J. Appl. Phys. 73, 4278 (1993).
  35. A. K. Singh and T. Kenichi, Measurement and analysis of nonhydrostatic lattice strain component in niobium to 145 GPa under various fluid pressure-transmitting media, J. Appl. Phys. 90, 3269 (2001).
  36. A. K. Singh, Analysis of nonhydrostatic high-pressure diffraction data (cubic system): Assessment of various assumptions in the theory, J. Appl. Phys. 106, 043514 (2009).
  37. A. K. Singh, H. K. Mao, J. F. Shu, and R. J. Hemley, Estimation of single-crystal elastic moduli from polycrystalline X-ray diffraction at high pressure: Application to FeO and iron, Phys. Rev. Lett. 80, 2157 (1998).
  38. A. K. Singh, C. Balasingh, H.-K. Mao, R. J. Hemley, and J. Shu, Analysis of lattice strains measured under nonhydrostatic pressure, J. Appl. Phys. 83, 7567 (1998).
  39. A. Singh, E. Menendez-Proupin, G. Gutierrez, Y. Akahama, and H. Kawamura, Nonhydrostatic compression of bismuth to 222GPa: Some constraints on elasticity of the bcc-phase, J. Phys. Chem. Solids 67, 2192 (2006).
  40. A. K. Singh and K. Takemura, Negative differential stresses in niobium: Analysis of x-ray measured pressure-volume data, J. Appl. Phys. 128, 075901 (2020).
  41. C. M. Lonsdale, J. D. McHardy, C. V. Storm, K. Glazyrin, M. Mezouar, and M. I. McMahon, A closer look under extreme pressure: Sub-micron diffraction mapping in a diamond anvil cell, High Press. Res. 46, 56 (2026).
  42. J. C. Jamieson, Crystal structures at high pressures of metallic modifications of compounds of indium, gallium, and aluminum, Science 139, 845 (1963).
  43. Y. Zhao, J. Zhang, C. Pantea, J. Qian, L. L. Daemen, P. A. Rigg, R. S. Hixson, G. T. Gray, Y. Yang, L. Wang, Y. Wang, and T. Uchida, Thermal equations of state of the α, β, and ω phases of zirconium, Phys. Rev. B 71, 184119 (2005).
  44. C. V. Storm, S. E. Finnegan, J. D. McHardy, M. J. Duff, M. I. McMahon, S. G. MacLeod, E. Plekhanov, and C. Weber, Unified high-pressure phase-transition sequence in the f-electron metals: oF16→oF8 transition in terbium, Phys. Rev. Lett. 135, 136101 (2025).
  45. S. Anzellini, F. Bottin, J. Bouchet, and A. Dewaele, Erratum: Phase transitions and equation of state of zirconium under high pressure [Phys. Rev. B 102, 184105 (2020)], Phys. Rev. B 113, 179901 (2026).
  46. B.-T. Wang, P. Zhang, H.-Y. Liu, W.-D. Li, and P. Zhang, First-principles calculations of phase transition, elastic modulus, and superconductivity under pressure for zirconium, J. Appl. Phys. 109, 063514 (2011).
  47. B.-Y. Ning, Pressure-induced structural phase transitions of zirconium: An ab initio study based on statistical ensemble theory, J. Phys.: Condens. Matter 34, 505402 (2022).
  48. J. Donohue, The Structures of the Elements (J. Wiley & Sons, London, 1974).
