Extended Ashkin-Teller transition in two coupled frustrated Haldane chains

Bowy M. La Rivière*

Natalia Chepiga

  • Rudolf Peierls Centre for Theoretical Physics, University of Oxford, Clarendon Laboratory, Oxford OX1 3PU, United Kingdom

  • *Contact author: b.m.lariviere@tudelft.nl
PDF

Phys. Rev. B 113, 205107 – Published 4 May, 2026

DOI: https://doi.org/10.1103/yfwf-vxwb

Abstract

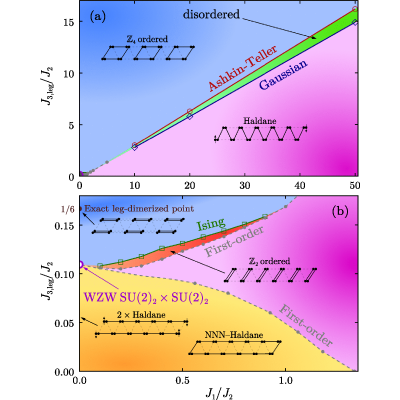

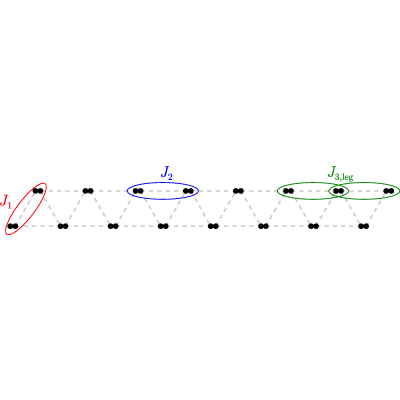

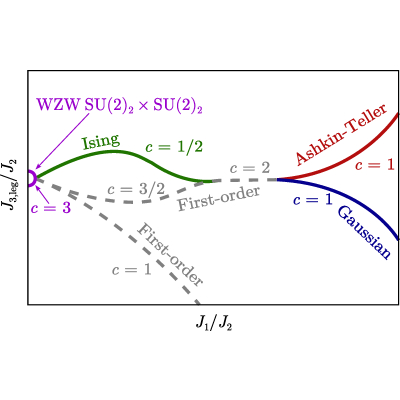

We report an extremely rich ground-state phase diagram of two spin-1 Haldane chains frustrated with a three-site exchange and coupled by the antiferromagnetic Heisenberg interaction on a zigzag ladder. A particular feature of the phase diagram is the extended quantum phase transition in the Ashkin-Teller universality class that separates the plaquette phase, which spontaneously breaks translation symmetry, and the uniform disordered phase. The former is connected to the Haldane phase, stabilized by large interchain coupling, via the topological Gaussian transition. Upon decreasing the interchain interactions, this intermediate disorder phase vanishes, giving place to a dimerized phase separated from the plaquette phase on one side via a nonmagnetic Ising transition and from the Haldane phase on the other side by a topological weak first-order transition. Finally, in the limit of two decoupled chains, we recover a quantum critical point that corresponds to two copies of the Wess-Zumino-Witten SU(2)2 criticality with a total central charge c=3.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (54)

  1. C. K. Majumdar and D. K. Ghosh, On next-nearest-neighbor interaction in linear chain. I, J. Math. Phys. 10, 1388 (1969).
  2. K. Okamoto and K. Nomura, Fluid-dimer critical point in S=12 antiferromagnetic Heisenberg chain with next nearest neighbor interactions, Phys. Lett. A 169, 433 (1992).
  3. F. Haldane, Continuum dynamics of the 1-D Heisenberg antiferromagnet: Identification with the O(3) nonlinear sigma model, Phys. Lett. A 93, 464 (1983).
  4. I. Affleck, T. Kennedy, E. H. Lieb, and H. Tasaki, Rigorous results on valence-bond ground states in antiferromagnets, Phys. Rev. Lett. 59, 799 (1987).
  5. T. Kennedy, Exact diagonalisations of open spin-1 chains, J. Phys.: Condens. Matter 2, 5737 (1990).
  6. M. Hagiwara, K. Katsumata, I. Affleck, B. I. Halperin, and J. P. Renard, Observation of S=1/2 degrees of freedom in an S=1 linear-chain Heisenberg antiferromagnet, Phys. Rev. Lett. 65, 3181 (1990).
  7. M. N. Barber and M. T. Batchelor, Spectrum of the biquadratic spin-1 antiferromagnetic chain, Phys. Rev. B 40, 4621 (1989).
  8. A. Klümper, New results for q-state vertex models and the pure biquadratic spin-1 Hamiltonian, Europhys. Lett. 9, 815 (1989).
  9. Y. Xian, Exact results of dimerization order parameter in SU (n) antiferromagnetic chains, Phys. Lett. A 183, 437 (1993).
  10. A. Läuchli, G. Schmid, and S. Trebst, Spin nematics correlations in bilinear-biquadratic S=1 spin chains, Phys. Rev. B 74, 144426 (2006).
  11. F. Michaud, F. Vernay, S. R. Manmana, and F. Mila, Antiferromagnetic spin-S chains with exactly dimerized ground states, Phys. Rev. Lett. 108, 127202 (2012).
  12. I. Affleck and F. D. M. Haldane, Critical theory of quantum spin chains, Phys. Rev. B 36, 5291 (1987).
  13. N. Chepiga, I. Affleck, and F. Mila, From SU(2)5 to SU(2)3 Wess-Zumino-Witten transitions in a frustrated spin-52 chain, Phys. Rev. B 105, 174402 (2022).
  14. N. Chepiga, Realization of Wess-Zumino-Witten transitions with levels k=6 and k=4 in a frustrated spin-3 chain, Phys. Rev. B 109, 214403 (2024).
  15. A. K. Kolezhuk and U. Schollwöck, Connectivity transition in the frustrated S=1 chain revisited, Phys. Rev. B 65, 100401(R) (2002).
  16. A. Kolezhuk, R. Roth, and U. Schollwöck, Variational and density-matrix renormalization-group studies of the frustrated antiferromagnetic Heisenberg S=1 quantum spin chain, Phys. Rev. B 55, 8928 (1997).
  17. N. Chepiga, I. Affleck, and F. Mila, Dimerization transitions in spin-1 chains, Phys. Rev. B 93, 241108(R) (2016).
  18. N. Chepiga, I. Affleck, and F. Mila, Comment on “frustration and multicriticality in the antiferromagnetic spin-1 chain”, Phys. Rev. B 94, 136401 (2016).
  19. A. B. Zamolodchikov and V. A. Fateev, Nonlocal (parafermion) currents in two-dimensional conformal quantum field theory and self-dual critical points in ZN-symmetric statistical systems, Zh. Eksp. Teor. Fiz. 89, 380 (1985) [Sov. Phys.–JETP 62, 2 (1985)].
  20. N. T. Pronk, B. M. La Rivière, and N. Chepiga, Deconfined quantum criticality in a frustrated Haldane chain with single-ion anisotropy, Phys. Rev. B 111, L220412 (2025).
  21. T. Ogino, R. Kaneko, S. Morita, S. Furukawa, and N. Kawashima, Continuous phase transition between Néel and valence bond solid phases in a J-Q-like spin ladder system, Phys. Rev. B 103, 085117 (2021).
  22. T. Ogino, S. Furukawa, R. Kaneko, S. Morita, and N. Kawashima, Symmetry-protected topological phases and competing orders in a spin-1/2 XXZ ladder with a four-spin interaction, Phys. Rev. B 104, 075135 (2021).
  23. M. Fontaine, K. Sugimoto, and S. Furukawa, Symmetry, topology, duality, chirality, and criticality in a spin-1/2 XXZ ladder with a four-spin interaction, Phys. Rev. B 109, 134413 (2024).
  24. P. Di Francesco, P. Mathieu, and D. Sénéchal, Conformal Field Theory, Graduate Texts in Contemporary Physics (Springer, Berlin, 1997).
  25. M. Kohmoto, M. den Nijs, and L. P. Kadanoff, Hamiltonian studies of the d=2 Ashkin-Teller model, Phys. Rev. B 24, 5229 (1981).
  26. B. M. L. Rivière and N. Chepiga, Z4 transitions in quantum loop models on a zig-zag ladder, SciPost Phys. 17, 144 (2024).
  27. N. Chepiga, I. Affleck, and F. Mila, Spontaneous dimerization, critical lines, and short-range correlations in a frustrated spin-1 chain, Phys. Rev. B 94, 205112 (2016).
  28. L. Vanderstraeten, E. Wybo, N. Chepiga, F. Verstraete, and F. Mila, Spinon confinement and deconfinement in spin-1 chains, Phys. Rev. B 101, 115138 (2020).
  29. Z.-Y. Wang, S. C. Furuya, M. Nakamura, and R. Komakura, Dimerizations in spin-s antiferromagnetic chains with three-spin interaction, Phys. Rev. B 88, 224419 (2013).
  30. P.-H. Huang, J.-H. Chen, A. E. Feiguin, C. Chamon, and C. Mudry, Coupled spin-12 ladders as microscopic models for non-Abelian chiral spin liquids, Phys. Rev. B 95, 144413 (2017).
  31. S. R. White, Density matrix formulation for quantum renormalization groups, Phys. Rev. Lett. 69, 2863 (1992).
  32. S. R. White, Density-matrix algorithms for quantum renormalization groups, Phys. Rev. B 48, 10345 (1993).
  33. Note that N refers to the number of spin-1 sites and not the number of rungs of the zigzag ladder.
  34. M. den Nijs and K. Rommelse, Preroughening transitions in crystal surfaces and valence-bond phases in quantum spin chains, Phys. Rev. B 40, 4709 (1989).
  35. T. Kennedy and H. Tasaki, Hidden Z2×Z2 symmetry breaking in Haldane-gap antiferromagnets, Phys. Rev. B 45, 304 (1992).
  36. A. Kolezhuk, R. Roth, and U. Schollwöck, First order transition in the frustrated antiferromagnetic Heisenberg S=1 quantum spin chain, Phys. Rev. Lett. 77, 5142 (1996).
  37. F. Pollmann, A. M. Turner, E. Berg, and M. Oshikawa, Entanglement spectrum of a topological phase in one dimension, Phys. Rev. B 81, 064439 (2010).
  38. H. Li and F. D. M. Haldane, Entanglement spectrum as a generalization of entanglement entropy: Identification of topological order in non-Abelian fractional quantum Hall effect states, Phys. Rev. Lett. 101, 010504 (2008).
  39. M. Levin and X.-G. Wen, Detecting topological order in a ground state wave function, Phys. Rev. Lett. 96, 110405 (2006).
  40. A. Kitaev and J. Preskill, Topological entanglement entropy, Phys. Rev. Lett. 96, 110404 (2006).
  41. N. Laflorencie, E. S. Sørensen, M.-S. Chang, and I. Affleck, Boundary effects in the critical scaling of entanglement entropy in 1D systems, Phys. Rev. Lett. 96, 100603 (2006).
  42. S. Capponi, P. Lecheminant, and M. Moliner, Quantum phase transitions in multileg spin ladders with ring exchange, Phys. Rev. B 88, 075132 (2013).
  43. P. Calabrese and J. Cardy, Entanglement entropy and quantum field theory, J. Stat. Mech. (2004) P06002.
  44. Y. Aoun, M. Dober, and A. Glazman, Phase diagram of the Ashkin–Teller model, Commun. Math. Phys. 405, 37 (2024).
  45. 〈Si·Si+2〉 correctly removes Friedel oscillations in this case while bipartitioning the other bonds requires a combination of both Si·Si+1 and Si·Si+2.
  46. N. Chepiga and F. Mila, Dimerization and effective decoupling in two spin-1 generalizations of the spin- 1 2 Majumdar-Ghosh chain, Phys. Rev. B 100, 104426 (2019).
  47. The nonmagnetic excitations and the corresponding singlet-singlet gap is expected to close at the transition. However, due to strong finite-size effects, direct numerical verification of this expectation is currently unfeasible.
  48. M. Weyrauch and M. V. Rakov, Dimerization in ultracold spinor gases with Zeeman splitting, Phys. Rev. B 96, 134404 (2017).
  49. D. A. Huse and M. E. Fisher, Domain walls and the melting of commensurate surface phases, Phys. Rev. Lett. 49, 793 (1982).
  50. D. A. Huse and M. E. Fisher, Commensurate melting, domain walls, and dislocations, Phys. Rev. B 29, 239 (1984).
  51. N. Chepiga and F. Mila, Floating phase versus chiral transition in a 1d hard-boson model, Phys. Rev. Lett. 122, 017205 (2019).
  52. N. Chepiga and F. Mila, Kibble-Zurek exponent and chiral transition of the period-4 phase of Rydberg chains, Nat. Commun. 12, 414 (2021).
  53. J. Soto-Garcia and N. Chepiga, Numerical investigation of quantum phases and phase transitions in a two-leg ladder of Rydberg atoms, Phys. Rev. Res. 7, 013215 (2025).
  54. The discontinuity in the bulk energy is a result of the finite-size effect shifting away the location of the transition.
