Odd toric code in a tilted field: Higgs-confinement multicriticality, spontaneous self-duality symmetry breaking, and valence bond solids

Umberto Borla1,2,3, Ayush De1, and Snir Gazit1,4

PDF

Phys. Rev. B 113, 245134 – Published 16 June, 2026

DOI: https://doi.org/10.1103/wbvd-z9s4

Abstract

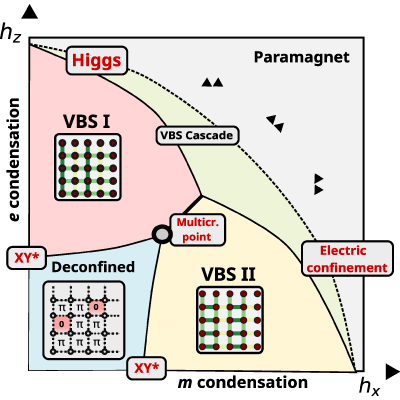

We investigate the quantum phase diagram of an “odd” variant of the two-dimensional Ising Fradkin-Shenker model, characterized by a uniform background of static e and m charges. Using large-scale tensor network and exact diagonalization methods, we determine the topology of the phase diagram, identifying an “odd” deconfined phase, confinement- and Higgs-induced valence bond solids (VBS), and a trivial paramagnet. Most notably, we uncover an exotic multicritical point along the self-dual line, where electric and magnetic excitations are related by an enriched Z2 duality. This transition is marked by the simultaneous onset of confinement, Higgs condensation, translational symmetry breaking, and spontaneous duality symmetry breaking. Within our numerical accuracy, the transition appears continuous, involving the softening of excitation gaps for e and m anyons at finite momentum. At intermediate couplings, we further identify VBS phases with enlarged unit cells, potentially indicating frustration-induced crystalline order beyond commensurate limits.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (57)

  1. X. Wen, Quantum Field Theory of Many-Body Systems, Oxford Graduate Texts (Oxford University Press, Oxford, UK, 2004).
  2. E. Fradkin, Field Theories of Condensed Matter Physics (Cambridge University Press, Cambridge, UK, 2013).
  3. S. Sachdev, Quantum Phases of Matter (Cambridge University Press, Cambridge, UK, 2023).
  4. J. B. Kogut, An introduction to lattice gauge theory and spin systems, Rev. Mod. Phys. 51, 659 (1979).
  5. S. Elitzur, Impossibility of spontaneously breaking local symmetries, Phys. Rev. D 12, 3978 (1975).
  6. F. Wilczek, Fractional Statistics and Anyon Superconductivity (World Scientific, Singapore, 1990), Vol. 5.
  7. E. Fradkin and S. H. Shenker, Phase diagrams of lattice gauge theories with Higgs fields, Phys. Rev. D 19, 3682 (1979).
  8. S. Wenzel, T. Coletta, S. E. Korshunov, and F. Mila, Evidence for columnar order in the fully frustrated transverse field Ising model on the square lattice, Phys. Rev. Lett. 109, 187202 (2012).
  9. S. Gazit, M. Randeria, and A. Vishwanath, Emergent Dirac fermions and broken symmetries in confined and deconfined phases of Z2 gauge theories, Nat. Phys. 13, 484 (2017).
  10. S. Gazit, F. F. Assaad, S. Sachdev, A. Vishwanath, and C. Wang, Confinement transition of Z2 gauge theories coupled to massless fermions: Emergent quantum chromodynamics and SO(5) symmetry, Proc. Natl. Acad. Sci. USA 115, E6987 (2018).
  11. M. Dupont, S. Gazit, and T. Scaffidi, Evidence for deconfined u(1) gauge theory at the transition between toric code and double semion, Phys. Rev. B 103, L140412 (2021).
  12. L. Savary and L. Balents, Quantum spin liquids: A review, Rep. Prog. Phys. 80, 016502 (2017).
  13. L. Barbiero, C. Schweizer, M. Aidelsburger, E. Demler, N. Goldman, and F. Grusdt, Coupling ultracold matter to dynamical gauge fields in optical lattices: From flux attachment to Z2 lattice gauge theories, Sci. Adv. 5, eaav7444 (2019).
  14. L. Homeier, C. Schweizer, M. Aidelsburger, A. Fedorov, and F. Grusdt, Z2 lattice gauge theories and Kitaev's toric code: A scheme for analog quantum simulation, Phys. Rev. B 104, 085138 (2021).
  15. L. Lumia, P. Torta, G. B. Mbeng, G. E. Santoro, E. Ercolessi, M. Burrello, and M. M. Wauters, Two-dimensional Z2 lattice gauge theory on a near-term quantum simulator: Variational quantum optimization, confinement, and topological order, PRX Quantum 3, 020320 (2022).
  16. E. Zohar, Quantum simulation of lattice gauge theories in more than one space dimension—Requirements, challenges and methods, Philos. Trans. R. Soc. A 380, 20210069 (2022).
  17. L. Homeier, A. Bohrdt, S. Linsel, E. Demler, J. C. Halimeh, and F. Grusdt, Realistic scheme for quantum simulation of Z2 lattice gauge theories with dynamical matter in (2+1)D, Commun. Phys. 6, 127 (2023).
  18. R. Irmejs, M.-C. Bañuls, and J. I. Cirac, Quantum simulation of Z2 lattice gauge theory with minimal resources, Phys. Rev. D 108, 074503 (2023).
  19. F. J. Wegner, Duality in generalized Ising models and phase transitions without local order parameters, J. Math. Phys. 12, 2259 (1971).
  20. A. Kitaev, Fault-tolerant quantum computation by anyons, Ann. Phys. 303, 2 (2003).
  21. F. F. Assaad and T. Grover, Simple fermionic model of deconfined phases and phase transitions, Phys. Rev. X 6, 041049 (2016).
  22. U. Borla, B. Jeevanesan, F. Pollmann, and S. Moroz, Quantum phases of two-dimensional Z2 gauge theory coupled to single-component fermion matter, Phys. Rev. B 105, 075132 (2022).
  23. U. Borla, S. Gazit, and S. Moroz, Deconfined quantum criticality in Ising gauge theory entangled with single-component fermions, Phys. Rev. B 110, L201110 (2024).
  24. C. Chen, T. Yuan, Y. Qi, and Z. Y. Meng, Fermi arcs and pseudogap in a lattice model of a doped orthogonal metal, Phys. Rev. B 103, 165131 (2021).
  25. E. J. König, P. Coleman, and A. M. Tsvelik, Soluble limit and criticality of fermions in Z2 gauge theories, Phys. Rev. B 102, 155143 (2020).
  26. S. Gazit, F. F. Assaad, and S. Sachdev, Fermi surface reconstruction without symmetry breaking, Phys. Rev. X 10, 041057 (2020).
  27. R. Verresen, U. Borla, A. Vishwanath, S. Moroz, and R. Thorngren, Higgs condensates are symmetry-protected topological phases: I. Discrete symmetries, arXiv:2211.01376.
  28. J. Vidal, S. Dusuel, and K. P. Schmidt, Low-energy effective theory of the toric code model in a parallel magnetic field, Phys. Rev. B 79, 033109 (2009).
  29. I. S. Tupitsyn, A. Kitaev, N. V. Prokof'ev, and P. C. E. Stamp, Topological multicritical point in the phase diagram of the toric code model and three-dimensional lattice gauge Higgs model, Phys. Rev. B 82, 085114 (2010).
  30. A. M. Somoza, P. Serna, and A. Nahum, Self-dual criticality in three-dimensional Z2 gauge theory with matter, Phys. Rev. X 11, 041008 (2021).
  31. W.-T. Xu, F. Pollmann, and M. Knap, Critical behavior of the Fredenhagen-Marcu order parameter at topological phase transitions, npj Quantum Inf 11, 74 (2025).
  32. C. Bonati, A. Pelissetto, and E. Vicari, Multicritical point of the three-dimensional Z2 gauge Higgs model, Phys. Rev. B 105, 165138 (2022).
  33. L. Oppenheim, M. Koch-Janusz, S. Gazit, and Z. Ringel, Machine learning the operator content of the critical self-dual Ising-Higgs lattice gauge theory, Phys. Rev. Res. 6, 043322 (2024).
  34. P. Serna, A. M. Somoza, and A. Nahum, Worldsheet patching, 1-form symmetries, and Landau* phase transitions, Phys. Rev. B 110, 115102 (2024).
  35. G. C. Wick, A. S. Wightman, and E. P. Wigner, Superselection rule for charge, Phys. Rev. D 1, 3267 (1970).
  36. N. Feldman, J. Knaute, E. Zohar, and M. Goldstein, Superselection-resolved entanglement in lattice gauge theories: A tensor network approach, J. High Energy Phys. 05 (2024) 083.
  37. T. Senthil and M. P. A. Fisher, Z2 gauge theory of electron fractionalization in strongly correlated systems, Phys. Rev. B 62, 7850 (2000).
  38. R. Moessner, S. L. Sondhi, and E. Fradkin, Short-ranged resonating valence bond physics, quantum dimer models, and Ising gauge theories, Phys. Rev. B 65, 024504 (2001).
  39. R. A. Jalabert and S. Sachdev, Spontaneous alignment of frustrated bonds in an anisotropic, three-dimensional Ising model, Phys. Rev. B 44, 686 (1991).
  40. C.-M. Jian, A. Rasmussen, Y.-Z. You, and C. Xu, Emergent symmetry and tricritical points near the deconfined quantum critical point, arXiv:1708.03050.
  41. T. T. Dumitrescu, P. Niro, and R. Thorngren, From QED3 to self-dual multicriticality in the Fradkin-Shenker model, arXiv:2602.23420.
  42. D. Gaiotto, A. Kapustin, N. Seiberg, and B. Willett, Generalized global symmetries, J. High Energy Phys. 02 (2015) 172.
  43. J. McGreevy, Generalized symmetries in condensed matter, Annu. Rev. Condens. Matter Phys. 14, 57 (2023).
  44. P. Weinberg and M. Bukov, QuSpin: A Python package for dynamics and exact diagonalisation of quantum many body systems. Part II: Bosons, fermions and higher spins, SciPost Phys. 7, 020 (2019).
  45. K. Fredenhagen and M. Marcu, Confinement criterion for QCD with dynamical quarks, Phys. Rev. Lett. 56, 223 (1986).
  46. K. Gregor, D. A. Huse, R. Moessner, and S. L. Sondhi, Diagnosing deconfinement and topological order, New J. Phys. 13, 025009 (2011).
  47. R. Verresen, M. D. Lukin, and A. Vishwanath, Prediction of toric code topological order from Rydberg blockade, Phys. Rev. X 11, 031005 (2021).
  48. S. M. Linsel, L. Pollet, and F. Grusdt, Independent e- and m-anyon confinement in the parallel field toric code on non-square lattices, PRX Quantum 7, 010332 (2026).
  49. S. D. Geraedts and O. I. Motrunich, Exact realization of integer and fractional quantum Hall phases in U(1)×U(1) models in (2+1)d, Ann. Phys. 334, 288 (2013).
  50. G. Carleo and M. Troyer, Solving the quantum many-body problem with artificial neural networks, Science 355, 602 (2017).
  51. H. Lange, A. V. de Walle, A. Abedinnia, and A. Bohrdt, From architectures to applications: A review of neural quantum states, arXiv:2402.09402.
  52. D. S. Kufel, J. Kemp, S. M. Linsel, C. R. Laumann, and N. Y. Yao, Approximately-symmetric neural networks for quantum spin liquids, Phys. Rev. Lett. 135, 056702 (2025).
  53. K. Roy and E. J. König, ZN lattice gauge theories with matter fields, Phys. Rev. B 109, 195108 (2024).
  54. R. Schäfer, C. Chamon, and C. R. Laumann, Hall-on-toricstate: Descendant Laughlin state in the chiral Zp toric code, Phys. Rev. Lett. 136, 166603 (2026).
  55. J. Hauschild, J. Unfried, S. Anand, B. Andrews, M. Bintz, U. Borla, S. Divic, M. Drescher, J. Geiger, M. Hefel, K. Hémery, W. Kadow, J. Kemp, N. Kirchner, V. S. Liu, G. Möller, D. Parker, M. Rader, A. Romen, S. Scalet, et al., Tensor network Python (TeNPy) version 1, SciPost Phys. Codebases 41 (2024).
  56. M. Fishman, S. R. White, and E. M. Stoudenmire, The ITensor software library for tensor network calculations, SciPost Phys. Codebases 4 (2022).
  57. U. Borla, A. De, and S. Gazit, “Odd” Toric Code in a tilted field: Higgs-confinement multicriticality, spontaneous self- duality symmetry breaking, and valence bond solids [Data set], Zenodo, 2025, https://zenodo.org/records/16686366.
