Thermodynamics of analogue black holes in a non-Hermitian tight-binding model

D. F. Munoz-Arboleda1,*, M. Stålhammar1,2, and C. Morais Smith1

  • *Contact author: d.f.munozarboleda@uu.nl
PDF

Phys. Rev. B 113, L081110 – Published 26 February, 2026

DOI: https://doi.org/10.1103/vdsx-r3dq

Abstract

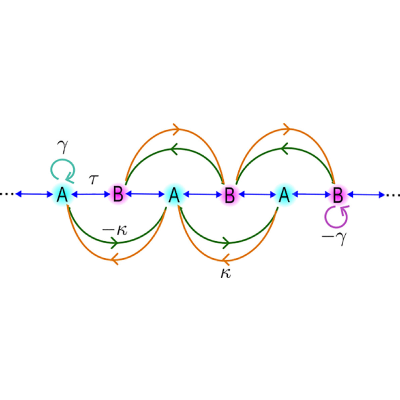

We present a non-Hermitian model with gain/loss and nonreciprocal next-nearest-neighbor hopping that emulates black-hole physics. The model describes a one-dimensional lattice with a smooth connection between regions with distinct hopping parameters. By mapping the system to an effective Schwarzschild metric in the Painlevé-Gullstrand coordinates, we find that the interface is an analogue to a black-hole event horizon. We obtain emission rates for particles and antiparticles, the Hawking temperature, the Bekenstein-Hawking entropy, and the mass of the analogue black hole as a function of the interface sharpness and the system parameters. An experimental realization of the theoretical model is proposed, thus opening the way to the detection of elusive black-hole features.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (46)

  1. S. W. Hawking, Black hole explosions? Nature (London) 248, 30 (1974).
  2. S. W. Hawking, Particle creation by black holes, Commun. Math. Phys. 43, 199 (1975).
  3. S. Chandrasekhar, The maximum mass of ideal white dwarfs, Astrophys. J. 74, 81 (1931).
  4. J. R. Oppenheimer and H. Snyder, On continued gravitational contraction, Phys. Rev. 56, 455 (1939).
  5. R. Abbott, T. D. Abbott, S. Abraham, F. Acernese, K. Ackley, C. Adams, R. X. Adhikari, V. B. Adya, C. Affeldt, M. Agathos, et al., GW190814: Gravitational waves from the coalescence of a 23 solar mass black hole with a 2.6 solar mass compact object, Astrophys. J. Lett. 896, L44 (2020).
  6. B. J. Carr and S. W. Hawking, Black holes in the early universe, Mon. Not. R. Astron. Soc. 168, 399 (1974).
  7. B. J. Carr, S. Clesse, J. García-Bellido, M. R. S. Hawkins, and F. Kühnel, Observational evidence for primordial black holes: A positivist perspective, Phys. Rep. 1054, 1 (2024).
  8. C. Barceló, S. Liberati, and M. Visser, Analogue gravity, Living Rev. Relativ. 14, 3 (2011).
  9. W. G. Unruh, Experimental black-hole evaporation? Phys. Rev. Lett. 46, 1351 (1981).
  10. S. Weinfurtner, E. W. Tedford, M. C. J. Penrice, W. G. Unruh, and G. A. Lawrence, Measurement of stimulated hawking emission in an analogue system, Phys. Rev. Lett. 106, 021302 (2011).
  11. V. Subramanyan, S. S. Hegde, S. Vishveshwara, and B. Bradlyn, Physics of the inverted harmonic oscillator: From the lowest Landau level to event horizons, Ann. Phys. 435, 168470 (2021).
  12. S. Patrick, H. Goodhew, C. Gooding, and S. Weinfurtner, Backreaction in an analogue black hole experiment, Phys. Rev. Lett. 126, 041105 (2021).
  13. J. Steinhauer, Observation of quantum Hawking radiation and its entanglement in an analogue black hole, Nat. Phys. 12, 959 (2016).
  14. S. Longhi, Non-Hermitian Dirac cones, Phys. Rev. Lett. 124, 066602 (2020).
  15. M. Stålhammar, J. Larana-Aragon, L. Rødland, and F. K. Kunst, PT symmetry-protected exceptional cones and analogue Hawking radiation, New J. Phys. 25, 043012 (2023).
  16. P. Painlevé, La mécanique classique et la théorie de la relativité, L'Astronomie 36, 6 (1922).
  17. G. E. Volovik, Simulation of a Panlevé-Gullstrand black hole in a thin 3He−A film, J. Exp. Theor. Phys. Lett. 69, 705 (1999).
  18. M. K. Parikh and F. Wilczek, Hawking radiation as tunneling, Phys. Rev. Lett. 85, 5042 (2000).
  19. Y. Rosenberg, Optical analogues of black-hole horizons, Philos. Trans. R. Soc. A 378, 20190232 (2020).
  20. J. Drori, Y. Rosenberg, D. Bermudez, Y. Silberberg, and U. Leonhardt, Observation of stimulated hawking radiation in an optical analogue, Phys. Rev. Lett. 122, 010404 (2019).
  21. C. M. Bender and S. Boettcher, Real spectra in non-Hermitian Hamiltonians having PT symmetry, Phys. Rev. Lett. 80, 5243 (1998).
  22. E. J. Bergholtz, J. C. Budich, and F. K. Kunst, Exceptional topology of non-Hermitian systems, Rev. Mod. Phys. 93, 015005 (2021).
  23. K. Yang, Z. Li, J. L. K. König, L. Rødland, M. Stålhammar, and E. J. Bergholtz, Homotopy, symmetry, and non-Hermitian band topology, Rep. Prog. Phys. 87, 078002 (2024).
  24. E. Slootman, W. Cherifi, L. Eek, R. Arouca, E. J. Bergholtz, M. Bourennane, and C. M. Smith, Breaking and resurgence of symmetry in the non-Hermitian Su-Schrieffer-Heeger model in photonic waveguides, Phys. Rev. Res. 6, 023140 (2024).
  25. If we expand around zero, we would obtain an extra term 2τ and the calculations lead a Dirac-like operator that gives an exceptional cone with a shift in the momentum and does not change the physics of the system.
  26. A. Montag and F. K. Kunst, Essential implications of similarities in non-Hermitian systems, J. Math. Phys. 65, 122101 (2024).
  27. A. J. S. Hamilton and J. P. Lisle, The river model of black holes, Am. J. Phys. 76, 519 (2008).
  28. G. E. Volovik, Topological Lifshitz transitions, Low Temp. Phys. 43, 47 (2017).
  29. W. Wu, Z. Shi, Y. Du, Y. Wang, F. Qin, X. Meng, B. Liu, Y. Ma, Z. Yan, M. Ozerov, C. Zhang, H.-Z. Lu, J. Chu, and X. Yuan, Topological Lifshitz transition and one-dimensional Weyl mode in HfTe5, Nat. Mater. 22, 84 (2023).
  30. S. M. Carroll, Spacetime and Geometry: An Introduction to General Relativity (Cambridge University Press, Cambridge, UK, 2019).
  31. T. Ortín, Gravity and Strings, Cambridge Monographs on Mathematical Physics (Cambridge University Press, Cambridge, UK, 2004).
  32. G. Volovik and M. Zubkov, Emergent Weyl spinors in multi-fermion systems, Nucl. Phys. B 881, 514 (2014).
  33. P. Hořava, Stability of Fermi surfaces and K theory, Phys. Rev. Lett. 95, 016405 (2005).
  34. G. Lemaitre, The expanding universe, Ann. Soc. Sci. Bruxelles, Ser. A 53, 51 (1997).
  35. L. Vanzo, G. Acquaviva, and R. D. Criscienzo, Tunnelling methods and Hawking's radiation: Achievements and prospects, Class. Quantum Grav. 28, 183001 (2011).
  36. N. D. Birrell and P. C. W. Davies, Quantum Fields in Curved Space (Cambridge University Press, Cambridge, UK, 1982).
  37. R. M. Wald, Quantum Field Theory in Curved Spacetime and Black Hole Thermodynamics (University of Chicago Press, Chicago, 1994).
  38. See Supplemental Material at http://link.aps.org/supplemental/10.1103/vdsx-r3dq for a detailed calculation of the imaginary part of the action.
  39. E. Keski-Vakkuri and P. Kraus, Microcanonical D-branes and back reaction, Nucl. Phys. B 491, 249 (1997).
  40. S. Massar and R. Parentani, How the change in horizon area drives black hole evaporation, Nucl. Phys. B 575, 333 (2000).
  41. J. D. Bekenstein, Black holes and the second law, Lett. Nuovo Cimento 4, 737 (1972).
  42. J. D. Bekenstein, Black holes and entropy, Phys. Rev. D 7, 2333 (1973).
  43. M. Reisenbauer, H. Rudolph, L. Egyed, K. Hornberger, A. V. Zasedatelev, M. Abuzarli, B. A. Stickler, and U. Delić, Non-Hermitian dynamics and non-reciprocity of optically coupled nanoparticles, Nat. Phys. 20, 1629 (2024).
  44. C. H. Lee, S. Imhof, C. Berger, F. Bayer, J. Brehm, L. W. Molenkamp, T. Kiessling, and R. Thomale, Topolectrical Circuits, Commun. Phys. 1, 39 (2018).
  45. D. Halder, R. Thomale, and S. Basu, Circuit realization of a two-orbital non-Hermitian tight-binding chain, Phys. Rev. B 109, 115407 (2024).
  46. M. Brandenbourger, X. Locsin, E. Lerner, and C. Coulais, Non-reciprocal robotic metamaterials, Nat. Commun. 10, 4608 (2019).
