Determination of the magnetic penetration depth from finite-element susceptibility calculations of spheroidal and cylindrical superconductors

M. J. Grant and A. Carrington

PDF

Phys. Rev. B 114, 194507 – Published 13 October, 2026

DOI: https://doi.org/10.1103/rvkn-1sm8

Abstract

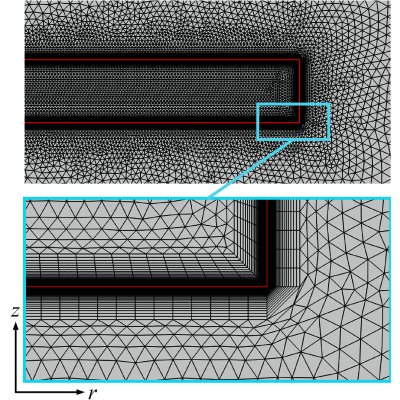

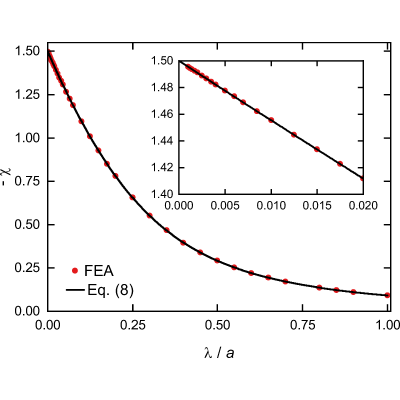

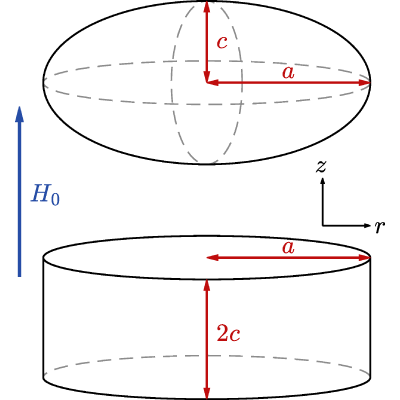

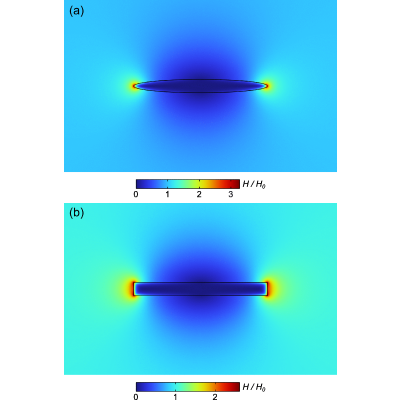

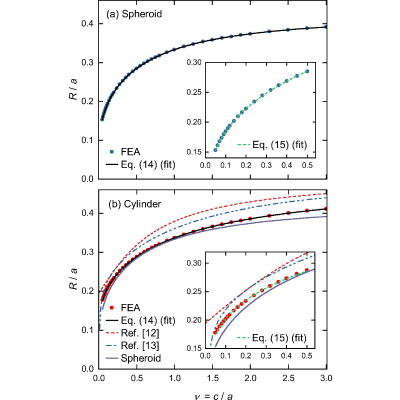

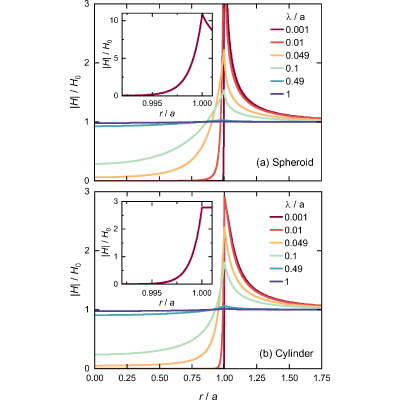

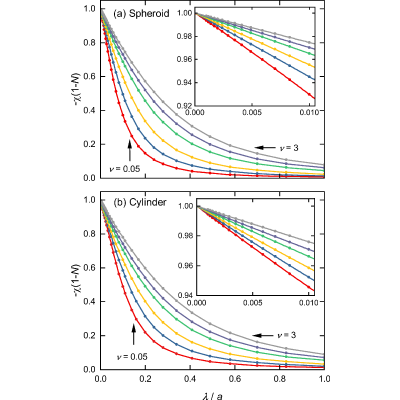

The magnetic penetration depth, λ, is a fundamental parameter of the superconducting state and is commonly determined from precision measurements of the magnetic susceptibility, χ, in the Meissner state. However, extracting λ from such measurements requires an accurate treatment of geometry-dependent demagnetization effects, for which analytic results are only available in a limited number of cases. Here we present a finite-element analysis of the magnetic response of three-dimensional superconducting spheroids and cylinders with finite penetration depth. By calculating the magnetic moment and susceptibility, χ(λ), over a wide range of aspect ratios, we quantify the shape-dependent Meissner response and extract effective demagnetization factors in the λ→0 limit. For small but finite λ, we further determine effective sample dimensions from the initial variation of χ(λ) and propose an improved analytical expression for these. Our results provide a high-precision procedure for determining λ from volume-exclusion based susceptibility measurements and should be directly applicable to the characterization of superconducting materials.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (24)

  1. R. Giannetta, A. Carrington, and R. Prozorov, London penetration depth measurements using tunnel diode resonators, J. Low Temp. Phys. 208, 119 (2022).
  2. J. Osborn, Demagnetizing factors of the general ellipsoid, Phys. Rev. 67, 351 (1945).
  3. L. D. Landau and E. M. Lifshitz, Electrodynamics of Continuous Media, 2nd ed., Course of Theoretical Physics Vol. 8, revised by E. M. Lifshitz and L. P. Pitaevskii, translated by J. B. Sykes, J. S. Bell, and M. J. Kearsley (Elsevier, Oxford, 1984).
  4. R. Joseph and E. Schlömann, Demagnetizing field in nonellipsoidal bodies, J. Appl. Phys. 36, 1579 (1965).
  5. D.-X. Chen, J. A. Brug, and R. B. Goldfarb, Demagnetizing factors for cylinders, IEEE Trans. Magn. 27, 3601 (1991).
  6. A. Aharoni, Demagnetizing factors for rectangular ferromagnetic prisms, J. Appl. Phys. 83, 3432 (1998).
  7. E. Pardo, D.-X. Chen, and A. Sanchez, Demagnetizing factors for completely shielded rectangular prisms, J. Appl. Phys. 96, 5365 (2004).
  8. M. Sato and Y. Ishii, Simple and approximate expressions of demagnetizing factors of uniformly magnetized rectangular rod and cylinder, J. Appl. Phys. 66, 983 (1989).
  9. A. Smith, K. K. Nielsen, D. V. Christensen, C. R. H. Bahl, R. Bjørk, and J. Hattel, The demagnetizing field of a nonuniform rectangular prism, J. Appl. Phys. 107, 103910 (2010).
  10. R. Prozorov and V. G. Kogan, Effective demagnetizing factors of diamagnetic samples of various shapes, Phys. Rev. Applied 10, 014030 (2018).
  11. F. London, Superfluids, Macroscopic Theory of Superconductivity, 2nd ed. (Dover Publications, Inc., New York, 1961), Vol. 1.
  12. R. Prozorov, R. W. Giannetta, A. Carrington, and F. M. Araujo-Moreira, Meissner-London state in superconductors of rectangular cross section in a perpendicular magnetic field, Phys. Rev. B 62, 115 (2000).
  13. R. Prozorov, Meissner-London susceptibility of superconducting right circular cylinders in an axial magnetic field, Phys. Rev. Appl. 16, 024014 (2021).
  14. J. D. Jackson, Classical Electrodynamics, 3rd ed. (Wiley, New York, 1998).
  15. COMSOL Multiphysics Version 5.6. Comsol Multiphysics Reference Manual and AC/DC Module User's Guide, available from https://doc.comsol.com.
  16. R. M. May and M. R. Schafroth, Susceptibility of superconducting spheres, Proc. Phys. Soc. 74, 153 (1959).
  17. E. H. Brandt and G. P. Mikitik, Meissner-London currents in superconductors with rectangular cross section, Phys. Rev. Lett. 85, 4164 (2000).
  18. G. P. Mikitik, Determination of the London penetration depth with the tunnel diode oscillator technique, Phys. Rev. B 111, 024514 (2025).
  19. C. Bidinosti and W. Hardy, High precision ac susceptometer for measuring the temperature and magnetic field dependence of the penetration depth in superconductor single crystals, Rev. Sci. Instrum. 71, 3816 (2000).
  20. F. Gross, B. Chandrasekhar, D. Einzel, K. Andres, P. Hirschfeld, H. Ott, J. Beuers, Z. Fisk, and J. Smith, Anomalous temperature dependence of the magnetic field penetration depth in superconducting UBe13, Z. Phys. B 64, 175 (1986).
  21. W. Huttema, B. Morgan, P. Turner, W. Hardy, X. Zhou, D. Bonn, R. Liang, and D. Broun, Apparatus for high-resolution microwave spectroscopy in strong magnetic fields, Rev. Sci. Instrum. 77, 023901 (2006).
  22. R. Prozorov, R. W. Giannetta, A. Carrington, P. Fournier, R. L. Greene, P. Guptasarma, D. G. Hinks, and A. R. Banks, Measurements of the absolute value of the penetration depth in high-Tc superconductors using a low-Tc superconductive coating, Appl. Phys. Lett. 77, 4202 (2000).
  23. A. Carrington, F. Manzano, R. Prozorov, R. W. Giannetta, N. Kameda, and T. Tamegai, Evidence for surface Andreev bound states in cuprate superconductors from penetration depth measurements, Phys. Rev. Lett. 86, 1074 (2001).
  24. A. Carington and M. Grant, Determination of the magnetic penetration depth from finite-element susceptibility calculations of spheroidal and cylindrical superconductors, https://doi.org/10.5523/bris.mxx4j0d5nz962l61x110js2uf.
