Heterometallic spin-12 quantum magnet under hydrostatic pressure

M. J. Coak1,2, D. Kamenskyi3,4,5, S. P. M. Curley1, B. M. Huddart6,*, J. P. Tidey1, A. Chmeruk7,8, T. Sakurai9, S. Okubo10,†, H. Ohta10,† et al.

S. Kimura11, H. Nojiri11, D. Graf12, S. J. Clark6, Z. E. Manson13, J. L. Manson13,‡, T. Lancaster6, and P. A. Goddard1,§

  • *Present address: Clarendon Laboratory, Department of Physics, University of Oxford, Parks Road, Oxford OX1 3PU, United Kingdom.
  • †Present address: Center for Life Photonic Innovation, Kobe University, Hyogo 657-8501, Kobe, Japan.
  • ‡Deceased.
  • §Contact author: p.goddard@warwick.ac.uk
PDF

Phys. Rev. B 113, 224439 – Published 23 June, 2026

DOI: https://doi.org/10.1103/rlx3-z62s

Abstract

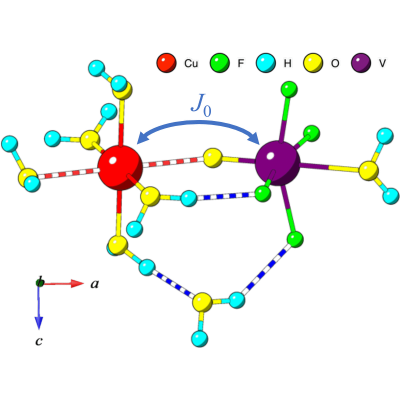

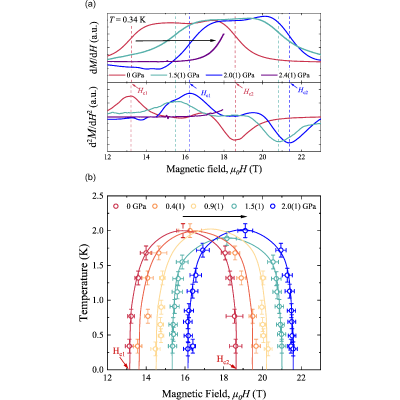

We investigate the properties of CuVOF4(H2O)6·H2O, in which two different spin species, Cu(II) and V(IV), form antiferromagnetic spin-1/2 dimers with weak interdimer coupling provided via hydrogen bonding. Using radio-frequency susceptometry and electron-spin resonance (ESR), we show how the temperature-magnetic field spin-dimer phase diagram evolves as a function of applied hydrostatic pressure and correlate this with pressure-induced changes to the crystal structure. These results, coupled with pressure-tuned DFT calculations, confirm the prior prediction that the primary exchange interaction is mediated via an unusual mechanism in which the V(IV) ions provide considerable spin density to the oxygen that joins the two spins in each dimer and which lies along the Jahn-Teller axis of the Cu(II) ion. In addition, the dissimilarity in the spins that make up each dimer unit leads to a nonlinear field dependence of the electronic energy levels as detected in the ESR measurements.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (39)

  1. D. C. Krakauer, Symmetry–simplicity, broken symmetry–complexity, Interface Focus 13, 20220075 (2023).
  2. L. Canetti, M. Drewes, and M. Shaposhnikov, Matter and antimatter in the universe, New J. Phys. 14, 095012 (2012).
  3. P. W. Higgs, Broken symmetries and the masses of gauge bosons, Phys. Rev. Lett. 13, 508 (1964).
  4. P. Sandars, Chirality in the RNA world and beyond, Int. J. Astrobiol. 4, 49 (2005).
  5. P. W. Anderson, Basic Notions of Condensed Matter Physics, 2nd ed. (Westview Press, 1997).
  6. L. D. Landau, On the theory of phase transitions, Zh. Eksp. Teor. Fiz. 7, 19 (1937).
  7. S. Weinberg, Superconductivity for particular theorists, Prog. Theor. Phys. Suppl. 86, 43 (1986).
  8. V. Zapf, M. Jaime, and C. D. Batista, Bose-Einstein condensation in quantum magnets, Rev. Mod. Phys. 86, 563 (2014).
  9. A. Oosawa, M. Ishii, and H. Tanaka, Field-induced three-dimensional magnetic ordering in the spin-gap system, J. Phys.: Condens. Matter 11, 265 (1999).
  10. C. Rüegg, N. Cavadini, A. Furrer, H.-U. Güdel, K. Krämer, H. Mutka, A. Wildes, K. Habicht, and P. Vorderwisch, Bose–Einstein condensation of the triplet states in the magnetic insulator TlCuCl3, Nature (London) 423, 62 (2003).
  11. M. Jaime, V. F. Correa, N. Harrison, C. D. Batista, N. Kawashima, Y. Kazuma, G. A. Jorge, R. Stern, I. Heinmaa, S. A. Zvyagin, Y. Sasago, and K. Uchinokura, Magnetic-field-induced condensation of triplons in Han Purple pigment BaCuSi2O6, Phys. Rev. Lett. 93, 087203 (2004).
  12. M. J. Coak, S. P. M. Curley, Z. Hawkhead, J. P. Tidey, D. Graf, S. J. Clark, P. Sengupta, Z. E. Manson, T. Lancaster, P. A. Goddard, and J. L. Manson, Asymmetric phase diagram and dimensional crossover in a system of spin-12 dimers under applied hydrostatic pressure, Phys. Rev. B 108, 224431 (2023).
  13. S. P. M. Curley, B. M. Huddart, D. Kamenskyi, M. J. Coak, R. C. Williams, S. Ghannadzadeh, A. Schneider, S. Okubo, T. Sakurai, H. Ohta, J. P. Tidey, D. Graf, S. J. Clark, S. J. Blundell, F. L. Pratt, M. T. F. Telling, T. Lancaster, J. L. Manson, and P. A. Goddard, Anomalous magnetic exchange in a dimerized quantum magnet composed of unlike spin species, Phys. Rev. B 104, 214435 (2021).
  14. M. Matsumoto, T. Shoji, and M. Koga, Theory of magnetic excitations and electron spin resonance for anisotropic spin dimer systems, J. Phys. Soc. Jpn. 77, 074712 (2008).
  15. A. Abragam and B. Bleaney, Electron Paramagnetic Resonance of Transition Ions (Clarendon press, Oxford 1970), p. 509.
  16. S. Klotz, K. Takemura, T. Strässle, and T. Hansen, Freezing of glycerol–water mixtures under pressure, J. Phys.: Condens. Matter 24, 325103 (2012).
  17. S. Klotz, J.-C. Chervin, P. Munsch, and G. Le Marchand, Hydrostatic limits of 11 pressure transmitting media, J. Phys. D 42, 075413 (2009).
  18. H. Ohta, M. Tomoo, S. Okubo, T. Sakurai, M. Fujisawa, T. Tomita, M. Kimata, T. Yamamoto, M. Kawauchi, and K. Kindo, Recent developments of high field ESR systems in Kobe, J. Phys.: Conf. Ser. 51, 611 (2006).
  19. T. Sakurai, A. Taketani, T. Tomita, S. Okubo, H. Ohta, and Y. Uwatoko, Development of high-pressure, high-field and multifrequency electron spin resonance system, Rev. Sci. Instrum. 78, 065107 (2007).
  20. R. Okuto, E. Ohki, T. Sakurai, K. Hijii, H. Takahashi, E. Ohmichi, S. Okubo, H. Ohta, Y. Uwatoko, and H. Tanaka, Development of high-field and high-pressure ESR system and application to triangular antiferromagnet CsCuCl3, Appl. Magn. Res. 50, 1059 (2019).
  21. T. Sakurai, S. Kimura, M. Kimata, H. Nojiri, S. Awaji, S. Okubo, H. Ohta, Y. Uwatoko, K. Kudo, and Y. Koike, Development and application of 2.5 GPa – 25 T high-pressure high-field electron spin resonance system using a cryogen-free superconducting magnet, J. Magn. Reson. 296, 1 (2018).
  22. M. D. Donakowski, R. Gautier, J. Yeon, D. T. Moore, J. C. Nino, P. S. Halasyamani, and K. R. Poeppelmeier, The role of polar, lamdba-shaped building units in noncentrosymmetric inorganic structures, J. Am. Chem. Soc. 134, 7679 (2012).
  23. Y. Wang, M. Fukuda, S. Nikolaev, A. Miyake, K. J. Griffith, M. L. Nisbet, E. Hiralal, R. Gautier, B. L. Fisher, M. Tokunaga, M. Azuma, and K. R. Poeppelmeier, Two distinct Cu(II)–V(IV) superexchange interactions with similar bond angles in a triangular CuV2 fragment, Inorg. Chem. 61, 10234 (2022).
  24. P. A. Goddard, J. Singleton, C. Maitland, S. J. Blundell, T. Lancaster, P. J. Baker, R. D. McDonald, S. Cox, P. Sengupta, J. L. Manson, K. A. Funk, and J. A. Schlueter, Isotope effect in quasi-two-dimensional metal-organic antiferromagnets, Phys. Rev. B 78, 052408 (2008).
  25. G. J. Athas, J. S. Brooks, S. J. Klepper, S. Uji, and M. Tokumoto, Tunnel diode oscillator application to high sensitivity de Haas-van Alphen and superconducting critical field studies of anisotropic organic conductors, Rev. Sci. Instrum. 64, 3248 (1993).
  26. T. Coffey, Z. Bayindir, J. F. DeCarolis, M. Bennett, G. Esper, and C. C. Agosta, Measuring radio frequency properties of materials in pulsed magnetic fields with a tunnel diode oscillator, Rev. Sci. Instrum. 71, 4600 (2000).
  27. R. B. Clover and W. P. Wolf, Magnetic susceptibility measurements with a tunnel diode oscillator, Rev. Sci. Instrum. 41, 617 (1970).
  28. T. Lancaster, P. A. Goddard, S. J. Blundell, F. R. Foronda, S. Ghannadzadeh, J. S. Möller, P. J. Baker, F. L. Pratt, C. Baines, L. Huang, J. Wosnitza, R. D. McDonald, K. A. Modic, J. Singleton, C. V. Topping, T. A. W. Beale, F. Xiao, J. A. Schlueter, A. M. Barton, R. D. Cabrera, et al., Controlling magnetic order and quantum disorder in molecule-based magnets, Phys. Rev. Lett. 112, 207201 (2014).
  29. J. Brambleby, P. A. Goddard, J. Singleton, M. Jaime, T. Lancaster, L. Huang, J. Wosnitza, C. V. Topping, K. E. Carreiro, H. E. Tran, Z. E. Manson, and J. L. Manson, Adiabatic physics of an exchange-coupled spin-dimer system: Magnetocaloric effect, zero-point fluctuations, and possible two-dimensional universal behavior, Phys. Rev. B 95, 024404 (2017).
  30. H. Nojiri, H. Kageyama, Y. Ueda, and M. Motokawa, ESR study on the excited state energy spectrum of SrCu2(BO3)2 – A central role of multiple-triplet bound states, J. Phys. Soc. Jpn. 72, 3243 (2003).
  31. B. Leuenberger, A. Stebler, H. U. Güdel, A. Furrer, R. Feile, and J. K. Kjems, Spin dynamics of an isotropic singlet-ground-state antiferromagnet with alternating strong and weak interactions: An inelastic-neutron-scattering study of the dimer compound Cs3Cr2Br9, Phys. Rev. B 30, 6300 (1984).
  32. M. Kofu, J.-H. Kim, S. Ji, S.-H. Lee, H. Ueda, Y. Qiu, H.-J. Kang, M. A. Green, and Y. Ueda, Weakly coupled S=1/2 quantum spin singlets in Ba3Cr2O8, Phys. Rev. Lett. 102, 037206 (2009).
  33. M. Kofu, H. Ueda, H. Nojiri, Y. Oshima, T. Zenmoto, K. C. Rule, S. Gerischer, B. Lake, C. D. Batista, Y. Ueda, and S. H. Lee, Magnetic-field induced phase transitions in a weakly coupled S=1/2 quantum spin dimer system Ba3Cr2O8, Phys. Rev. Lett. 102, 177204 (2009).
  34. Z. Wang, D. Kamenskyi, O. Cépas, M. Schmidt, D. L. Quintero-Castro, A. T. M. N. Islam, B. Lake, A. A. Aczel, H. A. Dabkowska, A. B. Dabkowski, G. M. Luke, Y. Wan, A. Loidl, M. Ozerov, J. Wosnitza, S. A. Zvyagin, and J. Deisenhofer, High-field electron spin resonance spectroscopy of singlet-triplet transitions in the spin-dimer systems Sr3Cr2O8 and Ba3Cr2O8, Phys. Rev. B 89, 174406 (2014).
  35. D. Kamenskyi, J. Wosnitza, J. Krzystek, A. A. Aczel, H. A. Dabkowska, A. B. Dabkowski, G. M. Luke, and S. A. Zvyagin, High-field ESR studies of the quantum spin dimer system Ba3Cr2O8, J. Low Temp. Phys. 170, 231 (2013).
  36. T. Nomura, Y. Skourski, D. L. Quintero-Castro, A. A. Zvyagin, A. V. Suslov, D. Gorbunov, S. Yasin, J. Wosnitza, K. Kindo, A. T. M. N. Islam, B. Lake, Y. Kohama, S. Zherlitsyn, and M. Jaime, Enhanced spin correlations in the Bose-Einstein condensate compound Sr3Cr2O8, Phys. Rev. B 102, 165144 (2020).
  37. H. Nojiri, H. Kageyama, K. Onizuka, Y. Ueda, and M. Motokawa, Direct observation of the multiple spin gap excitations in two-dimensional dimer system SrCu2(BO3)2, J. Phys. Soc. Jpn. 68, 2906 (1999).
  38. M. Tachiki and T. Yamada, Spin ordering in a spin-pair system, J. Phys. Soc. Jpn. 28, 1413 (1970).
  39. Data featured in this paper are downloadable from the University of Warwick WRAP repository, Item 200652: https://wrap.warwick.ac.uk/200652/.
