Clocking emergent magnetic monopoles in square artificial spin ice

Dheerendra S. Bhandari1,*, Anders Strømberg1, Ida Breivik1, Arthur Penty2, Johannes H. Jensen2, Michael Foerster3, Gunnar Tufte2, and Erik Folven1,†

  • *Contact author: dheerendra.s.bhandari@ntnu.no
  • †Contact author: erik.folven@ntnu.no
PDF

Phys. Rev. B 112, 094428 – Published 16 September, 2025

DOI: https://doi.org/10.1103/qwx8-kkt9

Abstract

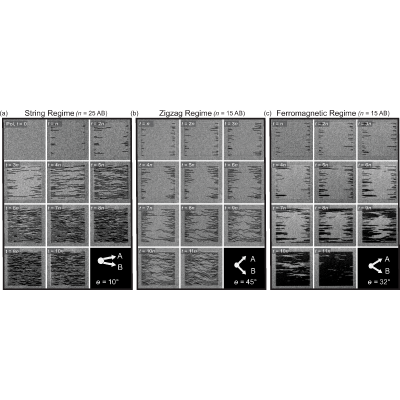

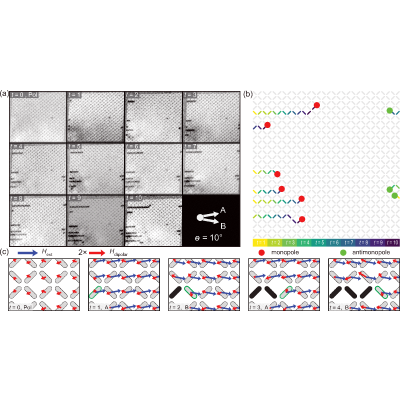

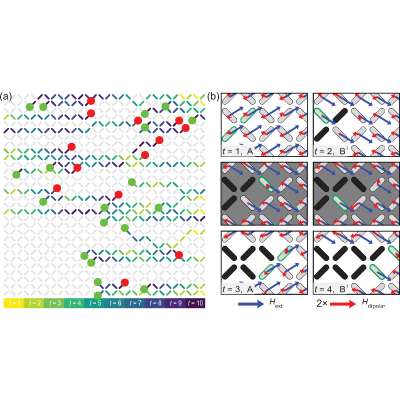

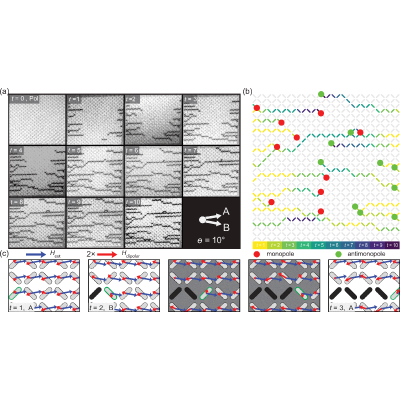

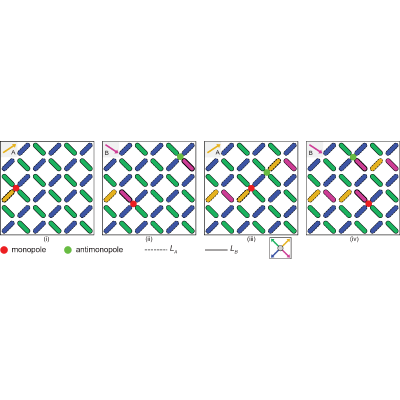

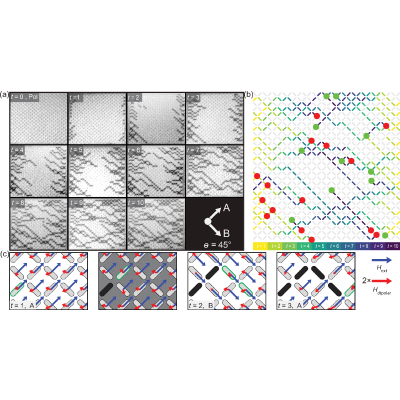

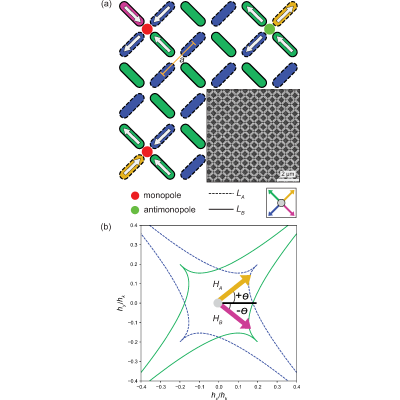

Dipolar-coupled single-domain nanomagnet lattices, known as artificial spin ice (ASI), exhibit geometric frustration, emergence, reconfigurability, and collective magnetization dynamics, making them a promising platform for magnetic logic devices, reconfigurable magnonics, and unconventional computing. One local feature that could serve as an information carrier in such systems is the emergent magnetic monopole. However, applied global magnetic fields often trigger uncontrolled avalanchelike switching of nanomagnets, leading to detrimental loss of encoded information. Microstate control and stepwise monopole motion remain a key challenge. In this work, we explore the nature of monopole motion in square ASI via so-called astroid clocking protocols and demonstrate controlled stepwise propagation. Using x-ray magnetic circular dichroism and magneto-optical Kerr microscopy imaging, we experimentally verify controlled single-step monopole motion in square ASI. We reveal a rich spectrum of emergent monopole pathways referred to as string, zigzag, and ferromagnetic domain regimes. Our finding shows that these pathways of monopole propagation are determined by the angle and strength of the clocking field. This approach offers a higher level of control of emergent magnetic monopole propagation in ASI, with potential applications in data storage and unconventional computing.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (32)

  1. R. F. Wang, C. Nisoli, R. S. Freitas, J. Li, W. McConville, B. J. Cooley, M. S. Lund, N. Samarth, C. Leighton, V. H. Crespi, and P. Schiffer, Artificial “spin ice” in a geometrically frustrated lattice of nanoscale ferromagnetic islands, Nature (London) 439, 303 (2006).
  2. S. H. Skjærvø, C. H. Marrows, R. L. Stamps, and L. J. Heyderman, Advances in artificial spin ice, Nat. Rev. Phys. 2, 13 (2020).
  3. A. May, M. Saccone, A. van den Berg, J. Askey, M. Hunt, and S. Ladak, Magnetic charge propagation upon a 3D artificial spin-ice, Nat. Commun. 12, 3217 (2021).
  4. A. Penty and G. Tufte, A representation of artificial spin ice for evolutionary search, in ALIFE 2021: The 2021 Conference on Artificial Life, Artificial Life Conference Proceedings (MIT Press, Cambridge, MA, 2021), p. 99.
  5. C. Nisoli, R. Moessner, and P. Schiffer, Colloquium: Artificial spin ice: Designing and imaging magnetic frustration, Rev. Mod. Phys. 85, 1473 (2013).
  6. R. Moessner and A. P. Ramirez, Geometrical frustration, Phys. Today 59(2), 24 (2006).
  7. C. Castelnovo, R. Moessner, and S. L. Sondhi, Magnetic monopoles in spin ice, Nature (London) 451, 42 (2008).
  8. S. Ladak, D. E. Read, G. K. Perkins, L. F. Cohen, and W. R. Branford, Direct observation of magnetic monopole defects in an artificial spin-ice system, Nat. Phys. 6, 359 (2010).
  9. E. Mengotti, L. J. Heyderman, A. F. Rodríguez, F. Nolting, R. V. Hügli, and H. B. Braun, Real-space observation of emergent magnetic monopoles and associated Dirac strings in artificial kagome spin ice, Nat. Phys. 7, 68 (2011).
  10. A. Farhan, P. M. Derlet, A. Kleibert, A. Balan, R. V. Chopdekar, M. Wyss, J. Perron, A. Scholl, F. Nolting, and L. J. Heyderman, Direct observation of thermal relaxation in artificial spin ice, Phys. Rev. Lett. 111, 057204 (2013).
  11. S. Gliga, G. Hrkac, C. Donnelly, J. Büchi, A. Kleibert, J. Cui, A. Farhan, E. Kirk, R. V. Chopdekar, Y. Masaki, N. S. Bingham, A. Scholl, R. L. Stamps, and L. J. Heyderman, Emergent dynamic chirality in a thermally driven artificial spin ratchet, Nat. Mater. 16, 1106 (2017).
  12. S. Gliga, E. Iacocca, and O. G. Heinonen, Dynamics of reconfigurable artificial spin ice: Toward magnonic functional materials, APL Mater. 8, 040911 (2020).
  13. S. T. Bramwell, S. R. Giblin, S. Calder, R. Aldus, D. Prabhakaran, and T. Fennell, Measurement of the charge and current of magnetic monopoles in spin ice, Nature (London) 461, 956 (2009).
  14. H. Arava, E. Y. Vedmedenko, J. Cui, J. Vijayakumar, A. Kleibert, and L. J. Heyderman, Control of emergent magnetic monopole currents in artificial spin ice, Phys. Rev. B 102, 144413 (2020).
  15. J. H. Jensen, E. Folven, and G. Tufte, Computation in artificial spin ice, in ALIFE 2018: The 2018 Conference on Artificial Life (MIT Press, Cambridge, MA, 2018), pp. 15–22.
  16. J. C. Gartside, K. D. Stenning, A. Vanstone, H. H. Holder, D. M. Arroo, T. Dion, F. Caravelli, H. Kurebayashi, and W. R. Branford, Reconfigurable training and reservoir computing in an artificial spin-vortex ice via spin-wave fingerprinting, Nat. Nanotechnol. 17, 460 (2022).
  17. J. H. Jensen and G. Tufte, Reservoir computing in artificial spin ice, in ALIFE 2020: The 2020 Conference on Artificial Life, Artificial Life Conference Proceedings (MIT Press, Cambridge, MA, 2020), pp. 376–383.
  18. S. D. Pollard, V. Volkov, and Y. Zhu, Propagation of magnetic charge monopoles and Dirac flux strings in an artificial spin-ice lattice, Phys. Rev. B 85, 180402(R) (2012).
  19. I. Gilbert, G. W. Chern, B. Fore, Y. Lao, S. Zhang, C. Nisoli, and P. Schiffer, Direct visualization of memory effects in artificial spin ice, Phys. Rev. B 92, 104417 (2015).
  20. R. V. Hügli, G. Duff, B. O'Conchuir, E. Mengotti, A. F. Rodríguez, F. Nolting, L. J. Heyderman, and H. B. Braun, Artificial kagome spin ice: Dimensional reduction, avalanche control and emergent magnetic monopoles, Philos. Trans. R. Soc. A 370, 5767 (2012).
  21. N. S. Bingham, S. Rooke, J. Park, A. Simon, W. Zhu, X. Zhang, J. Batley, J. D. Watts, C. Leighton, K. A. Dahmen, and P. Schiffer, Experimental realization of the 1D random field Ising model, Phys. Rev. Lett. 127, 207203 (2021).
  22. A. Farhan, M. Saccone, C. F. Petersen, S. Dhuey, R. V. Chopdekar, Y.-L. Huang, N. Kent, Z. Chen, M. J. Alava, T. Lippert, A. Scholl, and S. van Dijken, Emergent magnetic monopole dynamics in macroscopically degenerate artificial spin ice, Sci. Adv. 5, eaav6380 (2019).
  23. S. A. Morley, J. M. Porro, A. Hrabec, M. C. Rosamond, D. A. Venero, E. H. Linfield, G. Burnell, M. Y. Im, P. Fischer, S. Langridge, and C. H. Marrows, Thermally and field-driven mobility of emergent magnetic charges in square artificial spin ice, Sci. Rep. 9, 15989 (2019).
  24. R. Puttock, I. M. Andersen, C. Gatel, B. Park, M. C. Rosamond, E. Snoeck, and O. Kazakova, Defect-induced monopole injection and manipulation in artificial spin ice, Nat. Commun. 13, 3641 (2022).
  25. J. H. Jensen, A. Strømberg, I. Breivik, A. Penty, M. A. Niño, M. W. Khaliq, M. Foerster, G. Tufte, and E. Folven, Clocked dynamics in artificial spin ice, Nat. Commun. 15, 964 (2024).
  26. D. G. Duarte, L. B. de Oliveira, F. S. Nascimento, W. A. Moura-Melo, A. R. Pereira, and C. I. de Araujo, Magnetic monopole free motion in two-dimensional artificial spin ice, Appl. Phys. Lett. 124, 112413 (2024).
  27. J. C. Gartside, A. Vanstone, T. Dion, K. D. Stenning, D. M. Arroo, H. Kurebayashi, and W. R. Branford, Reconfigurable magnonic mode-hybridisation and spectral control in a bicomponent artificial spin ice, Nat. Commun. 12, 2488 (2021).
  28. Y.-L. Wang, Z.-L. Xiao, A. Snezhko, J. Xu, L. E. Ocola, R. Divan, J. E. Pearson, G. W. Crabtree, and W.-K. Kwok, Rewritable artificial magnetic charge ice, Science 352, 962 (2016).
  29. M. Foerster, J. Prat, V. Massana, N. Gonzalez, A. Fontsere, B. Molas, O. Matilla, E. Pellegrin, and L. Aballe, Custom sample environments at the Alba xpeem, Ultramicroscopy 171, 63 (2016).
  30. J. H. Jensen, A. Strømberg, O. R. Lykkebø, A. Penty, J. Leliaert, M. Själander, E. Folven, and G. Tufte, flatspin: A large-scale artificial spin ice simulator, Phys. Rev. B 106, 064408 (2022).
  31. See Supplemental Material at http://link.aps.org/supplemental/10.1103/qwx8-kkt9 for monopole regimes and microstate control using MOKE, supplemental video V1 and XMCD-PEEM supplemental video V2 of stepwise control of monopole propagation, as well as details for monopole motion in the low field regime for clocking angle θ=45∘ and θ=32∘, and extended 2D ferromagnetic motion at clocking angle θ=32∘ in the high field regime.
  32. D. S. Bhandari, A. Strømberg, I. Breivik, A. Penty, J. H. Jensen, M. Foerster, G. Tufte, and E. Folven, Experimental and simulation data for “clocking emergent magnetic monopoles in square artificial spin ice,” 10.5281/zenodo.16949786 (2025).
