Magnetoelectric initialization of multiferroic Mn2GeO4

Naëmi Leo1,2,*, Jonathan S. White3, Michel Kenzelmann3, Takashi Honda4, Tsuyoshi Kimura5, Dennis Meier6,7,8, and Manfred Fiebig1

  • *Contact author: n.leo@lboro.ac.uk
PDF

Phys. Rev. B 114, 194407 – Published 13 October, 2026

DOI: https://doi.org/10.1103/qcg2-3y34

Abstract

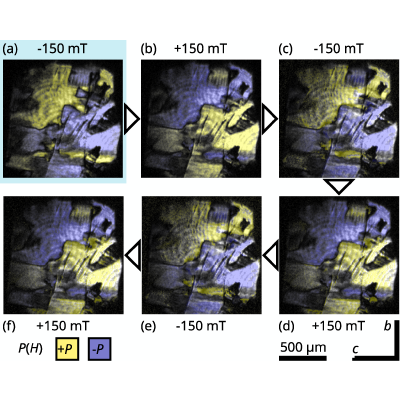

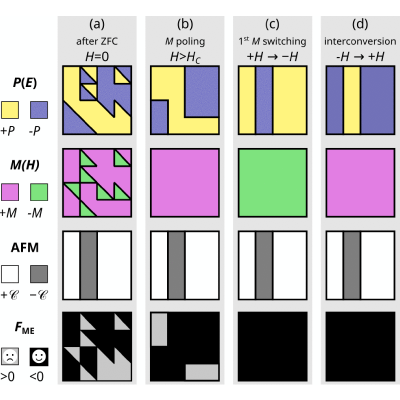

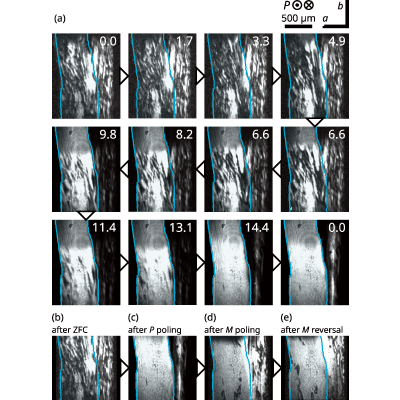

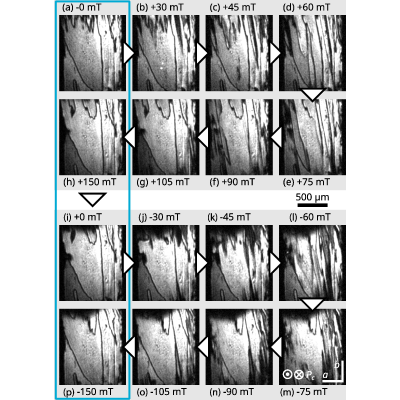

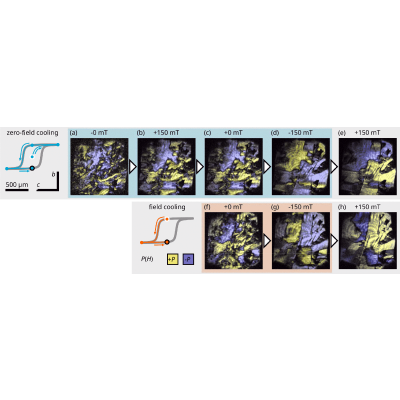

Magnetoelectric multiferroics promise direct cross control between coexisting ferroelectric and ferromagnetic orders, which is of interest for applications in magnetism and spintronics. A particularly interesting type of cross control is found in spin-spiral multiferroic Mn2GeO4, in which a ferroelectric multidomain distribution can be globally inverted by a single magnetic field sweep. In this work we show that this repeatable response is not obtained immediately after entering the multiferroic phase via zero-field coolling. Instead, an initial metastable multidomain state forms in which polarization, magnetization, and antiferromagnetic order do not yet minimize the trilinear magnetoelectric coupling. Using optical second-harmonic generation for ferroelectric domain imaging, we demonstrate that a single field cycle deterministically drives the system from the initial metastable state into an equilibrium domain configuration that shows repeatable domain interconversion. This initialization behavior originates from a deterministic pathway from metastable to equilibrium domain patterns, in contrast to the more common—and less reliable—stochastic domain “training” procedures that require repeated field cycles. Understanding the initial domain evolution thus enables reliable cross control in magnetoelectric devices with highly interlinked order parameters.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. H. Schmid, Multi-ferroic magnetoelectrics, Ferroelectrics 162, 317 (1994).
  2. N. A. Spaldin and M. Fiebig, The renaissance of magnetoelectric multiferroics, Science 309, 391 (2005).
  3. N. A. Spaldin, S.-W. Cheong, and R. Ramesh, Multiferroics: Past, present, and future, Phys. Today 63(10), 38 (2010).
  4. M. Fiebig, T. Lottermoser, D. Meier, and M. Trassin, The evolution of multiferroics, Nat. Rev. Mater. 1, 16046 (2016).
  5. N. A. Spaldin and R. Ramesh, Advances in magnetoelectric multiferroics, Nat. Mater. 18, 203 (2019).
  6. M. Fiebig, Revival of the magnetoelectric effect, J. Phys. D 38, R123 (2005).
  7. W. Eerenstein, N. D. Marthur, and J. F. Scott, Multiferroic and magnetoelectric materials, Nature (London) 442, 759 (2006).
  8. D. Zhou, J. Xu, Q. Li, Y. Guan, F. Cao, X. Dong, J. Müller, T. Schenk, and U. Schröder, Wake-up effects in Si-doped hafnium oxide ferroelectric thin films, Appl. Phys. Lett. 103, 192904 (2013).
  9. G. De Luca, P. Schoenherr, J. Mendil, D. Meier, M. Fiebig, and M. Trassin, Domain-pattern transfer across an artificial magnetoelectric interface, Phys. Rev. Appl. 10, 054030 (2018).
  10. M. Müller, Y.-L. Huang, S. Vélez, R. Ramesh, M. Fiebig, and M. Trassin, Training the polarization in integrated La0.15Bi0.85FeO3-based devices, Adv. Mater. 33, 2104688 (2021).
  11. B. Saini, F. Huang, Y. Choi, Z. Yu, J. Baniecki, V. Thampy, W. Tsai, and P. McIntyre, Mechanism of polarization “wake-up” in ferroelectric hafnia-zirconia thin films, Solid-State Electron. 208, 108714 (2023).
  12. S.-W. Cheong and M. Mostovoy, Multiferroics: A magnetic twist for ferroelectricity, Nat. Mater. 6, 13 (2007).
  13. K. Wang, J.-M. Liu, and Z. Ren, Multiferroicity: The coupling between magnetic and polarization orders, Adv. Phys. 58, 321 (2009).
  14. T.-H. Arima, Spin-driven ferroelectricity and magneto-electric effects in frustrated magnetic systems, J. Phys. Soc. Jpn. 80, 052001 (2011).
  15. J. S. White, T. Honda, K. Kimura, T. Kimura, C. Niedermayer, O. Zaharko, A. Poole, B. Roessli, and M. Kenzelmann, Coupling of magnetic and ferroelectric hysteresis by a multicomponent magnetic structure in Mn2GeO4, Phys. Rev. Lett. 108, 077204 (2012).
  16. T. Honda, Y. Ishiguro, H. Nakamura, Y. Wakabayashi, and T. Kimura, Structure and magnetic phase diagrams of multiferroic Mn2GeO4, J. Phys. Soc. Jpn. 81, 103703 (2012).
  17. T. Honda, T. Aoyama, J. S. White, T. Strässle, L. Keller, M. Kenzelmann, F. Honda, A. Miyake, K. Shimizu, Y. Wakabayashi, and T. Kimura, Pressure effect on magnetism and multiferroicity in Mn2GeO4, Phys. Rev. B 89, 104405 (2014).
  18. T. Honda, J. S. White, A. B. Harris, L. C. Chapon, A. Fennell, B. Roessli, O. Zaharko, Y. Murakami, M. Kenzelmann, and T. Kimura, Coupled multiferroic domain switching in the canted conical spin spiral system Mn2GeO4, Nat. Commun. 8, 15457 (2017).
  19. N. Leo, V. Carolus, J. S. White, M. Kenzelmann, M. Hudl, P. Tolédano, T. Honda, T. Kimura, S. A. Ivanov, M. Weil, T. Lottermoser, D. Meier, and M. Fiebig, Magnetoelectric inversion of domain patterns, Nature (London) 560, 466 (2018).
  20. J. G. Creer and G. J. F. Troup, The crystal and magnetic structures of Mn2GeO4, Solid State Commun. 8, 1183 (1970).
  21. R. G. Burns, Mineralogical applications of crystal field theory, in Mineralogical Applications of Crystal Field Theory (Cambridge University Press, Cambridge, 1993).
  22. N. Volkov, N. Mikhashenok, K. Sablina, O. Bayukov, M. Gorev, A. Balaev, A. Pankrats, V. Tugarinov, D. Velikanov, M. Molokeev, and S. Popkov, Magnetic phase diagram of the olivine-type Mn2GeO4 single crystal estimated from magnetic, resonance and thermodynamic properties, J. Phys.: Condens. Matter 25, 136003 (2013).
  23. A. B. Harris, Identifying Landau order parameters and their transformation properties for complex multiferroics: The case of Mn2GeO4, Phys. Rev. B 96, 054422 (2017).
  24. Y. Tokunaga, Y. Kaneko, D. Okuyama, S. Ishiwata, T. Arima, S. Wakimoto, K. Kakurai, Y. Taguchi, and Y. Tokura, Multiferroic M-type hexaferrites with a room-temperature conical state and magnetically controllable spin helicity, Phys. Rev. Lett. 105, 257201 (2010).
  25. M. Fiebig, V. V. Pavlov, and R. V. Pisarev, Second-harmonic generation as a tool for studying electronic and magnetic crystals: Review, J. Opt. Soc. Am. B 22, 96 (2005).
  26. Y. Tanabe and S. Sugano, On the absorption spectra of complex ions II, J. Phys. Soc. Jpn. 9, 766 (1954).
  27. P. Manning, Racah parameters and their relationship to length and covalencies of Mn2+- and Fe3+-oxygen bonds in silicates, Mineral. Assoc. Can. 10, 677 (1970).
  28. P. Pershan, Nonlinear optical properties of solids: Energy considerations, Phys. Rev. 130, 919 (1963).
  29. R. Birss, Symmetry and Magnetism (North-Holland, Amsterdam, 1966).
  30. S. A. Denev, T. T. Lummen, E. Barnes, A. Kumar, and V. Gopalan, Probing ferroelectrics using optical second harmonic generation, J. Am. Ceram. Soc. 94, 2699 (2011).
  31. D. Meier, M. Maringer, T. Lottermoser, P. Becker, L. Bohatý, and M. Fiebig, Observation and coupling of domains in a spin-spiral multiferroic, Phys. Rev. Lett. 102, 107202 (2009).
  32. L. N. Bulaevskii, C. D. Batista, M. V. Mostovoy, and D. I. Khomskii, Electronic orbital currents and polarization in Mott insulators, Phys. Rev. B 78, 024402 (2008).
  33. J. Ferguson and P. E. Fielding, The origins of the colours of natural yellow, blue, and green sapphires, Aust. J. Chem. 25, 1371 (1972).
  34. Y. Yamasaki, S. Miyasaka, Y. Kaneko, J.-P. He, T. Arima, and Y. Tokura, Magnetic reversal of the ferroelectric polarization in a multiferroic spinel oxide, Phys. Rev. Lett. 96, 207204 (2006).
  35. Y. Tokunaga, N. Furukawa, H. Sakai, Y. Taguchi, T.-h. Arima, and Y. Tokura, Composite domain walls in a multiferroic perovskite ferrite, Nat. Mater. 8, 558 (2009).
  36. E. Hassanpour, M. C. Weber, Y. Zemp, L. Kuerten, A. Bortis, Y. Tokunaga, Y. Taguchi, Y. Tokura, A. Cano, T. Lottermoser, and M. Fiebig, Interconversion of multiferroic domains and domain walls, Nat. Commun. 12, 2755 (2021).
  37. S. H. Chun, Y. S. Chai, B.-G. Jeon, H. J. Kim, Y. S. Oh, I. Kim, H. Kim, B. J. Jeon, S. Y. Haam, J.-Y. Park, S. H. Lee, J.-H. Chung, J.-H. Park, and K. H. Kim, Electric field control of nonvolatile four-state magnetization at room temperature, Phys. Rev. Lett. 108, 177201 (2012).
  38. F. P. Chmiel, D. Prabhakaran, P. Steadman, J. Chen, R. Fan, R. D. Johnson, and P. G. Radaelli, Magnetoelectric domains and their switching mechanism in a Y-type hexaferrite, Phys. Rev. B 100, 104411 (2019).
  39. H. Ueda, Y. Tanaka, Y. Wakabayashi, and T. Kimura, Insights into magnetoelectric coupling mechanism of the room-temperature multiferroic Sr3Co2Fe24O41 from domain observation, Phys. Rev. B 100, 094444 (2019).
  40. N. Strkalj, E. Gradauskaite, J. Nordlander, and M. Trassin, Design and manipulation of ferroic domains in complex oxide heterostructures, Materials 12, 3108 (2019).
  41. J. K. H. Fischer, H. Ueda, and T. Kimura, Domain switching and exchange bias control by electric field in the multiferroic conical magnet Mn2GeO4, Phys. Rev. B 102, 054412 (2020).
  42. N. Leo, Data repository for “Magnetoelectric initialisation of multiferroic Mn2GeO4,” [Dataset] Zenodo, 2026, https://doi.org/10.5281/zenodo.21501545.
