Lattice field theory analysis of the chiral Heisenberg model

Simon Hands1 and Johann Ostmeyer2,*

  • *Contact author: ostmeyer@hiskp.uni-bonn.de
PDF

Phys. Rev. B 114, 125102 – Published 5 August, 2026

DOI: https://doi.org/10.1103/pndw-743y

Abstract

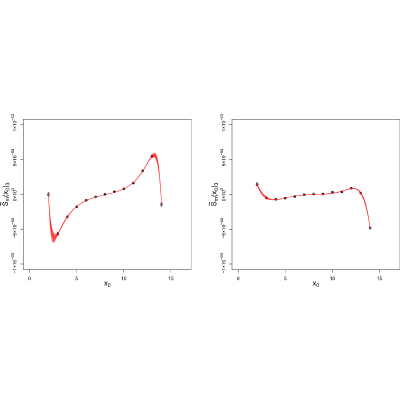

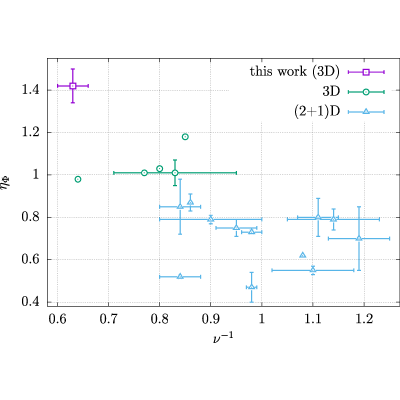

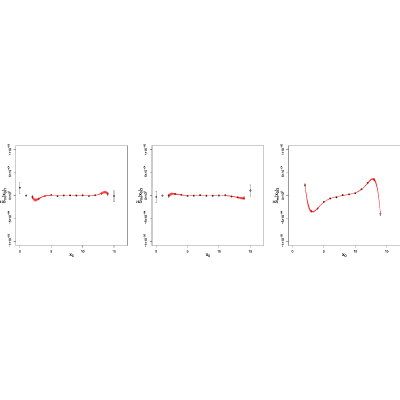

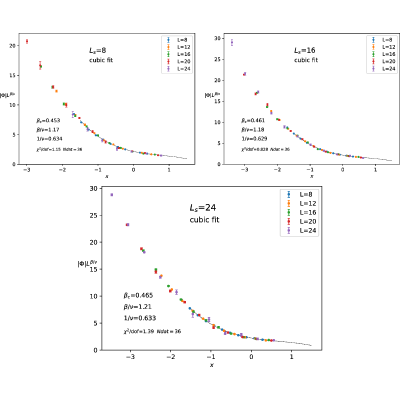

Motivated by ongoing interest in the universal behavior of the Hubbard model of spinning electrons on honeycomb and π-flux lattices at the semimetal–Mott insulator phase transition, we formulate the three-dimensional (3D) chiral Heisenberg model, a theory of relativistic fermions in three spacetime dimensions, as a lattice field theory using domain wall fermions. The contact interaction term preserves an SU(2) global symmetry. We perform numerical simulations using the rational hybrid Monte Carlo algorithm on system sizes L3×Ls, with L∈{8,...,24} and domain wall separation Ls∈{8,16,24}. We locate the phase transition corresponding to spontaneous SU(2)→U(1) breaking, yielding critical exponent estimates ν−1=0.63(3) and ηΦ=1.42(8). These values are considerably removed from estimates obtained from simulations performed in (2+1)D, i.e., with the time and spatial directions treated differently, but align more closely with analytic estimates obtained using 3D covariant field theory. We also present results for the fermion correlator, ultimately needed for the determination of the exponent ηΨ, highlighting the need to rotate the fermion source to a common reference direction in isospace to obtain a signal.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. F. Parisen Toldin, M. Hohenadler, F. F. Assaad, and I. F. Herbut, Fermionic quantum criticality in honeycomb and π-flux Hubbard models: Finite-size scaling of renormalization-group-invariant observables from quantum Monte Carlo, Phys. Rev. B 91, 165108 (2015).
  2. Y. Otsuka, S. Yunoki, and S. Sorella, Universal quantum criticality in the metal-insulator transition of two-dimensional interacting Dirac electrons, Phys. Rev. X 6, 011029 (2016).
  3. Y. Liu, Z. Wang, T. Sato, M. Hohenadler, C. Wang, W. Guo, and F. F. Assaad, Superconductivity from the condensation of topological defects in a quantum spin-Hall insulator, Nat. Commun. 10, 2658 (2019).
  4. Y. Otsuka, K. Seki, S. Sorella, and S. Yunoki, Dirac electrons in the square-lattice Hubbard model with a d-wave pairing field: The chiral Heisenberg universality class revisited, Phys. Rev. B 102, 235105 (2020).
  5. X. Y. Xu and T. Grover, Competing nodal d-wave superconductivity and antiferromagnetism, Phys. Rev. Lett. 126, 217002 (2021).
  6. Y. Liu, Z. Wang, T. Sato, W. Guo, and F. F. Assaad, Gross-Neveu Heisenberg criticality: Dynamical generation of quantum spin Hall masses, Phys. Rev. B 104, 035107 (2021).
  7. F.-H. Wang, F. Sun, C. He, and X. Y. Xu, Resolving quantum criticality in the honeycomb Hubbard model, arXiv:2602.03656.
  8. J. Ostmeyer, E. Berkowitz, S. Krieg, T. A. Lähde, T. Luu, and C. Urbach, Semimetal–Mott insulator quantum phase transition of the Hubbard model on the honeycomb lattice, Phys. Rev. B 102, 245105 (2020).
  9. J. Ostmeyer, E. Berkowitz, S. Krieg, T. A. Lähde, T. Luu, and C. Urbach, Antiferromagnetic character of the quantum phase transition in the Hubbard model on the honeycomb lattice, Phys. Rev. B 104, 155142 (2021).
  10. P. Buividovich, D. Smith, M. Ulybyshev, and L. von Smekal, Hybrid-Monte-Carlo study of competing order in the extended fermionic Hubbard model on the hexagonal lattice, Phys. Rev. B 98, 235129 (2018).
  11. P. Buividovich, D. Smith, M. Ulybyshev, and L. von Smekal, Numerical evidence of conformal phase transition in graphene with long-range interactions, Phys. Rev. B 99, 205434 (2019).
  12. T. C. Lang and A. M. Läuchli, Quantum Monte Carlo simulation of the chiral Heisenberg Gross-Neveu-Yukawa phase transition with a single Dirac cone, Phys. Rev. Lett. 123, 137602 (2019).
  13. T. C. Lang and A. M. Läuchli, Chiral Heisenberg Gross-Neveu-Yukawa criticality: Honeycomb versus SLAC fermions, Phys. Rev. B 112, 245121 (2025).
  14. J. Biedermann and L. Janssen, Dirac quantum criticality in twisted double bilayer transition metal dichalcogenides, Phys. Rev. B 113, 245123 (2026).
  15. B. Hawashin, J. Kleeschulte, D. Kurz, A. Al-Eryani, and M. M. Scherer, Relativistic Mott transition and high-order van Hove singularity in twisted double bilayer WSe2: Mean-field and functional renormalization group study, arXiv:2509.09398.
  16. L. Ma, R. Chaturvedi, P. X. Nguyen, K. Watanabe, T. Taniguchi, K. F. Mak, and J. Shan, Relativistic Mott transition in twisted WSe2 tetralayers, Nat. Mater. 24, 1935 (2025).
  17. K. Ladovrechis, S. Ray, T. Meng, and L. Janssen, Gross-Neveu-Heisenberg criticality from 2+ɛ expansion, Phys. Rev. B 107, 035151 (2023).
  18. M. S. Mitchell and D. Poland, Classifying GNY-like models, J. High Energ. Phys. 05 (2026) 150.
  19. N. Zerf, L. N. Mihaila, P. Marquard, I. F. Herbut, and M. M. Scherer, Four-loop critical exponents for the Gross-Neveu-Yukawa models, Phys. Rev. D 96, 096010 (2017).
  20. J. A. Gracey, Large N critical exponents for the chiral Heisenberg Gross-Neveu universality class, Phys. Rev. D 97, 105009 (2018).
  21. L. Janssen and I. F. Herbut, Antiferromagnetic critical point on graphene's honeycomb lattice: A functional renormalization group approach, Phys. Rev. B 89, 205403 (2014) [Addendum: Phys. Rev. B 102, 199902 (2020)].
  22. B. Knorr, Critical chiral Heisenberg model with the functional renormalization group, Phys. Rev. B 97, 075129 (2018).
  23. S. Hands, Domain wall fermions for planar physics, J. High Energy Phys. 09 (2015) 047.
  24. S. Hands, From domain wall to overlap in 2 + 1d, Phys. Lett. B 754, 264 (2016).
  25. P. H. Ginsparg and K. G. Wilson, A remnant of chiral symmetry on the lattice, Phys. Rev. D 25, 2649 (1982).
  26. P. Vranas, I. Tziligakis, and J. B. Kogut, Fermion scalar interactions with domain wall fermions, Phys. Rev. D 62, 054507 (2000).
  27. S. Hands, Towards critical physics in 2+1d with U(2N)-invariant fermions, J. High Energy Phys. 11 (2016) 015.
  28. S. Hands, Critical flavor number in the 2+1D Thirring model, Phys. Rev. D 99, 034504 (2019).
  29. S. Hands, M. Mesiti, and J. Worthy, Critical behavior in the single flavor Thirring model in 2+1D, Phys. Rev. D 102, 094502 (2020).
  30. S. Hands and J. Worthy, Critical behavior in the single flavor Thirring model in (2+1)D with Wilson kernel domain wall fermions, Phys. Rev. D 111, 094501 (2025).
  31. A. D. Kennedy, I. Horvath, and S. Sint, A new exact method for dynamical fermion computations with nonlocal actions, Nucl. Phys. B Proc. Suppl. 73, 834 (1999).
  32. S. Hands and J. Ostmeyer, Spectroscopy in the 2+1D Thirring model with N=1 domain wall fermions, Phys. Rev. D 107, 014504 (2023).
  33. J. Ostmeyer and C. Urbach, The truncated Hankel correlator method, arXiv:2510.15500.
  34. The Ls→∞ limit in GN and Thirring models is best achieved using bilinear order parameters of the form ψ¯iγ3ψ. Here, the scalar density ϕ⃗∝ψ¯(1⊗τ⃗)ψ is just as effective; the essential requirement is the tracelessness of the kernel [24].
  35. R. Blankenbecler, D. J. Scalapino, and R. L. Sugar, Monte Carlo calculations of coupled boson-fermion systems. I, Phys. Rev. D 24, 2278 (1981).
  36. S. Duane, A. D. Kennedy, B. J. Pendleton, and D. Roweth, Hybrid Monte Carlo, Phys. Lett. B 195, 216 (1987).
  37. J. Ostmeyer, “The physicist's guide to the HMC”, in 41st International Symposium on Lattice Field Theory PoS LATTICE2024, 028 (2025).
  38. B. Kostrzewa, J. Ostmeyer, M. Ueding, C. Urbach, N. Schlage, M. Werner, F. Pittler, M. Fischer, and V. Lubicz, HADRON: R package for statistical methods to extract (hadronic) quantities from correlation functions in Monte Carlo simulations (version 3.1.0) [Computer software], Zenodo, 2025, https://doi.org/10.5281/zenodo.17375156; https://github.com/HISKP-LQCD/hadron.
  39. www.dirac.ac.uk.
  40. S. Hands and J. Ostmeyer, Chiral Heisenberg model with domain wall fermions, doi:10.17638/datacat.liverpool.ac.uk/3076 (2026).
  41. J. Ostmeyer, COMP-AVG: Compare averages of time series and more, (Version v2.2.1) [Computer software], Zenodo, 2024, https://doi.org/10.5281/zenodo.13479395.
  42. S. Hands and J. Ostmeyer, j-ostmeyer/chiralheisenberg: Chiral Heisenberg with domain wall fermions, Zenodo, 2026, https://doi.org/10.5281/zenodo.19262097; https://github.com/j-ostmeyer/chiralHeisenberg.
  43. R Core Team, R: A language and environment for statistical computing [Computer software], (2020), https://www.r-project.org/.
