Magnetic structure and crystal field states of the heavy fermion system YbPt5B2

Leonid Salamakha1,2, Oksana Sologub1, Herwig Michor1, Dmitry Khalyavin3, Manh Duc Le3, Devashibhai T. Adroja3, and Ernst Bauer1,*

  • *Contact author: bauer@ifp.tuwien.ac.at
PDF

Phys. Rev. B 112, 094453 – Published 26 September, 2025

DOI: https://doi.org/10.1103/pj8b-d5h9

Abstract

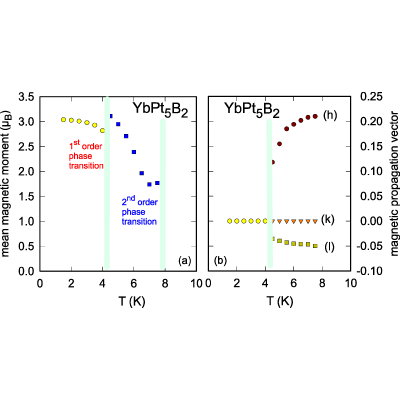

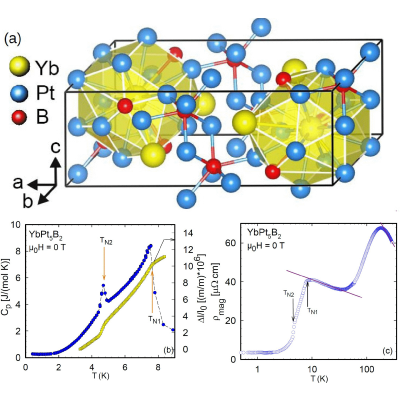

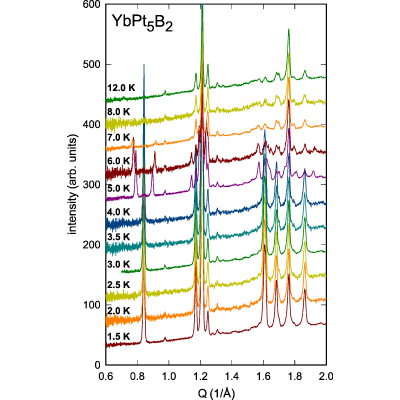

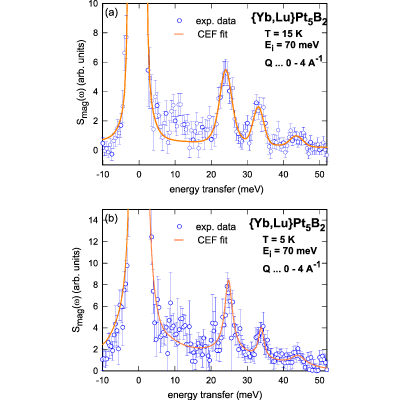

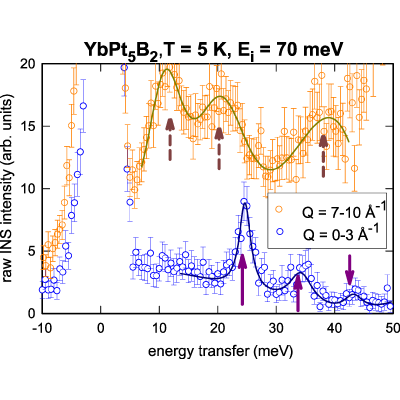

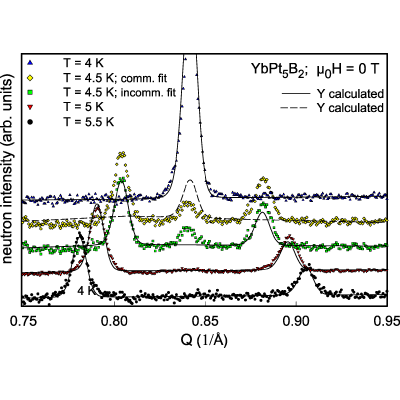

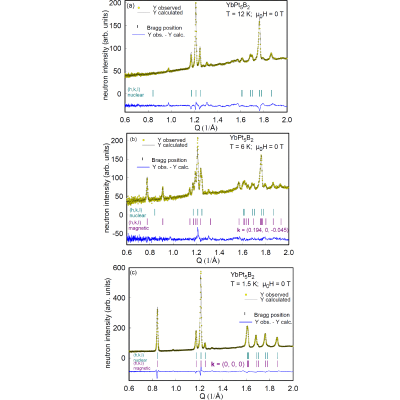

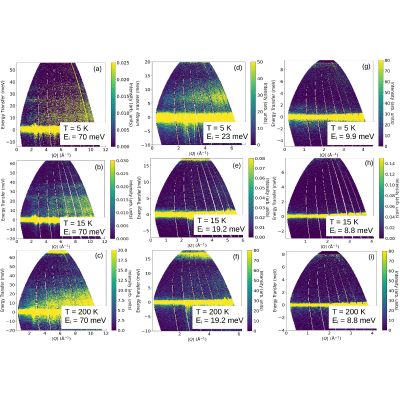

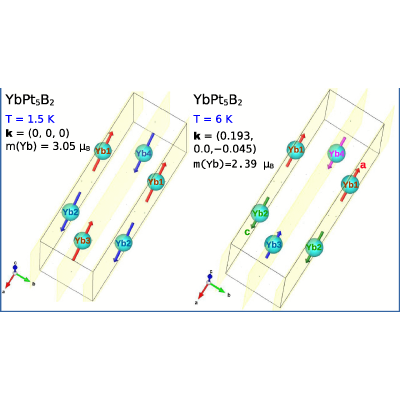

Monoclinic compounds YbPt5B2 and LuPt5B2 [space group C2/m (No. 12), own structure type] have been studied by means of elastic and inelastic neutron scattering experiments. The heavy fermion system YbPt5B2 orders antiferromagnetically below TN1=7.8K and exhibits an incommensurate magnetic structure with a temperature-dependent propagation vector, k⃗1=(0.194,0,−0.045;T=6K). Below TN2=4.7K, a transition into a commensurate structure, k⃗2=(0,0,0), takes place. The transition at TN2 turns out to be of first order, as obvious from commensurate and incommensurate contributions to the magnetic moments around T=TN2. Rather large Yb moments, m(Yb)>3μB, yet reduced due to the Kondo effect, were obtained as a result of the splitting of the Yb3+ eightfold-degenerate ground state into four doublets, owing to crystalline electric field (CEF) effects. Such unusually large moments in Yb systems can be explained only by an appropriate wave function ∑i=−7/2i=7/2±αi|i/2〉, ∑iαi2=1, constituting the CEF ground state doublet, which indeed was concluded from the present inelastic neutron data, considering the crystalline electric field theory. The overall CEF splitting is on the order of 44 meV, while the first excited level is located ≈25 meV above the ground state.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (43)

  1. J. Remeika, G. Espinosa, A. Cooper, H. Barz, J. Rowell, D. McWhan, J. Vandenberg, D. Moncton, Z. Fisk, L. Woolf, H. Hamaker, M. Maple, G. Shirane, and W. Thomlinson, A new family of ternary intermetallic superconducting/magnetic stannides, Solid State Commun. 34, 923 (1980).
  2. S. Nakatsuji, K. Kuga, Y. Machida, T. Tayama, T. Sakakibara, Y. Karaki, H. Ishimoto, S. Yonezawa, Y. Maeno, E. Pearson, G. G. Lonzarich, L. Balicas, H. Lee, and Z. Fisk, Superconductivity and quantum criticality in the heavy-fermion system β−YbAlB4, Nat. Phys. 4, 603 (2008).
  3. E. Schuberth, M. Tippmann, L. Steinke, S. Lausberg, A. Steppke, M. Brando, C. Krellner, C. Geibel, R. Yu, Q. Si, and F. Steglich, Emergence of superconductivity in the canonical heavy-electron metal YbRh2Si2, Science 351, 485 (2016).
  4. E. Bauer, E. Gratz, R. Hauser, L. Tuan, A. Galatanu, A. Kottar, H. Michor, W. Perthold, G. Hilscher, T. Kagayama, G. Oomi, N. Ichimiya, and S. Endo, Pressure- and field-dependent behavior of YbCu4Au, Phys. Rev. B 50, 9300 (1994).
  5. C. Rossel, K. N. Yang, M. B. Maple, Z. Fisk, E. Zirngiebl, and J. D. Thompson, Strong electronic correlations in a new class of Yb-based compounds: YbXCu4 (X = Ag,Au,Pd), Phys. Rev. B 35, 1914 (1987).
  6. P. Gegenwart, J. Custers, C. Geibel, K. Neumaier, T. Tayama, K. Tenya, O. Trovarelli, and F. Steglich, Magnetic-field induced quantum critical point in YbRh2Si2, Phys. Rev. Lett. 89, 056402 (2002).
  7. J. Custers, P. Gegenwart, H. Wilhelm, K. Neumaier, Y. Tokiwa, O. Trovarelli, C. Geibel, F. Steglich, C. Pépin, and P. Coleman, The break-up of heavy electrons at a quantum critical point, Nature (London) 424, 524 (2003).
  8. D. M. Rowe, V. L. Kuznetsov, L. A. Kuznetsova, and G. Min, Electrical and thermal transport properties of intermediate-valence YbAl3, J. Phys. D 35, 2183 (2002).
  9. E. Bauer, R. Hauser, L. Keller, P. Fischer, O. Trovarelli, J. G. Sereni, J. J. Rieger, and G. R. Stewart, Onset of magnetic order in YbCu5−xAlx, Phys. Rev. B 56, 711 (1997).
  10. E. Bauer, R. Hauser, E. Gratz, K. Payer, G. Oomi, and T. Kagayama, Pressure dependence of the electrical resistivity of YbCu4Ag, Phys. Rev. B 48, 15873 (1993).
  11. I. Felner, I. Nowik, D. Vaknin, U. Potzel, J. Moser, G. M. Kalvius, G. Wortmann, G. Schmiester, G. Hilscher, E. Gratz, C. Schmitzer, N. Pillmayr, K. G. Prasad, H. de Waard, and H. Pinto, Ytterbium valence phase transition in YbxIn1−xCu2, Phys. Rev. B 35, 6956 (1987).
  12. M. A. Ruderman and C. Kittel, Indirect exchange coupling of nuclear magnetic moments by conduction electrons, Phys. Rev. 96, 99 (1954).
  13. T. Kasuya, A theory of metallic ferro- and antiferromagnetism on Zener's model, Prog. Theor. Phys. 16, 45 (1956).
  14. K. Yosida, Magnetic properties of Cu-Mn alloys, Phys. Rev. 106, 893 (1957).
  15. J. Kondo, Resistance minimum in dilute magnetic alloys, Prog. Theor. Phys. 32, 37 (1964).
  16. D. Newman, Theory of lanthanide crystal fields, Adv. Phys. 20, 197 (1971).
  17. A. Yaouanc, P. Dalmas de Réotier, J.-P. Sanchez, T. Tschentscher, and P. Lejay, CeRh3B2: A ferromagnet with anomalously large Ce 5d spin and orbital magnetic moments, Phys. Rev. B 57, R681 (1998).
  18. S.-i. Kimura, T. Iizuka, H. Miyazaki, A. Irizawa, Y. Muro, and T. Takabatake, Electronic-structure-driven magnetic ordering in a Kondo semiconductor CeOs2Al10, Phys. Rev. Lett. 106, 056404 (2011).
  19. P. Fischer, G. Meier, B. Lebech, B. D. Rainford, and O. Vogt, Magnetic phase transitions of CeSb. I. Zero applied magnetic field, J. Phys. C 11, 345 (1978).
  20. A. Thamizhavel, T. Takeuchi, T. D Matsuda, Y. Haga, K. Sugiyama, R. Settai, and Y. Ōnuki, Unique magnetic phases in an antiferromagnet CeCoGe3, J. Phys. Soc. Jpn. 74, 1858 (2005).
  21. E. Morosan, S. Bud'ko, P. Canfield, M. Torikachvili, and A. Lacerda, Thermodynamic and transport properties of RAgGe (R = Tb–Lu) single crystals, J. Magn. Magn. Mater. 277, 298 (2004).
  22. J. Thompson, P. Canfield, A. Lacerda, M. Hundley, Z. Fisk, H.-R. Ott, E. Felder, M. Chernikov, M. Maple, P. Visani, C. Seaman, M. Lopez de la Torre, and G. Aeppli, Physics of YbBiPt, Phys. B: Condens. Matter 186-188, 355 (1993).
  23. B. K. Rai, S. Chikara, X. Ding, I. W. H. Oswald, R. Schönemann, V. Loganathan, A. M. Hallas, H. B. Cao, M. Stavinoha, T. Chen, H. Man, S. Carr, J. Singleton, V. Zapf, K. A. Benavides, J. Y. Chan, Q. R. Zhang, D. Rhodes, Y. C. Chiu, L. Balicas et al., Anomalous metamagnetism in the low carrier density Kondo lattice YbRh3Si7, Phys. Rev. X 8, 041047 (2018).
  24. S. Dhar, S. Singh, P. Bonville, C. Mazumdar, P. Manfrinetti, and A. Palenzona, Magnetic behavior of Yb3Cu4Ge4 and Gd3Cu4Ge4, Phys. B: Condens. Matter 312-313, 846 (2002).
  25. K. Katoh, Y. Mano, K. Nakano, G. Terui, Y. Niide, and A. Ochiai, Magnetic properties of YbTGe (T = Rh, Cu, Ag), J. Magn. Magn. Mater. 268, 212 (2004).
  26. M. Avila, S. Bud'ko, C. Petrovic, R. Ribeiro, P. Canfield, A. Tsvyashchenko, and L. Fomicheva, Synthesis and properties of YbB2, J. Alloys Compd. 358, 56 (2003).
  27. K. V. Shah, P. Bonville, P. Manfrinetti, F. Wrubl, and S. K. Dhar, The Yb2Al1−xMgxSi2 series from a spin fluctuation (x=0) to a magnetically ordered ground state (x=1), J. Phys.: Condens. Matter 21, 176001 (2009).
  28. L. Salamakha, O. Sologub, A. Riss, H. Michor, H. Müller, B. Stöger, G. Giester, P. Rogl, A. Sakai, P. Gegenwart, and E. Bauer, Complex transport and magnetism of the ternary boride YbPt5B2, Phys. Rev. B 105, 205112 (2022).
  29. See Supplemental Material at http://link.aps.org/supplemental/10.1103/pj8b-d5h9 for more details on elastic and inelastic neutron scattering on {Yb,Lu}Pt5B2 and analyses, which also contains Refs. [33, 34].
  30. J. A. Blanco, M. de Podesta, J. I. Espeso, J. C. Gómez Sal, C. Lester, K. A. McEwen, N. Patrikios, and J. Rodríguez Fernández, Specific heat of CeNixPt1−x pseudobinary compounds and related dilute alloys, Phys. Rev. B 49, 15126 (1994).
  31. B. Cornut and B. Coqblin, Influence of the crystalline field on the Kondo effect of alloys and compounds with cerium impurities, Phys. Rev. B 5, 4541 (1972).
  32. Y. Lassailly, A. K. Bhattacharjee, and B. Coqblin, Low-temperature resistivity and magnetoresistivity of cerium compounds, Phys. Rev. B 31, 7424 (1985).
  33. J. Rodriguez-Carvajal, FULLPROF: A program for Rietveld refinement and pattern matching analysis, in Abstracts of the Satellite Meeting on Powder Diffraction of the XV Congress of the IUCr (Toulouse, France, 1990), p. 127.
  34. K. Momma and F. Izumi, VESTA: A three-dimensional visualization system for electronic and structural analysis, J. Appl. Crystallogr. 41, 653 (2008).
  35. M. Hutchings, Point-charge calculations of energy levels of magnetic ions in crystalline electric fields, Solid State Phys. 16, 227 (1964).
  36. P. Fulde, Chapter 17: Crystal fields, in Handbook on the Physics and Chemistry of Rare Earths (Elsevier, 1979), Vol. 2, pp. 295–386.
  37. P. Fulde and M. Loewenhaupt, Magnetic excitations in crystal-field split 4f systems, Adv. Phys. 34, 589 (1985).
  38. K. Stevens, Matrix elements and operator equivalents connected with the magnetic properties of rare earth ions, Proc. Phys. Soc. London Sect. A 65, 209 (1952).
  39. B. Fåk and B. Dorner, Phonon line shapes and excitation energies, Phys. B: Condens. Matter 234-236, 1107 (1997).
  40. O. Arnold, J. Bilheux, J. Borreguero, A. Buts, S. Campbell, L. Chapon, M. Doucet, N. Draper, R. F. Leal, M. Gigg, V. Lynch, A. Markvardsen, D. Mikkelson, R. Mikkelson, R. Miller, K. Palmen, P. Parker, G. Passos, T. Perring, P. Peterson et al., Mantid: Data analysis and visualization package for neutron scattering and μSR experiments, Nucl. Instrum. Methods Phys. Res., Sect. A 764, 156 (2014).
  41. M. Rotter, Using McPhase to calculate magnetic phase diagrams of rare earth compounds, J. Magn. Magn. Mater. 272-276, E481 (2004).
  42. J. Jensen and A. R. Mackintosh, Rare Earth Magnetism (Clarendon Press, Oxford, 1991).
  43. Data are available at https://doi.org/10.5286/ISIS.E.RB2220762 and https://doi.org/10.5286/ISIS.E.RB2220763.
