Minimal model of an artificial topological material realized in a two-terminal Josephson junction threaded by Aharonov-Casher fluxes

Luka Medic*, Anton Ramšak, and Tomaž Rejec

  • *Contact author: l.medic@windowslive.com
PDF

Phys. Rev. B 112, 245424 – Published 23 December, 2025

DOI: https://doi.org/10.1103/mqt7-qzwc

Abstract

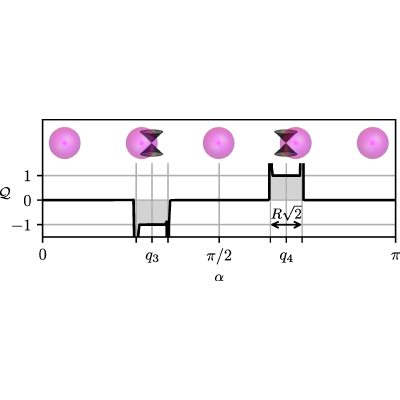

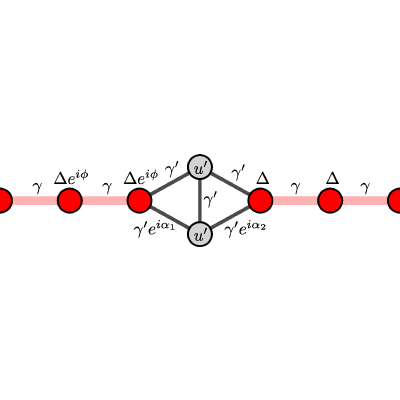

We investigate a minimal model of a two-terminal Josephson junction with conventional superconducting (SC) leads and a pair of interconnected quantum dots in the presence of two Aharonov-Casher (AC) fluxes. The Andreev bound-state spectrum features Weyl nodes within a three-dimensional synthetic Brillouin zone defined in the space of these AC fluxes and the SC phase difference. The aim is to determine the location and topological charge of these nodes by probing the Berry curvature on closed surfaces that may enclose them. This is achieved by adiabatically varying the superconducting phase difference and AC fluxes along a path on these surfaces and measuring the associated currents. We define the kinematic curvature as the cross product of a tangent vector along the path and the vector of these currents. In the adiabatic regime, the path-averaged kinematic curvature provides a quantized response equal to the topological charge enclosed by the surface, provided the path uniformly and densely covers it.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (42)

  1. C.-K. Chiu, J. C. Y. Teo, A. P. Schnyder, and S. Ryu, Classification of topological quantum matter with symmetries, Rev. Mod. Phys. 88, 035005 (2016).
  2. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  3. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  4. M. Z. Hasan, S.-Y. Xu, I. Belopolski, and S.-M. Huang, Discovery of Weyl Fermion semimetals and topological Fermi Arc states, Annu. Rev. Condens. Matter Phys. 8, 289 (2017).
  5. N. P. Armitage, E. J. Mele, and A. Vishwanath, Weyl and Dirac semimetals in three-dimensional solids, Rev. Mod. Phys. 90, 015001 (2018).
  6. K.-Y. Yang, Y.-M. Lu, and Y. Ran, Quantum Hall effects in a Weyl semimetal: Possible application in pyrochlore iridates, Phys. Rev. B 84, 075129 (2011).
  7. A. A. Zyuzin and A. A. Burkov, Topological response in Weyl semimetals and the chiral anomaly, Phys. Rev. B 86, 115133 (2012).
  8. M. N. Chernodub, A. Cortijo, A. G. Grushin, K. Landsteiner, and M. A. H. Vozmediano, Condensed matter realization of the axial magnetic effect, Phys. Rev. B 89, 081407(R) (2014).
  9. R.-P. Riwar, M. Houzet, J. S. Meyer, and Y. V. Nazarov, Multi-terminal Josephson junctions as topological matter, Nat. Commun. 7, 11167 (2016).
  10. E. Eriksson, R.-P. Riwar, M. Houzet, J. S. Meyer, and Y. V. Nazarov, Topological transconductance quantization in a four-terminal Josephson junction, Phys. Rev. B 95, 075417 (2017).
  11. J. S. Meyer and M. Houzet, Nontrivial Chern numbers in three-terminal Josephson junctions, Phys. Rev. Lett. 119, 136807 (2017).
  12. H.-Y. Xie, M. G. Vavilov, and A. Levchenko, Topological andreev bands in three-terminal Josephson junctions, Phys. Rev. B 96, 161406(R) (2017).
  13. L. Peralta Gavensky, G. Usaj, and C. A. Balseiro, Topological phase diagram of a three-terminal Josephson junction: From the conventional to the Majorana regime, Phys. Rev. B 100, 014514 (2019).
  14. L. Medic, A. Ramšak, and T. Rejec, Artificial topological insulator realized in a two-terminal Josephson junction with Rashba spin-orbit interaction, Phys. Rev. Res. 7, 013166 (2025).
  15. Y. Aharonov and A. Casher, Topological quantum effects for neutral particles, Phys. Rev. Lett. 53, 319 (1984).
  16. A. Cimmino, G. I. Opat, A. G. Klein, H. Kaiser, S. A. Werner, M. Arif, and R. Clothier, Observation of the topological Aharonov-Casher phase shift by neutron interferometry, Phys. Rev. Lett. 63, 380 (1989).
  17. H. Mathur and A. D. Stone, Quantum transport and the electronic Aharonov-Casher effect, Phys. Rev. Lett. 68, 2964 (1992).
  18. M. König, A. Tschetschetkin, E. M. Hankiewicz, J. Sinova, V. Hock, V. Daumer, M. Schäfer, C. R. Becker, H. Buhmann, and L. W. Molenkamp, Direct observation of the Aharonov-Casher phase, Phys. Rev. Lett. 96, 076804 (2006).
  19. T. Bergsten, T. Kobayashi, Y. Sekine, and J. Nitta, Experimental demonstration of the time reversal Aharonov-Casher effect, Phys. Rev. Lett. 97, 196803 (2006).
  20. X. Liu, M. F. Borunda, X.-J. Liu, and J. Sinova, Control of Josephson current by Aharonov-Casher phase in a Rashba ring, Phys. Rev. B 80, 174524 (2009).
  21. H. Liu, T. Zhang, K. Wang, F. Gao, G. Xu, X. Zhang, S.-X. Li, G. Cao, T. Wang, J. Zhang, X. Hu, H.-O. Li, and G.-P. Guo, Gate-Tunable spin-orbit coupling in a Germanium hole double quantum dot, Phys. Rev. Appl. 17, 044052 (2022).
  22. Y. A. Bychkov and E. I. Rashba, Oscillatory effects and the magnetic susceptibility of carriers in inversion layers, J. Phys. C 17, 6039 (1984).
  23. A. Manchon, H. C. Koo, J. Nitta, S. M. Frolov, and R. A. Duine, New perspectives for Rashba spin–orbit coupling, Nat. Mater. 14, 871 (2015).
  24. D. Tomaszewski, P. Busz, R. López, R. Žitko, M. Lee, and J. Martinek, Aharonov-Bohm and Aharonov-Casher effects for local and nonlocal Cooper pairs, Phys. Rev. B 97, 214506 (2018).
  25. D. Tomaszewski, P. Busz, R. López, R. Žitko, M. Lee, and J. Martinek, Aharonov-Bohm and Aharonov-Casher effects in a double quantum dot Josephson junction, Phys. Rev. B 98, 174504 (2018).
  26. Y. Avishai, K. Totsuka, and N. Nagaosa, Non-Abelian Aharonov–Casher phase factor in mesoscopic systems, J. Phys. Soc. Jpn. 88, 084705 (2019).
  27. S. Oh and C.-M. Ryu, Persistent spin currents induced by the Aharonov-Casher effect in mesoscopic rings, Phys. Rev. B 51, 13441 (1995).
  28. M. Governale, F. Taddei, and R. Fazio, Pumping spin with electrical fields, Phys. Rev. B 68, 155324 (2003).
  29. R. Citro and F. Romeo, Pumping in a mesoscopic ring with Aharonov-Casher effect, Phys. Rev. B 73, 233304 (2006).
  30. B. H. Wu and J. C. Cao, Analysis of spin pumping in asymmetric ring conductors with the Aharonov-Casher effect, Phys. Rev. B 75, 113303 (2007).
  31. D. Grundler, Large Rashba splitting in inas quantum wells due to electron wave function penetration into the Barrier layers, Phys. Rev. Lett. 84, 6074 (2000).
  32. See Supplemental Material at http://link.aps.org/supplemental/10.1103/mqt7-qzwc for the full Bogoliubov–de Gennes Hamiltonian, an analytical examination of the model, an analysis of the protocol parameters, an extension to multichannel leads, a formulation of time evolution in the Nambu space, and the exact time evolution of the BdG Hamiltonian, which includes Refs. [41, 42].
  33. C. W. J. Beenakker, Universal limit of critical-current fluctuations in mesoscopic Josephson junctions, Phys. Rev. Lett. 67, 3836 (1991).
  34. F.-M. Dittes, The decay of quantum systems with a small number of open channels, Phys. Rep. 339, 215 (2000).
  35. F. Meier and D. Loss, Magnetization transport and quantized spin conductance, Phys. Rev. Lett. 90, 167204 (2003).
  36. F. Schütz, M. Kollar, and P. Kopietz, Persistent spin currents in mesoscopic Heisenberg rings, Phys. Rev. Lett. 91, 017205 (2003).
  37. Q.-f. Sun, X. C. Xie, and J. Wang, Persistent spin current in nanodevices and definition of the spin current, Phys. Rev. B 77, 035327 (2008).
  38. S. O. Valenzuela and M. Tinkham, Direct electronic measurement of the spin Hall effect, Nature (London) 442, 176 (2006).
  39. F. Nichele, S. Hennel, P. Pietsch, W. Wegscheider, P. Stano, P. Jacquod, T. Ihn, and K. Ensslin, Generation and detection of spin currents in semiconductor nanostructures with strong spin-orbit interaction, Phys. Rev. Lett. 114, 206601 (2015).
  40. L. Medic, A. Ramšak, and T. Rejec, A minimal model of an artificial topological material realized in a two-terminal Josephson junction threaded by Aharonov-Casher fluxes [Dataset], Zenodo (2025), doi:10.5281/zenodo.15658058.
  41. T. Martin and R. Landauer, Wave-packet approach to noise in multichannel mesoscopic systems, Phys. Rev. B 45, 1742 (1992).
  42. C. W. J. Beenakker, Random-matrix theory of quantum transport, Rev. Mod. Phys. 69, 731 (1997).
