Extension of the iterated perturbation theory at arbitrary fillings to nonequilibrium steady states

Tommaso Maria Mazzocchi* and Enrico Arrigoni†

  • *Contact author: mazzocchi@tugraz.at
  • †Contact author: arrigoni@tugraz.at
PDF

Phys. Rev. B 114, 175122 – Published 16 September, 2026

DOI: https://doi.org/10.1103/lwg4-6tq8

Abstract

We extend the Kajueter-Kotliar [Phys. Rev. Lett. 77, 131 (1996)] iterated perturbation theory (KK-IPT) away from half-filling to nonequilibrium steady states. We benchmark the resulting nonequilibrium KK-IPT approach against the auxiliary master equation approach (AMEA), whose accuracy is controlled in and out of equilibrium. As expected, in equilibrium, KK-IPT reproduces the AMEA results for different fillings with high accuracy at the level of both spectral properties and electron densities. Out of equilibrium, we study quantum transport across a correlated impurity and compute the differential conductance and spectral functions. We find very good agreement between nonequilibrium KK-IPT and AMEA in the parameter regime where the latter is reliable, in particular at moderate temperatures and biases. Although a controlled benchmark is not available in the low-temperature, low-bias regime, where AMEA becomes less reliable, we show that this nonequilibrium KK-IPT impurity solver satisfies the exact spectral sum rules for the first and second moments to high accuracy throughout the entire parameter range studied. These results support nonequilibrium KK-IPT as an approximate description of nonequilibrium steady states away from half-filling. At the same time, comparing against AMEA the double occupancy obtained from the nonequilibrium Galitskii-Migdal expression for the interaction energy shows that the deviation from AMEA remains small near half-filling for moderate and large values of the bias, but grows markedly away from half-filling, delineating the regime in which the method can be trusted quantitatively rather than merely qualitatively.

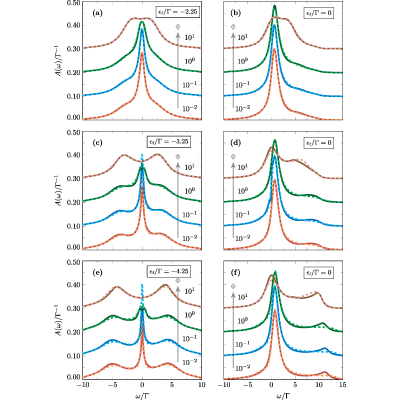

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (56)

  1. A. Georges and G. Kotliar, Hubbard model in infinite dimensions, Phys. Rev. B 45, 6479 (1992).
  2. A. Georges, G. Kotliar, W. Krauth, and M. J. Rozenberg, Dynamical mean-field theory of strongly correlated fermion systems and the limit of infinite dimensions, Rev. Mod. Phys. 68, 13 (1996).
  3. H. Aoki, N. Tsuji, M. Eckstein, M. Kollar, T. Oka, and P. Werner, Nonequilibrium dynamical mean-field theory and its applications, Rev. Mod. Phys. 86, 779 (2014).
  4. E. Gull, A. J. Millis, A. I. Lichtenstein, A. N. Rubtsov, M. Troyer, and P. Werner, Continuous-time Monte Carlo methods for quantum impurity models, Rev. Mod. Phys. 83, 349 (2011).
  5. P. Werner, A. Comanac, L. de' Medici, M. Troyer, and A. J. Millis, Continuous-time solver for quantum impurity models, Phys. Rev. Lett. 97, 076405 (2006).
  6. K. G. Wilson, The renormalization group: Critical phenomena and the Kondo problem, Rev. Mod. Phys. 47, 773 (1975).
  7. R. Bulla, T. A. Costi, and T. Pruschke, Numerical renormalization group method for quantum impurity systems, Rev. Mod. Phys. 80, 395 (2008).
  8. M. Caffarel and W. Krauth, Exact diagonalization approach to correlated fermions in infinite dimensions: Mott transition and superconductivity, Phys. Rev. Lett. 72, 1545 (1994).
  9. H. Keiter and J. C. Kimball, Perturbation technique for the Anderson Hamiltonian, Phys. Rev. Lett. 25, 672 (1970).
  10. M. Eckstein and P. Werner, Nonequilibrium dynamical mean-field calculations based on the noncrossing approximation and its generalizations, Phys. Rev. B 82, 115115 (2010).
  11. A. Dorda, M. Nuss, W. von der Linden, and E. Arrigoni, Auxiliary master equation approach to non–equilibrium correlated impurities, Phys. Rev. B 89, 165105 (2014).
  12. D. Werner, J. Lotze, and E. Arrigoni, Configuration interaction based nonequilibrium steady state impurity solver, Phys. Rev. B 107, 075119 (2023).
  13. T. M. Mazzocchi, P. Gazzaneo, J. Lotze, and E. Arrigoni, Correlated Mott insulators in strong electric fields: Role of phonons in heat dissipation, Phys. Rev. B 106, 125123 (2022).
  14. P. Gazzaneo, T. M. Mazzocchi, J. Lotze, and E. Arrigoni, Impact ionization processes in a photodriven Mott insulator: Influence of phononic dissipation, Phys. Rev. B 106, 195140 (2022).
  15. T. M. Mazzocchi, D. Werner, P. Gazzaneo, and E. Arrigoni, Correlated Mott insulators in a strong electric field: The effects of phonon renormalization, Phys. Rev. B 107, 155103 (2023).
  16. T. M. Mazzocchi, D. Werner, M. Aichhorn, and E. Arrigoni, Mixed-configuration approximation for multiorbital systems out of equilibrium, Phys. Rev. B 112, 155127 (2025).
  17. G. Cohen, E. Gull, D. R. Reichman, and A. J. Millis, Taming the dynamical sign problem in real-time evolution of quantum many-body problems, Phys. Rev. Lett. 115, 266802 (2015).
  18. A. E. Antipov, Q. Dong, J. Kleinhenz, G. Cohen, and E. Gull, Currents and Green's functions of impurities out of equilibrium: Results from inchworm quantum Monte Carlo, Phys. Rev. B 95, 085144 (2017).
  19. A. Erpenbeck, E. Gull, and G. Cohen, Quantum Monte Carlo method in the steady state, Phys. Rev. Lett. 130, 186301 (2023).
  20. A. Erpenbeck, T. Blommel, L. Zhang, W.-T. Lin, G. Cohen, and E. Gull, Steady-state properties of multi-orbital systems using quantum Monte Carlo, J. Chem. Phys. 161, 094104 (2024).
  21. F. B. Anders, Steady-state currents through nanodevices: A scattering-states numerical renormalization-group approach to open quantum systems, Phys. Rev. Lett. 101, 066804 (2008).
  22. J. E. Han, Nonequilibrium statistics of a biased Kondo resonance, Phys. Rev. B 113, 045141 (2026).
  23. Y. N. Fernández, M. Jeannin, P. T. Dumitrescu, T. Kloss, J. Kaye, O. Parcollet, and X. Waintal, Learning Feynman diagrams with tensor trains, Phys. Rev. X 12, 041018 (2022).
  24. A. J. Kim and P. Werner, Strong coupling impurity solver based on quantics tensor cross interpolation, Phys. Rev. B 111, 125120 (2025).
  25. A. Georges and W. Krauth, Physical properties of the half-filled Hubbard model in infinite dimensions, Phys. Rev. B 48, 7167 (1993).
  26. H. Kajueter and G. Kotliar, New iterative perturbation scheme for lattice models with arbitrary filling, Phys. Rev. Lett. 77, 131 (1996).
  27. W.-R. Lee and K. Park, Dielectric breakdown via emergent nonequilibrium steady states of the electric-field-driven Mott insulator, Phys. Rev. B 89, 205126 (2014).
  28. A. Martin-Rodero, F. Flores, M. Baldo, and R. Pucci, A new solution to the Anderson-Newns Hamiltonian of chemisorption, Solid State Commun. 44, 911 (1982).
  29. A. Martín-Rodero, E. Louis, F. Flores, and C. Tejedor, Interpolative solution for the periodic Anderson model of mixed-valence compounds, Phys. Rev. B 33, 1814 (1986).
  30. M. Potthoff, T. Wegner, and W. Nolting, Interpolating self-energy of the infinite-dimensional Hubbard model: Modifying the iterative perturbation theory, Phys. Rev. B 55, 16132 (1997).
  31. L.-F.  Arsenault, P. Sémon, and A.-M. S. Tremblay, Benchmark of a modified iterated perturbation theory approach on the fcc lattice at strong coupling, Phys. Rev. B 86, 085133 (2012).
  32. N. Dasari, W. R. Mondal, P. Zhang, J. Moreno, M. Jarrell, and N. S. Vidhyadhiraja, A multi-orbital iterated perturbation theory for model Hamiltonians and real material-specific calculations of correlated systems, Eur. Phys. J. B 89, 202 (2016).
  33. E. G. C. P. van Loon, Two-particle correlations and the metal-insulator transition: Iterated perturbation theory revisited, Phys. Rev. B 105, 245104 (2022).
  34. N. Tsuji and P. Werner, Nonequilibrium dynamical mean-field theory based on weak-coupling perturbation expansions: Application to dynamical symmetry breaking in the Hubbard model, Phys. Rev. B 88, 165115 (2013).
  35. J. Schwinger, Brownian motion of a quantum oscillator, J. Math. Phys. 2, 407 (1961).
  36. L. V. Keldysh, Diagram technique for nonequilibrium processes, Zh. Eksp. Theor. Fiz. 47, 1515 (1964) [Sov. Phys. JETP 20, 1018 (1965)].
  37. H. Haug and A.-P. Jauho, Quantum Kinetics in Transport and Optics of Semiconductors (Springer, Heidelberg, 1998).
  38. Throughout this work the onsite energy is chosen to be spin independent.
  39. M. Potthoff, T. Herrmann, T. Wegner, and W. Nolting, The moment sum rule and its consequences for ferromagnetism in the Hubbard model, Phys. Status Solidi B 210, 199 (1998).
  40. T. M. Mazzocchi and E. Arrigoni, Iterated perturbation theory for Mott insulators in a static electric field with optical phonons, Phys. Status Solidi B 261, 2300486 (2024).
  41. We note that, out of equilibrium, the Friedel sum rule discussed in previous work [26, 32] does not apply, and its proper generalization remains unclear. Nonetheless, benchmark comparisons with the AMEA impurity solver indicate that the IPT-n0 approximation performs satisfactorily in all cases considered so far.
  42. Each impurity solver run discussed in this work was initialized from the same fixed cold-start initial guess (μ0trial=0, ntrial=12) with no continuation or warm starting between neighboring bias points: each (U,T,εf,Φ) point is an independent root-finding problem for (n,μ0). All runs converged to a unique, physical solution (0<n<1, finite Σ̲ and G̲ at every frequency), with no case of multiple attracting fixed points, not even when the initial guess was changed for a few selected data points (not shown), or unphysical output anywhere in this work. This is consistent with the robust convergence already reported for the equilibrium KK-IPT scheme in Ref. [26]. However, we did find instances of nonconvergence when the initial guess for n was too close to either 0 or 1.
  43. For details on the AMEA impurity solver, we refer the reader to our previous work [11, 12].
  44. R. Bulla, A. C. Hewson, and T. Pruschke, Numerical renormalization group calculations for the self-energy of the impurity Anderson model, J. Phys.: Condens. Matter 10, 8365 (1998).
  45. Y. Meir and N. S. Wingreen, Landauer formula for the current through an interacting electron region, Phys. Rev. Lett. 68, 2512 (1992).
  46. We point out that the retarded and Keldysh components of the impurity GF as well as the Keldysh component of the lead GF retain a nontrivial dependence on Φ and T. However, for our choice of leads, neither of these parameters enters the retarded (advanced) reservoir GF.

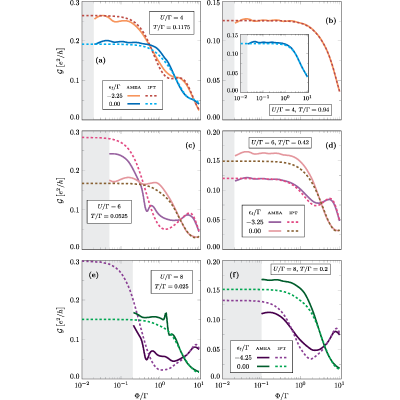

  47. The precise range of validity depends on both U and T; see the shaded regions in Fig. 3. At U=4Γ, AMEA is reliable down to Φ/Γ≈0.02, essentially independently of temperature (cf. also Ref. [12], Fig. 6 therein, which suggests that the conductance G,itself obtained by numerical derivative, and thus error amplifying, is accurate for T/TK≲10−2 at intermediate U/Γ∼4). At U=6Γ, the reliable range extends down to Φ/Γ≈0.05 at low temperature (T=TK/4) and Φ/Γ≈0.02 at high temperature (T=2TK). At U=8Γ, it extends down to Φ/Γ≈0.2 at low temperature and Φ/Γ≈0.1 at high temperature. In short, the bias threshold below which AMEA becomes unreliable grows sharply with U, while temperature plays a secondary role that only becomes significant once U≳6Γ.
  48. T. M. Mazzocchi, Extension of the iterated perturbation theory at arbitrary fillings to nonequilibrium steady states [Dataset], Graz University of Technology, 2026, https://doi.org/10.3217/xz6v9-9jp08.
  49. https://github.com/mazzocch/neq-kk-ipt-solver.
  50. G. Stefanucci and R. van Leeuwen, Nonequilibrium Many-body Theory of Quantum Systems: A Modern Introduction (Cambridge University Press, Cambridge, 2013).
  51. D. N. Zubarev, Double-time Green functions in statistical physics, Sov. Phys.–Usp. 3, 320 (1960).
  52. A. B. Harris and R. V. Lange, Single-particle excitations in narrow energy bands, Phys. Rev. 157, 295 (1967).
  53. W. Nolting, Methode der Spektralmomente für das Hubbard-Modell eines schmalenS-Bandes, Z. Phys. 255, 25 (1972).
  54. J. J. Deisz, D. W. Hess, and J. W. Serene, Vertex symmetry and the asymptotic frequency dependence of the self-energy, Phys. Rev. B 55, 2089 (1997).
  55. X. Wang, H. T. Dang, and A. J. Millis, High-frequency asymptotic behavior of self-energies in quantum impurity models, Phys. Rev. B 84, 073104 (2011).
  56. V. Turkowski and J. K. Freericks, Nonequilibrium sum rules for the retarded self-energy of strongly correlated electrons, Phys. Rev. B 77, 205102 (2008).
