Magnetic structure of polar G-type charge- and orbital-ordered Hg-manganite quadruple perovskites

Ben R. M. Tragheim1,2, Fabio Orlandi3, En-Pei Liu4,5, Wei-Tin Chen5,6,7,*, and Mark S. Senn1,†

  • *Contact author: weitinchen@ntu.edu.tw
  • †Contact author: m.senn@warwick.ac.uk
PDF

Phys. Rev. B 113, 104425 – Published 13 March, 2026

DOI: https://doi.org/10.1103/ksth-6xwr

Abstract

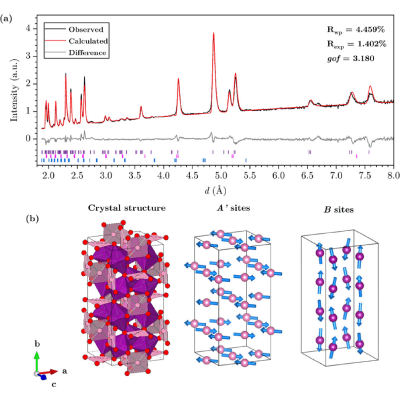

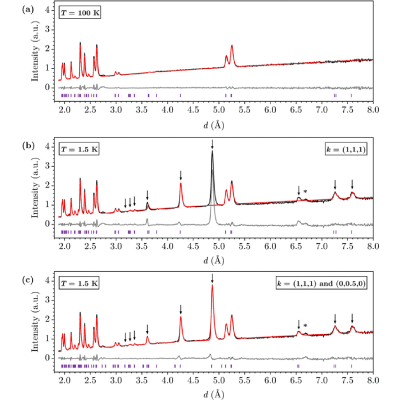

The magnetic structure of Hg0.7Na0.3Mn3Mn4O12, a quadruple manganite perovskite that exhibits a unique G-type charge- and orbital-ordered state distinct to other A2+Mn3Mn4O12 equivalents (A=Ca,Sr,Cd,Pb), has been solved using powder neutron diffraction and symmetry-motivated analysis. A G-type-like antiferromagnetic (AFM) ordering of Mn on the A′ sites and a ‘‘up-up–down-down’’ AFM moment configuration of Mn spins on the B sites is found to occur. The mechanism for the onset and stabilization of B-site up-up–down-down AFM order is explored in terms of coupling between structural and magnetic distortions. The results presented here provide evidence of the exotic charge, orbital, electronic, and magnetic orderings that quadruple manganite perovskites demonstrate, and further highlighting the distinct chemistry that Hg2+ plays in stabilizing novel states compared to other divalent A-site cation equivalents.

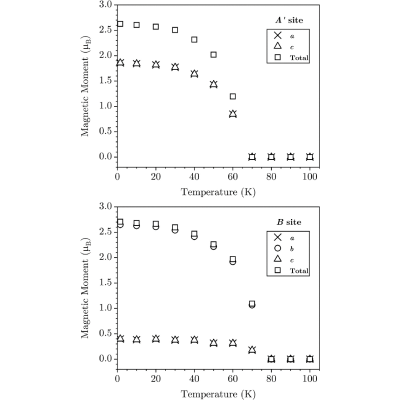

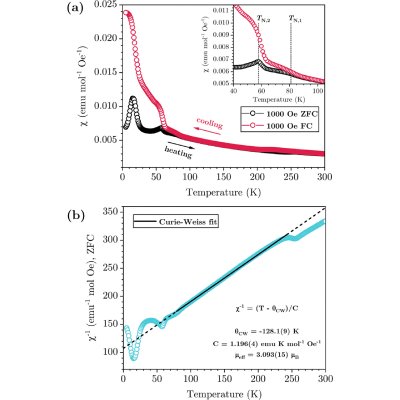

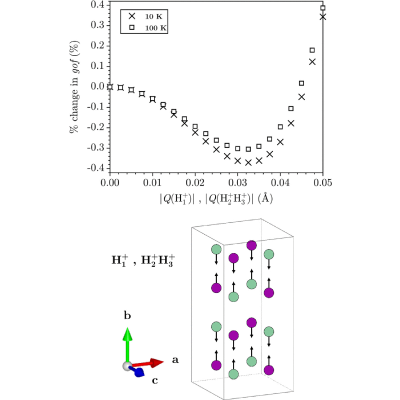

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (37)

  1. S. Jin, T. H. Tiefel, M. McCormack, R. A. Fastnacht, R. Ramesh, and L. H. Chen, Thousandfold change in resistivity in magnetoresistive La-Ca-Mn-O films, Science 264, 413 (1994).
  2. M. Uehara, S. Mori, C. Chen, and S.-W. Cheong, Percolative phase separation underlies colossal magnetoresistance in mixed-valent manganites, Nature (London) 399, 560 (1999).
  3. T. Kimura, T. Goto, H. Shintani, K. Ishizaka, T. Arima, and Y. Tokura, Magnetic control of ferroelectric polarization, Nature (London) 426, 55 (2003).
  4. W.-T. Chen, C.-W. Wang, H.-C. Wu, F.-C. Chou, H.-D. Yang, A. Simonov, and M. S. Senn, Improper ferroelectric polarization in a perovskite driven by intersite charge transfer and ordering, Phys. Rev. B 97, 144102 (2018).
  5. W.-T. Chen, C.-W. Wang, C.-C. Cheng, Y.-C. Chuang, A. Simonov, N. C. Bristowe, and M. S. Senn, Striping of orbital-order with charge-disorder in optimally doped manganites, Nat. Commun. 12, 6319 (2021).
  6. B. R. M. Tragheim, S. Simpson, E.-P. Liu, M. S. Senn, and W.-T. Chen, Intrinsic electronic phase separation and competition between G-type, C-type, and CE-type charge and orbital ordering modes in Hg1−xNaxMn3Mn4O12, Phys. Rev. B 110, 245123 (2024).
  7. N. J. Perks, R. D. Johnson, C. Martin, L. C. Chapon, and P. G. Radaelli, Magneto-orbital helices as a route to coupling magnetism and ferroelectricity in multiferroic CaMn7O12, Nat. Commun. 3, 1277 (2012).
  8. D. D. Khalyavin, R. D. Johnson, F. Orlandi, P. G. Radaelli, P. Manuel, and A. A. Belik, Emergent helical texture of electric dipoles, Science 369, 680 (2020).
  9. R. D. Johnson, D. D. Khalyavin, P. Manuel, P. G. Radaelli, I. S. Glazkova, N. Terada, and A. A. Belik, Magneto-orbital ordering in the divalent A-site quadruple perovskite manganites AMn7O12 (A= Sr, Cd, and Pb), Phys. Rev. B 96, 054448 (2017).
  10. D. Lu, J. Yang, J. Zhang, H. Zhao, M. Pi, X. Ye, X. Wang, Z. Pan, C. Dong, L. He, F. Shen, C.-Y. Kuo, C.-T. Chen, Z. Hu, P. Yu, Y. Shen, and Y. Long, Giant spin-induced electric polarization in absence of orbital order in (Bi0.5Ag0.5)Mn7O12, Phys. Rev. B 109, 174417 (2024).
  11. B. Bochu, J. Chenavas, J. Joubert, and M. Marezio, High pressure synthesis and crystal structure of a new series of perovskite-like compounds CMn7O12 (C = Na, Ca, Cd, Sr, La, Nd), J. Solid State Chem. 11, 88 (1974).
  12. T. Locherer, R. Dinnebier, R. Kremer, M. Greenblatt, and M. Jansen, Synthesis and properties of a new quadruple perovskite: A-site ordered PbMn3Mn4O12, J. Solid State Chem. 190, 277 (2012).
  13. R. D. Johnson, D. D. Khalyavin, P. Manuel, and A. A. Belik, Competing electronic instabilities in the quadruple perovskite manganite PbMn7O12, Phys. Rev. B 103, 134115 (2021).
  14. R. D. Johnson, F. Mezzadri, P. Manuel, D. D. Khalyavin, E. Gilioli, and P. G. Radaelli, Evolution of magneto-orbital order upon B-site electron doping in Na1−xCaxMn7O12 quadruple perovskite manganites, Phys. Rev. Lett. 120, 257202 (2018).
  15. R. D. Johnson, D. D. Khalyavin, P. Manuel, A. Bombardi, C. Martin, L. C. Chapon, and P. G. Radaelli, Modulated spin helicity stabilized by incommensurate orbital density waves in a quadruple perovskite manganite, Phys. Rev. B 93, 180403(R) (2016).
  16. Z. Jirák, S. Krupička, Z. Šimša, M. Dlouhá, and S. Vratislav, Neutron diffraction study of Pr1−xCaxMnO3 perovskites, J. Magn. Magn. Mater. 53, 153 (1985).
  17. H. Yoshizawa, H. Kawano, Y. Tomioka, and Y. Tokura, Neutron-diffraction study of the magnetic-field-induced metal-insulator transition in Pr0.7Ca0.3MnO3, Phys. Rev. B 52, R13145 (1995).
  18. L. C. Chapon, P. Manuel, P. G. Radaelli, C. Benson, L. Perrott, S. Ansell, N. J. Rhodes, D. Raspino, D. Duxbury, E. Spill, and J. Norris, Wish: The new powder and single crystal magnetic diffractometer on the second target station, Neutron News 22, 22 (2011).
  19. B. J. Campbell, H. T. Stokes, D. E. Tanner, and D. M. Hatch, ISODISPLACE: A web-based tool for exploring structural distortions, J. Appl. Crystallogr. 39, 607 (2006).
  20. D. M. Hatch and H. T. Stokes, INVARIANTS: Program for obtaining a list of invariant polynomials of the order-parameter components associated with irreducible representations of a space group, J. Appl. Crystallogr. 36, 951 (2003).
  21. H. T. Stokes, D. M. Hatch, and B. J. Campbell, Isotropy software suite, https://iso.byu.edu/.
  22. A. A. Coelho, TOPAS and TOPAS-Academic: An optimization program integrating computer algebra and crystallographic objects written in C++, J. Appl. Crystallogr. 51, 210 (2018).
  23. See Supplemental Material at http://link.aps.org/supplemental/10.1103/ksth-6xwr for Pawley refinements against 1.5-K PND data; Rietveld refinements of different B-site models against 1.5-K PND data; schematic of raw variable temperature PND data; refined H- and Γ-point modes against synchrotron PXRD data from our previous study plotted as a function of H1+ and H2+H3+ modes; CIF of the P21′ magnetic structure model.
  24. R. D. Johnson, D. D. Khalyavin, P. Manuel, L. Zhang, K. Yamaura, and A. A. Belik, Magnetic structures of the rare-earth quadruple perovskite manganites RMn7O12, Phys. Rev. B 98, 104423 (2018).
  25. R. D. Johnson, D. D. Khalyavin, P. Manuel, Y. Katsuya, M. Tanaka, Y. Matsushita, L. Zhang, K. Yamaura, and A. A. Belik, Displacive structural phase transitions and the magnetic ground state of quadruple perovskite YMn7O12, Phys. Rev. B 99, 024107 (2019).
  26. J. Blasco, J. L. García-Muñoz, J. García, J. Stankiewicz, G. Subías, C. Ritter, and J. A. Rodríguez-Velamazán, Evidence of large magneto-dielectric effect coupled to a metamagnetic transition in Yb2CoMnO6, Appl. Phys. Lett. 107, 012902 (2015).
  27. J. Blasco, J. L. García-Muñoz, J. García, G. Subías, J. Stankiewicz, J. A. Rodríguez-Velamazán, and C. Ritter, Magnetic order and magnetoelectric properties of R2CoMnO6 perovskites (R=Ho,Tm,Yb, and Lu), Phys. Rev. B 96, 024409 (2017).
  28. A. Muñoz, M. T. Casáis, J. A. Alonso, M. J. Martínez-Lope, J. L. Martínez, and M. T. Fernández-Díaz, Complex magnetism and magnetic structures of the metastable HoMnO3 perovskite, Inorg. Chem. 40, 1020 (2001).
  29. J. L. García-Muñoz, J. Rodríguez-Carvajal, and P. Lacorre, Neutron-diffraction study of the magnetic ordering in the insulating regime of the perovskites RNiO3 (R= Pr and Nd), Phys. Rev. B 50, 978 (1994).
  30. J. Rodríguez-Carvajal, S. Rosenkranz, M. Medarde, P. Lacorre, M. T. Fernandez-Díaz, F. Fauth, and V. Trounov, Neutron-diffraction study of the magnetic and orbital ordering in SmNiO3154 and EuNiO3153, Phys. Rev. B 57, 456 (1998).
  31. M. T. Fernández-Díaz, J. A. Alonso, M. J. Martínez-Lope, M. T. Casais, and J. L. García-Muñoz, Magnetic structure of the HoNiO3 perovskite, Phys. Rev. B 64, 144417 (2001).
  32. I. A. Sergienko, C. Şen, and E. Dagotto, Ferroelectricity in the magnetic E-phase of orthorhombic perovskites, Phys. Rev. Lett. 97, 227204 (2006).
  33. I. Solovyev, Long-range magnetic interactions induced by the lattice distortions and the origin of the E-type antiferromagnetic phase in the undoped orthorhombic manganites, J. Phys. Soc. Jpn. 78, 054710 (2009).
  34. A. Daoud-Aladine, J. Rodriguez-Carvajal, L. Pinsard-Gaudart, M. T. Fernandez-Diaz, and A. Revcolevschi, Zener polaron ordering in half-doped manganites, Phys. Rev. Lett. 89, 097205 (2002).
  35. L. Wu, R. F. Klie, Y. Zhu, and C. Jooss, Experimental confirmation of Zener-polaron-type charge and orbital ordering in Pr1−xCaxMnO3, Phys. Rev. B 76, 174210 (2007).
  36. D. Behr, A. A. Belik, D. D. Khalyavin, and R. D. Johnson, BiMn7O12: Polar antiferromagnetism by inverse exchange striction, Phys. Rev. B 107, L140402 (2023).
  37. M. Senn, et al., The magnetic structure of G-type charge and orbital ordered manganites (STFC ISIS Neutron and Muon Source, 2024), https://doi.org/10.5286/ISIS.E.RB2400051-1.
