Growth and Kerr magnetometry of Mn2Au on a gold-capped Nb(001) substrate

Jendrik Gördes1, Christian Janzen2, Arne J. Vereijken2, Tingwei Li (李婷炜)1, Tauqir Shinwari1,*, Arno Ehresmann2, and Wolfgang Kuch1,†

  • 1Institut für Experimentalphysik, Freie Universität Berlin, Arnimallee 14, 14195 Berlin, Germany
  • 2Institute of Physics and Center for Interdisciplinary Nanostructure Science and Technology (CINSaT), University of Kassel, Heinrich-Plett-Straße 40, 34132 Kassel, Germany

  • *Present address: Paul-Drude-Institut für Festkörperelektronik, Leibniz-Institut im Forschungsverbund Berlin e.V., 10117 Berlin, Germany.
  • †Contact author: kuch@physik.fu-berlin.de
PDF

Phys. Rev. B 114, 144416 – Published 15 September, 2026

DOI: https://doi.org/10.1103/kkn6-t2jq

Abstract

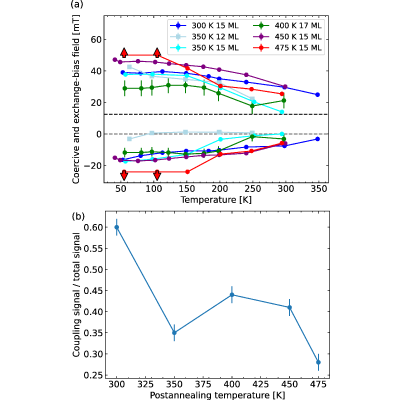

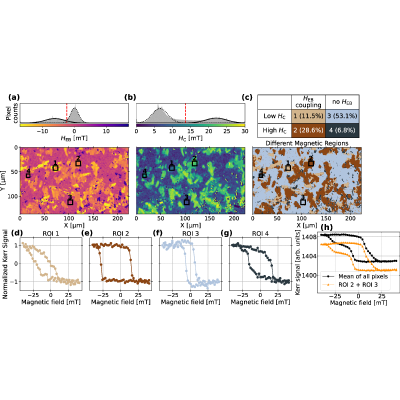

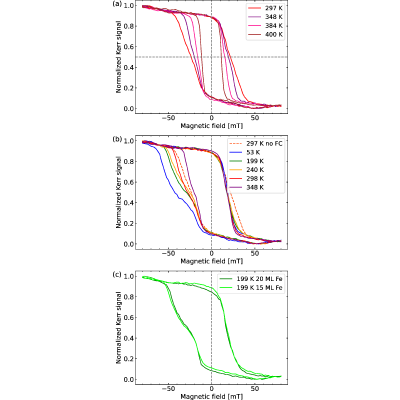

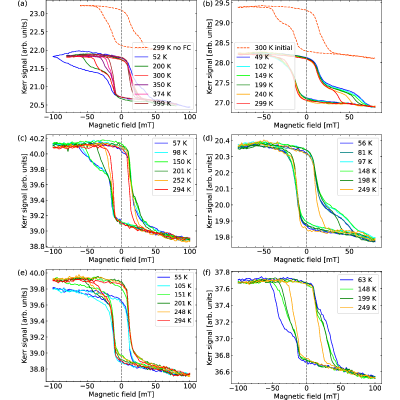

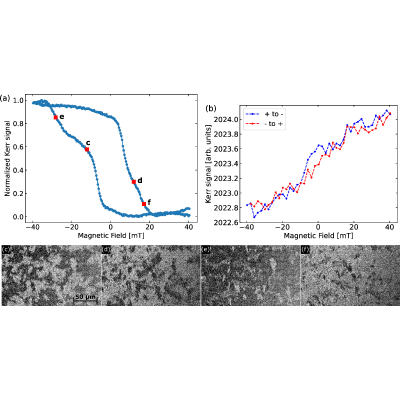

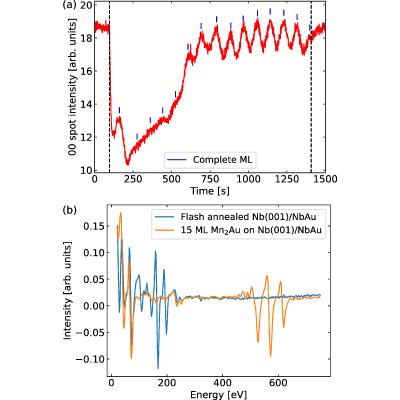

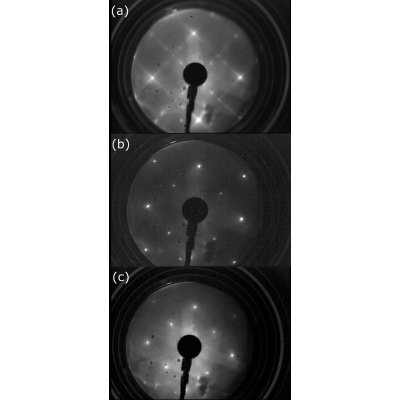

We report on the epitaxial growth of antiferromagnetic Mn2Au on a Nb(001) substrate capped with a pseudomorphic layer of gold. We observe a layer-by-layer growth by means of medium-energy electron diffraction and confirm stoichiometry and surface structure by Auger electron spectroscopy and low-energy electron diffraction. Evaporation of 15 ML of ferromagnetic Fe on 12–17 ML of Mn2Au results in an exchange-coupled bilayer system with an exchange-bias shift that can be set by field-cooling from 400 K. Areas with and without exchange bias, with domain sizes in the range of tens of µm, are identified by Kerr microscopy. Postannealing the sample at or above 450 K after Mn2Au layer growth decreases the fraction of areas where Fe magnetically couples to Mn2Au. We suggest that exchange coupling to an interfacial Fe layer depends on the interface termination of Mn2Au or on the chemical order in the Mn2Au layer. Our findings provide insight into the growth process of Mn2Au and the coupling to an Fe layer. Our results point out the importance of growth, interface quality, and termination for the magnetic properties of a Mn2Au/Fe bilayer, which may help to improve material properties for spintronic applications.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (41)

  1. A. H. MacDonald and M. Tsoi, Antiferromagnetic metal spintronics, Phil. Trans. R. Soc. A 369, 3098 (2011).
  2. T. Jungwirth, X. Marti, P. Wadley, and J. Wunderlich, Antiferromagnetic spintronics, Nat. Nanotechnol. 11, 231 (2016).
  3. V. Baltz, A. Manchon, M. Tsoi, T. Moriyama, T. Ono, and Y. Tserkovnyak, Antiferromagnetic spintronics, Rev. Mod. Phys. 90, 015005 (2018).
  4. M. B. Jungfleisch, W. Zhang, and A. Hoffmann, Perspectives of antiferromagnetic spintronics, Phys. Lett. A 382, 865 (2018).
  5. T. Kampfrath, A. Sell, G. Klatt, A. Pashkin, S. Mährlein, T. Dekorsy, M. Wolf, M. Fiebig, A. Leitenstorfer, and R. Huber, Coherent terahertz control of antiferromagnetic spin waves, Nat. Photon. 5, 31 (2011).
  6. H. Qiu, L. Zhou, C. Zhang, J. Wu, Y. Tian, S. Cheng, S. Mi, H. Zhao, Q. Zhang, Di Wu, B. Jin, J. Chen, and P. Wu, Ultrafast spin current generated from an antiferromagnet, Nat. Phys. 17, 388 (2021).
  7. E. Rongione, O. Gueckstock, M. Mattern, O. Gomonay, H. Meer, C. Schmitt, R. Ramos, T. Kikkawa, M. Mičica, E. Saitoh, et al., Emission of coherent THz magnons in an antiferromagnetic insulator triggered by ultrafast spin-phonon interactions, Nat. Commun. 14, 1818 (2023).
  8. P. Vaidya, S. A. Morley, J. van Tol, Y. Liu, R. Cheng, A. Brataas, D. Lederman, and E. Del Barco, Subterahertz spin pumping from an insulating antiferromagnet, Science 368, 160 (2020).
  9. J. Li, C. B. Wilson, R. Cheng, M. Lohmann, M. Kavand, W. Yuan, M. Aldosary, N. Agladze, P. Wei, M. S. Sherwin, and J. Shi, Spin current from sub-terahertz-generated antiferromagnetic magnons, Nature (London) 578, 70 (2020).
  10. J. Železný, P. Wadley, K. Olejník, A. Hoffmann, and H. Ohno, Spin transport and spin torque in antiferromagnetic devices, Nat. Phys. 14, 220 (2018).
  11. P. Wadley, B. Howells, J. Železný, C. Andrews, V. Hills, R. P. Campion, V. Novák, K. Olejník, F. Maccherozzi, S. S. Dhesi, et al., Electrical switching of an antiferromagnet, Science 351, 587 (2016).
  12. S. Y. Bodnar, L. Šmejkal, I. Turek, T. Jungwirth, O. Gomonay, J. Sinova, A. A. Sapozhnik, H.-J. Elmers, M. Kläui, and M. Jourdan, Writing and reading antiferromagnetic Mn2Au by Néel spin-orbit torques and large anisotropic magnetoresistance, Nat. Commun. 9, 348 (2018).
  13. M. Meinert, D. Graulich, and T. Matalla-Wagner, Electrical switching of antiferromagnetic Mn2Au and the role of thermal activation, Phys. Rev. Appl. 9, 064040 (2018).
  14. S. Reimers, Y. Lytvynenko, Y. R. Niu, E. Golias, B. Sarpi, L. S. I. Veiga, T. Denneulin, A. Kovács, R. E. Dunin-Borkowski, J. Bläßer, M. Kläui, and M. Jourdan, Current-driven writing process in antiferromagnetic Mn2Au for memory applications, Nat. Commun. 14, 1861 (2023).
  15. S. P. Bommanaboyena, D. Backes, L. S. I. Veiga, S. S. Dhesi, Y. R. Niu, B. Sarpi, T. Denneulin, A. Kovács, T. Mashoff, O. Gomonay, et al., Readout of an antiferromagnetic spintronics system by strong exchange coupling of Mn2Au and Permalloy, Nat. Commun. 12, 6539 (2021).
  16. H. Al-Hamdo, T. Wagner, Y. Lytvynenko, G. Kendzo, S. Reimers, M. Ruhwedel, M. Yaqoob, V. I. Vasyuchka, P. Pirro, J. Sinova, M. Kläui, M. Jourdan, O. Gomonay, and M. Weiler, Coupling of ferromagnetic and antiferromagnetic spin dynamics in Mn2Au/NiFe thin film bilayers, Phys. Rev. Lett. 131, 046701 (2023).
  17. V. M. T. S. Barthem, C. V. Colin, H. Mayaffre, M.-H. Julien, and D. Givord, Revealing the properties of Mn2Au for antiferromagnetic spintronics, Nat. Commun. 4, 2892 (2013).
  18. S. P. Bommanaboyena, T. Bergfeldt, R. Heller, M. Kläui, and M. Jourdan, High quality epitaxial Mn2Au (001) thin films grown by molecular beam epitaxy, J. Appl. Phys. 127, 243901 (2020).
  19. A. A. Sapozhnik, M. Jourdan, H. Zabel, M. Kläui, and H.-J. Elmers, Exchange bias in epitaxial Mn2Au(001)/Fe(001) bilayers, J. Phys. D: Appl. Phys. 52, 465003 (2019).
  20. H.-C. Wu, Z.-M. Liao, R. G. S. Sofin, G. Feng, X.-M. Ma, A. B. Shick, O. N. Mryasov, and I. V. Shvets, Mn2Au: Body-centered-tetragonal bimetallic antiferromagnets grown by molecular beam epitaxy, Adv. Mater. 24, 6374 (2012).
  21. M. Jourdan, H. Bräuning, A. Sapozhnik, H.-J. Elmers, H. Zabel, and M. Kläui, Epitaxial Mn2Au thin films for antiferromagnetic spintronics, J. Phys. D: Appl. Phys. 48, 385001 (2015).
  22. I. Gelen, T. Shinwari, I. Kumberg, S. E. Hadjadj, Y. A. Shokr, E. Golias, and W. Kuch, Growth of MnxAu1−x films on Cu(001) and Ag(001) single-crystal substrates, Phys. Status Solidi (b) 261, 2300518 (2024).
  23. H. H. Farrell and M. Strongin, The interaction of oxygen and nitrogen with the niobium (100) surface, Surf. Sci. 38, 18 (1973).
  24. S. Usami, N. Tominaga, and T. Nakajima, AES-LEED study of adsorption of common gases on the (100) planes of W and Nb, Vacuum 27, 11 (1977).
  25. B. An, S. Fukuyama, K. Yokogawa, and M. Yoshimura, Surface structures of clean and oxidized Nb(100) by LEED, AES, and STM, Phys. Rev. B 68, 115423 (2003).
  26. E. Hüger, H. Wormeester, and K. Osuch, Subsurface miscibility of metal overlayers with V, Nb and Ta substrates, Surf. Sci. 580, 173 (2005).
  27. I. V. Soldatov and R. Schäfer, Selective sensitivity in Kerr microscopy, Rev. Sci. Instr. 88, 073701 (2017).
  28. I. V. Soldatov and R. Schäfer, Advances in quantitative Kerr microscopy, Phys. Rev. B 95, 014426 (2017).
  29. S. Akhundzada, K. Dingel, D. Bischof, C. Janzen, B. Sick, and A. Ehresmann, Domain imaging in periodic submicron wide nanostructures by digital drift correction in Kerr microscopy, Adv. Photon. Res. 4, 2300170 (2023).
  30. See Supplemental Material at http://link.aps.org/supplemental/10.1103/kkn6-t2jq for quantitative analysis of AES data, a LEED-IV curve of a Mn2Au film, and additional MOKE measurements, which includes Refs. [39, 40, 41].
  31. T. Ambrose and C. L. Chien, Finite-size effects and uncompensated magnetization in thin antiferromagnetic CoO layers, Phys. Rev. Lett. 76, 1743 (1996).
  32. C. Won, Y. Z. Wu, H. W. Zhao, A. Scholl, A. Doran, W. Kim, T. L. Owens, X. F. Jin, and Z. Q. Qiu, Studies of FeMn/Co/Cu(001) films using photoemission electron microscopy and surface magneto-optic Kerr effect, Phys. Rev. B 71, 024406 (2005).
  33. D. Choo, R. W. Chantrell, R. Lamberton, A. Johnston, and K. O'Grady, A model of the magnetic properties of coupled ferromagnetic/antiferromagnetic bilayers, J. Appl. Phys. 101, 09E521 (2007).
  34. X. P. Qiu, D. Z. Yang, S. M. Zhou, R. Chantrell, K. O'Grady, U. Nowak, J. Du, X. J. Bai, and L. Sun, Rotation of the pinning direction in the exchange bias training effect in polycrystalline NiFe/FeMn bilayers, Phys. Rev. Lett. 101, 147207 (2008).
  35. N. D. Müglich, A. Gaul, M. Meyl, A. Ehresmann, G. Götz, G. Reiss, and T. Kuschel, Time-dependent rotatable magnetic anisotropy in polycrystalline exchange-bias systems: Dependence on grain-size distribution, Phys. Rev. B 94, 184407 (2016).
  36. M. Merkel, R. Huhnstock, M. Reginka, D. Holzinger, M. Vogel, A. Ehresmann, J. Zehner, and K. Leistner, Interrelation between polycrystalline structure and time-dependent magnetic anisotropies in exchange-biased bilayers, Phys. Rev. B 102, 144421 (2020).
  37. A. A. Sapozhnik, M. Filianina, S. Y. Bodnar, A. Lamirand, M.-A. Mawass, Y. Skourski, H.-J. Elmers, H. Zabel, M. Kläui, and M. Jourdan, Direct imaging of antiferromagnetic domains in Mn2Au manipulated by high magnetic fields, Phys. Rev. B 97, 134429 (2018).
  38. J. Gördes, C. Janzen, A. J. Vereijken, T. Li, T. Shinwari, A. Ehresmann, and W. Kuch, Datasets for the publication “Growth and Kerr magnetometry of Mn2Au on a gold-capped Nb(001) substrate” [Dataset], Zenodo, 2026, https://doi.org/10.5281/zenodo.19351529.
  39. R. Memeo, F. Ciccacci, C. Mariani, and S. Ossicini, On the use of the Auger technique for quantitative analysis of overlayers, Thin Solid Films 109, 159 (1983).
  40. T. Shinwari, I. Gelen, M. Villanueva, I. Kumberg, Y. A. Shokr, M. Y. Khan, and W. Kuch, Growth, structure, and magnetic properties of artificially layered NiMn in contact to ferromagnetic Co on Cu3Au(001), Phys. Status Solidi (b) 260, 2200518 (2023).
  41. M.-T. Lin, J. Shen, W. Kuch, H. Jenniches, M. Klaua, C. M. Schneider, and J. Kirschner, Structural transformation and spin-reorientation transition in epitaxial Fe/Cu3Au(100) ultrathin films, Phys. Rev. B 55, 5886 (1997).
