First principles study of [111]-oriented epitaxially strained rare-earth nickelate NdNiO3

Alexander Lione1, Jorge Íñiguez-González2,3, and Nicholas C. Bristowe1

PDF

Phys. Rev. B 113, 014119 – Published 29 January, 2026

DOI: https://doi.org/10.1103/k48x-mvw1

Abstract

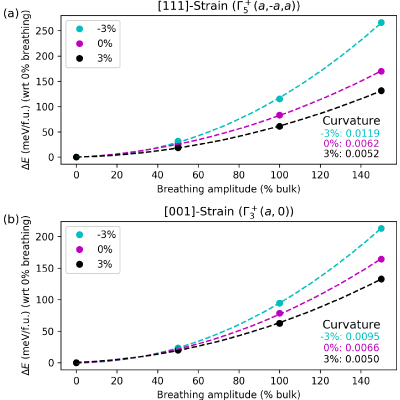

Density functional theory is used to investigate the effect of biaxial strain on the structural, electronic and magnetic properties of [111]-oriented NdNiO3, as a representative of the rare-earth perovskites that undergo metal-to-insulator transitions. We find that this constraint on the system induces unique structural phase transitions not previously observed under the well-studied bulk or [001]-oriented strained systems. We also report unique electronic behavior, including amplification of the electronic band gap with tensile strain, and insulating, charge-ordered phases with nonorthorhombic tilt patterns. To provide clarity to the trends we observe, we also investigate the coupling between the breathing mode and strain, where we observe certain strains to directly favor and disfavor the creation of the breathing mode (and thus the associated charge-ordering). The amplification of the band gap with strain is understood in terms of a cooperative coupling between the elastic constraint and octahedral breathing, which expands on the previously reported triggered mechanism mediated by octahedral tilting.

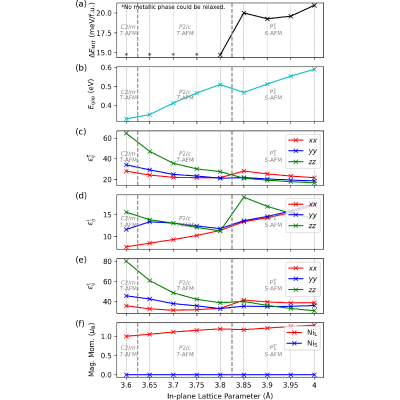

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (47)

  1. K. Sreedhar, J. M. Honig, M. Darwin, M. McElfresh, P. M. Shand, J. Xu, B. C. Crooker, and J. Spalek, Electronic properties of the metallic perovskite LaNiO3: Correlated behavior of 3d electrons, Phys. Rev. B 46, 6382 (1992).
  2. J. B. Torrance, P. Lacorre, A. I. Nazzal, E. J. Ansaldo, and C. Niedermayer, Systematic study of insulator-metal transitions in perovskites RNiO3 (R=Pr,Nd,Sm,Eu) due to closing of charge-transfer gap, Phys. Rev. B 45, 8209 (1992).
  3. M. Imada, A. Fujimori, and Y. Tokura, Metal-insulator transitions, Rev. Mod. Phys. 70, 1039 (1998).
  4. J. L. García-Muñoz, J. Rodríguez-Carvajal, P. Lacorre, and J. B. Torrance, Neutron-diffraction study of RNiO3 (R=La,Pr,Nd,Sm): Electronically induced structural changes across the metal-insulator transition, Phys. Rev. B 46, 4414 (1992).
  5. J. A. Alonso, M. J. Martínez-Lope, M. T. Casais, J. L. García-Muñoz, and M. T. Fernández-Díaz, Room-temperature monoclinic distortion due to charge disproportionation in RNiO3 perovskites with small rare-earth cations (R=Ho, Y, Er, Tm, Yb, and Lu}): A neutron diffraction study, Phys. Rev. B 61, 1756 (2000).
  6. J. A. Alonso, M. J. Martinez-Lope, M. T. Casais, M. A. Aranda, and M. T. Fernandez-Diaz, Metal- insulator transitions, structural and microstructural evolution of RNiO3 (R= Sm, Eu, Gd, Dy, Ho, Y}) perovskites: evidence for room-temperature charge disproportionation in monoclinic HoNiO3 and YNiO3, J. Am. Chem. Soc. 121, 4754 (1999).
  7. J. L. García-Muñoz, M. A. G. Aranda, J. A. Alonso, and M. J. Martínez-Lope, Structure and charge order in the antiferromagnetic band-insulating phase of NdNiO3, Phys. Rev. B 79, 134432 (2009).
  8. R. Jaramillo, S. D. Ha, D. Silevitch, and S. Ramanathan, Origins of bad-metal conductivity and the insulator–metal transition in the rare-earth nickelates, Nat. Phys. 10, 304 (2014).
  9. J. García-Muñoz, J. Rodríguez-Carvajal, and P. Lacorre, Sudden appearance of an unusual spin density wave at the metal-insulator transition in the perovskites RNiO3 (R= Pr, Nd), Europhys. Lett. 20, 241 (1992).
  10. A. Mercy, J. Bieder, J. Íñiguez, and P. Ghosez, Structurally triggered metal-insulator transition in rare-earth nickelates}, Nat. Commun. 8, 1677 (2017).
  11. G. G. Guzmán-Verri, R. T. Brierley, and P. B. Littlewood, Cooperative elastic fluctuations provide tuning of the metal–insulator transition, Nature (London) 576, 429 (2019).
  12. J. Shi, S. D. Ha, Y. Zhou, F. Schoofs, and S. Ramanathan, A correlated nickelate synaptic transistor, Nat. Commun. 4, 2676 (2013).
  13. H.-T. Zhang, T. J. Park, A. N. Islam, D. S. Tran, S. Manna, Q. Wang, S. Mondal, H. Yu, S. Banik, S. Cheng, et al., Reconfigurable perovskite nickelate electronics for artificial intelligence, Science 375, 533 (2022).
  14. Z. Zhang, D. Schwanz, B. Narayanan, M. Kotiuga, J. A. Dura, M. Cherukara, H. Zhou, J. W. Freeland, J. Li, R. Sutarto, et al., Perovskite nickelates as electric-field sensors in salt water, Nature (London) 553, 68 (2018).
  15. S. Catalano, M. Gibert, V. Bisogni, O. Peil, F. He, R. Sutarto, M. Viret, P. Zubko, R. Scherwitzl, A. Georges, et al., Electronic transitions in strained SmNiO3 thin films, APL Mater. 2, 116110 (2014).
  16. A. Tiwari, C. Jin, and J. Narayan, Strain-induced tuning of metal–insulator transition in NdNiO3, Appl. Phys. Lett. 80, 4039 (2002).
  17. G. Catalan, R. M. Bowman, and J. M. Gregg, Metal-insulator transitions in NdNiO3 thin films, Phys. Rev. B 62, 7892 (2000).
  18. S. Prosandeev, L. Bellaiche, and J. Íñiguez, Ab initio study of the factors affecting the ground state of rare-earth nickelates, Phys. Rev. B 85, 214431 (2012).
  19. A. Saha and T. Birol, Effect of (001) and (111) epitaxial strain on Pnma perovskite oxides, Phys. Rev. Mater. 8, 094412 (2024).
  20. M. Moreau, A. Marthinsen, S. M. Selbach, and T. Tybell, Strain-phonon coupling in (111)-oriented perovskite oxides, Phys. Rev. B 96, 094109 (2017).
  21. S. Catalano, M. Gibert, V. Bisogni, F. He, R. Sutarto, M. Viret, P. Zubko, R. Scherwitzl, G. A. Sawatzky, T. Schmitt, et al., Tailoring the electronic transitions of NdNiO3 films through (111) pc oriented interfaces, APL Mater. 3, 062506 (2015).
  22. J. Chen, H. Hu, F. Meng, T. Yajima, L. Yang, B. Ge, X. Ke, J. Wang, Y. Jiang, and N. Chen, Overlooked transportation anisotropies in d-band correlated rare-earth perovskite nickelates, Matter 2, 1296 (2020).
  23. T. Kim, D. Puggioni, Y. Yuan, L. Xie, H. Zhou, N. Campbell, P. Ryan, Y. Choi, J.-W. Kim, J. Patzner, et al., Polar metals by geometric design, Nature (London) 533, 68 (2016).
  24. S. Middey, D. Meyers, D. Doennig, M. Kareev, X. Liu, Y. Cao, Z. Yang, J. Shi, L. Gu, P. J. Ryan, et al., Mott electrons in an artificial graphenelike crystal of rare-earth nickelate, Phys. Rev. Lett. 116, 056801 (2016).
  25. J. P. Perdew, A. Ruzsinszky, G. I. Csonka, O. A. Vydrov, G. E. Scuseria, L. A. Constantin, X. Zhou, and K. Burke, Restoring the density-gradient expansion for exchange in solids and surfaces, Phys. Rev. Lett. 100, 136406 (2008).
  26. P. E. Blöchl, Projector augmented-wave method, Phys. Rev. B 50, 17953 (1994).
  27. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  28. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  29. G. Kresse and J. Furthmüller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  30. G. Kresse and D. Joubert, From ultrasoft pseudopotentials to the projector augmented-wave method, Phys. Rev. B 59, 1758 (1999).
  31. M. Gajdoš, K. Hummer, G. Kresse, J. Furthmüller, and F. Bechstedt, Linear optical properties in the projector-augmented wave methodology, Phys. Rev. B 73, 045112 (2006).
  32. A. I. Liechtenstein, V. I. Anisimov, and J. Zaanen, Density-functional theory and strong interactions: Orbital ordering in Mott-Hubbard insulators, Phys. Rev. B 52, R5467 (1995).
  33. J. Varignon, M. N. Grisolia, J. Íñiguez, A. Barthélémy, and M. Bibes, Complete phase diagram of rare-earth nickelates from first-principles, npj Quantum Mater. 2, 21 (2017).
  34. A. Hampel and C. Ederer, Interplay between breathing mode distortion and magnetic order in rare-earth nickelates RNiO3 within DFT+U, Phys. Rev. B 96, 165130 (2017).
  35. H. T. Stokes, S. v. Orden, and B. J. Campbell, ISOSUBGROUP: an internet tool for generating isotropy subgroups of crystallographic space groups, J. Appl. Crystallogr. 49, 1849 (2016).
  36. G. Giovannetti, S. Kumar, D. Khomskii, S. Picozzi, and J. van den Brink, Multiferroicity in rare-earth nickelates RNiO3, Phys. Rev. Lett. 103, 156401 (2009).
  37. J. L. García-Muñoz, J. Rodríguez-Carvajal, and P. Lacorre, Neutron-diffraction study of the magnetic ordering in the insulating regime of the perovskites RNiO3 (R=Pr and Nd), Phys. Rev. B 50, 978 (1994).
  38. M. L. Medarde, Structural, magnetic and electronic properties of perovskites (R= rare earth), J. Phys.: Condens. Matter 9, 1679 (1997).
  39. V. Scagnoli, U. Staub, Y. Bodenthin, M. García-Fernández, A. M. Mulders, G. I. Meijer, and G. Hammerl, Induced noncollinear magnetic order of Nd3+ in NdNiO3 observed by resonant soft x-ray diffraction, Phys. Rev. B 77, 115138 (2008).
  40. C. Xiao, VASP OPT AXIS: Stress tensor method, https://github.com/Chengcheng-Xiao/VASP_OPT_AXIS
  41. T. Arima, Y. Tokura, and J. B. Torrance, Phys. Rev. B Variation of optical gaps in perovskite-type 3d transition-metal oxides, 48, 17006 (1993).
  42. N. A. Benedek and C. J. Fennie, Why are there so few perovskite ferroelectrics?, J. Phys. Chem. C 117, 13339 (2013).
  43. T. Gu, T. Scarbrough, Y. Yang, J. Íñiguez, L. Bellaiche, and H. J. Xiang, Cooperative couplings between octahedral rotations and ferroelectricity in perovskites and related materials, Phys. Rev. Lett. 120, 197602 (2018).
  44. H. Park, A. J. Millis, and C. A. Marianetti, Site-selective Mott transition in rare-earth-element nickelates, Phys. Rev. Lett. 109, 156402 (2012).
  45. A. Subedi, Breathing distortions in the metallic, antiferromagnetic phase of LaNiO3, SciPost Phys. 5, 020 (2018).
  46. A. Lione, J. Íñiguez, and N. C. Bristowe, First principles study of 111-oriented epitaxially strained Rare-Earth Nickelate NdNiO3 (dataset), Durham University Collections (2025), 10.15128/r1xd07gs71z.
  47. W. Hai-Ping, K. Deng, T. Wei, X. Chuan-Yun, H. Feng-Lan, and Q. Li, The structural, electronic, and magnetic properties of SrFeOn (n=2 and 2.5): A GGA+U study, Chin. Phys. B 18, 5008 (2009).
