Efficient G0W0 and Bethe-Salpeter equation calculations of heterostructures within an all-electron framework

Maximilian Schebek1,2,*,†, Ignacio Gonzalez Oliva1,*, and Claudia Draxl1,3

  • *These authors contributed equally to this work.
  • †Contact author: m.schebek@fu-berlin.de
PDF

Phys. Rev. B 112, 165130 – Published 20 October, 2025

DOI: https://doi.org/10.1103/hm7q-y2x7

Abstract

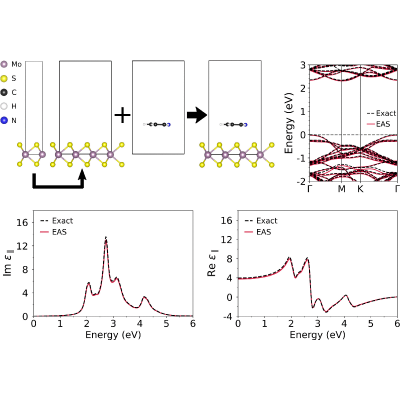

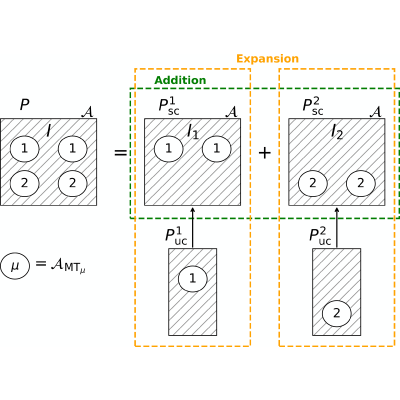

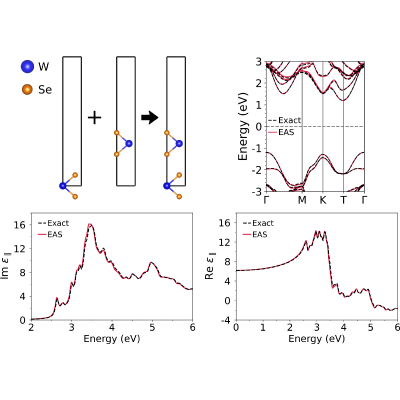

The combination of two-dimensional materials into heterostructures offers new opportunities for the design of optoelectronic devices with tunable properties. However, computing electronic and optical properties of such systems using state-of-the-art methodology is challenging due to their large unit cells. This is particularly so for highly precise all-electron calculations within the framework of many-body perturbation theory, which come with high computational costs. Here, we extend an approach that allows for the efficient calculation of the noninteracting polarizability, previously developed for plane wave basis sets, to the (linearized) augmented plane wave method. This approach is based on an additive ansatz, which computes and superposes the polarizabilities of the individual components in their respective unit cells. We implement this formalism in the G0W0 module of the exciting code and implement an analogous approach for BSE calculations. This allows the calculation of highly precise optical spectra at low cost. So-obtained results of the quasiparticle band structure and optical spectra are demonstrated for bilayer WSe2 and pyridine@MoS2 in comparison with exact reference calculations.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (44)

  1. P. Wang, C. Jia, Y. Huang, and X. Duan, van der Waals heterostructures by design: From 1D and 2D to 3D, Matter 4, 552 (2021).
  2. A. Molina-Sánchez, K. Hummer, and L. Wirtz, Vibrational and optical properties of MoS2: From monolayer to bulk, Surf. Sci. Rep. 70, 554 (2015).
  3. G. Wang, A. Chernikov, M. M. Glazov, T. F. Heinz, X. Marie, T. Amand, and B. Urbaszek, Colloquium: Excitons in atomically thin transition metal dichalcogenides, Rev. Mod. Phys. 90, 021001 (2018).
  4. T. Devakul, V. Crépel, Y. Zhang, and L. Fu, Magic in twisted transition metal dichalcogenide bilayers, Nat. Commun. 12, 6730 (2021).
  5. F. Caruso, M. Schebek, Y. Pan, C. Vona, and C. Draxl, Chirality of valley excitons in monolayer transition-metal dichalcogenides, J. Phys. Chem. Lett. 13, 5894 (2022).
  6. J. Ji and J. H. Choi, Recent progress in 2D hybrid heterostructures from transition metal dichalcogenides and organic layers: Properties and applications in energy and optoelectronics fields, Nanoscale 14, 10648 (2022).
  7. C. Draxl, D. Nabok, and K. Hannewald, Organic/inorganic hybrid materials: Challenges for ab initio methodology, Acc. Chem. Res. 47, 3225 (2014).
  8. O. T. Hofmann, E. Zojer, L. Hörmann, A. Jeindl, and R. J. Maurer, First-principles calculations of hybrid inorganic–organic interfaces: From state-of-the-art to best practice, Phys. Chem. Chem. Phys. 23, 8132 (2021).
  9. I. Gonzalez Oliva, B. Maurer, B. Alex, S. Tillack, M. Schebek, and C. Draxl, Hybrid materials: Still challenging for ab initio theory? Phys. Status Solidi A 221, 2300170 (2024).
  10. Z.-F. Liu, Many-Body effects at heterogeneous interfaces from first-principles: Progress, challenges, and opportunities, ACS Nano 19, 5861 (2025).
  11. O. Benson and N. Koch, Hybrid inorganic/organic systems for opto-electronics (HIOS), Phys. Status Solidi A 221, 2300939 (2024).
  12. F. Xuan, Y. Chen, and S. Y. Quek, Quasiparticle levels at large interface systems from many-body perturbation theory: The XAF-GW method, J. Chem. Theory Comput. 15, 3824 (2019).
  13. Z. F. Liu, F. H. D. Jornada, S. G. Louie, and J. B. Neaton, Accelerating GW-based energy level alignment calculations for molecule-metal interfaces using a substrate screening approach, J. Chem. Theory Comput. 15, 4218 (2019).
  14. O. Adeniran and Z. F. Liu, Quasiparticle electronic structure of phthalocyanine:TMD interfaces from first-principles GW, J. Chem. Phys. 155, 214702 (2021).
  15. J. Frimpong and Z. F. Liu, Generalized substrate screening GW for covalently bonded interfaces, J. Phys. Chem. Lett. 15, 2133 (2024).
  16. M. Palummo, A. N. D'Auria, J. C. Grossman, and G. Cicero, Tailoring the optical properties of MoS2 and WS2 single layers via organic functionalization, J. Phys.: Condens. Matter 31, 235701 (2019).
  17. K. Wang and B. Paulus, Tuning the binding energy of excitons in the MoS2 monolayer by molecular functionalization and defective engineering, Phys. Chem. Chem. Phys. 22, 11936 (2020).
  18. K. Wang and B. Paulus, Toward a comprehensive understanding of Oxygen on MoS2: From reaction to optical properties, J. Phys. Chem. C 125, 19544 (2021).
  19. I. Gonzalez Oliva, F. Caruso, P. Pavone, and C. Draxl, Hybrid excitations at the interface between a MoS2 monolayer and organic molecules: A first-principles study, Phys. Rev. Mater. 6, 054004 (2022).
  20. M. S. Hybertsen and S. G. Louie, First-principles theory of quasiparticles: Calculation of band gaps in semiconductors and insulators, Phys. Rev. Lett. 55, 1418 (1985).
  21. M. S. Hybertsen and S. G. Louie, Electron correlation in semiconductors and insulators: Band gaps and quasiparticle energies, Phys. Rev. B 34, 5390 (1986).
  22. P. Liu, M. Kaltak, J. Klimeš, and G. Kresse, Cubic scaling GW: Towards fast quasiparticle calculations, Phys. Rev. B 94, 165109 (2016).
  23. I. Duchemin and X. Blase, Cubic-scaling all-electron GW calculations with a separable density-fitting space-time approach, J. Chem. Theory Comput. 17, 2383 (2021).
  24. D. Neuhauser, Y. Gao, C. Arntsen, C. Karshenas, E. Rabani, and R. Baer, Breaking the theoretical scaling limit for predicting quasiparticle energies: The stochastic GW approach, Phys. Rev. Lett. 113, 076402 (2014).
  25. H. Jiang, R. I. Gómez-Abal, X. Z. Li, C. Meisenbichler, C. Ambrosch-Draxl, and M. Scheffler, FHI-gap: A GW code based on the all-electron augmented plane wave method, Comput. Phys. Commun. 184, 348 (2013).
  26. D. Nabok, A. Gulans, and C. Draxl, Accurate all-electron G0W0 quasiparticle energies employing the full-potential augmented plane-wave method, Phys. Rev. B 94, 035118 (2016).
  27. X. Ren, P. Rinke, V. Blum, J. Wieferink, A. Tkatchenko, A. Sanfilippo, K. Reuter, and M. Scheffler, Resolution-of-identity approach to Hartree–Fock, hybrid density functionals, RPA, MP2 and GW with numeric atom-centered orbital basis functions, New J. Phys. 14, 053020 (2012).
  28. K. Lejaeghere et al., Reproducibility in density functional theory calculations of solids, Science 351, aad3000 (2016).
  29. M. Azizi, F. A. Delesma, M. Giantomassi, D. Zavickis, M. Kuisma, K. Thyghesen, D. Golze, A. Buccheri, M.-Y. Zhang, P. Rinke, C. Draxl, A. Gulans, and X. Gonze, Precision benchmarks for solids: G0W0 calculations with different basis sets, Comput. Mater. Sci. 250, 113655 (2025).
  30. D. J. Singh and L. Nordström, Planewaves, Pseudopotentials, and the LAPW Method (Springer, New York, 2005).
  31. A. Gulans, S. Kontur, C. Meisenbichler, D. Nabok, P. Pavone, S. Rigamonti, S. Sagmeister, U. Werner, and C. Draxl, Exciting: A full-potential all-electron package implementing density-functional theory and many-body perturbation theory, J. Phys.: Condens. Matter 26, 363202 (2014).
  32. C. Vorwerk, B. Aurich, C. Cocchi, and C. Draxl, Bethe–Salpeter equation for absorption and scattering spectroscopy: Implementation in the exciting code, Electron. Struct. 1, 037001 (2019).
  33. M. Rohlfing and S. G. Louie, Electron-hole excitations and optical spectra from first principles, Phys. Rev. B 62, 4927 (2000).
  34. C. Friedrich, S. Blügel, and A. Schindlmayr, Efficient implementation of the GW approximation within the all-electron FLAPW method, Phys. Rev. B 81, 125102 (2010).
  35. J. He, K. Hummer, and C. Franchini, Stacking effects on the electronic and optical properties of bilayer transition metal dichalcogenides MoS2, MoSe2, WS2, and WSe2, Phys. Rev. B 89, 075409 (2014).
  36. A. Tkatchenko and M. Scheffler, Accurate molecular van der Waals interactions from ground-state electron density and free-atom reference data, Phys. Rev. Lett. 102, 073005 (2009).
  37. A. Tkatchenko, L. Romaner, O. T. Hofmann, E. Zojer, C. Ambrosch-Draxl, and M. Scheffler, van der Waals interactions between organic adsorbates and at organic/inorganic interfaces, MRS Bull. 35, 435 (2010).
  38. R. Rodrigues Pela, C. Vona, S. Lubeck, B. Alex, I. Gonzalez Oliva, and C. Draxl, Critical assessment of G0W0 calculations for 2D materials: The example of monolayer MoS2, npj Comput. Mater. 10, 77 (2024).
  39. S. Haastrup, M. Strange, M. Pandey, T. Deilmann, P. S. Schmidt, N. F. Hinsche, M. N. Gjerding, D. Torelli, P. M. Larsen, A. C. Riis-Jensen, J. Gath, K. W. Jacobsen, J. J. Mortensen, T. Olsen, and K. S. Thygesen, The computational 2D materials database: High-throughput modeling and discovery of atomically thin crystals, 2D Mater. 5, 042002 (2018).
  40. M. N. Gjerding, A. Taghizadeh, A. Rasmussen, S. Ali, F. Bertoldo, T. Deilmann, N. R. Knøsgaard, M. Kruse, A. H. Larsen, S. Manti, T. G. Pedersen, U. Petralanda, T. Skovhus, M. K. Svendsen, J. J. Mortensen, T. Olsen, and K. S. Thygesen, Recent progress of the computational 2D materials database (C2DB), 2D Mater. 8, 044002 (2021).
  41. CPU hours are defined as the number of processors used multiplied by the number of wall-time hours needed for the calculation.
  42. F. Henneke, L. Lin, C. Vorwerk, C. Draxl, R. Klein, and C. Yang, Fast optical absorption spectra calculations for periodic solid state systems, Commun. Appl. Math. Comput. Sci. 15, 89 (2020).
  43. C. Draxl and M. Scheffler, The NOMAD laboratory: From data sharing to artificial intelligence, J. Phys. Mater. 2, 036001 (2019).
  44. Dataset: EAS test, NOMAD, https://doi.org/10.17172/NOMAD/2025.07.24-1.
