Nuclear magnetic resonance far off the Larmor frequency: Nonsecular resonances in CaF2

Michael Jurkutat1,*, Kajum Safiullin1, Pooja Singh1, Stephan L. Grage2, Jürgen Haase3, Boris V. Fine4, and Benno Meier1,5,†

  • *Contact author: michael.jurkutat@kit.edu
  • †Contact author: benno.meier@kit.edu
PDF

Phys. Rev. B 112, L060302 – Published 11 August, 2025

DOI: https://doi.org/10.1103/h2sn-wvzm

Abstract

High field magnetic resonance of nuclear spins is normally carried out at or near the Larmor frequency Ω0. Here, we report an observation of nonsecular nuclear spin resonances far off Ω0. These originate from nonsecular terms of the nuclear spin-spin interaction and provide means for the control of coupled two level systems. In systems of equivalent nuclear spins, nonsecular resonances were predicted to lead to anomalous, fast relaxation of the nuclear spin polarization. We report experimental results that are in excellent agreement with the predicted behavior.

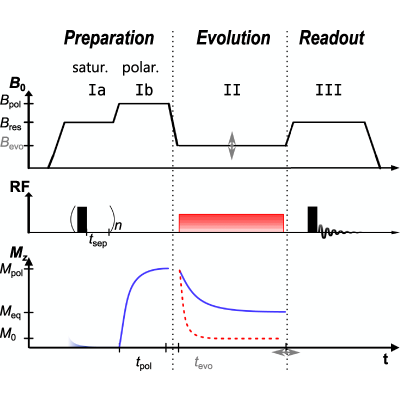

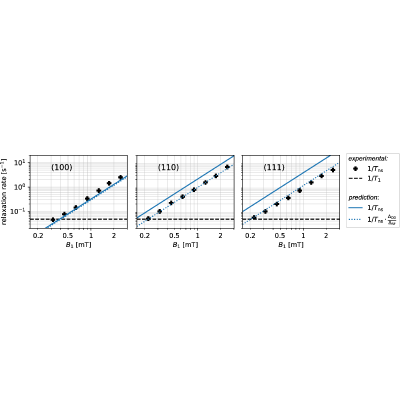

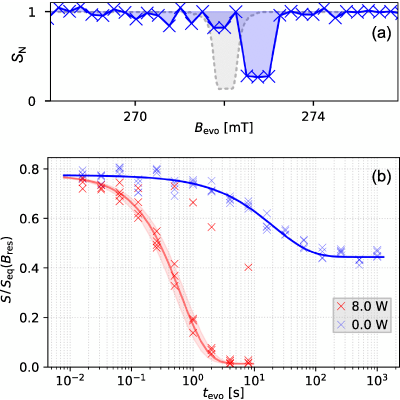

View figure in article

Physics Subject Headings (PhySH)

Viewpoint

Unexpected Resonances Could Boost NMR’s Potency

Published 11 August, 2025

A radio-frequency field can be resonant with nuclear spins in a sample even if its frequency does not match a spectroscopic transition—a result that could enable new forms of NMR spectroscopy.

See more in Physics

Article Text

Supplemental Material

References (30)

  1. S. R. Hartmann and E. L. Hahn, Nuclear double resonance in the rotating frame, Phys. Rev. 128, 2042 (1962).
  2. A. Henstra, P. Dirksen, J. Schmidt, and W. Wenckebach, Nuclear spin orientation via electron spin locking (NOVEL), J. Magn. Reson. 77, 389 (1988).
  3. M. Bloom and M. A. LeGros, Direct detection of two-quantum coherence, Can. J. Phys. 64, 1522 (1986).
  4. I. M. Haies, J. A. Jarvis, H. Bentley, I. Heinmaa, I. Kuprov, P. T. F. Williamson, and M. Carravetta, N14 overtone NMR under MAS: Signal enhancement using symmetry-based sequences and novel simulation strategies, Phys. Chem. Chem. Phys. 17, 6577 (2015).
  5. Y. Zur, M. H. Levitt, and S. Vega, Multiphoton NMR spectroscopy on a spin system with I = 1/2, J. Chem. Phys. 78, 5293 (1983).
  6. S. S. Eaton, K. M. More, B. M. Sawant, and G. R. Eaton, Use of the ESR half-field transition to determine the interspin distance and the orientation of the interspin vector in systems with two unpaired electrons, J. Am. Chem. Soc. 105, 6560 (1983).
  7. C. M. Kropf and B. V. Fine, Nonsecular resonances for the coupling between nuclear spins in solids, Phys. Rev. B 86, 094401 (2012).
  8. C. M. Kropf, J. Kohlrautz, J. Haase, and B. V. Fine, Anomalous longitudinal relaxation of nuclear spins in CaF2, Fortschr. Phys. 65, 1600023 (2017).
  9. J. H. V. Vleck, The dipolar broadening of magnetic resonance lines in crystals, Phys. Rev. 74, 1168 (1948).
  10. A. G. Redfield, Nuclear magnetic resonance saturation and rotary saturation in solids, Phys. Rev. 98, 1787 (1955).
  11. C. P. Slichter, Principles of Magnetic Resonance (Springer, Berlin, 1990).
  12. M. H. Levitt, Spin Dynamics: Basics of Nuclear Magnetic Resonance (John Wiley & Sons, Ltd., New York, 2008).
  13. R. R. Ernst, G. Bodenhausen, and A. Wokaun, Principles of Nuclear Magnetic Resonance in One and Two Dimensions (Oxford University Press, Oxford, UK, 1987).
  14. A. Abragam and M. Goldman, Nuclear Magnetism: Order and Disorder (Oxford University Press, Oxford, UK, 1982).
  15. A. N. Kolmogorov, On the conservation of quasiperiodic motions for a small change in the Hamiltonian function, Dokl. Acad. Nauk USSR 98, 527 (1954).
  16. J. Moser, On invariant curves of area-preserving mappings of an annulus, Nach. Akad. Wiss. Göttingen, Math. Phys. Kl. II 1, 1 (1962).
  17. V. I. Arnol'd, Small denominators and problems of stability of motion in classical and celestial mechanics, Russ. Math. Surv. 18, 85 (1963).
  18. B. V. Chirikov, A universal instability of many-dimensional oscillator systems, Phys. Rep. 52, 263 (1979).
  19. V. I. Arnold, Mathematical Methods of Classical Mechanics (Springer, New York, 1978).

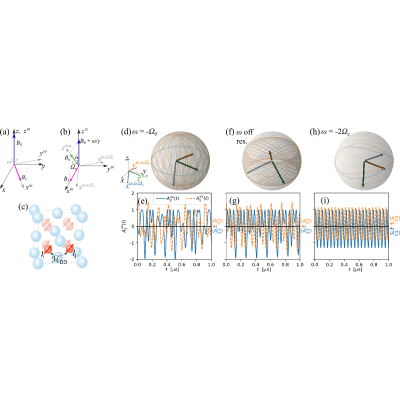

  20. In keeping with Ref. [7], we use the definition Ω0=+γB0, opposite in sign to the more common definition. Owing to this, e.g., irradiation on resonance for Rabi rotation is at ω=−Ω0 as shown in Fig.  1.
  21. The signs of the nonsecular resonances are immaterial for our experiments, since the applied rf field is linearly polarized. The field is written as a superposition of two counter-rotating circularly polarized fields, and only the circularly polarized part with the correct sign/polarization affects the spins.
  22. S. W. Morgan, B. V. Fine, and B. Saam, Universal long-time behavior of nuclear spin decays in a solid, Phys. Rev. Lett. 101, 067601 (2008).
  23. B. Meier, J. Kohlrautz, and J. Haase, Eigenmodes in the long-time behavior of a coupled spin system measured with nuclear magnetic resonance, Phys. Rev. Lett. 108, 177602 (2012).
  24. H. Cho, T. D. Ladd, J. Baugh, D. G. Cory, and C. Ramanathan, Multispin dynamics of the solid-state NMR free induction decay, Phys. Rev. B 72, 054427 (2005).
  25. To emphasize averaged Hamiltonians, we use 〈〈...〉B0〉B1 to denote the consecutive averages over the action of B0 and B1 in the Van Vleck–Redfield two-step truncation. The averaging over the full rotation after Kropf and Fine [7] is denoted by 〈...〉B0,B1.
  26. In this work we explicitly mark doubly rotating frame Hamiltonians using the ′ symbol. In the earlier works [7, 8], the frame is defined implicitly via the spin operators that appear within the Hamiltonian.
  27. See Supplemental Material at http://link.aps.org/supplemental/10.1103/h2sn-wvzm for details regarding the predictions for all five homonuclear NSRs as well as additional experimental details and supplementary data.
  28. A. J. Horsewill and Q. Xue, Magnetic field-cycling investigations of molecular tunnelling, Phys. Chem. Chem. Phys. 4, 5475 (2002).
  29. D. T. Peat, M. L. Hirsch, D. G. Gadian, A. J. Horsewill, J. R. Owers-Bradley, and J. G. Kempf, Low-field thermal mixing in [1-C]13 pyruvic acid for brute-force hyperpolarization, Phys. Chem. Chem. Phys. 18, 19173 (2016).
  30. We increased the frequency by 5 kHz every 1 ms (990 µs irradiation with 10 µs breaks).
