Microscopic magnetism of $A (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ ( $A$ = Ba, Pb, Sr): ${}^{31}P$ and ${}^{63, 65}{Cu}$ NMR study

Riho Rästa ^1,2,*, Ivo Heinmaa ¹, Joosep Link ^1,2, Yusuke Kousaka ³, Tsuyoshi Kimura ⁴, Yoshihiko Ihara ⁵, Kenta Kimura ⁶, and Raivo Stern ^1,7,†

¹National Institute of Chemical Physics and Biophysics, Akadeemia tee 23, 12618 Tallinn, Estonia
²Department of Cybernetics, Tallinn University of Technology, Ehitajate tee 5, 19086 Tallinn, Estonia
³Department of Physics and Electronics, Osaka Metropolitan University, Osaka 599-8531, Japan
⁴Department of Applied Physics, The University of Tokyo, Tokyo 113-8656, Japan
⁵Department of Physics, Faculty of Science, Hokkaido University, Sapporo 060-0810, Japan
⁶Department of Materials Science, Osaka Metropolitan University, Osaka 599-8531, Japan
⁷National High Magnetic Field Laboratory, 1800 East Paul Dirac Drive, Tallahassee, Florida 32310, USA

^*Contact author: riho.rasta@kbfi.ee
^†Contact author: raivo.stern@kbfi.ee

PDF

Phys. Rev. B 113, 184428 – Published 7 May, 2026

DOI: https://doi.org/10.1103/fn12-sjlh

Abstract

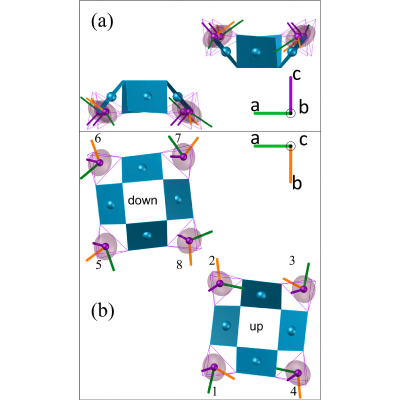

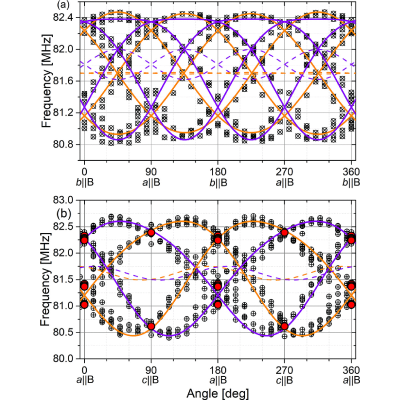

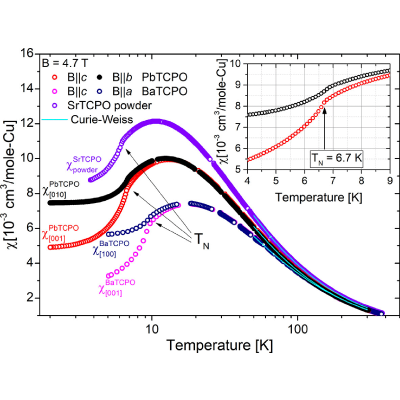

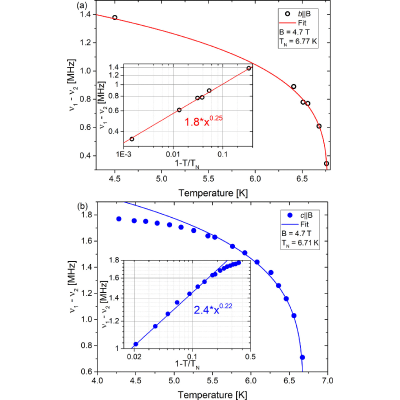

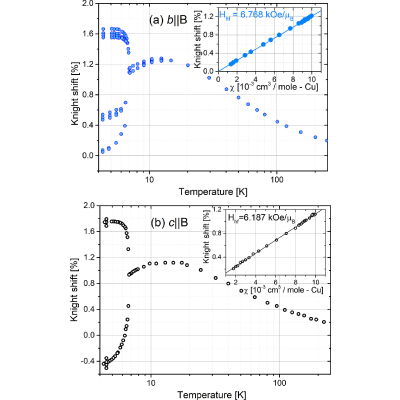

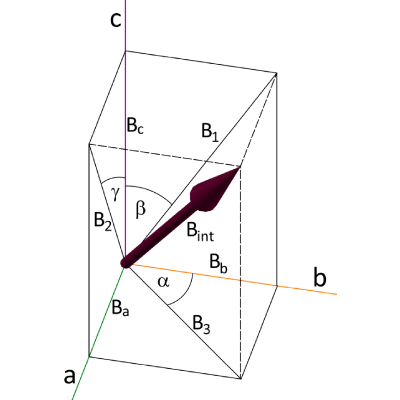

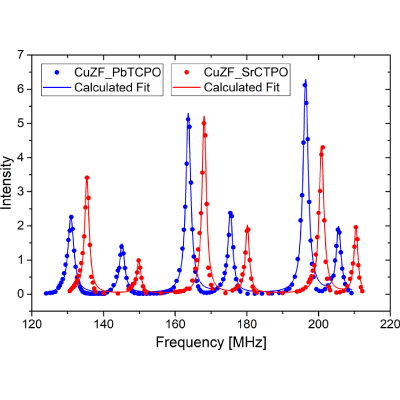

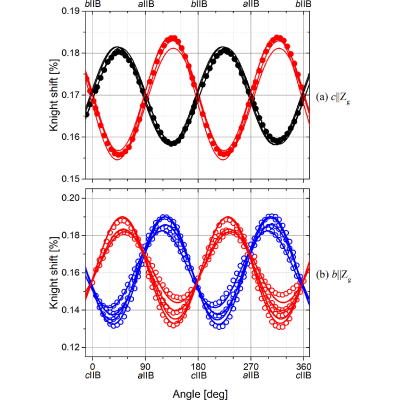

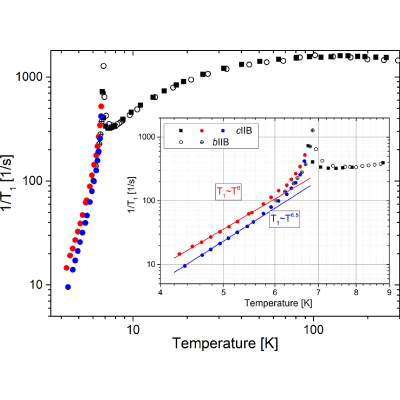

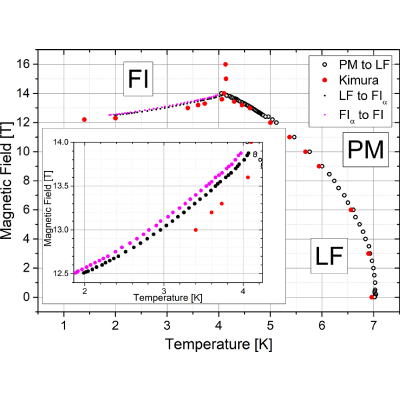

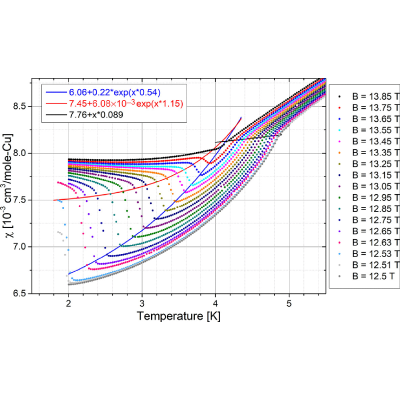

We report a comprehensive NMR study of the chiral square-cupola antiferromagnet $Pb (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ and compare its microscopic hyperfine and local-field parameters with the Ba/Sr analogs in the $A (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ family. Above $T_{N} ≃ 6.7 K$ , the ${}^{31}P$ Knight shift tracks the bulk susceptibility and yields nearly isotropic transferred hyperfine couplings $H_{hf}^{[010]} = 6.77 (3)$ and $H_{hf}^{[001]} = 6.19 (3)$ kOe/ $μ_{B}$ . Below $T_{N}$ , the frequency-swept ${}^{31}P$ spectrum splits into three lines, in contrast to the four-line pattern reported for BaTCPO. The line separation tracks the onset of the static ${}^{31}P$ internal field with a power-law exponent $β ≃ 0.23$ , consistent with quasi-two-dimensional criticality. Crystal-rotation ${}^{31}P$ NMR in the ordered state resolves all eight symmetry-related P sites and their site-dependent anisotropy. In the ordered state, zero-field ${}^{63, 65}{Cu}$ NMR gives a Cu-site internal field $B_{int} = 14.50 (6) T$ and a quadrupole frequency $ν_{Q} = 32.72 (5) MHz$ , while point-charge electric-field-gradient calculations including Sternheimer corrections yield an on-site Cu hole occupancy $n_{d} = 0.20 (4)$ , consistent with a ligand-hole–dominated charge-transfer character. Comparing PbTCPO with BaTCPO and SrTCPO, we find that the transferred hyperfine coupling $H_{hf}$ varies across the series, reflecting changes in local Cu-O-P covalency, whereas the ordered-state ${}^{31}P$ internal field in PbTCPO is 69.5 mT, considerably higher than in BaTCPO (35.6 mT) and SrTCPO (34.6 mT). This enhancement is not captured by dipolar terms alone and points to the combined effects of transferred contributions and stacking-dependent cancellation.

Physics Subject Headings (PhySH)

Article Text

References (37)

D. N. Astrov, The magnetoelectric effect in antiferromagnetics, J. Exptl. Theoret. Phys. (U.S.S.R.) 38, 984 (1960) [Sov. Phys. JETP 11, 708 (1960)].
V. M. Dubovik and V. V. Tugushev, Toroid moments in electrodynamics and solid-state physics, Phys. Rep. 187, 145 (1990).
T. Kimura, T. Goto, H. Shintani, K. Ishizaka, T. Arima, and Y. Tokura, Magnetic control of ferroelectric polarization, Nature (London) 426, 55 (2003).
M. Fiebig, Revival of the magnetoelectric effect, J. Phys. D 38, R123 (2005).
S.-W. Cheong and M. Mostovoy, Multiferroics: A magnetic twist for ferroelectricity, Nat. Mater. 6, 13 (2007).
T. Arima, Magnetodielectric effect in multiferroics, J. Phys. Soc. Jpn. 77, 013702 (2008).
N. A. Spaldin, M. Fiebig, and M. Mostovoy, The toroidal moment in condensed-matter physics and its relation to the magnetoelectric effect, J. Phys.: Condens. Matter 20, 434203 (2008).
N. A. Spaldin and R. Ramesh, Advances in magnetoelectric multiferroics, Nat. Mater. 18, 203 (2019).
J. A. Mundy, C. M. Brooks, M. E. Holtz, J. A. Moyer, H. Das, A. F. Rebóla, J. T. Heron, J. D. Clarkson, S. M. Disseler, Z. Liu, A. Farhan, R. Held, R. Hovden, E. Padgett, Q. Mao, H. Paik, R. Misra, L. F. Kourkoutis, D. A. Muller, C. J. Fennie, et al., Atomically engineered ferroic layers yield a room-temperature magnetoelectric multiferroic, Nature (London) 537, 523 (2016).
V. Baltz, A. Manchon, M. Tsoi, T. Moriyama, T. Ono, and Y. Tserkovnyak, Antiferromagnetic spintronics, Rev. Mod. Phys. 90, 015005 (2018).
K. Kimura, M. Sera, and T. Kimura, $A^{2 +}$ cation control of chiral domain formation in $A (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ ( $A$ = Ba, Sr), Inorg. Chem. 55, 1002 (2016).
Y. Kato, K. Kimura, A. Miyake, M. Tokunaga, A. Matsuo, K. Kindo, M. Akaki, M. Hagiwara, S. Kimura, T. Kimura, and Y. Motome, Magnetoelectric behavior from cluster multipoles in square cupolas: Study of $Sr (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ in comparison with Ba and Pb isostructurals, Phys. Rev. B 99, 024415 (2019).
K. Kimura, M. Toyoda, P. Babkevich, K. Yamauchi, M. Sera, V. Nassif, H. M. Rønnow, and T. Kimura, $A$ -cation control of the magnetic quadrupole order in $A (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ ( $A$ = Ba, Sr, Pb), Phys. Rev. B 97, 134418 (2018).
K. Kimura, P. Babkevich, M. Sera, M. Toyoda, K. Yamauchi, G. S. Tucker, J. Martius, T. Fennell, P. Manuel, D. D. Khalyavin, R. D. Johnson, T. Nakano, Y. Nozue, H. M. Rønnow, and T. Kimura, Magnetodielectric detection of magnetic quadrupole order in Ba(TiO) ${Cu}_{4} {({PO}_{4})}_{4}$ with ${Cu}_{4} O_{12}$ square cupolas, Nat. Commun. 7, 13039 (2016).
K. Kimura, T. Katsuyoshi, Y. Sawada, S. Kimura, and T. Kimura, Imaging switchable magnetoelectric quadrupole domains via nonreciprocal linear dichroism, Commun. Mater. 1, 39 (2020).
K. Kimura, Y. Kato, S. Kimura, Y. Motome, and T. Kimura, Crystal-chirality-dependent control of magnetic domains in a time-reversal-broken antiferromagnet, npj Quantum Mater. 6, 54 (2021).
K. Kimura, T. Katsuyoshi, A. Miyake, M. Tokunaga, S. Kimura, and T. Kimura, Chirality-dependent magnetoelectric responses in a magnetic-field-induced ferroelectric phase of $Pb (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ , Adv. Electron. Mater. 8, 2200167 (2022).
K. Kimura, S. Kimura, and T. Kimura, Magnetoelectric behaviors in magnetic-field-induced phases of $Pb (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ , J. Phys. Soc. Jpn. 88, 093707 (2019).
T. Nomura, Y. Kato, Y. Motome, A. Miyake, M. Tokunaga, Y. Kohama, S. Zherlitsyn, J. Wosnitza, S. Kimura, T. Katsuyoshi, T. Kimura, and K. Kimura, High-field phase diagram of the chiral-lattice antiferromagnet $Sr (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ , Phys. Rev. B 108, 054434 (2023).
Y. Ihara, T. Kanda, K. Matsui, K. Kindo, Y. Kohama, Y. Kato, Y. Motome, T. Kimura, and K. Kimura, High-field NMR study of field-induced states in $Pb (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ , Phys. Rev. B 112, 094405 (2025).
R. Rästa, I. Heinmaa, K. Kimura, T. Kimura, and R. Stern, Magnetic order and spin dynamics in the square-cupola antiferromagnet Ba(TiO) ${Cu}_{4} {({PO}_{4})}_{4}$ , Phys. Rev. B 101, 054417 (2020).
P. W. Selwood, Magnetochemistry (Interscience, New York, 1956).
G. A. Bain and J. F. Berry, Diamagnetic corrections and Pascal's constants, J. Chem. Ed. 85, 532 (2008).
B. Bleaney and K. D. Bowers, Anomalous paramagnetism of copper acetate, Proc. R. Soc. London Ser. A 214, 451 (1952).
S. S. Islam, K. M. Ranjith, M. Baenitz, Y. Skourski, A. A. Tsirlin, and A. A. Tsirlin, Frustration of square cupola in Sr(TiO)Cu₄(PO₄)₄, Phys. Rev. B 97, 174432 (2018).
A. Abragam and B. Bleaney, Electron Paramagnetic Resonance of Transition Ions (Clarendon, Oxford, 1970).
J. R. Singer, Nuclear magnetic relaxation in paramagnetic crystals, Phys. Rev. 104, 929 (1956).
R. Nath, Y. Furukawa, F. Borsa, E. E. Kaul, M. Baenitz, C. Geibel, and D. C. Johnston, Magnetism of the spin- $1 / 2$ Heisenberg antiferromagnets $A_{2} {CuP}_{2} O_{7}$ ( $A$ = Li, Na) with a weak exchange anisotropy, Phys. Rev. B 80, 214430 (2009).
S. Stoll and A. Schweiger, EasySpin, a comprehensive software package for spectral simulation and analysis in EPR, J. Magn. Reson. 178, 42 (2006).
T. Moriya, Nuclear magnetic relaxation in antiferromagnetics, Prog. Theor. Phys. 16, 23 (1956).
L. Testa, P. Babkevich, Y. Kato, K. Kimura, V. Favre, J. A. Rodriguez-Rivera, J. Ollivier, S. Raymond, T. Kimura, Y. Motome, B. Normand, and H. M. Rønnow, Spin dynamics in the square-lattice cupola system CuBa(TiO) ${Cu}_{4} {({PO}_{4})}_{4}$ , Phys. Rev. B 105, 214406 (2022).
A. Abragam, The Principles of Nuclear Magnetism (Oxford University Press, Oxford, 1961).
M. Mehring, Principles of High Resolution NMR in Solids (Springer-Verlag, Berlin, 1983).
T. Shimizu, H. Yasuoka, T. Tsuda, K. Koga, and Y. Ueda, Cu NMR and NQR in high- $T_{c}$ oxides ${YBa}_{2} {Cu}_{3} O_{x} (6.0 < x < 6.98)$ and related material CuO, Bull. Magn. Reson. 12, 39 (1990).
R. M. Sternheimer, On nuclear quadrupole moments, Phys. Rev. 80, 102 (1950).
R. M. Sternheimer, Shielding and antishielding of nuclear quadrupole moments, Phys. Rev. B 10, 3027 (1974).
R. Rästa, I. Heinmaa, J. Link, Y. Kousaka, T. Kimura, Y. Ihara, K. Kimura, and R. Stern, Data for: Microscopic magnetism of $A (TiO) {Cu}_{4} {({PO}_{4})}_{4}$ ( $A$ = Ba, Pb, Sr): ${}^{31}P$ and ${}^{63, 65}{Cu}$ NMR, Zenodo (2026), https://doi.org/10.5281/zenodo.19438755.
