Spatiotemporal migration of antiferromagnetic domain walls in Sr2IrO4

Ian Robinson1,2, David Yang1, Ross Harder3, Dina Sheyfer3, Longlong Wu1,4, Jack Griffiths1, Emil Bozin1,5, Mark P. M. Dean1, Jialun Liu2 et al.

Hengdi Zhao6, Gang Cao6, Angel Rodriguez-Fernandez7, Jan-Etienne Pudell7, Roman Shayduk7, James Wrigley7, Alexey Zozulya7, Rustam Rysov7, Aliaksandr Leonau7,8, Ulrike Boesenberg7, Joerg Hallmann7, and Anders Madsen7

PDF

Phys. Rev. B 113, L220410 – Published 24 June, 2026

DOI: https://doi.org/10.1103/f939-clb5

Abstract

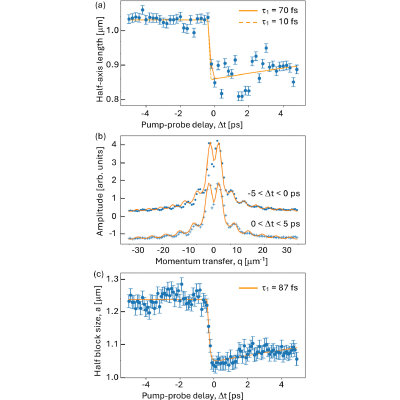

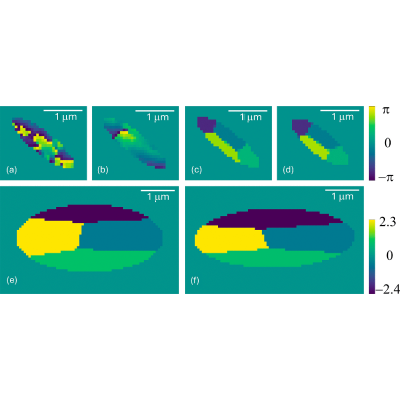

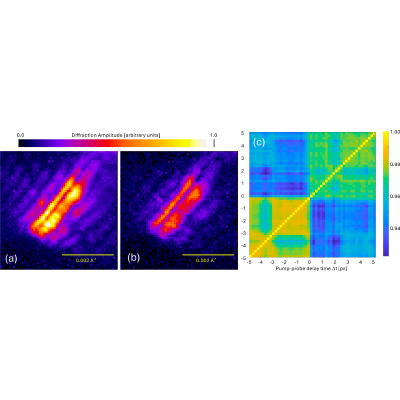

By laser pump-probe time-resolved coherent magnetic x-ray diffraction imaging, we have measured the migration velocity of antiferromagnetic domain walls in the Mott insulator Sr2IrO4 at 100 K. Coherent diffraction patterns, recorded at the 106 pure-magnetic Bragg peak, showed fringes, which responded distinctly to the excitation laser. These patterns could not be inverted with current phasing algorithms, but could be modeled as four domains with phase shifts consistent with the antiferromagnetic structure. During the laser-induced demagnetization, we observed these domains and their domain walls moving at 3×106m/s, significantly faster than acoustic velocities. This is understood to arise from a purely electronic spin contribution to the magnetic structure without any role for coupling to the crystal lattice.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (36)

  1. L. D. Landau, A possible explanation of the field dependence of the susceptibility at low temperatures, Phys. Z. Sowjetunion 4, 675 (1933).
  2. M. L. Néel, Propriétées magnétiques des ferrites; Férrimagnétisme et antiferromagnétisme, Ann. Phys. (Paris, Fr.) 12, 137 (1948).
  3. M. Blume and D. Gibbs, Polarization dependence of magnetic x-ray scattering, Phys. Rev. B 37, 1779 (1988).
  4. U. Staub, G. I. Meijer, F. Fauth, R. Allenspach, J. G. Bednorz, J. Karpinski, S. M. Kazakov, L. Paolasini, and F. d'Acapito, Direct observation of charge order in an epitaxial NdNiO3 film, Phys. Rev. Lett. 88, 126402 (2002).
  5. P. B. Allen, Theory of thermal relaxation of electrons in metals, Phys. Rev. Lett. 59, 1460 (1987).
  6. J. K. Chen, D. Y. Tzou, and J. E. Beraun, A semiclassical two-temperature model for ultrafast laser heating, Int. J. Heat Transfer 49, 307 (2006).
  7. H. S. Park, J. S. Baskin, and A. H. Zewail, 4D lorentz electron microscopy imaging: Magnetic domain wall nucleation, reversal, and wave velocity, Nano Lett. 10, 3796 (2010).
  8. C. Liu, F. Ai, S. Reisbick, A. Zong, A. Pofelski, M-G. Han, F. Camino, C. Jing, V. Lomakin, and Y. Zhu, Correlated spin-wave generation and domain-wall oscillation in a topologically textured magnetic film, Nat. Mater. 24, 406 (2025).
  9. D. Weller, G. Parker, O. Mosendz, A. Lyberatos, D. Mitin, N. Y. Safonova, and M. Albrecht, FePt heat assisted magnetic recording media, J. Vac. Sci. Technol., B 34, 060801 (2016).
  10. M. O. A. Ellis and R. W. Chantrell, Switching times of nanoscale FePt: Finite size effects on the linear reversal mechanism, Appl. Phys. Lett. 106, 162407 (2015).
  11. S. Ranjbar, S. Kambe, S. Sumi, P. V. Thach, Y. Nakatani, K. Tanabea, and H. Awano, Elucidation of the mechanism for maintaining ultrafast domain wall mobility over a wide temperature range, Mater. Adv. 3, 7028 (2022).
  12. K. L. Seyler, H. Zhang, D. Van Beveren, C. R. Rotundu, Y. S. Lee, R. Cheng, and D. Hsieh, High-speed antiferromagnetic domain walls driven by coherent spin waves, Nat. Commun. 16, 9836 (2025).
  13. R. Jangid, N. Z. Hagström, M. Madhavi, K. Rockwell, J. M. Shaw, J. A. Brock, M. Pancaldi, D. De Angelis, F. Capotondi, E. Pedersoli, H. T. Nembach, M. W. Keller, S. Bonetti, E. E. Fullerton, E. Iacocca, R. Kukreja, and T. J. Silva, Extreme domain wall speeds under ultrafast optical excitation, Phys. Rev. Lett. 131, 256702 (2023).
  14. M. P. M. Dean, Y. Cao, X. Liu, S. Wall, D. Zhu, R. Mankowsky, V. Thampy, X. M. Chen, J. G. Vale, D. Casa, J. Kim, A. H. Said, P. Juhas, R. Alonso-Mori, J. M. Glownia, A. Robert, J. Robinson, M. Sikorski, S. Song, M. Kozina, et al., Ultrafast energy- and momentum-resolved dynamics of magnetic correlations in the photo-doped Mott insulator Sr2IrO4, Nat. Mater. 15, 601 (2016).
  15. D. Afanasiev, A. Gatilova, D. J. Groenendijk, B. A. Ivanov, M. Gibert, S. Gariglio, J. Mentink, J. Li, N. Dasari, M. Eckstein, T. Rasing, A. D. Caviglia, and A. V. Kimel, Ultrafast spin dynamics in photodoped spin-orbit Mott insulator Sr2IrO4, Phys. Rev. X 9, 021020 (2019).
  16. A. Madsen, J. Hallmann, G. Ansaldi, T. Roth, W. Lu, C. Kim, U. Boesenberg, A. Zozulya, J. Moeller, R. Shayduk, M. Scholz, A. Bartmann, A. Schmidt, I. Lobato, K. Sukharnikov, M. Reiser, K. Kazarian, and I. Petrov, Materials imaging and dynamics (MID) instrument at the European x-ray free-electron laser facility, J. Synchrotron Radiat. 28, 637 (2021).
  17. F. Ye, S. Chi, B. C. Chakoumakos, J. A. Fernandez-Baca, T. Qi, and G. Cao, Magnetic and crystal structure of Sr2IrO4: A neutron difffraction study, Phys. Rev. B 87, 140406(R) (2013).
  18. K. Momma and F. Izumi, VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data, J. Appl. Crystallogr. 44, 1272 (2011).
  19. B. J. Kim, H. Jin, S. J. Moon, J-Y. Kim, B.-G. Park, C. S. Leem, J. Yu, T. W. Noh, C. Kim, S.-J. Oh, J.-H. Park, V. Durairaj, G. Cao, and E. Rotenberg, Novel Jeff=1/2 Mott state induced by relativistic spin-orbit coupling in Sr2IrO4, Phys. Rev. Lett. 101, 076402 (2008).
  20. S. Boseggia, H. C. Walker, J. Vale, R. Springell, Z. Feng, R. S. Perry, M. Moretti Sala, H. M. Rønnow, S. P. Collins, and D. F. McMorrow, Locking of iridium magnetic moments to the correlated rotation of oxygen octahedra in Sr2IrO4 revealed by x-ray resonant scattering, J. Phys. Condens. Matter 25, 422202 (2013).
  21. T. Choi, Z. Zhang, H. Kim, S. Park, J-W. Kim, K. J. Lee, Z. Islam, U. Welp, S. H. Chang, and B. J. Kim, Nanoscale antiferromagnetic domain imaging using full-field resonant x-ray magnetic diffraction microscopy, Adv. Mater. 34, 2200639 (2022).
  22. B. J. Kim, H. Ohsumi, T. Komesu, S. Sakai, T. Morita, H. Takagi, and T. Arima, Phase-sensitive observation of a spin-orbital Mott state in Sr2IrO4, Science 323, 1329 (2009).
  23. L. Wu, W. Wang, T. A. Assefa, A. F. Suzana, J. Diao, H. Zhao, G. Cao, R. J. Harder, W. Cha, K. Kisslinger, M. P. M. Dean, and I. K. Robinson, Anisotropy of antiferromagnetic domains in a spin-orbit Mott insulator, Phys. Rev. B 108, L020403 (2023).
  24. J-W. Kim, S. H. Chun, Y. Choi, B. J. Kim, M. H. Upton, and P. J. Ryan, Controlling symmetry of spin-orbit entangled pseudospin state through uniaxial strain, Phys. Rev. B 102, 054420 (2020).
  25. See Supplemental Material at http://link.aps.org/supplemental/10.1103/f939-clb5 for supplementary Fig. S1 showing the diffraction geometry of the x-ray setup at the MID instrument of XFEL, Fig. S2 showing the fitting of the 4-domain model to the XFEL magnetic coherent diffraction data, and Fig. S3 showing time dependence of the other parameters of the model listed in Table I used to fit the diffraction pattern.
  26. D. G. Mazzone, D. Meyers, Y. Cao, J. Vale, C. Dashwood, A. J. A. James, N. J. Robinson, J. Q. Lin, V. Thampy, Y. Tanaka, A. Johnson, H. Miao, R. Wang, T. A. Assefa, J. Kim, D. Casa, R. Mankowsky, D. Zhu, R. Alonso-Mori, S. Song, et al., Laser-induced transient magnons in Sr3Ir2O7 throughout the Brillouin zone, Proc. Natl. Acad. Sci. USA 118, e2103696118 (2021).
  27. O. G. Shpyrko, X-ray photon correlation spectroscopy, J. Synchrotron Radiat. 21, 1057 (2014).
  28. J. R. Fienup, Reconstruction of an object from the modulus of its Fourier transform, Opt. Lett. 3, 27 (1978).
  29. I. Robinson and R. Harder, Coherent x-ray diffraction imaging of strain at the nanoscale, Nat. Mater. 8, 291 (2009).
  30. C. C. Chen, J. Miao, C. W. Wang, and T. K. Lee, Application of optimization technique to noncrystalline x-ray diffraction microscopy: Guided hybrid input-output method, Phys. Rev. B 76, 064113 (2007).
  31. R. H. T. Bates, Global solution to the scalar inverse scattering problem, J. Phys. A 8, L80 (1975).
  32. G. Voronoi, Nouvelles applications des paramètres continus à la théorie des formes quadratiques, J. Reine Angew. Math. 133, 97 (1908).
  33. M. J. D. Powell, An efficient method for finding the minimum of a function of several variables without calculating derivatives, The Comput. J. 7, 155 (1964).
  34. L. Wu, Y. Shen, A. M. Barbour, W. Wang, D. Prabhakaran, A. T. Boothroyd, C. Mazzoli, J. M. Tranquada, M. P. M. Dean, and I. K. Robinson, Real space imaging of spin stripe domain fluctuations in a complex oxide, Phys. Rev. Lett. 127, 275301 (2021).
  35. Data recorded at the experiment at the European XFEL are available at doi: 10.22003/XFEL.EU-DATA-006156-00.
  36. I. Robinson, XFEL Sr2IrO4 analysis [Data set], Zenodo, 2025, doi: 10.5281/zenodo.17575334.
