7/3 fractional quantum Hall state in GaAs double quantum wells

Mandun Fu1, Ian Farrer2, David A. Ritchie3, and Sanjeev Kumar1,*

  • *Contact author: sanjeev.kumar@ucl.ac.uk
PDF

Phys. Rev. B 113, 205433 – Published 28 May, 2026

DOI: https://doi.org/10.1103/f33x-cqrr

Abstract

We observed the fractional quantum Hall effect at a total filling factor of 7/3 in the Hall resistance, accompanied by a single minimum in longitudinal magnetoresistance in uncoupled, bilayer electron gases formed in GaAs double quantum well systems. When the density of the top electron gas is varied, the total 7/3 (1+4/3) state can be tuned such that while the Hall plateau value essentially remains unchanged, the associated longitudinal magnetoresistance develops into a double minimum. When Zeeman energy is introduced by tilting the applied magnetic field, the two minima respond differently; one remains essentially unchanged, while the other deepens, consistent with the differing spin dependences of the integer and fractional gaps. Our results demonstrate that the detailed evolution of the 7/3 plateau probes layer-resolved incompressibility, interlayer charge redistribution, and spin-dependent gap behavior in a nontunneling bilayer system.

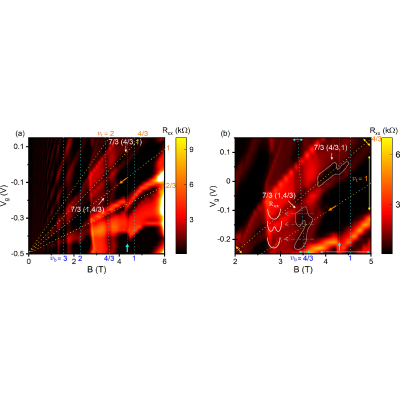

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (81)

  1. R. B. Laughlin, Anomalous quantum Hall effect: An incompressible quantum fluid with fractionally charged excitations, Phys. Rev. Lett. 50, 1395 (1983).
  2. F. D. M. Haldane, Fractional quantization of the Hall effect: A hierarchy of incompressible quantum fluid states, Phys. Rev. Lett. 51, 605 (1983).
  3. F. D. M. Haldane, Many-particle translational symmetries of two-dimensional electrons at rational Landau-level filling, Phys. Rev. Lett. 55, 2095 (1985).
  4. J. K. Jain, Composite-fermion approach for the fractional quantum Hall effect, Phys. Rev. Lett. 63, 199 (1989).
  5. Perspectives in Quantum Hall Effects: Novel Quantum Liquids in Low-Dimensional Semiconductor Structures, edited by S. D. Sarma and A. Pinczuk (Wiley, New York, 1997).
  6. T. Chakraborty and P. Pietiläinen, The Quantum Hall Effects: Integral and Fractional (Springer, Berlin, 1995).
  7. J. Zhu and S. D. Sarma, Interaction and coherence in two-dimensional bilayers, Phys. Rev. B 109, 085129 (2024).
  8. E. Tutuc and M. Shayegan, Interaction and disorder in bilayer counterflow transport at filling-factor one, Phys. Rev. B 72, 081307 (2005).
  9. H. C. Manoharan, Y. W. Suen, M. B. Santos, and M. Shayegan, Evidence for a bilayer quantum Wigner solid, Phys. Rev. Lett. 77, 1813 (1996).
  10. J. P. Eisenstein, Exciton condensation in bilayer quantum Hall systems, Annu. Rev. Condens. Matter Phys. 5, 159 (2014).
  11. J. P. Eisenstein and A. H. MacDonald, Bose-Einstein condensation of excitons in bilayer electron systems, Nature (London) 432, 691 (2004).
  12. Y. Zhang, J. K. Jain, and J. P. Eisenstein, Tunnel transport and interlayer excitons in bilayer fractional quantum Hall systems, Phys. Rev. B 95, 195105 (2017).
  13. M. R. Peterson, Z. Papić, and S. D. Sarma, Fractional quantum Hall effects in bilayers in the presence of interlayer tunneling and charge imbalance, Phys. Rev. B 82, 235312 (2010).
  14. M. A. Mueed, D. Kamburov, L. N. Pfeiffer, K. W. West, K. W. Baldwin, and M. Shayegan, Geometric resonance of composite fermions near bilayer quantum Hall states, Phys. Rev. Lett. 117, 246801 (2016).
  15. Z. Sun, Y. Murakami, F. Xuan, T. Kaneko, D. Golež, and A. J. Millis, Dynamical exciton condensates in biased electron-hole bilayers, Phys. Rev. Lett. 133, 217002 (2024).
  16. I. B. Spielman, J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Resonantly enhanced tunneling in a double layer quantum Hall ferromagnet, Phys. Rev. Lett. 84, 5808 (2000).
  17. M. Kellogg, I. B. Spielman, J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Observation of quantized Hall drag in a strongly correlated bilayer electron system, Phys. Rev. Lett. 88, 126804 (2002).
  18. L. Tiemann, J. G. S. Lok, W. Dietsche, K. von Klitzing, K. Muraki, D. Schuh, and W. Wegscheider, Exciton condensate at a total filling factor of one in Corbino two-dimensional electron bilayers, Phys. Rev. B 77, 033306 (2008).
  19. A. A. Shevyrin, S. Rathi, P. See, I. Farrer, D. Ritchie, J. Griffiths, G. Jones, and S. Kumar, Nonequilibrium phenomena in bilayer electron systems, Phys. Rev. B 107, L041302 (2023).
  20. A. A. Shevyrin, P. See, J. Griffiths, G. A. C. Jones, I. Farrer, D. A. Ritchie, and S. Kumar, Manipulating electron reservoirs in bilayer electron systems, Phys. Rev. B 112, 085405 (2025).
  21. W. Pan, J. L. Reno, and J. A. Simmons, Hysteresis in the quantum Hall regimes in electron double quantum well structures, Phys. Rev. B 71, 153307 (2005).
  22. J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Negative compressibility of interacting two-dimensional electron and quasiparticle gases, Phys. Rev. Lett. 68, 674 (1992).
  23. O. E. Dial, R. C. Ashoori, L. N. Pfeiffer, and K. W. West, High-resolution spectroscopy of two-dimensional electron systems, Nature (London) 448, 176 (2007).
  24. S. Ilani, A. Yacoby, D. Mahalu, and H. Shtrikman, Microscopic structure of the metal-insulator transition in two dimensions, Science 292, 1354 (2001).
  25. S. Ilani, J. Martin, E. Teitelbaum, J. H. Smet, D. Mahalu, V. Umansky, and A. Yacoby, The microscopic nature of localization in the quantum Hall effect, Nature (London) 427, 328 (2004).
  26. Composite Fermions: A Unified View of the Quantum Hall Regime, edited by O. Heinonen (World Scientific, Singapore, 1998).
  27. Y. W. Suen, H. C. Manoharan, X. Ying, M. B. Santos, and M. Shayegan, Origin of the ν=1/2 fractional quantum Hall state in wide single quantum wells, Phys. Rev. Lett. 72, 3405 (1994).
  28. S. Q. Murphy, J. P. Eisenstein, G. S. Boebinger, L. N. Pfeiffer, and K. W. West, Many-body integer quantum Hall effect: Evidence for new phase transitions, Phys. Rev. Lett. 72, 728 (1994).
  29. A. R. Champagne, A. D. K. Finck, J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Charge imbalance and bilayer two-dimensional electron systems at νT=1, Phys. Rev. B 78, 205310 (2008).
  30. Y. Yoon, L. Tiemann, S. Schmult, W. Dietsche, K. von Klitzing, and W. Wegscheider, Interlayer tunneling in counterflow experiments on the excitonic condensate in quantum Hall bilayers, Phys. Rev. Lett. 104, 116802 (2010).
  31. S. I. Dorozhkin, A. A. Kapustin, I. B. Fedorov, V. Umansky, and J. H. Smet, Capacitive detection of magnetic field induced quantum phase transitions in an imbalanced bilayer electron system, Phys. Rev. B 102, 235307 (2020).
  32. L. W. Engel, S. W. Hwang, T. Sajoto, D. C. Tsui, and M. Shayegan, Fractional quantum Hall effect at ν = 2/3 and 3/5 in tilted magnetic fields, Phys. Rev. B 45, 3418 (1992).
  33. D. Polyakov and B. I. Shklovskii, Variable range hopping as the mechanism of the conductivity peak broadening in the quantum Hall regime, Phys. Rev. Lett. 70, 3796 (1993).
  34. R. Du, H. Stormer, D. Tsui, L. Pfeiffer, and K. West, Experimental evidence for new particles in the fractional quantum Hall effect, Phys. Rev. Lett. 70, 2944 (1993).
  35. R. G. Clark, S. R. Haynes, A. M. Suckling, J. R. Mallett, P. A. Wright, J. J. Harris, and C. T. Foxon, Spin configurations and quasiparticle fractional charge of fractional-quantum-Hall-effect ground states in the N = 0 Landau level, Phys. Rev. Lett. 62, 1536 (1989).
  36. G. S. Boebinger, A. M. Chang, H. L. Stormer, and D. C. Tsui, Magnetic field dependence of activation energies in the fractional quantum Hall effect, Phys. Rev. Lett. 55, 1606 (1985).
  37. G. Ebert, K. Von Klitzing, J. Maan, G. Remenyi, C. Probst, G. Weimann, and W. Schlapp, Fractional quantum Hall effect at filling factors up to ν=3, J. Phys. C 17, L775 (1984).
  38. J. Enkner, L. Graziotto, D. Boriçi, F. Appugliese, C. Reichl, G. Scalari, N. Regnault, W. Wegscheider, C. Ciuti, and J. Faist, Tunable vacuum-field control of fractional and integer quantum Hall phases, Nature (London) 641, 884 (2025).
  39. R. G. Mani, U. K. Wijewardena, T. R. Nanayakkara, A. Kriisa, C. Reichl, and W. Wegscheider, Marginal metallic state at a fractional filling of 8/5 and 4/3 of Landau levels in the GaAs/AlGaAs 2D electron system, Sci. Rep. 11, 15003 (2021).
  40. S. L. Sondhi, A. Karlhede, S. A. Kivelson, and E. H. Rezayi, Skyrmions and the crossover from the integer to fractional quantum Hall effect at small Zeeman energies, Phys. Rev. B 47, 16419 (1993).
  41. J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Compressibility of the two-dimensional electron gas: Measurements of the zero-field exchange energy and fractional quantum Hall gap, Phys. Rev. B 50, 1760 (1994).
  42. T. J. Gramila, J. P. Eisenstein, A. H. MacDonald, L. N. Pfeiffer, and K. W. West, Mutual friction between parallel two-dimensional electron systems, Phys. Rev. Lett. 66, 1216 (1991).
  43. A. Sawada, Z. F. Ezawa, H. Ohno, Y. Horikoshi, Y. Ohno, S. Kishimoto, F. Matsukura, M. Yasumoto, and A. Urayama, Phase transition in the ν = 2 bilayer quantum Hall state, Phys. Rev. Lett. 80, 4534 (1998).
  44. V. Halonen, P. Pietiläinen, and T. Chakraborty, Subband-Landau-level coupling in the fractional quantum Hall effect in tilted magnetic fields, Phys. Rev. B 41, 10202 (1990).
  45. C. R. Dean, B. A. Piot, P. Hayden, S. D. Sarma, G. Gervais, L. N. Pfeiffer, and K. W. West, Contrasting behavior of the 5/2 and 7/3 fractional quantum Hall effect in a tilted field, Phys. Rev. Lett. 101, 186806 (2008).
  46. A. Graninger, D. Kamburov, M. Shayegan, L. Pfeiffer, K. West, K. Baldwin, and R. Winkler, Reentrant ν=1 quantum Hall state in a two-dimensional hole system, Phys. Rev. Lett. 107, 176810 (2011).
  47. W. Pan, G. Csáthy, D. Tsui, L. Pfeiffer, and K. West, Transition from a fractional quantum Hall liquid to an electron solid at Landau level filling ν=1/3 in tilted magnetic fields, Phys. Rev. B 71, 035302 (2005).
  48. Z. Papić, Fractional quantum Hall effect in a tilted magnetic field, Phys. Rev. B 87, 245315 (2013).
  49. B. I. Halperin, Theory of the quantized Hall conductance, Helv. Phys. Acta 56, 75 (1983).
  50. O. Stern, N. Freytag, A. Fay, W. Dietsche, J. H. Smet, K. von Klitzing, D. Schuh, and W. Wegscheider, NMR study of the electron spin polarization in the fractional quantum Hall effect of a single quantum well: Spectroscopic evidence for domain formation, Phys. Rev. B 70, 075318 (2004).
  51. T. Chakraborty, Electron spin transitions in quantum Hall systems, Adv. Phys. 49, 959 (2000).
  52. B. Verdene, J. Martin, G. Gamez, J. Smet, K. Von Klitzing, D. Mahalu, D. Schuh, G. Abstreiter, and A. Yacoby, Microscopic manifestation of the spin phase transition at filling factor 2/3, Nat. Phys. 3, 392 (2007).
  53. J. P. Eisenstein, H. L. Stormer, L. N. Pfeiffer, and K. W. West, Evidence for a spin transition in the ν = 2/3 fractional quantum Hall effect, Phys. Rev. B 41, 7910 (1990).
  54. H. Cho, J. B. Young, W. Kang, K. L. Campman, A. C. Gossard, M. Bichler, and W. Wegscheider, Hysteresis and spin transitions in the fractional quantum Hall effect, Phys. Rev. Lett. 81, 2522 (1998).
  55. K. Muraki and Y. Hirayama, Re-entrant behavior of the ν=4/3 fractional quantum Hall effect in a front-and-back-gated 2D hole gas, Phys. B (Amsterdam, Neth.) 256–258, 86 (1998).
  56. R. R. Du, A. S. Yeh, H. L. Stormer, D. C. Tsui, L. N. Pfeiffer, and K. W. West, Fractional quantum Hall effect around ν=3/2: Composite fermions with a spin, Phys. Rev. Lett. 75, 3926 (1995).
  57. J. P. Eisenstein, H. L. Stormer, L. Pfeiffer, and K. W. West, Evidence for a phase transition in the fractional quantum Hall effect, Phys. Rev. Lett. 62, 1540 (1989).
  58. J. P. Eisenstein, R. L. Willett, H. L. Stormer, D. C. Tsui, A. C. Gossard, and J. H. English, Collapse of the even-denominator fractional quantum Hall effect in tilted fields, Phys. Rev. Lett. 61, 997 (1988).
  59. H. M. Yoo, K. W. Baldwin, K. West, L. Pfeiffer, and R. C. Ashoori, Spin phase diagram of the interacting quantum Hall liquid, Nat. Phys. 16, 1022 (2020).
  60. L. Tiemann, G. Gamez, N. Kumada, and K. Muraki, Unraveling the spin polarization of the ν=5/2 fractional quantum Hall state, Science 335, 828 (2012).
  61. M. Stern, P. Plochocka, V. Umansky, D. K. Maude, M. Potemski, and I. Bar-Joseph, Optical probing of the spin polarization of the ν=5/2 quantum Hall state, Phys. Rev. Lett. 105, 096801 (2010).
  62. D. Leadley, R. Nicholas, C. Foxon, and J. Harris, Measurements of the effective mass and scattering times of composite fermions from magnetotransport analysis, Phys. Rev. Lett. 72, 1906 (1994).
  63. I. Kukushkin, K. v. Klitzing, and K. Eberl, Spin polarization of composite fermions: Measurements of the Fermi energy, Phys. Rev. Lett. 82, 3665 (1999).
  64. R. Nicholas, D. Leadley, M. Daly, M. Van Der Burgt, P. Gee, J. Singleton, D. Maude, J. Portal, J. Harris, and C. Foxon, The dependence of the composite fermion effective mass on carrier density and Zeeman energy, Semicond. Sci. Technol. 11, 1477 (1996).
  65. A. A. Kapustin, S. I. Dorozhkin, I. B. Fedorov, V. Umansky, and J. H. Smet, Quantum effects in the capacitance of field-effect transistors with a double quantum well, JETP Lett. 110, 424 (2019).
  66. T. P. Smith, B. B. Goldberg, P. J. Stiles, and M. Heiblum, Direct measurement of the density of states of a two-dimensional electron gas, Phys. Rev. B 32, 2696 (1985).
  67. T. Jungwirth and A. H. MacDonald, Correlations, compressibility, and capacitance in double-quantum-well systems in the quantum Hall regime, Phys. Rev. B 53, 9943 (1996).
  68. E. Tutuc, S. Melinte, E. P. De Poortere, R. Pillarisetty, and M. Shayegan, Role of density imbalance in an interacting bilayer hole system, Phys. Rev. Lett. 91, 076802 (2003).
  69. E. Peraticos, S. Kumar, M. Pepper, A. Siddiki, I. Farrer, D. Ritchie, G. Jones, and J. Griffiths, Hall resistance anomalies in the integer and fractional quantum Hall regime, Phys. Rev. B 102, 115306 (2020).
  70. E. Peraticos, S. Kumar, M. Pepper, A. Siddiki, I. Farrer, D. Ritchie, G. Jones, and J. Griffiths, Resistance hysteresis in the integer and fractional quantum Hall regime, Phys. Rev. B 107, 205307 (2023).
  71. M. M. Fogler and B. I. Shklovskii, Collapse of spin splitting in the quantum Hall effect, Phys. Rev. B 52, 17366 (1995).
  72. S. Q. Murphy, J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Lifetime of two-dimensional electrons measured by tunneling spectroscopy, Phys. Rev. B 52, 14825 (1995).
  73. X. Wan, D. N. Sheng, E. H. Rezayi, K. Yang, R. N. Bhatt, and F. D. M. Haldane, Mobility gap in fractional quantum Hall liquids: Effects of disorder and layer thickness, Phys. Rev. B 72, 075325 (2005).
  74. M. Shayegan, Flatland electrons in high magnetic fields, in High Magnetic Fields: Science and Technology (World Scientific, Singapore, 2006).
  75. M. R. Peterson, T. Jolicoeur, and S. Das Sarma, Orbital Landau level dependence of the fractional quantum Hall effect in quasi-two-dimensional electron layers: Finite-thickness effects, Phys. Rev. B 78, 155308 (2008).
  76. S. M. Girvin, The quantum Hall effect: Novel excitations and broken symmetries, in Aspects Topologiques de la Physique en Basse Dimension. Topological Aspects of Low Dimensional Systems (Springer, Berlin, 2002).
  77. A. Stern, S. M. Girvin, A. H. MacDonald, and N. Ma, Theory of interlayer tunneling in bilayer quantum Hall ferromagnets, Phys. Rev. Lett. 86, 1829 (2001).
  78. P. Stano, C.-H. Hsu, L. C. Camenzind, L. Yu, D. Zumbühl, and D. Loss, Orbital effects of a strong in-plane magnetic field on a gate-defined quantum dot, Phys. Rev. B 99, 085308 (2019).
  79. K. Moon, H. Mori, K. Yang, S. Girvin, A. MacDonald, L. Zheng, D. Yoshioka, and S.-C. Zhang, Spontaneous interlayer coherence in double-layer quantum Hall systems: Charged vortices and Kosterlitz-Thouless phase transitions, Phys. Rev. B 51, 5138 (1995).
  80. W. Bishara and C. Nayak, Effect of Landau level mixing on the effective interaction between electrons in the fractional quantum Hall regime, Phys. Rev. B 80, 121302 (2009).
  81. M. R. Peterson and C. Nayak, More realistic Hamiltonians for the fractional quantum Hall regime in GaAs and graphene, Phys. Rev. B 87, 245129 (2013).
