Mechanism of ferromagnetic resonance in ferromagnet-superconductor trilayers

Dariia Popadiuk1,2, Julia Kharlan1,3,*, Anatolii Kravets1,2, Vladislav Korenivski2, Jarosław W. Kłos3, and Vladimir Golub1

  • *Contact author: yuliia.kharlan@amu.edu.pl
PDF

Phys. Rev. B 113, 014425 – Published 16 January, 2026

DOI: https://doi.org/10.1103/blxk-m6pz

Abstract

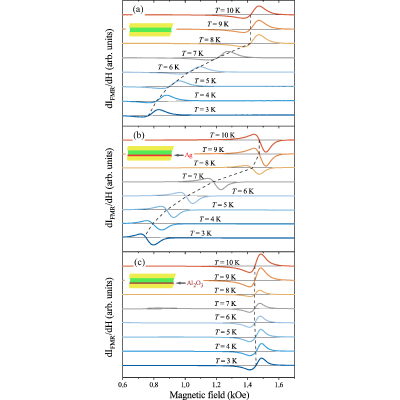

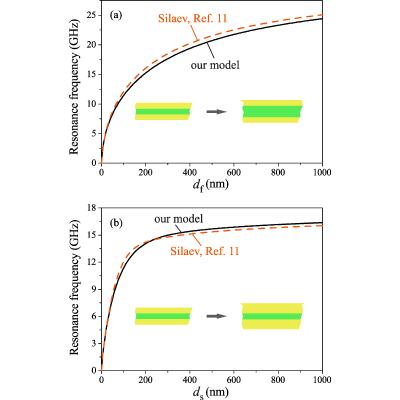

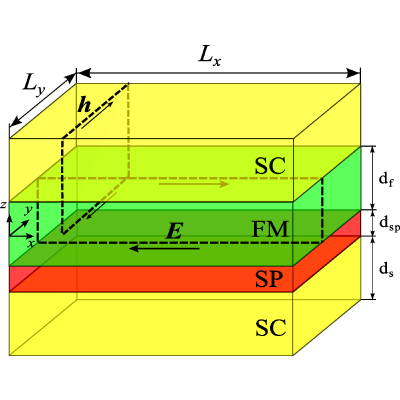

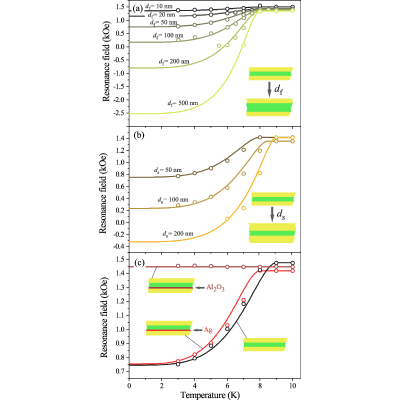

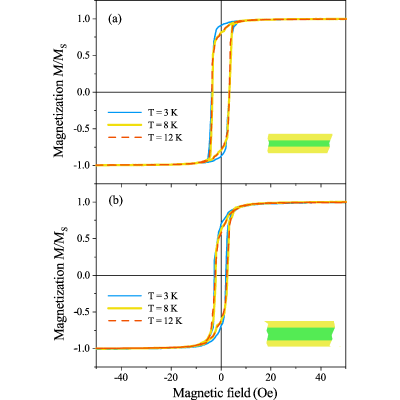

Temperature dependent magnetic properties of superconductor-ferromagnet-superconductor (SC/FM/SC) trilayers are studied both experimentally and theoretically, with a focus on ferromagnetic resonance (FMR). The influence of the SC and FM layer thicknesses on the FMR field is examined. To differentiate the mechanisms involved, we additionally investigate structures containing nonmagnetic metallic (M) or insulating (I) spacers (SC/FM/M/SC or SC/FM/I/SC). All the studied multilayers show large reductions in the FMR field below the critical temperature of the SC, except the system containing an insulating spacer (SC/FM/I/SC). This SC-induced FMR-shift (resonance field/frequency) is larger for thicker SC as well as FM layers, reaching a saturation value for very large thicknesses. To explain the measured results, an analytical model is developed, in which the FM-magnetization precession modulates the magnetic flux in the system, thereby inducing an alternating supercurrent in the SC, which in turn produces a dynamic back-action magnetic field on the FM that shifts its resonance frequency. The model considers closed current loops, where the FM layer conductively links the supercurrents flowing in the opposite directions in the two outer SC layers. Our results provide a practical route for increasing the operating frequency of magnonic devices.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (30)

  1. T. Yu, X.-H. Zhou, G. E. W. Bauer, and I. Bobkova, Electromagnetic proximity effect: Superconducting magnonics and beyond, Phys. Rep. 1151, 1 (2026).
  2. R. Cai, I. Žutić, and W. Han, Superconductor/ferromagnet heterostructures: A platform for superconducting spintronics and quantum computation, Adv. Quantum Technol. 6, 2200080 (2023).
  3. C. Bell, S. Milikisyants, M. Huber, and J. Aarts, Spin dynamics in a superconductor-ferromagnet proximity system, Phys. Rev. Lett. 100, 047002 (2008).
  4. K.-R. Jeon, C. Ciccarelli, H. Kurebayashi, L. F. Cohen, X. Montiel, M. Eschrig, T. Wagner, S. Komori, A. Srivastava, J. W. Robinson, and M. G. Blamire, Effect of Meissner screening and trapped magnetic flux on magnetization dynamics in thick Nb/Ni80Fe20/Nb trilayers, Phys. Rev. Appl. 11, 014061 (2019).
  5. I. A. Golovchanskiy, N. N. Abramov, V. S. Stolyarov, V. I. Chichkov, M. Silaev, I. V. Shchetinin, A. A. Golubov, V. V. Ryazanov, A. V. Ustinov, and M. Y. Kupriyanov, Magnetization dynamics in proximity-coupled superconductor-ferromagnet-superconductor multilayers, Phys. Rev. Appl. 14, 024086 (2020).
  6. I. A. Golovchanskiy, N. N. Abramov, V. S. Stolyarov, M. Weides, V. V. Ryazanov, A. A. Golubov, A. V. Ustinov, and M. Y. Kupriyanov, Ultrastrong photon-to-magnon coupling in multilayered heterostructures involving superconducting coherence via ferromagnetic layers, Sci. Adv. 7, eabe8638 (2021).
  7. I. A. Golovchanskiy, N. N. Abramov, O. V. Emelyanova, I. V. Shchetinin, V. V. Ryazanov, A. A. Golubov, and V. S. Stolyarov, Magnetization dynamics in proximity-coupled superconductor-ferromagnet-superconductor multilayers. II. Thickness dependence of the superconducting torque, Phys. Rev. Appl. 19, 034025 (2023).
  8. J. Li, J. Zhang, G. Yang, and W. Zhao, Efficient shift of ferromagnetic resonance by superconductor gating, Appl. Phys. Rev. 12, 011419 (2025).
  9. I. A. Golovchanskiy, V. V. Ryazanov, and V. S. Stolyarov, Antiferromagnetic resonances in superconductor-ferromagnet multilayers, Phys. Rev. Appl. 20, L021001 (2023).
  10. A. F. Volkov and K. B. Efetov, Hybridization of spin and plasma waves in Josephson tunnel junctions containing a ferromagnetic layer, Phys. Rev. Lett. 103, 037003 (2009).
  11. S. V. Mironov and A. I. Buzdin, Giant demagnetization effects induced by superconducting films, J. Appl. Phys. 119, 102601 (2021).
  12. M. Silaev, Anderson-higgs mass of magnons in superconductor-ferromagnet-superconductor systems, Phys. Rev. Appl. 18, L061004 (2022).
  13. R. Ojajärvi, F. S. Bergeret, M. A. Silaev, and T. T. Heikkilä, Dynamics of two ferromagnetic insulators coupled by superconducting spin current, Phys. Rev. Lett. 128, 167701 (2022).
  14. M. A. Kuznetsov and A. A. Fraerman, Temperature-sensitive spin-wave nonreciprocity induced by interlayer dipolar coupling in ferromagnet/paramagnet and ferromagnet/superconductor hybrid systems, Phys. Rev. B 105, 214401 (2022).
  15. M. Silaev, Ultrastrong magnon-photon coupling, squeezed vacuum, and entanglement in superconductor/ferromagnet nanostructures, Phys. Rev. B 107, L180503 (2023).
  16. X.-H. Zhou and T. Yu, Gating ferromagnetic resonance of magnetic insulators by superconductors via modulating electric field radiation, Phys. Rev. B 108, 144405 (2023).
  17. X.-H. Zhou, X. Ye, L. Bai, and T. Yu, Giant enhancement of magnon transport by superconductor meissner screening, Phys. Rev. B 110, L020404 (2024).
  18. P. Derendorf, A. F. Volkov, and I. M. Eremin, Superluminal propagation of composite collective modes in superconductor-ferromagnet heterostructures, Phys. Rev. B 110, 144502 (2024).
  19. V. M. Gordeeva, G. A. Bobkov, A. M. Bobkov, I. V. Bobkova, and T. Yu, Ultrastrong coupling of two ferromagnets via meissner currents, Phys. Rev. B 111, 214520 (2025).
  20. S. Seshadri, Surface magnetostatic modes of a ferrite slab, Proc. IEEE 58, 506 (1970).
  21. M. Borst, P. H. Vree, A. Lowther, A. Teepe, S. Kurdi, I. Bertelli, B. G. Simon, Y. M. Blanter, and T. van der Sar, Observation and control of hybrid spin-wave–Meissner-current transport modes, Science 382, 430 (2023).
  22. J. C. Swihart, Field solution for a thin‐film superconducting strip transmission line, J. Appl. Phys. 32, 461 (1961).
  23. I. A. Golovchanskiy, N. N. Abramov, V. S. Stolyarov, A. A. Golubov, M. Y. Kupriyanov, V. V. Ryazanov, and A. V. Ustinov, Approaching deep-strong on-chip photon-to-magnon coupling, Phys. Rev. Appl. 16, 034029 (2021).
  24. Y. Tserkovnyak, A. Brataas, G. E. W. Bauer, and B. I. Halperin, Nonlocal magnetization dynamics in ferromagnetic heterostructures, Rev. Mod. Phys. 77, 1375 (2005).
  25. G. Deutscher and D. Feinberg, Coupling superconducting-ferromagnetic point contacts by andreev reflections, Appl. Phys. Lett. 76, 487 (2000).
  26. R. S. Keizer, S. T. B. Goennenwein, T. M. Klapwijk, G. Miao, G. Xiao, and A. Gupta, A spin triplet supercurrent through the half-metallic ferromagnet CrO2, Nature (London) 439, 825 (2006).
  27. L.-L. Li, Y.-L. Zhao, X.-X. Zhang, and Y. Sun, Possible evidence for spin-transfer torque induced by spin-triplet supercurrents, Chin. Phys. Lett. 35, 077401 (2018).
  28. A. I. Gubin, K. S. Il'in, S. A. Vitusevich, M. Siegel, and N. Klein, Dependence of magnetic penetration depth on the thickness of superconducting Nb thin films, Phys. Rev. B 72, 064503 (2005).
  29. M. Tinkham, Introduction to Superconductivity, 2nd ed. (McGraw-Hill, New York, 1996).
  30. D. Popadiuk and A. Kravets, Dataset for the article “On the mechanism of ferromagnetic resonance in ferromagnet-superconductor trilayers” [Data set], Zenodo (2025), https://doi.org/10.5281/zenodo.17235258.
