  • Editors' Suggestion
  • Open Access

Statistical analysis of electron-induced switching of a spin-crossover complex

Jonas Fußangel1, Björn Sothmann1, Sven Johannsen2, Sascha Ossinger3, Felix Tuczek3, Richard Berndt2, Jürgen König1, and Manuel Gruber1,*

  • *Contact author: manuel.gruber@uni-due.de
PDF

Phys. Rev. B 112, 235426 – Published 22 December, 2025

DOI: https://doi.org/10.1103/bkxj-2gvp

Abstract

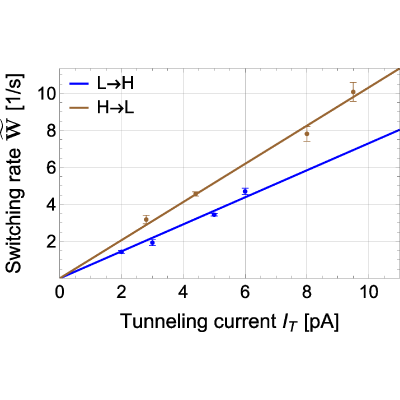

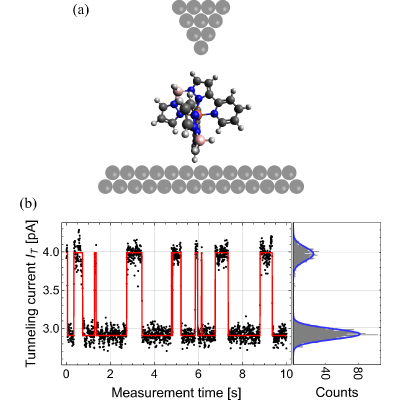

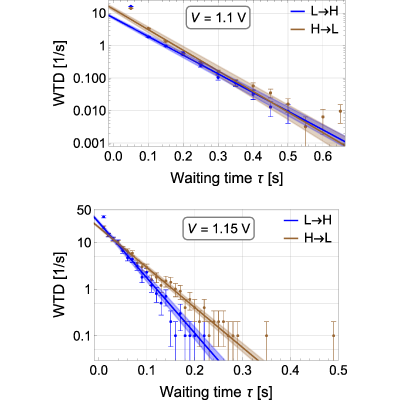

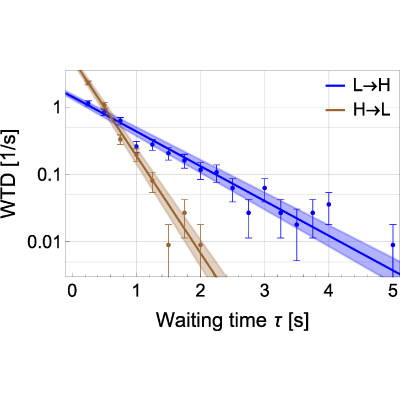

Spin-crossover complexes exhibit two stable configurations with distinct spin states. The investigation of these molecules using low-temperature scanning tunneling microscopy has opened new perspectives for understanding the associated switching mechanisms at the single-molecule level. While the role of tunneling electrons in driving the spin-state switching has been clearly evidenced, the underlying microscopic mechanism is not completely understood. In this study, we investigate the electron-induced switching of [Fe(H2B(pz)(pypz))2] (pz = pyrazole, pypz = pyridylpyrazole) adsorbed on Ag(111). The current time traces show transitions between two current levels corresponding to the two spin states. We extract switching rates from these traces by analyzing waiting-time distributions. Their sample-voltage dependence can be explained within a simple model in which the switching is triggered by a transient charging of the molecule. The comparison between experimental data and theoretical modeling provides estimates for the energies of the lowest unoccupied molecular orbitals, which were so far experimentally inaccessible. Overall, our approach offers new insights into the electron-induced switching mechanism and predicts enhanced switching rates upon electronic decoupling of the molecule from the metallic substrate, for example by introducing an ultrathin insulating layer.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. P. Gütlich, Y. Garcia, and H. A. Goodwin, Spin crossover phenomena in Fe(II) complexes, Chem. Soc. Rev. 29, 419 (2000).
  2. G. Molnár, S. Rat, L. Salmon, W. Nicolazzi, and A. Bousseksou, Spin crossover nanomaterials: From fundamental concepts to devices, Adv. Mater. 30, 1703862 (2018).
  3. F. Prins, M. Monrabal-Capilla, E. A. Osorio, E. Coronado, and H. S. J. van der Zant, Room-temperature electrical addressing of a bistable spin-crossover molecular system, Adv. Mater. 23, 1545 (2011).
  4. E. A. Osorio, M. Ruben, J. S. Seldenthuis, J. M. Lehn, and H. S. J. van der Zant, Conductance switching and vibrational fine structure of a [2×2]Co4II gridlike single molecule measured in a three-terminal device, Small 6, 174 (2010).
  5. G. D. Harzmann, R. Frisenda, H. S. J. van der Zant, and M. Mayor, Single-molecule spin switch based on voltage-triggered distortion of the coordination sphere, Angew. Chem. Int. Ed. 54, 13425 (2015).
  6. R. Frisenda, G. D. Harzmann, J. A. Celis Gil, J. M. Thijssen, M. Mayor, and H. S. J. van der Zant, Stretching-induced conductance increase in a spin-crossover molecule, Nano Lett. 16, 4733 (2016).
  7. V. Shalabaeva, K. Ridier, S. Rat, M. D. Manrique-Juarez, L. Salmon, I. Séguy, A. Rotaru, G. Molnár, and A. Bousseksou, Room temperature current modulation in large area electronic junctions of spin crossover thin films, Appl. Phys. Lett. 112, 013301 (2018).
  8. G. Hao, A. Mosey, X. Jiang, A. J. Yost, K. R. Sapkota, G. T. Wang, X. Zhang, J. Zhang, A. T. N'Diaye, R. Cheng, X. Xu, and P. A. Dowben, Nonvolatile voltage controlled molecular spin state switching, Appl. Phys. Lett. 114, 032901 (2019).
  9. Y. Zhang, I. Séguy, K. Ridier, V. Shalabaeva, M. Piedrahita-Bello, A. Rotaru, L. Salmon, G. Molnár, and A. Bousseksou, Resistance switching in large-area vertical junctions of the molecular spin crossover complex [Fe(HB(tz)3)2]: ON/OFF ratios and device stability, J. Phys.: Condens. Matter 32, 214010 (2020).
  10. A. Gee, A. H. Jaafar, B. Brachňaková, J. Massey, C. H. Marrows, I. Šalitroš, and N. T. Kemp, Multilevel resistance switching and enhanced spin transition temperature in single- and double-molecule spin crossover nanogap devices, J. Phys. Chem. C 124, 13393 (2020).
  11. E. P. van Geest, K. Shakouri, W. Fu, V. Robert, V. Tudor, S. Bonnet, and G. F. Schneider, Contactless spin switch sensing by chemo-electric gating of graphene, Adv. Mater. 32, 1903575 (2020).
  12. N. Konstantinov, A. Tauzin, U. N. Noumbé, D. Dragoe, B. Kundys, H. Majjad, A. Brosseau, M. Lenertz, A. Singh, S. Berciaud, M.-L. Boillot, B. Doudin, T. Mallah, and J.-F. Dayen, Electrical read-out of light-induced spin transition in thin film spin crossover/graphene heterostructures, J. Mater. Chem. C 9, 2712 (2021).
  13. J.-F. Dayen, N. Konstantinov, M. Palluel, N. Daro, B. Kundys, M. Soliman, G. Chastanet, and B. Doudin, Room temperature optoelectronic devices operating with spin crossover nanoparticles, Mater. Horiz. 8, 2310 (2021).
  14. P. Stegmann, A. Gee, N. T. Kemp, and J. König, Statistical analysis of spin switching in coupled spin-crossover molecules, Phys. Rev. B 104, 125431 (2021).
  15. R. Torres-Cavanillas, M. Gavara-Edo, and E. Coronado, Bistable spin-crossover nanoparticles for molecular electronics, Adv. Mater. 36, 2307718 (2024).
  16. T. G. Gopakumar, F. Matino, H. Naggert, A. Bannwarth, F. Tuczek, and R. Berndt, Electron-induced spin crossover of single molecules in a bilayer on gold, Angew. Chem. Int. Ed. 51, 6262 (2012).
  17. T. Miyamachi, M. Gruber, V. Davesne, M. Bowen, S. Boukari, L. Joly, F. Scheurer, G. Rogez, T. K. Yamada, P. Ohresser, E. Beaurepaire, and W. Wulfhekel, Robust spin crossover and memristance across a single molecule, Nat. Commun. 3, 938 (2012).
  18. M. Gruber, V. Davesne, M. Bowen, S. Boukari, E. Beaurepaire, W. Wulfhekel, and T. Miyamachi, Spin state of spin-crossover complexes: From single molecules to ultrathin films, Phys. Rev. B 89, 195415 (2014).
  19. M. Gruber, T. Miyamachi, V. Davesne, M. Bowen, S. Boukari, W. Wulfhekel, M. Alouani, and E. Beaurepaire, Spin crossover in Fe(phen)2(NCS)2 complexes on metallic surfaces, J. Chem. Phys. 146, 092312 (2017).
  20. T. Jasper-Tönnies, M. Gruber, S. Karan, H. Jacob, F. Tuczek, and R. Berndt, Deposition of a cationic FeIII spin-crossover complex on Au(111): Impact of the counter ion, J. Phys. Chem. Lett. 8, 1569 (2017).
  21. T. Jasper-Toennies, M. Gruber, S. Karan, H. Jacob, F. Tuczek, and R. Berndt, Robust and selective switching of an FeIII spin-crossover compound on Cu2N/Cu(100) with memristance behavior, Nano Lett. 17, 6613 (2017).
  22. M. Atzori, L. Poggini, L. Squillantini, B. Cortigiani, M. Gonidec, P. Bencok, R. Sessoli, and M. Mannini, Thermal and light-induced spin transition in a nanometric film of a new high-vacuum processable spin crossover complex, J. Mater. Chem. C 6, 8885 (2018).
  23. A. Köbke, F. Gutzeit, F. Röhricht, A. Schlimm, J. Grunwald, F. Tuczek, M. Studniarek, D. Longo, F. Choueikani, E. Otero, P. Ohresser, S. Rohlf, S. Johannsen, F. Diekmann, K. Rossnagel, A. Weismann, T. Jasper-Toennies, C. Näther, R. Herges, R. Berndt, and M. Gruber, Reversible coordination-induced spin-state switching in complexes on metal surfaces, Nat. Nanotechnol. 15, 18 (2020).
  24. T. Brandl, S. Johannsen, D. Häussinger, N. Suryadevara, A. Prescimone, S. Bernhard, M. Gruber, M. Ruben, R. Berndt, and M. Mayor, Iron in a cage: Fixation of a Fe(II)tpy2 complex by fourfold interlinking, Angew. Chem. Int. Ed. 59, 15947 (2020).
  25. L. Zhang, Y. Tong, M. Kelai, A. Bellec, J. Lagoute, C. Chacon, Y. Girard, S. Rousset, M.-L. Boillot, E. Rivière, T. Mallah, E. Otero, M.-A. Arrio, P. Sainctavit, and V. Repain, Anomalous light-induced spin-state switching for iron(II) spin-crossover molecules in direct contact with metal surfaces, Angew. Chem. Int. Ed. 59, 13341 (2020).
  26. M. Gruber and R. Berndt, Spin-crossover complexes in direct contact with surfaces, Magnetochemistry 6, 35 (2020).
  27. Y. Tong, M. Kelaï, K. Bairagi, V. Repain, J. Lagoute, Y. Girard, S. Rousset, M.-L. Boillot, T. Mallah, C. Enachescu, and A. Bellec, Voltage-induced bistability of single spin-crossover molecules in a two-dimensional monolayer, J. Phys. Chem. Lett. 12, 11029 (2021).
  28. S. Johannsen, S. Schüddekopf, S. Ossinger, J. Grunwald, F. Tuczek, M. Gruber, and R. Berndt, Three-State switching of an Fe spin crossover complex, J. Phys. Chem. C 126, 7238 (2022).
  29. S. Johannsen, M. Gruber, C. Barreteau, M. Seredyuk, J. Antonio Real, T. Markussen, and R. Berndt, Spin-crossover and fragmentation of Fe(neoim)2 on silver and gold, J. Phys. Chem. Lett. 14, 7814 (2023).
  30. S. Johannsen, S. Ossinger, T. Markussen, F. Tuczek, M. Gruber, and R. Berndt, Electron-induced spin-crossover in self-assembled tetramers, ACS Nano 15, 11770 (2021).
  31. S. Johannsen, S. Ossinger, J. Grunwald, A. Herman, H. Wende, F. Tuczek, M. Gruber, and R. Berndt, Spin crossover in a cobalt complex on Ag(111), Angew. Chem. Int. Ed. 61, e202115892 (2022).
  32. S. Johannsen, R. Robles, A. Weismann, K. Ridier, R. Berndt, and M. Gruber, Spin-state switching of spin-crossover complexes on Cu(111) evidenced by spin-flip spectroscopy, Angew. Chem. Int. Ed. 63, e202411865 (2024).
  33. N. Montenegro-Pohlhammer, R. Sánchez-de-Armas, M. Gruber, and C. J. Calzado, Mechanisms for the spin-state switching of strapped Ni-porphyrin complexes deposited on metal surfaces: Insights from quantum chemical calculations, Small 21, 2406313 (2025).

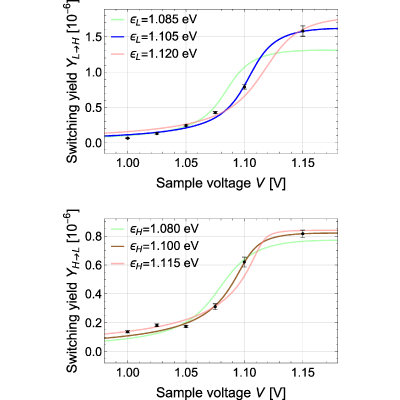

  34. In contrast to the WTD fits, the fit of the switching yields was performed without weighting, which is typically based on the uncertainties of the individual data points. Applying such weighting would disproportionately emphasize the low-voltage yields, whereas our model more accurately captures the yield behavior at higher voltages.
  35. M. Büttiker, Four-terminal phase-coherent conductance, Phys. Rev. Lett. 57, 1761 (1986).
  36. Y. Meir and N. S. Wingreen, Landauer formula for the current through an interacting electron region, Phys. Rev. Lett. 68, 2512 (1992).
  37. A. Sperl, J. Kröger, N. Néel, H. Jensen, R. Berndt, A. Franke, and E. Pehlke, Unoccupied states of individual silver clusters and chains on Ag(111), Phys. Rev. B 77, 085422 (2008).
  38. T. Kumagai, S. Liu, A. Shiotari, D. Baugh, S. Shaikhutdinov, and M. Wolf, Local electronic structure, work function, and line defect dynamics of ultrathin epitaxial ZnO layers on a Ag(111) surface, J. Phys.: Condens. Matter 28, 494003 (2016).
  39. S. Karan, D. Jacob, M. Karolak, C. Hamann, Y. Wang, A. Weismann, A. I. Lichtenstein, and R. Berndt, Shifting the voltage drop in electron transport through a single molecule, Phys. Rev. Lett. 115, 016802 (2015).
  40. T. Brandes, Waiting times and noise in single particle transport, Ann. Phys. 520, 477 (2008).
