Central cell corrections to shallow acceptor states in silicon including noncubic terms

Jianhua Zhu1,2,3,*, Ji Chen2,4,5,†, and Andrew J. Fisher3,‡

  • 1School of Mathematics And Physics, University of Science and Technology Beijing, Xueyuan Road 30, Haidian, Beijing 100083, China
  • 2School of Physics, Peking University, Chengfu Road 209, Haidian, Beijing 100871, China
  • 3UCL Department of Physics and Astronomy and London Centre for Nanotechnology, University College London, Gower Street, London WC1E 6BT, United Kingdom
  • 4Interdisciplinary Institute of Light-Element Quantum Materials and Research Center for Light-Element Advanced Materials, Peking University, Beijing 100871, China
  • 5Frontiers Science Center for Nano-Optoelectronics, Peking University, Beijing 100871, China

  • *Contact author: ucapjhz@ucl.ac.uk
  • †Contact author: ji.chen@pku.edu.cn
  • ‡Contact author: andrew.fisher@ucl.ac.uk
PDF

Phys. Rev. B 112, 235202 – Published 8 December, 2025

DOI: https://doi.org/10.1103/9k4b-q6v4

Abstract

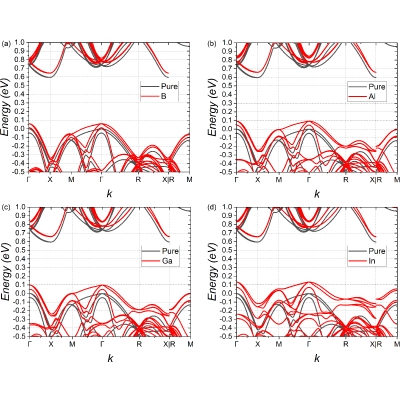

The diffuse states in acceptor systems mean they are still largely inaccessible to fully ab initio treatments, so the field largely relies on effective-mass theory. However, it has not been clear whether local departures from the cubic symmetry of the bulk semiconductors are important. Here, we present a detailed first-principles study of the central cell corrections for Group III acceptors (B, Al, Ga, and In) in silicon and in particular analyze the noncubic contributions. We simulate an array of nearly isolated acceptors within density functional theory (DFT) and study the resulting band structure of the doped systems. Based on the self-consistent one-electron potentials, we compute central cell corrections for a distorted lattice, where both structures are separately relaxed to the minimum-energy configuration. We find that, although noncubic corrections are substantial close to the acceptor, their influence on the long-range structure of the bound states is minimal because the corrections are localized in a very small range, in contrast with the case of donors in silicon. The corrected states are more localized than the uncorrected ones, so previous estimates of the inter-acceptor distances at which different interactions dominate need to be reduced; our corrections lead to improved agreement with experiment and also allow the different characteristics of different Group III acceptors to be accounted for.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (34)

  1. K. Sakai, Terahertz Optoelectronics (Springer, New York, 2005).
  2. B. E. Kane, A silicon-based nuclear spin quantum computer, Nature (London) 393, 133 (1998).
  3. S. R. Schofield, N. J. Curson, M. Y. Simmons, F. J. Ruess, T. Hallam, L. Oberbeck, and R. G. Clark, Atomically precise placement of single dopants in Si, Phys. Rev. Lett. 91, 136104 (2003).
  4. M. Steger, K. Saeedi, M. L. W. Thewalt, J. J. L. Morton, H. Riemann, N. V. Abrosimov, P. Becker, and H. J. Pohl, Quantum information storage for over 180 s using donor spins in a Si28 “semiconductor vacuum”, Science 336, 1280 (2012).
  5. K. Saeedi, S. Simmons, J. Z. Salvail, P. Dluhy, H. Riemann, N. V. Abrosimov, P. Becker, H. J. Pohl, J. J. L. Morton, and M. L. W. Thewalt, Room-temperature quantum bit storage exceeding 39 minutes using ionized donors in silicon-28, Science 342, 830 (2013).
  6. J. J. Pla, K. Y. Tan, J. P. Dehollain, W. H. Lim, J. J. L. Morton, F. A. Zwanenburg, D. N. Jamieson, A. S. Dzurak, and A. Morello, High-fidelity readout and control of a nuclear spin qubit in silicon, Nature (London) 496, 334 (2013).
  7. Y. Wang, C.-Y. Chen, G. Klimeck, M. Simmons, and R. Rahman, All-electrical control of donor-bound electron spin qubits in silicon, arXiv:1703.05370.
  8. M. Kiczynski, S. K. Gorman, H. Geng, M. B. Donnelly, Y. Chung, Y. He, J. G. Keizer, and M. Y. Simmons, Engineering topological states in atom-based semiconductor quantum dots, Nature (London) 606, 694 (2022).
  9. J. Salfi, M. Tong, S. Rogge, and D. Culcer, Quantum computing with acceptor spins in silicon, Nanotechnology 27, 244001 (2016).
  10. J. A. Mol, R. Rahman, G. Klimeck, M. Y. Simmons, L. C. L. Hollenberg, J. Salfi, and S. Rogge, Quantum simulation of the Hubbard model with dopant atoms in silicon, Nat. Commun. 7, 11342 (2016).
  11. M. Radue, S. Baek, A. Farzaneh, K. Dwyer, Q. Campbell, A. Baczewski, E. Bussmann, G. Wang, Y. Mo, S. Misra, and R. Butera, AlCl3-dosed Si(100)−2×1: Adsorbates, chlorinated Al chains, and incorporated Al, J. Phys. Chem. C 125, 11336 (2021).
  12. K. Dwyer, S. Baek, A. Farzaneh, M. Dreyer, J. Williams, and R. Butera, B-doped δ-layers and nanowires from area-selective deposition of BCl3 on Si(100), ACS Appl. Mater. Interfaces 13, 41275 (2021).
  13. A. C. Durst, K. E. Castoria, and R. N. Bhatt, Heitler−London model for acceptor-acceptor interactions in doped semiconductors, Phys. Rev. B 96, 155208 (2017).
  14. A. C. Durst, G. Yang-Mejia, and R. N. Bhatt, Quadrupolar interactions between acceptor pairs in p-doped semiconductors, Phys. Rev. B 101, 035202 (2020).
  15. J. Zhu, W. Wu, and A. J. Fisher, Linear combination of atomic orbitals model for deterministically placed acceptor arrays in silicon, Phys. Rev. B 101, 085303 (2020).
  16. J. Zhu, W. Wu, and A. Fisher, Multihole models for deterministically placed acceptor arrays in silicon, Phys. Rev. B 104, 125415 (2021).
  17. J. Zhu, S. Bhattacharyya, W. Wu, and A. J. Fisher, Topological states in honeycomb arrays of implanted acceptors in semiconductors, New J. Phys. 26, 063018 (2024).
  18. S. T. Pantelides, The electronic structure of impurities and other point defects in semiconductors, Rev. Mod. Phys. 50, 797 (1978).
  19. J. K. Gamble, N. T. Jacobson, E. Nielsen, A. D. Baczewski, J. E. Moussa, I. Montano, and R. P. Muller, Multivalley effective mass theory simulation of donors in silicon, Phys. Rev. B 91, 235318 (2015).
  20. A. Baldereschi and N. O. Lipari, Spherical model of shallow acceptor states in semiconductors, Phys. Rev. B 8, 2697 (1973).
  21. A. Baldereschi and N. O. Lipari, Cubic contributions to the spherical model of shallow acceptor states, Phys. Rev. B 9, 1525 (1974).
  22. N. Lipari and A. Baldereschi, Interpretation of acceptor spectra in semiconductors, Solid State Commun. 25, 665 (1978).
  23. G. Kresse and J. Furthmüller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  24. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  25. See Supplemental Material at http://link.aps.org/supplemental/10.1103/9k4b-q6v4 for calculating details, results for other dopants beside A1, and further discussions, which also includes Refs. [32, 33, 34].
  26. A. K. Ramdas and S. Rodriguez, Spectroscopy of the solid-state analogues of the hydrogen atom: Donors and acceptors in semiconductors, Rep. Prog. Phys. 44, 1297 (1981).
  27. J. Zhu, J. Chen, and A. J. Fisher, DFT data supporting, figshare (online publication): 10.5522/04/28538300, 10.5522/04/28538384, 10.5522/04/28538429, 10.5522/04/28538600, 10.5522/04/28538702, 10.5522/04/28538792, 10.5522/04/28538834 (2025).
  28. V. Wang, N. Xu, J. Liu, G. Tang, and W. Geng, VASPKIT: A user-friendly interface facilitating high-throughput computing and analysis using VASP code, Comput. Phys. Commun. 267, 108033 (2021).
  29. C. L. Kane and E. J. Mele, Quantum spin Hall effect in graphene, Phys. Rev. Lett. 95, 226801 (2005).
  30. M. Ezawa, Monolayer topological insulators: Silicene, germanene, and stanene, J. Phys. Soc. Jpn. 84, 121003 (2015).
  31. S. A. Owerre, A first theoretical realization of honeycomb topological magnon insulator, J. Phys.: Condens. Matter 28, 386001 (2016).
  32. J. P. Elliott and P. G. Dawber, Symmetry in Physics (Macmillan, London, 1979).
  33. G. Koster, Properties of the Thirty-Two Point Groups (M.I.T. Press, Massachusetts, 1963).
  34. J. A. Van Vechten and J. C. Phillips, New set of tetrahedral covalent radii, Phys. Rev. B 2, 2160 (1970).
