Electrostatic screening of free charge-neutral dipoles/excitons in two-dimensional media

Ke Xiao1,2,*,†, Chi-Ming Kan2,3,*, Feng-Ren Fan4,2, Stuart S. P. Parkin1, and Xiaodong Cui2

  • *These authors contributed equally to this work.
  • †Contact author: ke.xiao@mpi-halle.mpg.de

Phys. Rev. B 112, 165429 – Published 24 October, 2025

DOI: https://doi.org/10.1103/9fgx-nq97

Abstract

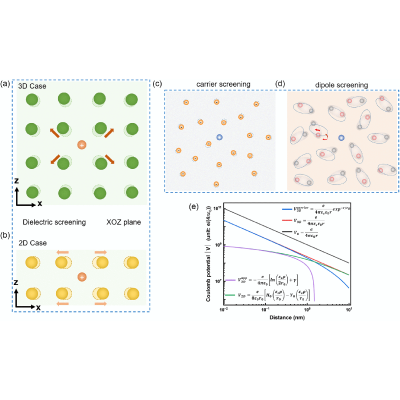

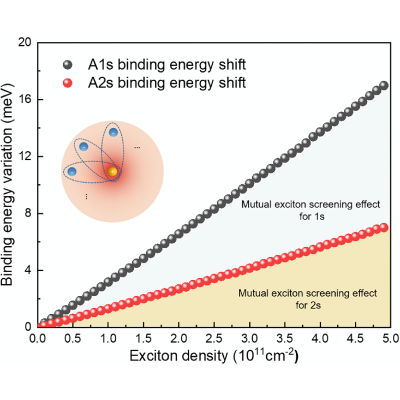

With the shrinking of dimensionality, Coulomb interaction plays a distinct role in two-dimensional (2D) semiconductors owing to the reduced dielectric screening in the out-of-plane direction. Apart from the dielectric screening, free particles such as carriers and dipoles or excitons can also make a non-negligible contribution to the Coulomb interaction. While the Thomas-Fermi model is effective in describing charge carrier screening in three dimensions, the extent of screening resulting from neutral dipoles or excitons in both two and three dimensions remains quantitatively unclear. Here, we present an analytical solution based on linear response theory, offering a comprehensive depiction of the Coulomb screened potential from charge-neutral dipoles or excitons in both 2D and 3D systems, while the free dipole screening effect is much stronger in the 2D case than that in the 3D case. Using the derived screened Coulomb potential, we estimate the exciton binding energy shift arising from the mutual exciton screening effect, which is found to be an order of magnitude larger than that due to exchange-driven exciton-exciton interaction, yielding excellent agreement with the experimental observations. Our work provides a practical and insightful framework for directly analyzing and evaluating Coulomb interaction strength in an excitonic system in atomically thin materials, with implications for the design of electronic and optoelectronic devices.

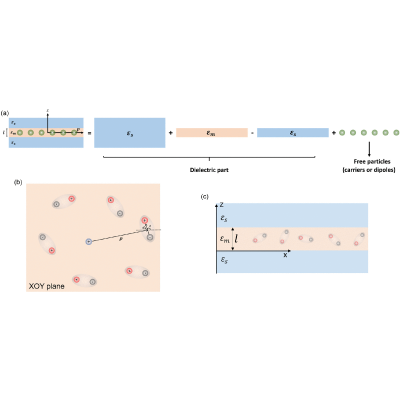

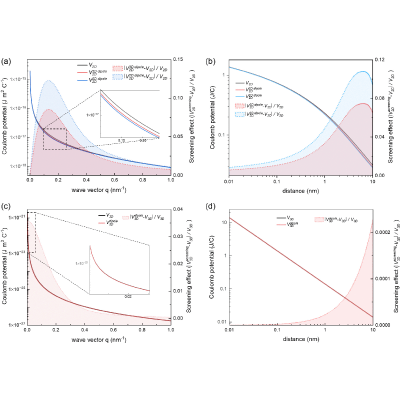

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (40)

  1. A. Chernikov, T. C. Berkelbach, H. M. Hill, A. Rigosi, Y. L. Li, O. B. Aslan, D. R. Reichman, M. S. Hybertsen, and T. F. Heinz, Exciton binding energy and nonhydrogenic Rydberg series in monolayer WS2, Phys. Rev. Lett. 113, 076802 (2014).
  2. P. Cudazzo, I. V. Tokatly, and A. Rubio, Dielectric screening in two-dimensional insulators: Implications for excitonic and impurity states in graphane, Phys. Rev. B 84, 085406 (2011).
  3. B. R. Zhu, X. Chen, and X. D. Cui, Exciton binding energy of monolayer WS2, Sci. Rep. 5, 9218 (2015).
  4. Z. L. Ye, T. Cao, K. O'Brien, H. Y. Zhu, X. B. Yin, Y. Wang, S. G. Louie, and X. Zhang, Probing excitonic dark states in single-layer tungsten disulphide, Nature (London) 513, 214 (2014).
  5. C. D. Zhang, A. Johnson, C. L. Hsu, L. J. Li, and C. K. Shih, Direct imaging of band profile in single layer MoS2 on graphite: Quasiparticle energy gap, metallic edge states, and edge band bending, Nano Lett. 14, 2443 (2014).
  6. M. M. Ugeda, A. J. Bradley, S. F. Shi, F. H. da Jornada, Y. Zhang, D. Y. Qiu, W. Ruan, S. K. Mo, Z. Hussain, Z. X. Shen et al., Giant band-gap renormalization and excitonic effects in a monolayer transition metal dichalcogenide semiconductor, Nat. Mater. 13, 1091 (2014).
  7. K. F. Mak, C. Lee, J. Hone, J. Shan, and T. F. Heinz, Atomically thin MoS2: A new direct-gap semiconductor, Phys. Rev. Lett. 105, 136805 (2010).
  8. K. Tran, G. Moody, F. C. Wu, X. B. Lu, J. Choi, K. Kim, A. Rai, D. A. Sanchez, J. M. Quan, A. Singh et al., Evidence for moire excitons in van der Waals heterostructures, Nature (London) 567, 71 (2019).
  9. K. L. Seyler, P. Rivera, H. Y. Yu, N. P. Wilson, E. L. Ray, D. G. Mandrus, J. Q. Yan, W. Yao, and X. D. Xu, Signatures of moire-trapped valley excitons in MoSe2/WSe2 heterobilayers, Nature (London) 567, 66 (2019).
  10. C. Jin, E. C. Regan, A. Yan, M. Iqbal Bakti Utama, D. Wang, S. Zhao, Y. Qin, S. Yang, Z. Zheng, S. Shi et al., Observation of moire excitons in WSe2/WS2 heterostructure superlattices, Nature (London) 567, 76 (2019).
  11. E. Navarro-Moratalla, J. O. Island, S. Mañas-Valero, E. Pinilla-Cienfuegos, A. Castellanos-Gomez, J. Quereda, G. Rubio-Bollinger, L. Chirolli, J. A. Silva-Guillén, N. Agraït et al., Enhanced superconductivity in atomically thin TaS2, Nat. Commun. 7, 11043 (2016).
  12. J. D. Zhou, F. C. Liu, J. H. Lin, X. W. Huang, J. Xia, B. W. Zhang, Q. S. Zeng, H. Wang, C. Zhu, L. Niu et al., Large-area and high-quality 2D transition metal telluride, Adv. Mater. 29, 1603471 (2017).
  13. Y. Xu, S. Liu, D. A. Rhodes, K. Watanabe, T. Taniguchi, J. Hone, V. Elser, K. F. Mak, and J. Shan, Correlated insulating states at fractional fillings of moire superlattices, Nature (London) 587, 214 (2020).
  14. Y. H. Tang, L. Z. Li, T. X. Li, Y. Xu, S. Liu, K. Barmak, K. Watanabe, T. Taniguchi, A. H. MacDonald, J. Shan et al., Simulation of Hubbard model physics in WSe2/WS2 moire superlattices, Nature (London) 579, 353 (2020).
  15. Y. Bai, Y. Li, S. Liu, Y. Guo, J. Pack, J. Wang, C. R. Dean, J. Hone, and X. Zhu, Evidence for exciton crystals in a 2D semiconductor heterotrilayer, Nano Lett. 23, 11621 (2023).
  16. D. Y. Qiu, F. H. da Jornada, and S. G. Louie, Screening and many-body effects in two-dimensional crystals: Monolayer MoS2, Phys. Rev. B 93, 235435 (2016).
  17. F. Hüser, T. Olsen, and K. S. Thygesen, How dielectric screening in two-dimensional crystals affects the convergence of excited-state calculations: Monolayer MoS2, Phys. Rev. B 88, 245309 (2013).
  18. K. Noori, N. L. Q. Cheng, F. Y. Xuan, and S. Y. Quek, Dielectric screening by 2D substrates, 2D Mater. 6, 035036 (2019).
  19. L. V. Keldysh, Coulomb interaction in thin semiconductor and semimetal films, JETP Lett. 29, 658 (1979).
  20. N. S. Rytova, Screened potential of a point charge in a thin film, Moscow Univ. Phys. Bullet. 3, 18 (1967).
  21. N. W. Ashcroft and N. Mermin, Solid State Physics (Holt, Rinehart and Winston, New York, 1976).
  22. F. Stern, Polarizability of a two-dimensional electron gas, Phys. Rev. Lett. 18, 546 (1967).
  23. T. Ando, A. B. Fowler, and F. Stern, Electronic properties of two-dimensional systems, Rev. Mod. Phys. 54, 437 (1982).
  24. H. Haug and S. W. Koch, Semiconductor laser theory with many-body effects, Phys. Rev. A 39, 1887 (1989).
  25. M. M. Glazov and A. Chernikov, Breakdown of the static approximation for free carrier screening of excitons in monolayer semiconductors, Phys. Status Solidi B 255, 1800216 (2018).
  26. D. Beglov and B. Roux, An integral equation to describe the solvation of polar molecules in liquid water, J. Phys. Chem. B 101, 7821 (1997).
  27. M. V. Fedorov and A. A. Kornyshev, Ionic liquids at electrified interfaces, Chem. Rev. 114, 2978 (2014).
  28. D. J. Lockhart and P. S. Kim, Electrostatic screening of charge and dipole interactions with the helix backbone, Science 260, 198 (1993).
  29. C. Neidel, J. Klei, C. H. Yang, A. Rouzée, M. J. J. Vrakking, K. Klünder, M. Miranda, C. L. Arnold, T. Fordell, A. L'Huillier et al., Probing time-dependent molecular dipoles on the attosecond time scale, Phys. Rev. Lett. 111, 033001 (2013).
  30. J. G. Gay, Screening of excitons in semiconductors, Phys. Rev. B 4, 2567 (1971).
  31. P. D. Cunningham, A. T. Hanbicki, K. M. McCreary, and B. T. Jonker, Photoinduced band-gap renormalization and exciton binding energy reduction in WS, Acs Nano 11, 12601 (2017).
  32. K. Xiao, T. Yan, C. Xiao, F.-R. Fan, R. Duan, Z. Liu, K. Watanabe, T. Taniguchi, S. S. Parkin, W. Yao et al., Exciton–exciton interaction in monolayer MoSe2 from mutual screening of Coulomb binding, Acs Nano 18, 31869 (2024).
  33. See Supplemental Material at http://link.aps.org/supplemental/10.1103/9fgx-nq97 for Supplemental Note 1: Calculation of induced charge density associated with the dipoles based on perturbation theory in 2D and 3D case; Supplemental Note 2: Schematics of derivation process based on Linear response theory; Supplemental Note 3: 2D modified Coulomb potential from screening of 3D dipole; Supplemental Note 4: Convergence analysis test for Monte Carlo calculation of exciton binding energy; and Supplemental Note 5: Screened potential comparison for typical dipole/exciton density.
  34. F. García Flórez, L. D. Siebbeles, and H. Stoof, Effects of material thickness and surrounding dielectric medium on Coulomb interactions and two-dimensional excitons, Phys. Rev. B 102, 125303 (2020).
  35. R. I. G. Hughes, Theoretical practice: The Bohm-Pines quartet, Persp. Sci. 14, 457 (2006).
  36. G. D. Mahan, Many-Particle Physics (Springer, New York, 2000).
  37. J. H. Collet and T. Amand, Electron-hole interaction in the presence of excitons, Solid State Commun. 52, 53 (1984).
  38. M. Goryca, J. Li, A. V. Stier, T. Taniguchi, K. Watanabe, E. Courtade, S. Shree, C. Robert, B. Urbaszek, and X. Marie, Revealing exciton masses and dielectric properties of monolayer semiconductors with high magnetic fields, Nat. Commun. 10, 4172 (2019).
  39. E. F. Liu, J. van Baren, Z. G. Lu, T. Taniguchi, K. Watanabe, D. Smirnov, Y. C. Chang, and C. H. Lui, Exciton-polaron Rydberg states in monolayer MoSe2 and WSe2, Nat. Commun. 12, 6131 (2021).
  40. K. Xiao, T. F. Yan, Q. Y. Liu, S. Y. Yang, C. M. Kan, R. H. Duan, Z. Liu, and X. D. Cui, Many-body effect on optical properties of monolayer molybdenum diselenide, J. Phys. Chem. Lett. 12, 2555 (2021).
