Low-energy excitations in A-site ordered SmBaMn2O6

Mirian Garcia Fernandez1,*, Abhishek Nag1,2, Stefano Agrestini1, Sahil Tippireddy1, Dirk Backes1, Xiaoyang Chen1, Urs Staub3, Taka-Hisa Arima4, and Kejin Zhou1

  • *Contact author: mirian.garcia@diamond.ac.uk
PDF

Phys. Rev. B 113, 235128 – Published 15 June, 2026

DOI: https://doi.org/10.1103/8tfr-lgcw

Abstract

The electron in a solid can be considered a bound state of the three independent, fundamental degrees of freedom creating quasiparticles: spinons, carrying the electron spin; plasmons, carrying the collective charge mode; and orbitons, carrying its orbital degree of freedom. These fundamental degrees of freedom could form ordering states in which dynamics or collective motions could occur and manifest as low-energy excitations. The exotic properties that appear in the materials exhibiting these electronic orderings are associated with these low-energy excitations. Although the orbital order (OO) and its coupling to the spin system creates very interesting phenomena, the microscopic origin of OO has been much less explored than other electronic properties as it is very difficult to directly access experimentally. Due to the recent improvement in energy resolution and flux, soft-x-ray resonant inelastic scattering (RIXS) allows for a reexamination of orbital excitations in manganites. Here, we present a study of low-energy excitations in half doped A-site ordered SmBaMn2O6 through a combination of RIXS and soft-x-ray resonant elastic scattering measurements. We confirm the existence of OO at q = (0.25, 0.25, 0) and find various low-energy excitations below 200 meV. While several excitations can be assigned to be of magnetic and phononic origin, a group of excitations between 80 and 200 meV show a temperature dependence closely following that of the OO, making them possible candidates for orbitons.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. J. van den Brink, G. Khaliullin, and D. Khomskii, Charge and orbital order in half-doped manganites, Phys. Rev. Lett. 83, 5118 (1999).
  2. E. Saitoh, S. Okamoto, K. T. Takahashi, K. Tobe, K. Yamamoto, T. Kimura, S. Ishihara, S. Maekawa, and Y. Tokura, Observation of orbital waves as elementary excitations in a solid, Nature (London) 410, 180 (2001).
  3. D. Polli, M. Rini, S. Wall, R. W. Schoenlein, Y. Tomioka, Y. Tokura, G. Cerullo, and A. Cavalleri, Coherent orbital waves in the photo-induced insulator–metal dynamics of a magnetoresistive manganite, Nat. Mater. 6, 643 (2007).
  4. M. Grüninger, R. Rückamp, M. Windt, P. Reutler, C. Zobel, T. Lorenz, A. Freimuth, and A. Revcolevschi, Experimental quest for orbital waves, Nature (London) 418, 39 (2002).
  5. Y. Murakami, H. Kawada, H. Kawata, M. Tanaka, T. Arima, Y. Moritomo, and Y. Tokura, Direct observation of charge and orbital ordering in La0.5Sr1.5MnO4, Phys. Rev. Lett. 80, 1932 (1998).
  6. S. B. Wilkins, P. D. Spencer, P. D. Hatton, S. P. Collins, M. D. Roper, D. Prabhakaran, and A. T. Boothroyd, Direct observation of orbital ordering in La0.5Sr1.5MnO4 using soft x-ray diffraction, Phys. Rev. Lett. 91, 167205 (2003).
  7. K. J. Thomas, J. P. Hill, S. Grenier, Y.-J. Kim, P. Abbamonte, L. Venema, A. Rusydi, Y. Tomioka, Y. Tokura, D. F. McMorrow, G. Sawatzky, and M. van Veenendaal, Soft x-ray resonant diffraction study of magnetic and orbital correlations in a manganite near half doping, Phys. Rev. Lett. 92, 237204 (2004).
  8. S. S. Dhesi, A. Mirone, C. De Nadaï, P. Ohresser, P. Bencok, N. B. Brookes, P. Reutler, A. Revcolevschi, A. Tagliaferri, O. Toulemonde, and G. van der Laan, Unraveling orbital ordering in La0.5Sr1.5MnO4, Phys. Rev. Lett. 92, 056403 (2004).
  9. U. Staub, V. Scagnoli, A. M. Mulders, K. Katsumata, Z. Honda, H. Grimmer, M. Horisberger, and J. M. Tonnerre, Orbital and magnetic ordering in La0.5Sr1.5MnO4 studied by soft x-ray resonant scattering, Phys. Rev. B 71, 214421 (2005).
  10. M. García-Fernández, U. Staub, Y. Bodenthin, S. M. Lawrence, A. M. Mulders, C. E. Buckley, S. Weyeneth, E. Pomjakushina, and K. Conder, Resonant soft x-ray powder diffraction study to determine the orbital ordering in A-site-ordered SmBaMn2O6, Phys. Rev. B 77, 060402(R) (2008).
  11. M. García-Fernández, U. Staub, Y. Bodenthin, V. Scagnoli, V. Pomjakushin, S. W. Lovesey, A. Mirone, J. Herrero-Martín, C. Piamonteze, and E. Pomjakushina, Orbital order at Mn and O sites and absence of Zener polaron formation in manganites, Phys. Rev. Lett. 103, 097205 (2009).
  12. T. A. W. Beale, S. R. Bland, R. D. Johnson, P. D. Hatton, J. C. Cezar, S. S. Dhesi, M. v. Zimmermann, D. Prabhakaran, and A. T. Boothroyd, Thermally induced rotation of 3d orbital stripes in Pr(Sr0.1Ca0.9)2Mn2O7, Phys. Rev. B 79, 054433 (2009).
  13. U. Staub, M. García-Fernández, Y. Bodenthin, V. Scagnoli, R. A. De Souza, M. Garganourakis, E. Pomjakushina, and K. Conder, Orbital and magnetic ordering in Pr1−xCaxMnO3 and Nd1−xSrxMnO3 manganites near half doping studied by resonant soft x-ray powder diffraction, Phys. Rev. B 79, 224419 (2009).
  14. M. García-Fernández, U. Staub, Y. Bodenthin, V. Pomjakushin, A. Mirone, J. Fernández-Rodríguez, V. Scagnoli, A. M. Mulders, S. M. Lawrence, and E. Pomjakushina, Doping and temperature dependence of Mn 3d states in A-site ordered manganites, Phys. Rev. B 82, 235108 (2010).
  15. S. Ishihara and S. Maekawa, Theory of orbital excitation and resonant inelastic x-ray scattering in manganites, Phys. Rev. B 62, 2338 (2000).
  16. S. Ishihara, H. Kondoh, and S. Maekawa, Resonant inelastic x-ray scattering in manganites with perovskite structure, Physica B 345, 15 (2004).
  17. F. Forte, L. J. P. Ament, and J. van den Brink, Single and double orbital excitations probed by resonant inelastic x-ray scattering, Phys. Rev. Lett. 101, 106406 (2008).
  18. J. Schlappa, K. Wohlfeld, K. J. Zhou, M. Mourigal, M. W. Haverkort, V. N. Strocov, L. Hozoi, C. Monney, S. Nishimoto, S. Singh, A. Revcolevschi, J.-S. Caux, L. Patthey, H. M. Rønnow, J. van den Brink, and T. Schmitt, Spin–orbital separation in the quasi-one-dimensional Mott insulator Sr2CuO3, Nature (London) 485, 82 (2012).
  19. H. Kondo, S. Ishihara, and S. Maekawa, Resonant inelastic x-ray scattering from charge and orbital excitations in manganites, Phys. Rev. B 64, 014414 (2001).
  20. T. Inami, T. Fukuda, J. Mizuki, S. Ishihara, H. Kondo, H. Nakao, T. Matsumura, K. Hirota, Y. Murakami, S. Maekawa, and Y. Endoh, Orbital excitations in LaMnO3 studied by resonant inelastic x-ray scattering, Phys. Rev. B 67, 045108 (2003).
  21. K. Ishii, T. Inami, K. Ohwada, K. Kuzushita, J. Mizuki, Y. Murakami, S. Ishihara, Y. Endoh, S. Maekawa, K. Hirota, and Y. Moritomo, Resonant inelastic x-ray scattering study of the hole-doped manganites La1−xSrxMnO3 (x=0.2, 0.4), Phys. Rev. B 70, 224437 (2004).
  22. S. Grenier, J. P. Hill, V. Kiryukhin, W. Ku, Y.-J. Kim, K. J. Thomas, S.-W. Cheong, Y. Tokura, Y. Tomioka, D. Casa, and T. Gog, d−d excitations in manganites probed by resonant inelastic x-ray scattering, Phys. Rev. Lett. 94, 047203 (2005).
  23. T. Nakajima, H. Yoshizawa, and Y. Ueda, A-site randomness effect on structural and physical properties of Ba-based perovskite manganites, J. Phys. Soc. Jpn. 73, 2283 (2004).
  24. M. Uchida, D. Akahoshi, R. Kumai, Y. Tomioka, T.-h. Arima, Y. Tokura, and Y. Matsui, Charge/orbital ordering structure in ordered perovskite Sm1/2Ba1/2MnO3, J. Phys. Soc. Jpn. 71, 2605 (2002).
  25. H. Kageyama, T. Nakajima, M. Ichihara, Y. Ueda, H. Yoshizawa, and K. Ohoyama, New stacking variations of the charge and orbital ordering in the metal-ordered manganite YBaMn2O6, J. Phys. Soc. Jpn. 72, 241 (2003).
  26. T. Nakajima, H. Kageyama, M. Ichihara, K. Ohoyama, H. Yoshizawa, and Y. Ueda, Anomalous octahedral distortion and multiple phase transitions in the metal-ordered manganite YBaMn2O6, J. Solid State Chem. 177, 987 (2004).
  27. T. Arima, D. Akahoshi, K. Oikawa, T. Kamiyama, M. Uchida, Y. Matsui, and Y. Tokura, Change in charge and orbital alignment upon antiferromagnetic transition in the A-site-ordered perovskite manganese oxide RBaMn2O6(R=Tb and Sm), Phys. Rev. B 66, 140408(R) (2002).
  28. D. Akahoshi, Y. Okimoto, M. Kubota, R. Kumai, T. Arima, Y. Tomioka, and Y. Tokura, Charge-orbital ordering near the multicritical point in A-site ordered perovskites SmBaMn2O6 and NdBaMn2O6, Phys. Rev. B 70, 064418 (2004).
  29. D. Morikawa, K. Tsuda, Y. Maeda, S. Yamada, and T.-h. Arima, Charge and orbital order patterns in an A-site ordered perovskite-type manganite SmBaMn2O6 determined by convergent-beam electron diffraction, J. Phys. Soc. Jpn. 81, 093602 (2012).
  30. Y. Tokunaga, T. Lottermoser, Y. Lee, R. Kumai, M. Uchida, T. Arima, and Y. Tokura, Rotation of orbital stripes and the consequent charge-polarized state in bilayer manganites, Nat. Mater. 5, 937 (2006).
  31. K.-J. Zhou, A. Walters, M. Garcia-Fernandez, T. Rice, M. Hand, A. Nag, J. Li, S. Agrestini, P. Garland, H. Wang, S. Alcock, I. Nistea, B. Nutter, N. Rubies, G. Knap, M. Gaughran, F. Yuan, P. Chang, J. Emmins, and G. Howell, I21: An advanced high-resolution resonant inelastic x-ray scattering beamline at Diamond Light Source, J. Synch. Radiat. 29, 563 (2022).
  32. R. A. Ewings, T. G. Perring, O. Sikora, D. L. Abernathy, Y. Tomioka, and Y. Tokura, Spin excitations used to probe the nature of exchange coupling in the magnetically ordered ground state of Pr0.5Ca0.5MnO3, Phys. Rev. B 94, 014405 (2016).
  33. S. Ishihara, Y. Murakami, T. Inami, K. Ishii, J. Mizuki, K. Hirota, S. Maekawa, and Y. Endoh, Theory and experiment of orbital excitations in correlated oxides, New J. Phys. 7, 119 (2005).

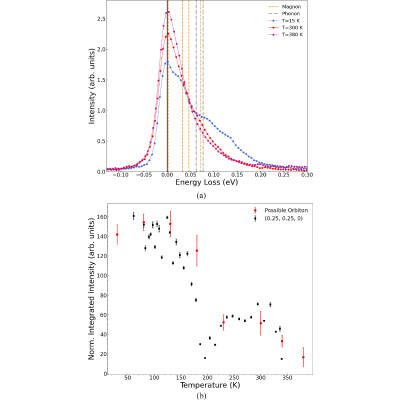

  34. See Supplemental Material at http://link.aps.org/supplemental/10.1103/8tfr-lgcw for details on the fits of the integrated intensity of the energy excitations between 80 and 200 meV in the RIXS spectra for different temperatures. The results from these fits are shown in Fig.  8.
  35. J. van den Brink, Orbital excitations in LaMnO3, Phys. Rev. Lett. 87, 217202 (2001).
  36. P. B. Allen and V. Perebeinos, Self-trapped exciton and Franck-Condon spectra predicted in LaMnO3, Phys. Rev. Lett. 83, 4828 (1999).
  37. K. P. Schmidt, M. Grüninger, and G. S. Uhrig, Fate of orbitons coupled to phonons, Phys. Rev. B 76, 075108 (2007).
  38. H. Ueda, M. García-Fernández, S. Agrestini, C. P. Romao, J. van den Brink, N. A. Spaldin, K.-J. Zhou, and U. Staub, Chiral phonons in quartz probed by x-rays, Nature (London) 618, 946 (2023).
