Quantum exciton solid with embedded electron-hole solids in double-layer WSe2

Meizhen Huang1,*, Zefei Wu1,*,†, Chenxuan Lou1,*, S. T. Chui2,‡, and Ning Wang1,§

  • *These authors contributed equally to this work.
  • †Contact author: zefeiw@gmail.com
  • ‡Contact author: chui@udel.edu
  • §Contact author: phwang@ust.hk
PDF

Phys. Rev. B 113, L161406 – Published 14 April, 2026

DOI: https://doi.org/10.1103/7y5q-r7zj

Abstract

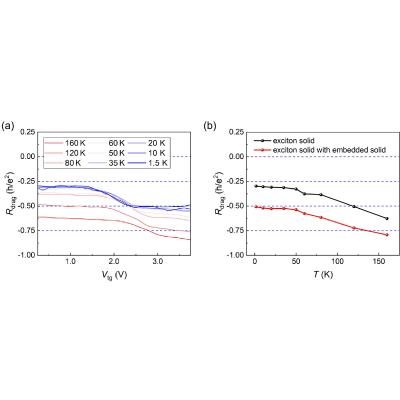

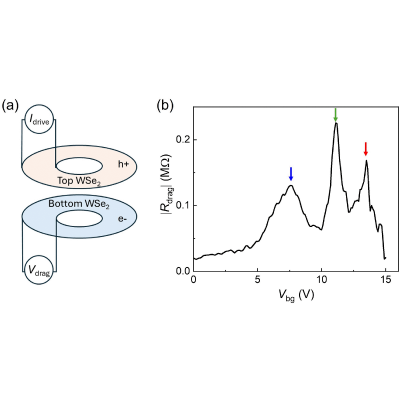

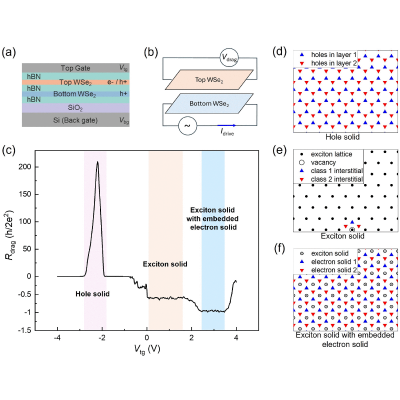

We studied double-layer WSe2 stacked on opposite sides of thin layers of hexagonal Boron nitride with different densities of electrons and holes. For a fixed hole density, the Coulomb drag resistance is found to exhibit plateaus approximately equal to −h/(4e2) and −h/(2e2) as the electron density is changed. When the number of electrons is equal to the number of holes, an exciton solid forms whose transport of quantum edge defects gives rise to the drag resistance. When the electron and hole densities are different, the excess electrons form a solid embedded in the exciton solid. The Coulomb drag resistance of the exciton solid comes from the one-dimensional transport of the two lowest energy channels of quantum edge vacancy-interstitial pairs. This corresponds to the first plateau. With the embedded solid, one of these channels is blocked. This corresponds to the second plateau. Transport experiments in the Corbino geometry with no edges and extra heavier holes were carried out. The plateaus disappeared. Three peaks in the resistance at different hole densities were observed. We interpret that the three peaks correspond to the commensurate exciton and two classes of hole solids. We performed phonon calculations of these states and found that the stability of these exciton-based quantum solids shows good agreement with experiment. Our results establish classes of extreme quantum solid states, opening additional avenues for the study of strongly correlated quantum transport phenomena involving quantum defect states.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (43)

  1. A. F. Andreev and I. M. Lifshits, Quantum theory of defects in crystals, Zh. Eksp. Teor. Fiz. 56, 2057 (1969) [Sov. Phys. JETP 29, 1107 (1969)].
  2. A. J. Leggett, Can a solid be “superfluid”? Phys. Rev. Lett. 25, 1543 (1970).
  3. P. Kapitza, Viscosity of liquid helium below the λ-point, Nature (London) 141, 74 (1938).
  4. J. F. Allen and A. D. Misener, Flow phenomena in liquid helium II, Nature (London) 142, 643 (1938).
  5. Ann Sophie C. Rittner and J. D. Reppy, Disorder and the supersolid state of solid He4, Phys. Rev. Lett. 98, 175302 (2007).
  6. D. J. Thouless, The flow of a dense superfluid, Ann. Phys. 52, 403 (1969).
  7. K. Esfarjani, S. T. Chui, and X. Qiu, Dislocation waves in a two-dimensional Coulomb lattice, Phys. Rev. B 46, 4638 (1992).
  8. E. Kim and M. H. W. Chan, Observation of superflow in solid helium, Science 305, 1941 (2004).
  9. E. Kim and M. H. W. Chan, Probable observation of a supersolid helium phase, Nature (London) 427, 225 (2004).
  10. J. Day and J. Beamish, Low-temperature shear modulus changes in solid He4 and connection to supersolidity, Nature (London) 450, 853 (2007).
  11. S. Sasaki, R. Ishiguro, F. Caupin, H. J. Maris, and S. Balibar, Superfluidity of grain boundaries and supersolid behavior, Science 313, 1098 (2006).
  12. M. M. Fogler, L. V. Butov, and K. S. Novoselov, High-temperature superfluidity with indirect excitons in van der Waals heterostructures, Nat. Commun. 5, 4555 (2014).
  13. A. Gamucci, D. Spirito, M. Carrega, B. Karmakar, A. Lombardo, M. Bruna, L. N. Pfeiffer, K. W. West, A. C. Ferrari, M. Polini, et al., Anomalous low-temperature Coulomb drag in graphene-GaAs heterostructures, Nat. Commun. 5, 5824 (2014).
  14. J. P. Eisenstein, A. D. K. Finck, D. Nandi, L. N. Pfeiffer, and K. W. West, Exciton transport in a bilayer quantum hall superfluid, J. Phys. Conf. Ser. 456, 012009 (2013).
  15. L. Du, X. Li, W. Lou, G. Sullivan, K. Chang, J. Kono, and R.-R. Du, Evidence for a topological excitonic insulator in InAs/GaSb bilayers, Nat. Commun. 8, 1971 (2017).
  16. Y. N. Joglekar, A. V. Balatsky, and S. Das Sarma, Wigner supersolid of excitons in electron-hole bilayers, Phys. Rev. B 74, 233302 (2006).
  17. S. Conti, A. Perali, A. R. Hamilton, M. V. Milošević, F. M. Peeters, and D. Neilson, Chester supersolid of spatially indirect excitons in double-layer semiconductor heterostructures, Phys. Rev. Lett. 130, 057001 (2023).
  18. P. X. Nguyen, L. Ma, R. Chaturvedi, K. Watanabe, T. Taniguchi, J. Shan, and K. F. Mak, Perfect Coulomb drag in a dipolar excitonic insulator, Science 388, 274 (2025).
  19. R. Qi, A. Y. Joe, Z. Zhang, J. Xie, Q. Feng, Z. Lu, Z. Wang, T. Taniguchi, K. Watanabe, S. Tongay, et al., Perfect Coulomb drag and exciton transport in an excitonic insulator, Science 388, 278 (2025).
  20. J. P. Eisenstein, Exciton condensation in bilayer quantum hall systems, Annu. Rev. Condens. Matter Phys. 5, 159 (2014).
  21. M. Kellogg, J. P. Eisenstein, L. N. Pfeiffer, and K. W. West, Vanishing hall resistance at high magnetic field in a double-layer two-dimensional electron system, Phys. Rev. Lett. 93, 036801 (2004).
  22. E. Tutuc, M. Shayegan, and D. A. Huse, Counterflow measurements in strongly correlated gaas hole bilayers: Evidence for electron-hole pairing, Phys. Rev. Lett. 93, 036802 (2004).
  23. J. I. A. Li, T. Taniguchi, K. Watanabe, J. Hone, and C. R. Dean, Excitonic superfluid phase in double bilayer graphene, Nat. Phys. 13, 751 (2017).
  24. X. Liu, K. Watanabe, T. Taniguchi, B. I. Halperin, and P. Kim, Quantum Hall drag of exciton condensate in graphene, Nat. Phys. 13, 746 (2017).
  25. Y. Zeng, D. Sun, N. J. Zhang, R. Q. Nguyen, Q. Shi, A. Okounkova, K. Watanabe, T. Taniguchi, J. Hone, C. R. Dean, and J. I. A. Li, Observation of a superfluid-to-insulator transition of bilayer excitons, Nature 650, 86 (2026).
  26. S. T. Chui, N. Wang, and B. Tanatar, Metal-insulator transitions in bilayer electron-hole systems in transition metal dichalcogenides, Phys. Rev. B 104, 195432 (2021).
  27. M. Randeria, W. Zwerger, and M. Zwierlein, in The BCS-BEC Crossover and the Unitary Fermi Gas, edited by W. Zwerger (Springer, Berlin, Heidelberg, 2012), p. 1.
  28. S. T. Chui, N. Wang, and C. Y. Wan, Quantum exciton solid in bilayer two-dimensional electron-hole systems, Phys. Rev. B 102, 125420 (2020).
  29. R. A. Suris, Gas–crystal phase transition in a 2D dipolar exciton system, J. Exp. Theor. Phys. 122, 602 (2016).
  30. B. N. Narozhny and A. Levchenko, Coulomb drag, Rev. Mod. Phys. 88, 025003 (2016).
  31. See Supplemental Material at http://link.aps.org/supplemental/10.1103/7y5q-r7zj for optical images of the devices and additional transport data.
  32. R. Qi, Q. Li, Z. Zhang, J. Nie, B. Zou, Z. Cui, H. Kim, C. Sanborn, S. Chen, J. Xie, et al., Competition between excitonic insulators and quantum Hall states in correlated electron–hole bilayers, Nat. Mater. 25, 35 (2026).
  33. M. Huang, Z. Wu, N. Wang, and S.-T. Chui, Quantum solid phase and coulomb drag in 2D electron–electron bilayers of MoS2, Adv. Electron. Mater. 9, 2201105 (2023).
  34. L. K. Moleko, B. Joos, T. M. Hakim, H. R. Glyde, and S. T. Chui, Dynamics of rare-gas floating monolayers in the self-consistent phonon theory, Phys. Rev. B 34, 2815 (1986).
  35. D. Jérome, T. M. Rice, and W. Kohn, Excitonic insulator, Phys. Rev. 158, 462 (1967).
  36. M. Zarenia, D. Neilson, and F. M. Peeters, Inhomogeneous phases in coupled electron-hole bilayer graphene sheets: Charge density waves and coupled wigner crystals, Sci. Rep. 7, 11510 (2017).
  37. R. Landauer, Spatial variation of currents and fields due to localized scatterers in metallic conduction, IBM J. Res. Dev. 1, 223 (1957).
  38. M. Girardeau, Relationship between systems of impenetrable bosons and fermions in one dimension, J. Math. Phys. 1, 516 (1960).
  39. P. A. Lee and T. V. Ramakrishnan, Disordered electronic systems, Rev. Mod. Phys. 57, 287 (1985).
  40. W. F. Brinkman, T. M. Rice, P. W. Anderson, and S. T. Chui, Metallic state of the electron-hole liquid, particularly in germanium, Phys. Rev. Lett. 28, 961 (1972).
  41. S. T. Chui, M. Huang, Z. Wu, and N. Wang, Giant enhanced stability of the quantum electron solid from a weakened electron-electron interaction in double-layer MoS2, Phys. Rev. B 109, 165412 (2024).
  42. S. T. Chui, Physics of the Electron Solid (International Press, Boston, 1994), Conference Proceedings and Lecture Notes in Applied Physics.
  43. S. T. Chui and K. Esfarjani, A mechanism for quantum melting in two dimensions, Europhys. Lett. 14, 361 (1991).
