Second harmonic study of thermally oxidized mono- and few-layer 2H−MoS2

Katharina Burgholzer1,*,†, Henry Hübschmann2,3,4,*,‡, Gerhard Berth2,3,4, Adriana Bocchini2,3,4, Uwe Gerstmann2,4, Wolf Gero Schmidt2,4, Rajdeep Adhikari1,5, Klaus D. Jöns2,3,4, and Alberta Bonanni1

  • *These authors contributed equally to this work.
  • †Contact author: katharina.burgholzer@jku.at
  • ‡Contact author: henry.volker.huebschmann@uni-paderborn.de
PDF

Phys. Rev. B 114, 125414 – Published 17 August, 2026

DOI: https://doi.org/10.1103/7n6z-9tsr

Abstract

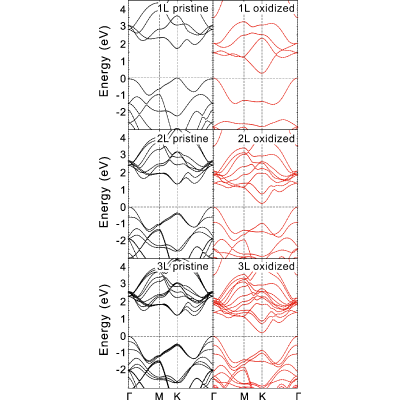

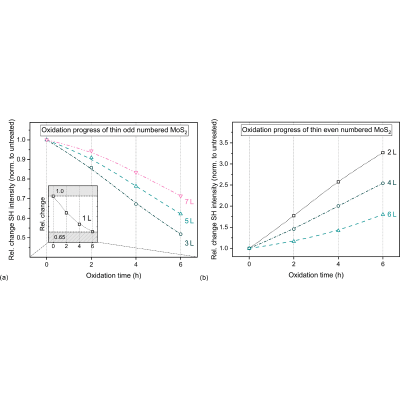

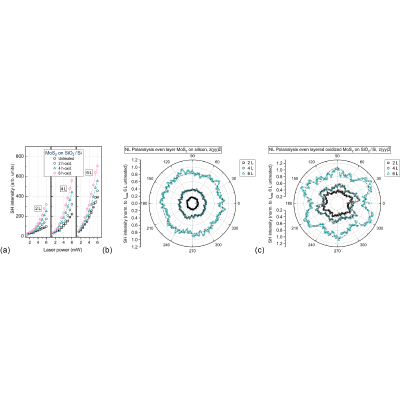

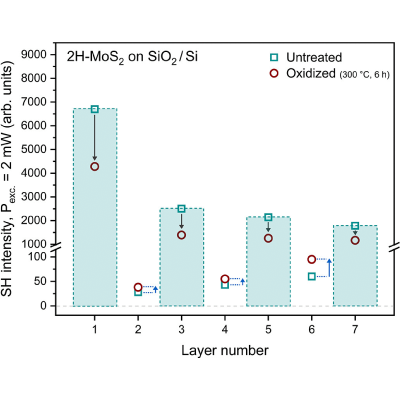

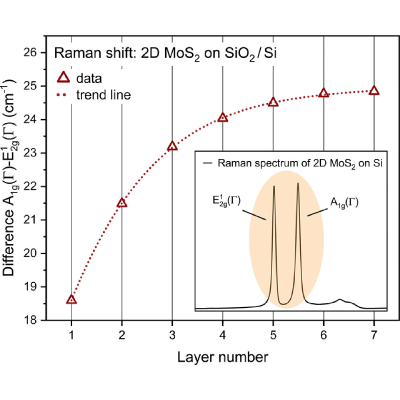

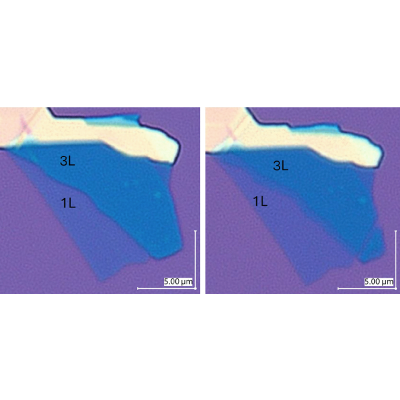

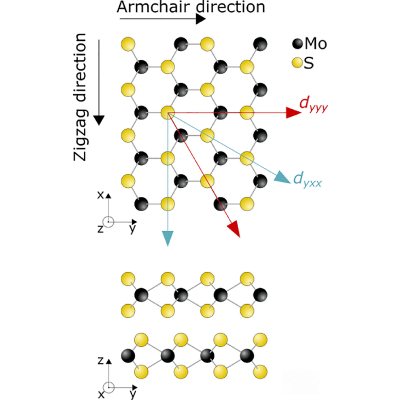

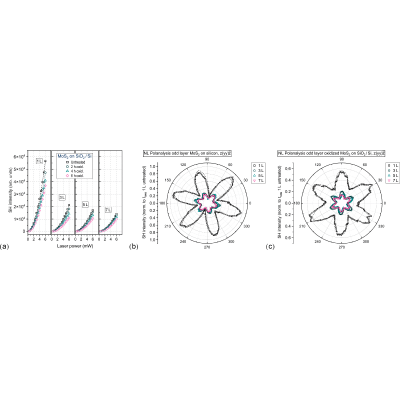

A comprehensive study of second harmonic generation on thermally oxidized MoS2 flakes with the thickness ranging from monolayer up to seven layers is presented. Observing the fundamental nonlinear behavior for nontreated and oxidized MoS2 reveals that oxidation causes significant changes in the second harmonic response for all investigated structures. Excitation-power-dependent measurements to analyze the nonlinear behavior with respect to the oxidation time show progressive oxidation within the maximum oxidation time of 6 h under the considered oxidation conditions. Here, polarization-dependent measurements reveal the structural changes due to oxidation. Additionally, it is found that the oxidation depth is restricted to the topmost S layer and the oxidation behavior exhibits a layer dependency. These findings are supported by theoretical band structure calculations. The results demonstrate that the thermal oxidation progress of two-dimensional MoS2 can be monitored with nonresonant and noninvasive SH microscopy by following the distinct fingerprints of structural modification in the nonlinear response.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (35)

  1. B. Radisavljevic, A. Radenovic, J. Brivio, V. Giacometti, and A. Kis, Single-layer MoS2 transistors, Nat. Nanotechnol. 6, 147 (2011).
  2. K. K. Kam and B. A. Parkinson, Detailed photocurrent spectroscopy of the semiconducting group VI transition metal dichalcogenides, J. Phys. Chem. 86, 463 (1982).
  3. K. F. Mak, C. Lee, J. Hone, J. Shan, and T. F. Heinz, Atomically thin MoS2: A new direct-gap semiconductor, Phys. Rev. Lett. 105, 136805 (2010).
  4. M. Wang, S. Cai, C. Pan, C. Wang, X. Lian, Y. Zhuo, K. Xu, T. Cao, X. Pan, B. Wang, S. J. Liang, J. J. Yang, P. Wang, and F. Miao, Robust memristors based on layered two-dimensional materials, Nat. Electron. 1, 130 (2018).
  5. M. Amani, D.-H. Lien, D. Kiriya, J. Xiao, A. Azcatl, J. Noh, S. R. Madhvapathy, R. Addou, S. KC, M. Dubey, K. Cho, R. M. Wallace, S.-C. Lee, J.-H. He, J. W. Ager, X. Zhang, E. Yablonovitch, and A. Javey, Near-unity photoluminescence quantum yield in MoS2, Science 350, 1065 (2015).
  6. Z. Yin, H. Li, H. Li, L. Jiang, Y. Shi, Y. Sun, G. Lu, Q. Zhang, X. Chen, and H. Zhang, Single-layer MoS2 phototransistors, ACS Nano 6, 74 (2012).
  7. H. Li, Z. Yin, Q. He, H. Li, X. Huang, G. Lu, D. W. H. Fam, A. I. Y. Tok, Q. Zhang, and H. Zhang, Fabrication of single- and multilayer MoS2 film-based field-effect transistors for sensing NO at room temperature, Small 8, 63 (2012).
  8. F. K. Perkins, A. L. Friedman, E. Cobas, P. M. Campbell, G. G. Jernigan, and B. T. Jonker, Chemical vapor sensing with monolayer MoS2, Nano Lett. 13, 668 (2013).
  9. Z. Wang, Q. Li, H. Xu, C. Dahl-Petersen, Q. Yang, D. Cheng, D. Cao, F. Besenbacher, J. V. Lauritsen, S. Helveg, and M. Dong, Controllable etching of MoS2 basal planes for enhanced hydrogen evolution through the formation of active edge sites, Nano Energy 49, 634 (2018).
  10. J. He, K. Hummer, and C. Franchini, Stacking effects on the electronic and optical properties of bilayer transition metal dichalcogenides MoS2, MoSe2, WS2, and WSe2, Phys. Rev. B 89, 075409 (2014).
  11. A. Molina-Sánchez, K. Hummer, and L. Wirtz, Vibrational and optical properties of MoS2: From monolayer to bulk Surf. Sci. Rep. 70, 554 (2015).
  12. K. S. Novoselov, D. Jiang, F. Schedin, T. J. Booth, V. V. Khotkevich, S. V. Morozov, and A. K. Geim, Two-dimensional atomic crystals, Proc. Natl. Acad. Sci. USA 102, 10451 (2005).
  13. Y. Jiang, Z. Liu, H. Zhou, A. Sharma, J. Deng, and C. Ke, Physical adsorption and oxidation of ultra-thin MoS2 crystals: Insights into surface engineering for 2D electronics and beyond, Nanotechnology 34, 405701 (2023).
  14. A. Castellanos-Gomez, N. Agrat, and G. Rubio-Bollinger, Optical identification of atomically thin dichalcogenide crystals, Appl. Phys. Lett. 96, 213116 (2010).
  15. C. Lee, H. Yan, L. E. Brus, T. F. Heinz, J. Hone, and S. Ryu, Anomalous lattice vibrations of single- and few-layer MoS2, ACS Nano 4, 2695 (2010).
  16. P. Giannozzi et al., QUANTUM ESPRESSO: A modular and open-source software project for quantum simulations of materials, J. Phys.: Condens. Matter 21, 395502 (2009).
  17. P. Giannozzi et al., Advanced capabilities for materials modelling with Quantum ESPRESSO, J. Phys.: Condens. Matter 29, 465901 (2017).
  18. D. Fan, J. Xu, M. Ma, J. Liu, and H. Xie, P–V–T equation of state of molybdenite (MoS2) by a diamond anvil cell and in situ synchrotron angle-dispersive X-ray diffraction, Physica B 451, 53 (2014).
  19. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  20. S. Grimme, J. Antony, S. Ehrlich, and H. Krieg, A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu, J. Chem. Phys. 132, 154104 (2010).
  21. A. Castellanos-Gomez, J. Quereda, H. P. van der Meulen, N. Agraït, and G. Rubio-Bolinger, Spatially resolved optical absorption spectroscopy of single- and few-layer MoS2 by hyperspectral imaging, Nanotechnology 27, 115705 (2016).
  22. N. Kumar, S. Najmaei, Q. Cui, F. Ceballos, P. M. Ajayan, J. Lou, and H. Zhao, Second harmonic microscopy of monolayer MoS2, Phys. Rev. B 87, 161403(R) (2013).
  23. A. Splendani, L. Sun, Y. Zhang, J. Kim, C.-Y. Chim, G. Galli, and F. Wang, Emerging photoluminescence in monolayer MoS2, Nano Lett. 10, 1271 (2010).
  24. Y. Li, Y. Rao, K. F. Mak, Y. You, S. Wang, C. R. Dean, and T. F. Heinz, Probing symmetry properties of few-layer MoS2 and h-BN by optical second-harmonic generation, Nano Lett. 13, 3329 (2013).
  25. S. Shree, D. Lagarde, L. Lombez, C. Robert, A. Balocchi, K. Watanabe, T. Taniguchi, X. Marie, I. C. Gerber, M. M. Glazov, L. E. Golub, B. Urbaszek, and I. Paradisanos, Interlayer exciton mediated second harmonic generation in bilayer MoS2, Nat. Commun. 12, 6894 (2021).
  26. A. Michail, N. Delikoukos, J. Parthenios, C. Galiotis, and K. Papagelis, Optical detection of strain and doping inhomogeneities in single layer MoS2, Appl. Phys. Lett. 108, 173102 (2016).
  27. M. Yamamoto, T. L. Einstein, M. S. Fuhrer, and W. G. Cullen, Anisotropic etching of atomically thin MoS2, J. Phys. Chem. C 117, 25643 (2013).
  28. Z. Y. Zhu, Y. C. Cheng, and U. Schwingenschlögl, Giant spin-orbit-induced spin splitting in two-dimensional transition-metal dichalcogenide semiconductors, Phys. Rev. B 84, 153402 (2011).
  29. C. V. Nguyen, N. N. Hieu, D. Muoi, C. A. Duque, E. Feddi, H. V. Nguyen, L. T. T. Phuong, B. D. Hoi, and H. V. Phuc, Linear and nonlinear magneto-optical properties of monolayer MoS2, J. Appl. Phys. 123, 034301 (2018).
  30. T. Y. Ko, A. Jeong, W. Kim, J. Lee, Y. Kim, J. E. Lee, G. H. Ryu, K. Park, D. Kim, Z. Lee, M. H. Lee, C. Lee, and S. Ryu, On-stack two-dimensional conversion of MoS2 into MoO3, 2D Mater. 4, 014003 (2017).
  31. H. Zhou et al., Thickness-dependent patterning of MoS2 sheets with well-oriented triangular pits by heating in air, Nano Res. 6, 703 (2013).
  32. Y. K. Lin, R. S. Chen, T. C. Chou, Y. H. Lee, Y. F. Chen, K. H. Chen, and L. C. Chen, Thickness-dependent binding energy shift in few-layer MoS2 grown by chemical vapor deposition, ACS Appl. Mater. Interfaces 8, 22637 (2016).
  33. T. Yang, S. Sleziona, E. Pollmann, E. Hasselbrink, P. Kratzer, M. Schleberger, R. K. Campen, and Y. Tong, Isolating the optical response of a MoS2 monolayer under extreme screening of a metal substrate, Phys. Rev. B 109, L161402 (2024).
  34. X. Wang, W. Fan, Z. Fan, W. Dai, K. Zhu, S. Hong, Y. Sun, J. Wu, and K. Liu, Substrate modified thermal stability of mono- and few-layer MoS2, Nanoscale 10, 3540 (2018).
  35. B. Tang, H. Veluri, Y. Li, Z. G. Yu, M. Waqar, J. F. Leong, M. Sivan, E. Zamburg, Y.-W. Zhang, J. Wang, and A. V.-Y. Thean, Wafer-scale solution-processed 2D material analog resistive memory array for memory-based computing, Nat. Commun. 13, 3037 (2022).
