Fractality and percolation in the phase transition of polycrystalline graphite

Vilmos Neuman, Zuzanna Malinowska-Trzmielak, and Mark Wilson*

  • Department of Chemistry, Physical and Theoretical Chemistry Laboratory, University of Oxford, South Parks Road, Oxford OX1 3QZ, United Kingdom

  • *Contact author: mark.wilson@chem.ox.ac.uk
PDF

Phys. Rev. B 114, 084103 – Published 10 August, 2026

DOI: https://doi.org/10.1103/6zv5-drsn

Abstract

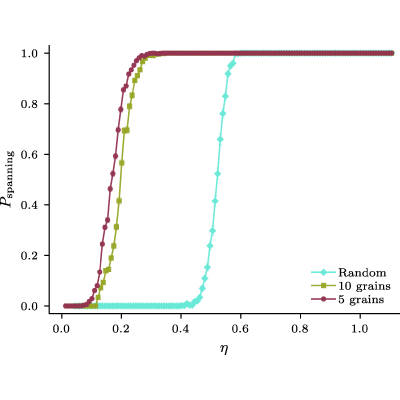

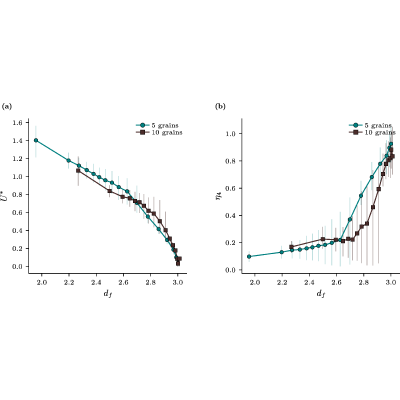

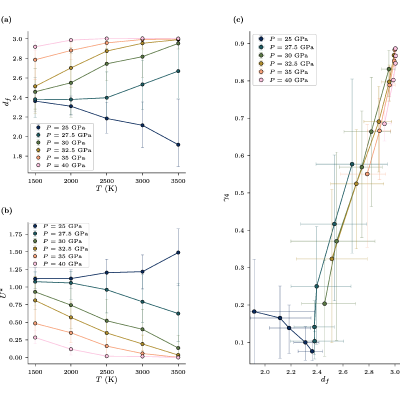

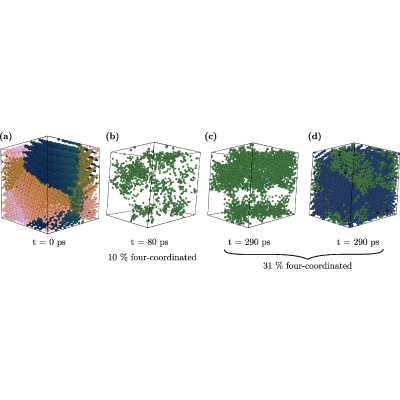

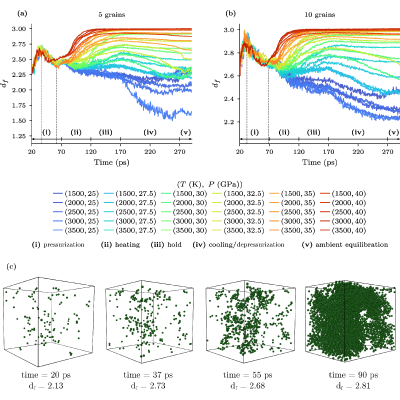

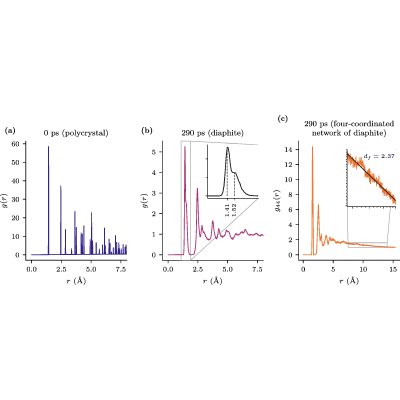

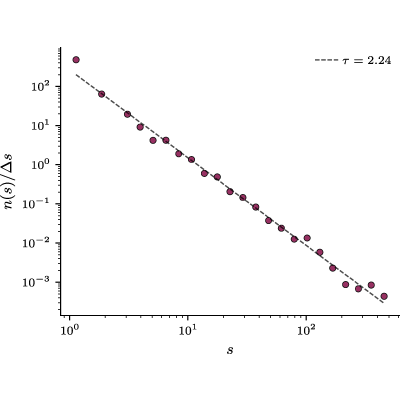

The pressure- and temperature-driven phase transition from polycrystalline graphite to diamond is investigated using molecular dynamics computer simulation. We partition the atomic coordinates into two disjoint subsets corresponding to a diminishing three-coordinate and a developing four-coordinate network. It is shown that the fractal dimension and its time evolution, as calculated from the radial distribution function “colored” for four coordinates only, tracks the transformation mechanism, capturing the growth and spatial organization of the developing domains. In particular, it reflects the increasing space-filling character and homogenization of the emerging diamondlike structure. At sufficiently high pressures and temperatures, the system consistently transforms into polycrystalline diamond, whereas at lower pressures the final structures depend sensitively on both temperature and initial microstructure, leading to greater variability in the fractal dimension. Additionally, we demonstrate that the transformation to four-coordinate sites leads to a percolation transition, which, compared to a simple hard sphere null model, occurs at a significantly lower threshold, highlighting the role of the interatomic potential in correlating network connectivity. These results demonstrate that the fractal dimension may provide a simple and robust metric for tracking topological changes during phase transitions in polycrystalline solids or other phenomena that may be characterized as domain growth.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. K. Luo, B. Liu, W. Hu, X. Dong, Y. Wang, Q. Huang, Y. Gao, L. Sun, Z. Zhao, Y. Wu, Y. Zhang, M. Ma, X.-F. Zhou, J. He, D. Yu, Z. Liu, B. Xu, and Y. Tian, Coherent interfaces govern direct transformation from graphite to diamond, Nature (London) 607, 486 (2022).
  2. S. Srinivasan, R. Batra, D. Luo, T. Loeffler, S. Manna, H. Chan, L. Yang, W. Yang, J. Wen, P. Darancet, and S. K. R. S. Sankaranarayanan, Machine learning the metastable phase diagram of covalently bonded carbon, Nat. Commun. 13, 3251 (2022).
  3. D. R. Robinson and M. Wilson, The liquid ↔ amorphous transition and the high pressure phase diagram of carbon, J. Phys.: Condens. Matter 25, 155101 (2013).
  4. F. Bundy, W. Bassett, M. Weathers, R. Hemley, H. Mao, and A. Goncharov, The pressure-temperature phase and transformation diagram for carbon; updated through 1994, Carbon 34, 141 (1996).
  5. C. Hull, S. Raj, and R. Saykally, The liquid state of carbon, Chem. Phys. Lett. 749, 137341 (2020).
  6. C. Lifshitz, Carbon clusters, Int. J. Mass Spectrom. 200, 423 (2000).
  7. A. Barnard, Theory and modeling of nanocarbon phase stability, Diam. Relat. Mater. 15, 285 (2006).
  8. P. Németh, K. McColl, L. A. J. Garvie, C. G. Salzmann, M. Murri, and P. F. McMillan, Complex nanostructures in diamond, Nat. Mater. 19, 1126 (2020).
  9. Y. Ge, K. Luo, Y. Liu, G. Yang, W. Hu, B. Li, G. Gao, X.-F. Zhou, B. Xu, Z. Zhao, and Y. Tian, Superconductivity in graphite-diamond hybrid, Mater. Today Phys. 23, 100630 (2022).
  10. Z. Malinowska-Trzmielak, V. Neuman, and M. Wilson, Grain-boundary-mediated kinetic arrest in graphite-to-diamond transformation, arXiv:2607.08868.
  11. R. Drautz, Atomic cluster expansion for accurate and transferable interatomic potentials, Phys. Rev. B 99, 014104 (2019).
  12. M. Qamar, M. Mrovec, Y. Lysogorskiy, A. Bochkarev, and R. Drautz, Atomic cluster expansion for quantum-accurate large-scale simulations of carbon, J. Chem. Theory Comput. 19, 5151 (2023).
  13. Z. Malinowska-Trzmielak, N. Grobert, and M. Wilson, Transferability of carbon potentials for novel carbon polymorphs, Modelling Simul. Mater. Sci. Eng. 34, 025004 (2026).
  14. J. Teixeira, Small-angle scattering by fractal systems, J Appl. Crystallogr 21, 781 (1988).
  15. T. Freltoft, J. K. Kjems, and S. K. Sinha, Power-law correlations and finite-size effects in silica particle aggregates studied by small-angle neutron scattering, Phys. Rev. B 33, 269 (1986).
  16. D. L. Gurina, Y. A. Budkov, and M. G. Kiselev, Molecular aspects on impregnation of silica-based aerogels with mefenamic acid in supercritical carbon dioxide, J. Mol. Liq. 415, 126358 (2024).
  17. J. Kieffer and C. Angell, Generation of fractal structures by negative pressure rupturing of SiO2 glass, J. Non-Cryst. Solids 106, 336 (1988).
  18. S. Sinha, T. Freltoft, and J. Kjems, Observation of power-law correlations in silica-particle aggregates by small-angle neutron scattering, in Proceedings of the International Topical Conference on Kinetics of Aggregation and Gelation, April 2–4, 1984, Athens, GA, USA (Taylor & Francis, London, 1984), pp. 87–90.
  19. Edited by J. Binney, The Theory of Critical Phenomena: An Introduction to the Renormalization Group, Oxford Science Publications (Clarendon Press, Oxford University Press, Oxford: Oxford, New York, 1992).
  20. W. Brostow, J.-P. Dussault, and B. L. Fox, Construction of Voronoi polyhedra, J. Comput. Phys. 29, 81 (1978).
  21. J. L. Finney, A procedure for the construction of Voronoi polyhedra, J. Comput. Phys. 32, 137 (1979).
  22. P. Hirel, Atomsk: A tool for manipulating and converting atomic data files, Comput. Phys. Commun. 197, 212 (2015).
  23. I. Obayashi, T. Nakamura, and Y. Hiraoka, Persistent homology analysis for materials research and persistent homology software: HomCloud, J. Phys. Soc. Jpn. 91, 091013 (2022).
  24. A. P. Thompson, H. M. Aktulga, R. Berger, D. S. Bolintineanu, W. M. Brown, P. S. Crozier, P. J. in 't Veld, A. Kohlmeyer, S. G. Moore, T. D. Nguyen, R. Shan, M. J. Stevens, J. Tranchida, C. Trott, and S. J. Plimpton, LAMMPS - a flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  25. S. Nosé, A unified formulation of the constant temperature molecular dynamics methods, J. Chem. Phys. 81, 511 (1984).
  26. W. G. Hoover, Canonical dynamics: Equilibrium phase-space distributions, Phys. Rev. A 31, 1695 (1985).
  27. S. Nosé and M. Klein, Constant pressure molecular dynamics for molecular systems, Mol. Phys. 50, 1055 (1983).
  28. W. G. Hoover, Constant-pressure equations of motion, Phys. Rev. A 34, 2499 (1986).
  29. A. Stukowski, Visualization and analysis of atomistic simulation data with OVITO–the Open Visualization Tool, Modelling Simul. Mater. Sci. Eng. 18, 015012 (2010).
  30. E. Maras, O. Trushin, A. Stukowski, T. Ala-Nissila, and H. Jónsson, Global transition path search for dislocation formation in Ge on Si(001), Comput. Phys. Commun. 205, 13 (2016).
  31. S.-c. Zhu, X.-z. Yan, J. Liu, A. R. Oganov, and Q. Zhu, A revisited mechanism of the graphite-to-diamond transition at high temperature, Matter 3, 864 (2020).
  32. P. H. Gaskell, A. Saeed, P. Chieux, and D. R. McKenzie, Neutron-scattering studies of the structure of highly tetrahedral amorphous diamondlike carbon, Phys. Rev. Lett. 67, 1286 (1991).
  33. J. Talbot, G. Tarjus, P. Van Tassel, and P. Viot, From car parking to protein adsorption: An overview of sequential adsorption processes, Colloids Surf. A 165, 287 (2000).
  34. B. Widom, Random sequential addition of hard spheres to a volume, J. Chem. Phys. 44, 3888 (1966).
  35. V. Neuman, P. A. Wesołowski, K. K. Bojarski, D. Dewan, M. Schäffler, P. Smardz, and D. J. Wales, Visualizing the energy landscape for a molecular dynamics trajectory, J. Chem. Phys. 164, 044112 (2026).
  36. T. Harter, Finite-size scaling analysis of percolation in three-dimensional correlated binary Markov chain random fields, Phys. Rev. E 72, 026120 (2005).
  37. D. M. Heyes and J. R. Melrose, Percolation cluster statistics of Lennard-Jones fluids, Mol. Phys. 66, 1057 (1989).
  38. D. Stauffer and A. Aharony, Introduction to Percolation Theory, 2nd ed. (Taylor & Francis, London, 1994).
  39. C. D. Lorenz and R. M. Ziff, Precise determination of the bond percolation thresholds and finite-size scaling corrections for the sc, fcc, and bcc lattices, Phys. Rev. E 57, 230 (1998).
  40. D. Stauffer, Gelation in concentrated critically branched polymer solutions. Percolation scaling theory of intramolecular bond cycles, J. Chem. Soc. Faraday Trans. 2 72, 1354 (1976).
