Dynamic compression and pressure cycling in dynamic diamond anvil cells: MgO and neon studied by time-resolved x-ray diffraction

Biao Wang1,2,*, Niccolò Satta1,3, Egor Koemets1,4, Johannes Buchen1,5, Viktoria Trautner1, Alba San José Méndez6, Giacomo Criniti5,7, Konstantin Glazyrin6, Hanns-Peter Liermann6 et al.

Hauke Marquardt1

  • *Contact author: wangbiao@msu.edu
PDF

Phys. Rev. B 113, 104109 – Published 25 March, 2026

DOI: https://doi.org/10.1103/5zj5-5h4y

Abstract

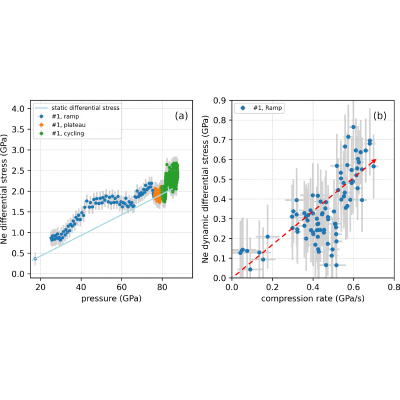

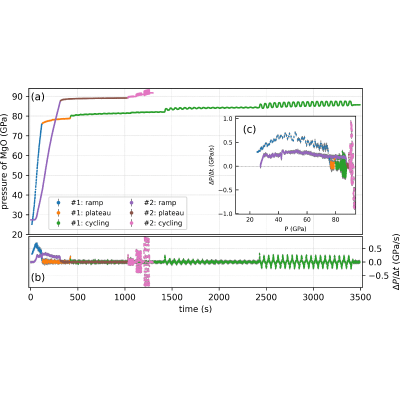

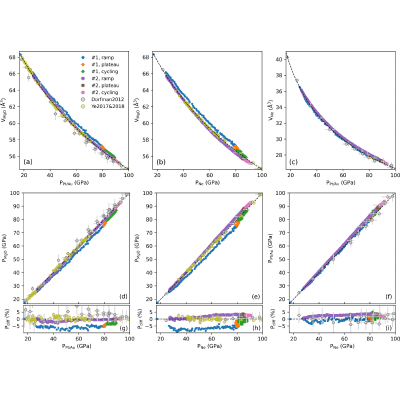

Static compression experiments using diamond anvil cells (DAC), combined with x-ray diffraction (XRD) are widely used to study material properties at extreme pressures. Recent advances enable time-resolved XRD during dynamic compression along tailored loading paths. However, the influence of compression rate on derived properties remains poorly understood, and the use of tailored compression paths—particularly pressure cycling—requires further investigation. Here, we employed time-resolved XRD in a dynamic DAC to compress MgO in a Ne pressure medium along a tailored compression path consisting of a ramp, plateau, and cyclic loading. Pressure-volume relations derived from ramp compressions at average compression rates of 0.22 and 0.46GPas−1 agree closely with previous static experiments, with minor but detectable systematic deviations in the faster compression run. Stress analysis suggests that this deviation might be related to an increased flow strength of Ne under fast compression. During the postramp plateaus, MgO pressures continued to increase, highlighting the effect of compression rate on the time required for the coupled mechanical DAC system to reach equilibrium. Under cyclic loading, we observe phase shifts between oscillating differential stresses and volume strains in Ne, possibly indicating that viscoelastic/-plastic behavior of either Ne or the gasket material contributed to the overall response. We found this effect more pronounced for lower frequencies and larger cycling amplitudes. The findings presented in this paper improve our understanding of material behavior during dynamic loading in the DAC and provide reference data and methodology for studies of complex materials and loading paths.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (41)

  1. W. J. Evans, C.-S. Yoo, G. W. Lee, H. Cynn, M. J. Lipp, and K. Visbeck, Dynamic diamond anvil cell (dDAC): A novel device for studying the dynamic-pressure properties of materials, Rev. Sci. Instrum. 78, 073904 (2007).
  2. Z. Jenei et al., New dynamic diamond anvil cells for tera-pascal per second fast compression x-ray diffraction experiments, Rev. Sci. Instrum. 90, 065114 (2019).
  3. A. S. J. Méndez et al., A resistively-heated dynamic diamond anvil cell (RHdDAC) for fast compression x-ray diffraction experiments at high temperatures, Rev. Sci. Instrum. 91, 073906 (2020).
  4. J. S. Smith, S. V. Sinogeikin, C. Lin, E. Rod, L. Bai, and G. Shen, Developments in time-resolved high pressure x-ray diffraction using rapid compression and decompression, Rev. Sci. Instrum. 86, 072208 (2015).
  5. J.-Y. Chen, M. Kim, C.-S. Yoo, H.-P. Liermann, and W. J. Evans, Time-resolved x-ray diffraction across water-ice-VI/VII transformations using the dynamic-DAC, J. Phys.: Conf. Ser. 500, 142006 (2014).
  6. R. J. Husband, E. F. O'Bannon, H.-P. Liermann, M. J. Lipp, A. S. J. Méndez, Z. Konôpková, E. E. McBride, W. J. Evans, and Z. Jenei, Compression-rate dependence of pressure-induced phase transitions in Bi, Sci. Rep. 11, 14859 (2021).
  7. H. Marquardt, J. Buchen, A. S. J. Mendez, A. Kurnosov, M. Wendt, A. Rothkirch, D. Pennicard, and H.-P. Liermann, Elastic Softening of (Mg0.8Fe0.2)O Ferropericlase across the iron spin crossover measured at seismic frequencies, Geophys. Res. Lett. 45, 6862 (2018).
  8. A. S. J. Méndez, F. Trybel, R. J. Husband, G. Steinle-Neumann, H.-P. Liermann, and H. Marquardt, Bulk modulus of H2O across the ice VII–ice X transition measured by time-resolved x-ray diffraction in dynamic diamond anvil cell experiments, Phys. Rev. B 103, 064104 (2021).
  9. V. E. Trautner, S. Stackhouse, A. R. Turner, P. Koelemeijer, D. R. Davies, A. S. J. Méndez, N. Satta, A. Kurnosov, H.-P. Liermann, and H. Marquardt, Compressibility of ferropericlase at high-temperature: Evidence for the iron spin crossover in seismic tomography, Earth Planet. Sci. Lett. 618, 118296 (2023).
  10. B. Wang, J. Buchen, A. S. J. Méndez, A. Kurnosov, G. Criniti, H. Liermann, and H. Marquardt, Strong effect of stress on the seismic signature of the post-Stishovite phase transition in the Earth's lower mantle, Geophys. Res. Lett. 50, e2023GL102740 (2023).
  11. J. Buchen, B. Wang, N. Satta, V. Trautner, G. Criniti, A. S. J. Méndez, H.-P. Liermann, and H. Marquardt, Cyclic loading experiments at high pressures: Oscillating elastic strains and stresses in polycrystalline MgO at seismic frequencies (2025), https://myfiles.uni-bayreuth.de/rest/files/public/link/download/043490a5995c33f50199e303a8300214?shareId=101182&passkey=-63835674422386339.
  12. L. Q. Huston, L. Miyagi, R. J. Husband, K. Glazyrin, C. Kiessner, M. Wendt, H. P. Liermann, and B. T. Sturtevant, New dynamic diamond anvil cell for time-resolved radial x-ray diffraction, Rev. Sci. Instrum. 95, 043904 (2024).
  13. C. Plueckthun, J. M. Kaa, N. Giordano, R. Husband, M. Schoelmerich, S. Merkel, R. Redmer, and Z. Konopkova, Effects of the compression rates on the lattice parameters in Zn investigated by dynamic diamond anvil cell, Phys. Rev. B 112, 094101 (2025).
  14. R. J. Husband et al., A MHz x-ray diffraction set-up for dynamic compression experiments in the diamond anvil cell, J. Synchrotron. Rad. 30, 671 (2023).
  15. Y.-H. Lee et al., Multiple freezing–melting pathways of high-density ice through ice XXI phase at room temperature, Nat. Mater. 25, 302 (2026).
  16. S. Speziale, C.-S. Zha, T. S. Duffy, R. J. Hemley, and H. Mao, Quasi-hydrostatic compression of magnesium oxide to 52 GPa: Implications for the pressure-volume-temperature equation of state, J. Geophys. Res. 106, 515 (2001).
  17. Y. Tange, Y. Nishihara, and T. Tsuchiya, Unified analyses for P-V-T equation of state of MgO: A solution for pressure-scale problems in high P-T experiments, J. Geophys. Res. 114, B03208 (2009).
  18. H. Marquardt and A. R. Thomson, Experimental elasticity of Earth's deep mantle, Nat. Rev. Earth Environ. 1, 455 (2020).
  19. M. Murakami, A. Khan, P. A. Sossi, M. D. Ballmer, and P. Saha, The composition of Earth's lower mantle, Annu. Rev. Earth Planet. Sci. 52, 605 (2024).
  20. S. Klotz, J.-C. Chervin, P. Munsch, and G. Le Marchand, Hydrostatic limits of 11 pressure transmitting media, J. Phys. D Appl. Phys. 42, 075413 (2009).
  21. K. Takemura, T. Watanuki, K. Ohwada, A. Machida, A. Ohmura, and K. Aoki, Powder x-ray diffraction study of Ne up to 240 GPa, J. Phys.: Conf. Ser. 215, 012017 (2010).
  22. Y. Ye, S.-H. Shim, V. Prakapenka, and Y. Meng, Equation of state of solid Ne inter-calibrated with the MgO, Au, Pt, NaCl-B2, and ruby pressure scales up to 130 GPa, High Pressure Res. 38, 377 (2018).
  23. H.-P. Liermann et al., The extreme conditions beamline P02.2 and the extreme conditions science infrastructure at PETRA III, J. Synchrotron Rad. 22, 908 (2015).
  24. W. Dong, K. Glazyrin, S. Khandarkhaeva, T. Fedotenko, J. Bednarčík, E. Greenberg, L. Dubrovinsky, N. Dubrovinskaia, and H.-P. Liermann, Fe0.79Si0.07B0.14 metallic glass gaskets for high-pressure research beyond 1 Mbar, J. Synchrotron Rad. 29, 1167 (2022).
  25. See Supplemental Material at http://link.aps.org/supplemental/10.1103/5zj5-5h4y for additional information, which includes Refs. [20, 21, 27, 28, 29, 30, 34, 35, 41].
  26. D. Pennicard et al., LAMBDA 2M GaAs—A multi-megapixel hard x-ray detector for synchrotrons, J. Inst. 13, C01026 (2018).
  27. C. Prescher and V. B. Prakapenka, DIOPTAS: A program for reduction of two-dimensional x-ray diffraction data and data exploration, High Pressure Res. 35, 223 (2015).
  28. B. Wang, Batch peaks fitting script in Python for time-resolved XRD data analysis (v1.0.0), Zenodo (2022), https://doi.org/10.5281/zenodo.7457445.
  29. A. K. Singh, X-ray diffraction from solids under nonhydrostatic compression—Some recent studies, J. Phys. Chem. Solids 65, 1589 (2004).
  30. A. K. Singh, C. Balasingh, H. Mao, R. J. Hemley, and J. Shu, Analysis of lattice strains measured under nonhydrostatic pressure, J. Appl. Phys. 83, 7567 (1998).
  31. T. Tsuchiya and K. Kawamura, First-principles study of systematics of high-pressure elasticity in rare gas solids, Ne, Ar, Kr, and Xe, J. Chem. Phys. 117, 5859 (2002).
  32. S. M. Dorfman, V. B. Prakapenka, Y. Meng, and T. S. Duffy, Intercomparison of pressure standards (Au, Pt, Mo, MgO, NaCl and Ne) to 2.5 Mbar, J. Geophys. Res. 117, B8 (2012).
  33. Y. Ye, V. Prakapenka, Y. Meng, and S.-H. Shim, Intercomparison of the gold, platinum, and MgO pressure scales up to 140 GPa and 2500 K, J. Geophys. Res. Solid Earth 122, 3450 (2017).
  34. A. Dewaele, G. Fiquet, D. Andrault, and D. Hausermann, P-V-T equation of state of periclase from synchrotron radiation measurements, J. Geophys. Res. 105, 2869 (2000).
  35. K. Hirose, N. Sata, T. Komabayashi, and Y. Ohishi, Simultaneous volume measurements of Au and MgO to 140GPa and thermal equation of state of Au based on the MgO pressure scale, Phys. Earth Planet. Inter. 167, 149 (2008).
  36. C.-S. Zha, K. Mibe, W. A. Bassett, O. Tschauner, H.-K. Mao, and R. J. Hemley, P-V-T equation of state of platinum to 80 GPa and 1900 K from internal resistive heating/x-ray diffraction measurements, J. Appl. Phys. 103, 054908 (2008).
  37. V. E. Trautner, A. Rijal, C. Plueckthun, N. Satta, E. Koemets, J. Buchen, B. Wang, K. Glazyrin, L. Cobden, and H. Marquardt, Iron content-dependence of ferropericlase elastic properties across the spin crossover from novel experiments and machine learning, Geophys. Res. Lett. 51, e2024GL111276 (2024).
  38. A. K. Singh, J. Hu, J. Shu, H.-K. Mao, and R. J. Hemley, Strength of rhenium from x-ray diffraction experiments under nonhydrostatic compression to 250 GPa, J. Phys.: Conf. Ser. 377, 012008 (2012).
  39. F. Lin, N. Hilairet, P. Raterron, A. Addad, J. Immoor, H. Marquardt, C. N. Tomé, L. Miyagi, and S. Merkel, Elasto-viscoplastic self consistent modeling of the ambient temperature plastic behavior of periclase deformed up to 5.4 GPa, J. Appl. Phys. 122, 205902 (2017).
  40. H. Wang, P. D. Wu, C. N. Tomé, and Y. Huang, A finite strain elastic–viscoplastic self-consistent model for polycrystalline materials, J. Mech. Phys. Solids 58, 594 (2010).
  41. B. Wang, Data for Dynamic compression and pressure cycling of MgO and neon in dynamic diamond-anvil cells [Data set], Zenodo (2025), https://doi.org/10.5281/ZENODO.7511060.
