Measuring superconducting arcs by angle-resolved photoemission spectroscopy

A. Kuibarov1,*, S. Changdar1, A. Fedorov1,2,3, R. Lou1,2,3, O. Suvorov1, V. Misheneva2,3, L. Harnagea1,4, I. Kovalchuk5, S. Wurmehl1 et al.

B. Büchner1,6 and S. Borisenko1

  • *Contact author: a.kuibarov@ifw-dresden.de
PDF

Phys. Rev. B 112, 144518 – Published 27 October, 2025

DOI: https://doi.org/10.1103/5q36-wgl9

Abstract

Angle-resolved photoemission spectroscopy is the leading tool for studying the symmetry and structure of the order parameter in superconductors. The recent improvement of the technique made it possible to detect the superconducting energy gap at the surface of topological t-PtBi2 via observation of the record-breaking narrow line shapes. The promising new physics uncovered requires further investigation of the spectral and gap functions of t-PtBi2, but the challenging experimental conditions severely limit the application of conventional ARPES setups. In this work, we use synchrotron-based measurements and show that the gap at the surface Fermi arc in t-PtBi2 can be detected even with more relaxed experimental conditions than in our previous laser-based studies. At the same time, using simple model of ARPES spectra, we identify the minimum requirements to detect the gap and consider cases where the gap cannot be resolved.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (19)

  1. A. Y. Kitaev, Unpaired majorana fermions in quantum wires, Phys. Usp. 44, 131 (2001).
  2. A. Kuibarov, O. Suvorov, R. Vocaturo, A. Fedorov, R. Lou, L. Merkwitz, V. Voroshnin, J. I. Facio, K. Koepernik, A. Yaresko, G. Shipunov, S. Aswartham, J. van den Brink, B. Büchner, and S. Borisenko, Evidence of superconducting Fermi arcs, Nature (London) 626, 294 (2024).
  3. S. Schimmel, Y. Fasano, S. Hoffmann, J. Besproswanny, L. T. Corredor Bohorquez, J. Puig, B.-C. Elshalem, B. Kalisky, G. Shipunov, D. Baumann, S. Aswartham, B. Büchner, and C. Hess, Surface superconductivity in the topological Weyl semimetal t-PtBi2, Nat. Commun. 15, 9895 (2024).
  4. S. Hoffmann, S. Schimmel, R. Vocaturo, J. Puig, G. Shipunov, O. Janson, S. Aswartham, D. Baumann, B. Büchner, J. v. d. Brink, Y. Fasano, J. I. Facio, and C. Hess, Fermi arcs dominating the electronic surface properties of trigonal PtBi2, Adv. Phys. Res. 4, 2400150 (2024).
  5. X. P. Yang, Y. Zhong, S. Mardanya, T. A. Cochran, R. Chapai, A. Mine, J. Zhang, J. Sánchez-Barriga, Z.-J. Cheng, O. J. Clark, J.-X. Yin, J. Blawat, G. Cheng, I. Belopolski, T. Nagashima, S. Najafzadeh, S. Gao, N. Yao, A. Bansil, R. Jin et al., Coexistence of bulk-nodal and surface-nodeless cooper pairings in a superconducting dirac semimetal, Phys. Rev. Lett. 130, 046402 (2023).
  6. A. Veyrat, V. Labracherie, D. L. Bashlakov, F. Caglieris, J. I. Facio, G. Shipunov, T. Charvin, R. Acharya, Y. Naidyuk, R. Giraud, J. van den Brink, B. Büchner, C. Hess, S. Aswartham, and J. Dufouleur, Berezinskii–Kosterlitz–Thouless transition in the type-i Weyl semimetal PtBi2, Nano Lett. 23, 1229 (2023).
  7. G. Shipunov, I. Kovalchuk, B. R. Piening, V. Labracherie, A. Veyrat, D. Wolf, A. Lubk, S. Subakti, R. Giraud, J. Dufouleur, S. Shokri, F. Caglieris, C. Hess, D. V. Efremov, B. Büchner, and S. Aswartham, Polymorphic PtBi2: Growth, structure, and superconducting properties, Phys. Rev. Mater. 4, 124202 (2020).
  8. Y. Zhong, J. Liu, X. Wu, Z. Guguchia, J.-X. Yin, A. Mine, Y. Li, S. Najafzadeh, D. Das, C. Mielke, R. Khasanov, H. Luetkens, T. Suzuki, K. Liu, X. Han, T. Kondo, J. Hu, S. Shin, Z. Wang, X. Shi et al., Nodeless electron pairing in CsV3Sb5-derived kagome superconductors, Nature (London) 617, 488 (2023).
  9. D. Flötotto, Y. Ota, Y. Bai, C. Zhang, K. Okazaki, A. Tsuzuki, T. Hashimoto, J. N. Eckstein, S. Shin, and T.-C. Chiang, Superconducting pairing of topological surface states in bismuth selenide films on niobium, Sci. Adv. 4, eaar7214 (2018).
  10. D. Wu, J. Jia, J. Yang, W. Hong, Y. Shu, T. Miao, H. Yan, H. Rong, P. Ai, X. Zhang, C. Yin, J. Liu, H. Chen, Y. Yang, C. Peng, C. Li, S. Zhang, F. Zhang, F. Yang, Z. Wang et al., Nodal s± pairing symmetry in an iron-based superconductor with only hole pockets, Nat. Phys. 20, 571 (2024).
  11. Y. S. Kushnirenko, D. V. Evtushinsky, T. K. Kim, I. Morozov, L. Harnagea, S. Wurmehl, S. Aswartham, B. Büchner, A. V. Chubukov, and S. V. Borisenko, Nematic superconductivity in lifeas, Phys. Rev. B 102, 184502 (2020).
  12. R. Lou, A. Fedorov, Q. Yin, A. Kuibarov, Z. Tu, C. Gong, E. F. Schwier, B. Büchner, H. Lei, and S. Borisenko, Charge-density-wave-induced peak-dip-hump structure and the multiband superconductivity in a kagome superconductor CsV3Sb5, Phys. Rev. Lett. 128, 036402 (2022).
  13. S. Changdar, O. Suvorov, A. Kuibarov, S. Thirupathaiah, G. Shipunov, S. Aswartham, S. Wurmehl, I. Kovalchuk, K. Koepernik, C. Timm, B. Büchner, I. C. Fulga, S. Borisenko, and J. v. d. Brink, Topological nodal i-wave superconductivity in PtBi2, arXiv:2507.01774 [Nature (to be published)].
  14. E. O'Leary, Z. Li, L.-L. Wang, B. Schrunk, A. Eaton, P. C. Canfield, and A. Kaminski, Topography of Fermi arcs in t-PtBi2 using high resolution angle-resolved photoemission spectroscopy, arXiv:2503.08841 [cond-mat.mes-hall].
  15. S. V. Borisenko, “one-cubed” arpes user facility at bessy ii, Synchrotron Radiation News 25, 6 (2012).
  16. R. Vocaturo, K. Koepernik, J. I. Facio, C. Timm, I. C. Fulga, O. Janson, and J. van den Brink, Electronic structure of the surface-superconducting Weyl semimetal, Phys. Rev. B 110, 054504 (2024).
  17. A. Tamai, W. Meevasana, P. D. C. King, C. W. Nicholson, A. de la Torre, E. Rozbicki, and F. Baumberger, Spin-orbit splitting of the shockley surface state on cu(111), Phys. Rev. B 87, 075113 (2013).

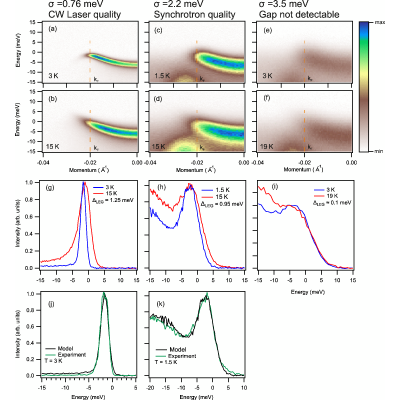

  18. See Supplemental Material at http://link.aps.org/supplemental/10.1103/5q36-wgl9 for the model used to simulate the spectral function in Fig. 3.
  19. X. Huang, L. Zhao, S. Schimmel, J. Besproswanny, P. Härtl, C. Hess, B. Büchner, and M. Bode, Sizable superconducting gap and anisotropic chiral topological superconductivity in the Weyl semimetal PtBi2, arXiv:2507.13843.

Outline

Information

Phys. Rev. B 112, 144518– Published 27 October, 2025
  • Received 14 May 2025
  • Revised 2 September 2025
  • Accepted 23 September 2025
