Lead transition metal oxides: Globally alike, locally very diverse

A. Bussmann-Holder1, A. M. Glazer2, A. Majchrowski3, I. Lazar4, A. Soszyński4, and K. Roleder4

PDF

Phys. Rev. B 113, 214106 – Published 15 June, 2026

DOI: https://doi.org/10.1103/4dlq-9mb1

Abstract

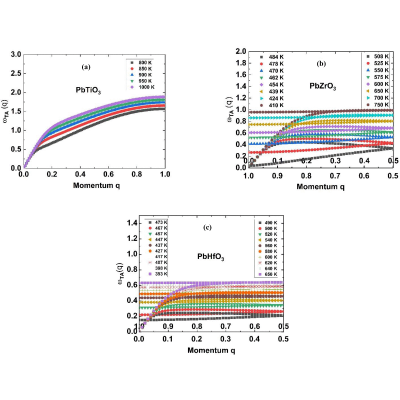

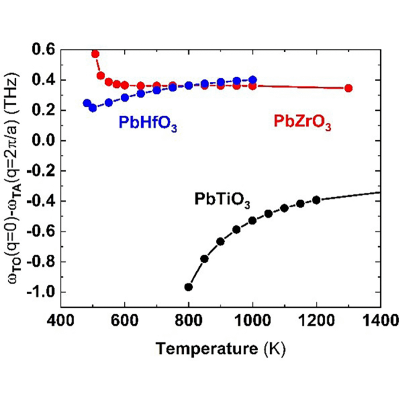

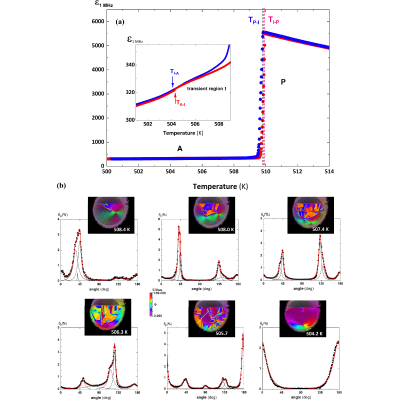

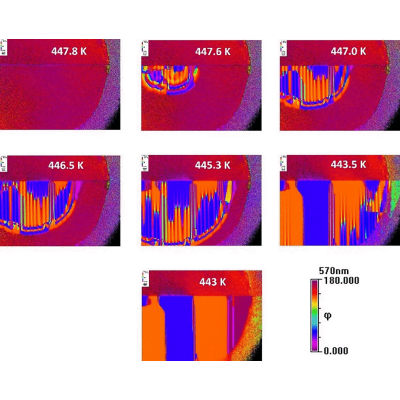

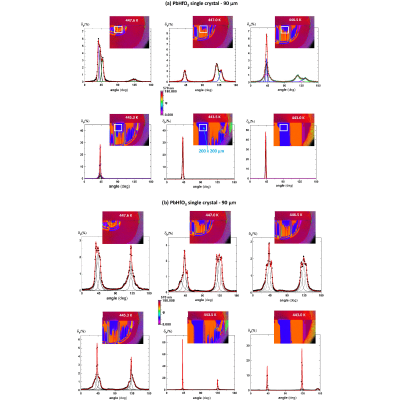

The lead transition metal oxides PbTiO3, PbZrO3, and PbHfO3 are shown to be extremely similar in their overall properties, such as soft-mode behavior, phase transitions, and long-wavelength related characteristics. However, locally, they develop very different qualities because, as the BO6 mass increases (where B ≡ Ti, Zr, Hf), the anharmonicity of each compound increases significantly, leading to the formation of intrinsically localized modes (ILMS) or discrete breathers (DBS). This explains their exceptionally flat transverse acoustic modes. These nonlinear excitations are observed in birefringence measurements, where their coexistence with the phonon spectrum is demonstrated. While the soft modes, whether normalized by mass or temperature (long-wavelength optic and zone boundary acoustic modes), follow nearly identical temperature dependencies, the transverse acoustic modes exhibit a highly dispersion-free momentum dependence, characteristic of ILMS or DBS. Crucially, our findings support the earlier notion that the unusual dynamics are solely due to the BO6 polarizable unit, with the Pb subarrays acting merely as spectators. Furthermore, these results provide a unique explanation for the appearance of the transient phase below the phase transitions of PbZrO3 and PbHfO3, which appears to be intrinsic to these two compounds.

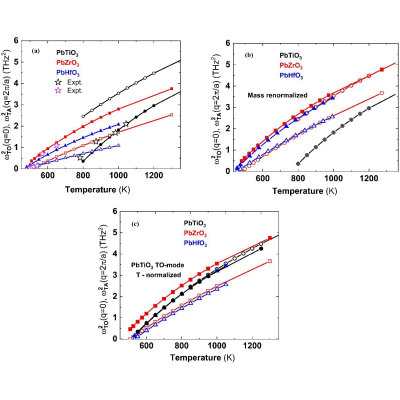

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. See e.g. the recent issue of F. Dogan, H. Lin, M. Guilloux-Viry, and O. Peña, Focus on properties and applications of perovskites, Sci. Technol. Adv. Mater. 16, 020301 (2015).
  2. For a recent survey see: C. Li, H. Yu, T. Shu, et al., PZT optical memristors, Nat. Commun. 16, 6340 (2025).
  3. S. S. Cole and H. Espenschied, Lead titanate: Crystal structure, temperature of formation, and specific gravity data, J. Phys. Chem. 41, 445 (1937); G. Shirane, and S. Hoshino, On the phase transition in lead titanate, J. Phys. Soc. Jpn. 6, 265 (1951).
  4. G. Shirane and R. Pepinsky, Phase transitions in antiferroelectric PbHfO3, Phys. Rev. 91, 812 (1953).
  5. G. Shirane, E. Sawaguchi, and A. Takeda, On the phase transition in lead zirconate, Phys. Rev. B 80, 485 (1950).
  6. C. Kittel, Theory of antiferroelectric crystals, Phys. Rev. 82, 729 (1951).
  7. B. Ravel, N. Sicron, Y. Yacoby, E. A. Stern, F. Dogan, and J. J. Rehr, Order-disorder behavior in the phase transition of PbTiO3, Ferroelectrics 164, 265 (1995).
  8. K. Roleder, J. Handerek, Z. Ujma, and A. Kania, Problem of the transient phase between the paraelectric and the antiferroelectric phase in PbZrO3, Ferroelectrics 70, 181 (2011).
  9. V. J. Tennery, High-temperature phase transitions in PbZrO3, J. Am. Ceram. Soc. 49, 483 (1966).
  10. Z. Yu, N. Fan, Z. Fu, et al., Room-temperature stabilizing strongly competing ferrielectric and antiferroelectric phases in PbZrO3 by strain-mediated phase separation, Nat. Commun. 15, 3438 (2024).
  11. X.-K. Wei, C.-L. Jia, H. Du, K. Roleder, J. Mayer, and R. E. Dunin-Borkowski, An unconventional transient phase with cycloidal order of polarization in energy-storage antiferroelectric PbZrO3, Adv. Mater. 32, 1907208 (2020).
  12. M. F. Kupriyanov, E. V. Petrovich, E. V. Dutova, et al., Sequence of phase transitions in PbHfO3, Crystallogr. Rep. 57, 205 (2012).
  13. A. Bussmann-Holder, T. H. Byoung, W. L. Kim, K. Jae-Hyeon, A. Majchrowski, A. Soszyński, and K. Roleder, Phase transitionsand interrelated instabilities in PbHfO3 single crystals, J. Phys. Condens. Matter 27, 105901 (2015).
  14. A. Bussmann-Holder, M. Fiajłkowski, A. Majchrowski, A. Szewczyk, J. Więckowski, I. Lazar, A. Soszyński, and K. Roleder, Low-temperature polarity in antiferroelectric PbZrO3 and PbHfO3 driven by dynamical covalency in the ZrO6 and HfO6 substructures, Phys. Rev. B 112, 174112 (2025).
  15. K. Roleder, A. Majchrowski, J. K. Zaręba, A. Bussmann-Holder, I. Lazar, I. Jankowska-Sumara, D. Kajewski, and A. Soszyński, Huge low-temperature polarity in the antiferroelectric PbHfO3, Phys. Rev. B 111, 214111 (2025).
  16. A. Bussmann-Holder, K. Roleder, and J-H. Ko, What makes the difference in perovskite titanates? J. Phys. Chem. Solids 117, 148 (2018).
  17. A. Bussmann-Holder, J.-H. Ko, and K. Roleder, Chap. 3: The intricate lattice dynamics of perovskite oxides, OAJ Mater. Devices 5, 1 (2020).
  18. H. Liu and B. Dkhil, A brief review on the model antiferroelectric PbZrO3 perovskite-like material, Z. Kristallogr. Cryst. Mater. 226, 163 (2011).
  19. K. Kurushima, H. Nakajima, T. Ogata, Y. Sakai, M. Azuma, and S. Mori, Relationship between Pb ion off-centering and lone pair electrons, Sci. Rep. 15, 9314 (2025).
  20. D. Schütz and K. Reichmann, Complex bonding in perovskite ferroelectrisc, JCS Japan 122, 231 (2014).
  21. R. Migoni, H. Bilz, and D. Bäuerle, Origin of Raman scattering and ferroelectricity in oxidic perovskites, Phys. Rev. Lett. 37, 1155 (1976).
  22. H. Bilz, G. Benedek, and A. Bussmann-Holder, Theory of ferroelectricity: The polarizability model, Phys. Rev. B 35, 4840 (1987).
  23. A. Bussmann-Holder, The polarizability model for ferroelectricity in perovskite oxides, J. Phys.: Condens. Matter 24, 273202 (2012).
  24. A. Bussmann-Holder and H. Büttner, Ferroelectricity in oxides, Nature (London) 360, 541 (1992).
  25. A. Bussmann-Holder, K. Roleder, and J.-H. Ko, Instabilities in the ferro- and antiferroelectric lead perovskites driven by transition metal ion mass: From PbTiO3 via PbZrO3 to PbHfO3, J. Phys.: Condens. Matter 26, 275402 (2014).
  26. A. Bussmann-Holder, H. Büttner, and A. R. Bishop, Polar-soft-mode-driven structural phase transition in SrTiO3, Phys. Rev. Lett. 99, 167603 (2007).
  27. J.-H. Ko, K. Roleder, A. Majchrowski, and A. Bussmann-Holder, Elastic anomalies associated with the antiferroelectric phase transitions of PbHfO3 single crystals, J. Korean Phys. Soc. 64, 1169 (2014).
  28. G. Shirane, J. D. Axe, J. Harada, and J. P. Remeika, Soft ferroelectric modes in lead titanate, Phys. Rev. B 2, 155 (1970).
  29. I. Jankowska-Sumara, G. E. Kugel, K. Roleder, and J. Dec, Raman scattering in pure and Ti-doped PbHfO3 antiferroelectric crystals, J. Phys.: Condens. Matter. 7, 3957 (1995).
  30. J. Hlinka, T. Ostapchuk, E. Buixaderas, C. Kadlec, P. Kuzel, I. Gregora, J. Kroupa, M. Savonov, A. Klic, and J. Drahokoupil, Multiple soft-mode vibrations of lead zirconate, Phys. Rev. Lett. 112, 197601 (2014).
  31. R. Burkovsky, G. I. Bronwald, D. Andronikova, G. Lityagin, J. Piecha, S.-M. Souliou, A. Majchrowski, A. Filimonov, A. Rudskoy, K. Roleder, A. Bosak, and A. Tagantsev, Triggered incommensurate transition in PbHfO3, Phys. Rev. B 100, 014107 (2019).
  32. L. Classen and J. J. Betouras, High-order van hove singularities and their connection to flat bands, Annu. Rev. Condens. Matter Phys. 16, 229 (2025).
  33. H. Luo, L. Zhao, Z. Zhao, H. Yang, Y.-P. Huang, H. Liu, Y. Gu, F. Jin, and H. Chen, et al. Van Hove singularity driven emergence of multiple flat band-like nondispersive features in Kagome superconductors, Phys. Rev. B 111, 155123 (2025).
  34. D. L. Corker, A. M. Glazer, W. Kaminski, R. W. Whatmore, J. Dec, and K. Roleder, Investigation into the crystal structure of the perovskite lead hafnate, PbHfO3, Acta Cryst. B 54, 18 (1998).
  35. S. Ren, H. X. Zong, X. F. Tao, et al., Boson-peak-like anomaly caused by transverse phonon softening in strain glass, Nat. Commun. 12, 5755 (2021).
  36. Z. Liu, L. Rui, M. Hao, C. Chai, J. Lu, Y. Gao, J. Shifeng, and X. Chen, Boson-peak-like anomaly induced by dipole disordered states in (CH3NH3)4InCl7, Phys. Rev. Lett. 133, 216101 (2024).
  37. M. I. Klinger, Soft-mode related origin of the boson peak and acoustic-phonon broadening in glasses, Theor. Math. Phys. 154, 64 (2008).
  38. A. Bussmann-Holder and A. R. Bishop, Inhomogeneity, local mode formation, and the breakdown of the Bloch theorem in complex charge transfer systems as a consequence of discrete breather formation, Phys. Rev. B 70, 184303 (2004).
  39. A. J. Sievers and S. Takeno, Intrinsic localized modes in anharmonic crystals, Phys. Rev. Lett. 61, 970 (1988).
  40. A. Hofstrand, H. Li, and M. I. Weinstein, Discrete breathers of nonlinear dimer lattices: Bridging the anti-continuous and continuous limits, J. Nonlinear Sci. 33, 59 (2023).
  41. A. R. Bishop, A. Bussmann-Holder, S. Kamba, and M. Maglione, Common characteristics of displacive and relaxor ferroelectrics, Phys. Rev. B 81, 064106 (2010).
  42. J. Macutkevic, J. Banys, A. Bussmann-Holder, and A. R. Bishop, Origin of polar nanoregions in relaxor ferroelectrics: Nonlinearity, discrete breather formation, and charge transfer, Phys. Rev. B 83, 184301 (2011).
  43. A. Bussmann-Holder, A. R. Bishop, and T. Egami, Relaxor ferroelectrics and intrinsic inhomogeneity, Europhys. Lett. 71, 249 (2005).
  44. K. Fujii, Introduction to the rotating wave approximation (RWA): Two coherent oscillations, J. Mod. Phys. 8, 2042 (2017).
  45. I. Lazar, R. W. Whatmore, A. Majchrowski, A. Mike Glazer, D. Kajewski, J. Koperski, A. Soszyński, J. Piecha, B. Loska, and K. Roleder, Ultrahigh piezoelectric strains in PbZr1−xTixO3 single crystals with controlled Ti content close to the tricritical point, Materials 15, 6708 (2022).
  46. K. Patel, B. Xu, S. Prosandeev, R. Faye, B. Dkhil, P.-E. Janolin, and L. Bellaiche, Temperature-dependent properties of the antiferroelectric model PbZrO3: An effective Hamiltonian study, Phys. Rev. B 106, 214108 (2022).
  47. D. J. Singh, Structure and energetics of antiferroelectric PrZrO3, Phys. Rev. B 52, 12559 (1995).
  48. R. E. Cohen and H. Krakauer, Electronic structure studies of the differences in ferroelectric behavior of BaTiO3 and PbTiO3, Ferroelectrics 136, 65 (1992).
  49. Ph. Ghosez, E. Cockayne, U. V. Waghmare, and K. M. Rabe, Lattice dynamics of BaTiO3, PbTiO3 and PbZrO3: A comparative first-principles study, Phys. Rev. B 60, 836 (1999).
