Orbital and magnetic ordering in the weak ferromagnet vanadium trifluoride VF3

Reinhard K. Kremer1,*, Florian Kraus2,†, Patrick Woidy2, Gwilherm Nénert3,‡,§, Christina Drahten4,∥,¶, and Bachir Ouladdiaf3,**

  • *Contact author: R.Kremer@fkf.mpg.de
  • †Contact author: f.kraus@uni-marburg.de
  • ‡Contact author: gwilherm.nenert@malvernpanalytical.com
  • §Present address: Malvern Panalytical B.V. Lelyweg 1, 7602 EA Almelo, The Netherlands.
  • ∥Contact author: christina.drahten@thermofisher.com
  • Present address: Thermo Fisher Scientific GmbH, Im Steingrund 4, 63303 Dreieich, Germany.
  • **Contact author: ouladdia@ill.fr
PDF

Phys. Rev. B 113, 054442 – Published 25 February, 2026

DOI: https://doi.org/10.1103/3gzm-yxfb

Abstract

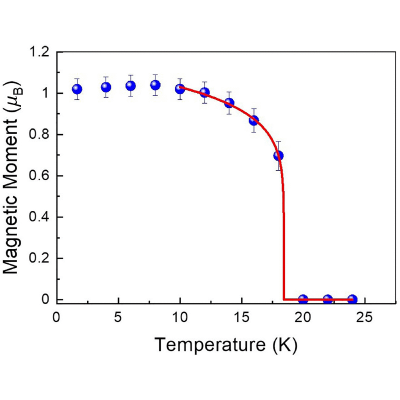

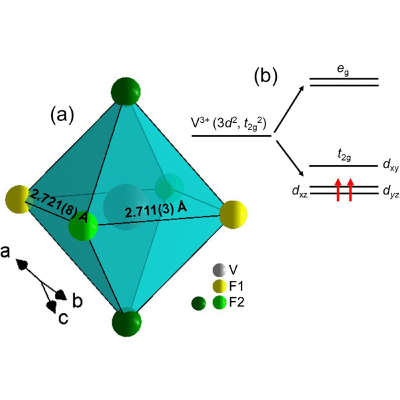

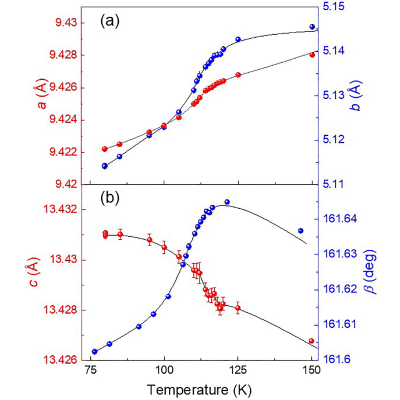

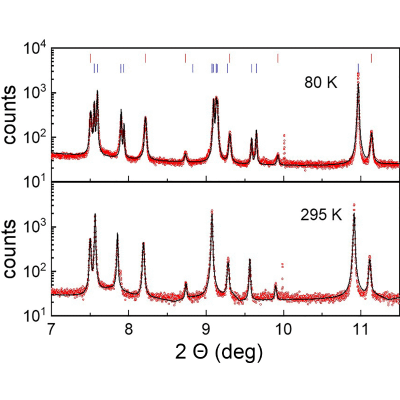

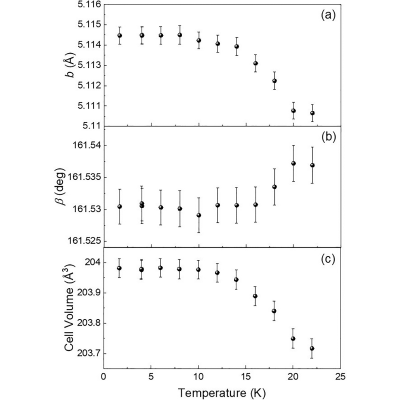

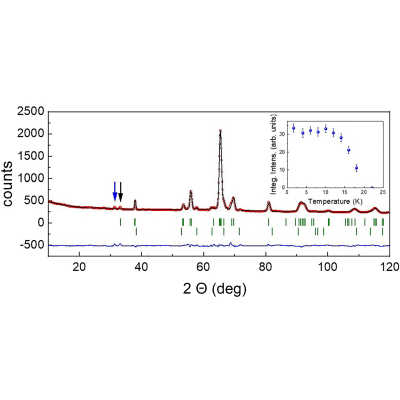

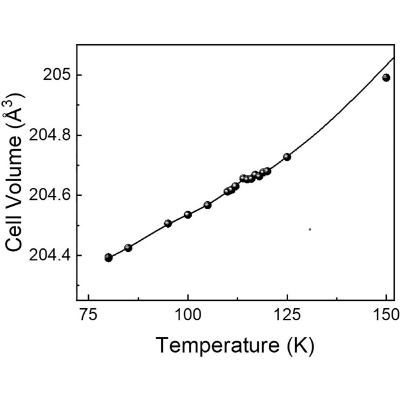

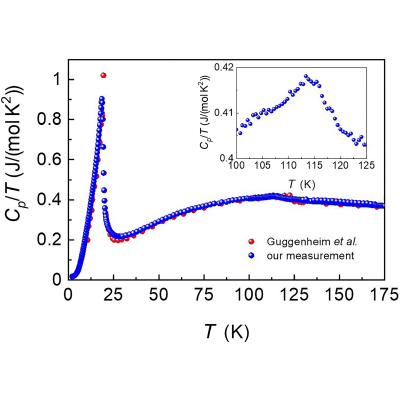

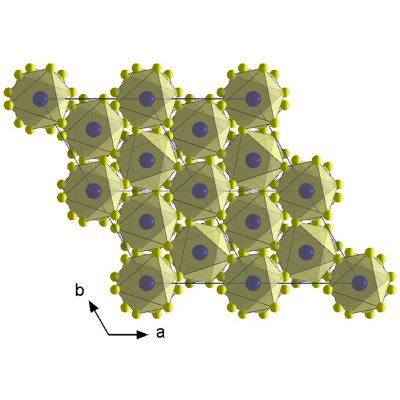

We report on an investigation of the low-temperature structural, thermal, and magnetic properties of the binary trifluoride VF3 by temperature-dependent magnetization, heat capacity, electron paramagnetic resonance, and synchrotron powder and neutron powder diffraction measurements. At room temperature the crystal structure of VF3 features V3+ spin S = 1 regular triangular layers. At ∼120K VF3 undergoes a structural phase transition, and at ∼18K it undergoes an antiferromagnetic phase transition. The structural phase transition involves a minute orthorhombic distortion of the regular octahedral fluorine coordination shell of the trivalent V cations, effecting a distortion to the monoclinic crystal system. The magnetic phase transition generates a weak ferromagnet with V magnetic moments essentially confined to the trigonal planes of the room temperature structure described in the space group R−3c. The ordered magnetic moments of the V3+ cations amount to ≈1μB and is thus distinctly reduced from the spin-only magnetic moment of 2μB. This finding and the weak ferromagnetic moment are discussed in view of the low-symmetry structure and spin-orbit effects on the 3T1 cubic ground term of the V3+ d2 system.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (31)

  1. K. H. Jack and V. Gutmann, The crystal structure of vanadium trifluoride VF3, Acta Crystallogr. 4, 246 (1951).
  2. M. A. Hepworth, K. H. Jack, R. D. Peacock, and G. J. Westland, The crystal structures of the trifluorides of iron, cobalt, ruthenium, rhodium, palladium and iridium, Acta Crystallogr. 10, 63 (1957).
  3. K. Knox, Structures of chromium(iii) fluoride, Acta Crystallogr. 13, 507 (1960).
  4. P. Daniel, A. Bulou, M. Leblanc, M. Rousseau, and J. Nouet, Structural and vibrational study of VF3, Mater. Res. Bull. 25, 413 (1990).
  5. M. A. Hepworth and K. H. Jack, The crystal structure of manganese trifluoride, MnF3, Acta Crystallogr. 10, 345 (1957).
  6. J. Bandemehr, C. Stoll, G. Heymann, S. I. Ivlev, A. J. Karttunen, M. Conrad, H. Huppertz, and F. Kraus, The crystal structure of MnF3 revisited, Z. Anorg. Allg. Chem. 646, 882 (2020).
  7. E. O. Wollan, H. R. Child, W. C. Koehler, and M. K. Wilkinson, Antiferromagnetic properties of the iron group trifluorides, Phys. Rev. 112, 1132 (1958).
  8. U. Bertelsen, J. M. Knudsen, and H. Krogh, Mössbauer effect in FeF3, Phys. Status Solidi B 22, 59 (1967).
  9. R. Bozorth and J. Nielsen, Antiferromagnetism of CuF2·2H2O and MnF3, Phys. Rev. 110, 879 (1958).
  10. R. Bozorth and V. Kramer, Some ferrimagnetic and antiferromagnetic materials at low temperatures, J. Phys. Radium 20, 393 (1959).
  11. B. A. Hunter, B. J. Kennedy, and T. Vogt, Magnetostriction in a simple trivalent manganese perovskite, Phys. Rev. B 69, 020410(R) (2004).
  12. S. Lee, S. Torii, Y. Ishikawa, M. Yonemura, T. Moyoshi, and T. Kamiyama, Weak-ferromagnetism of CoF3 and FeF3, Physica B (Amsterdam, Neth.) 551, 94 (2018).
  13. A. C. Gossard, H. J. Guggenheim, F. S. L. Hsu, and R. C. Sherwood, Magnetic ordering of VF3, AIP Conf. Proc. 5, 302 (1972).
  14. T. C. Hansen, P. F. Henry, H. E. Fischer, J. Torregrossa, and P. Convert, The D20 instrument at the ILL: A versatile high-intensity two-axis neutron diffractometer, Meas. Sci. Technol. 19, 034001 (2008).
  15. J. Rodríguez-Carvajal, Recent advances in magnetic structure determination by neutron powder diffraction, Physica B (Amsterdam, Neth.) 192, 55 (1993).
  16. G. A. Bain and J. F. Berry, Diamagnetic corrections and Pascal's constants, J. Chem. Educ. 85, 532 (2008).
  17. K. Kosuge, The phase diagram and phase transition of the V2O3−V2O5 system, J. Phys. Chem. Solids 28, 1613 (1967).
  18. P. D. Dernier and M. Marezio, Crystal structure of the low-temperature antiferromagnetic phase of V2O3, Phys. Rev. B 2, 3771 (1970).
  19. J. A. Weil, J. R. Bolton, and J. E. Wertz, Electron Paramagnetic Resonance: Elementary Theory and Practical Applications (Wiley, New York, 1994).
  20. The amount of V2O3 impurity refers to the weight percent and was determined from x-ray diffraction patterns collected on a sample inserted into a 0.3 mm diameter capillary, which may result in a preferred selection and adulteration of the composition. The neutron diffraction measurements of the bulk sample indicated only about 5 wt % V2O3 impurity.
  21. Inorganic Crystal Structure Database (ICSD), FIZ Karlsruhe Leibniz Institute for Information Infrastructure, https://icsd.fiz-karlsruhe.de.
  22. See Supplemental Material at http://link.aps.org/supplemental/10.1103/3gzm-yxfb for the detailed results of the magnetic structure solution starting from monoclinic space group C2/c.
  23. S. V. Gallego, J. M. Perez-Mato, L. Elcoro, E. S. Tasci, R. M. Hanson, K. Momma, M. I. Aroyo, and G. Madariaga, MAGNDATA: Towards a database of magnetic structures. I. The commensurate case, J. Appl. Crystallogr. 49, 1750 (2016).
  24. S. V. Gallego, J. M. Perez-Mato, L. Elcoro, E. S. Tasci, R. M. Hanson, M. I. Aroyo, and G. Madariaga, MAGNDATA: Towards a database of magnetic structures. II. The incommensurate case, J. Appl. Crystallogr. 49, 1941 (2016).
  25. J. B. Goodenough, Magnetism and the Chemical Bond (Interscience, New York, 1963).
  26. U. Müller, Symmetry Relationships between Crystal Structures (Oxford University Press, Oxford, 2013).
  27. G. Racah, Theory of complex spectra. II, Phys. Rev. 62, 438 (1942).
  28. F. E. Mabbs and D. J. Machin, Magnetism and Transition Metal Complexes (Chapman and Hall, London, 1973).
  29. E. König and S. Kremer, Complete theory of paramagnetism in transition metal ions IV. The d2 and d8 electron configurations in cubic (Oh and Td), tetragonal (D4h), and trigonal (D3d) symmetry, Ber. Bunsenges. Phys. Chem. 79, 192 (1975).
  30. H. Lueken, Magnetochemie (Teubner, Stuttgart, 1999).
  31. B. A. Hunter, T. Vogt, and B. J. Kennedy, Atomic and magnetic strutcure of MnF3, Acta Crystallogr., Sect. A 58, C146 (2002).
