Andreev bound state spectroscopy of a quantum-dot-based Aharonov-Bohm interferometer with superconducting terminals

Peter Zalom1,*, Don Rolih2,3,†, and Rok Žitko2,3,‡

  • *Contact author: zalomp@fzu.cz
  • †Contact author: don.rolih@ijs.si
  • ‡Contact author: rok.zitko@ijs.si
PDF

Phys. Rev. B 113, 075130 – Published 13 February, 2026

DOI: https://doi.org/10.1103/32tz-hmwr

Abstract

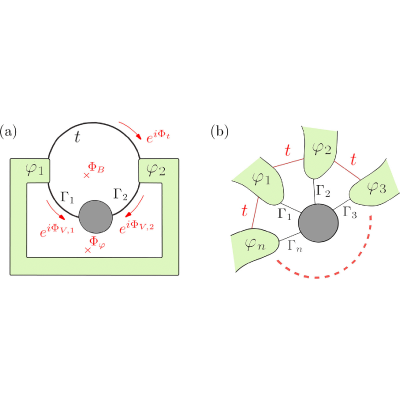

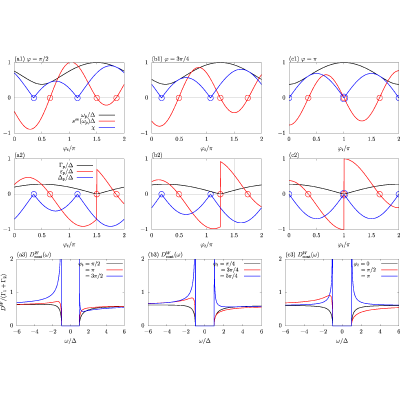

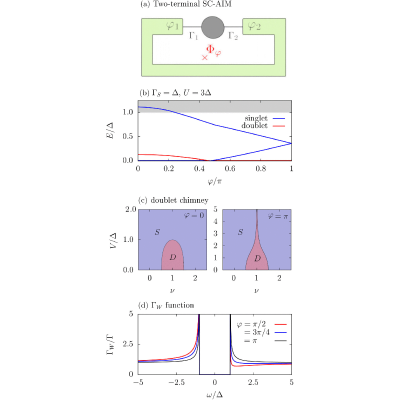

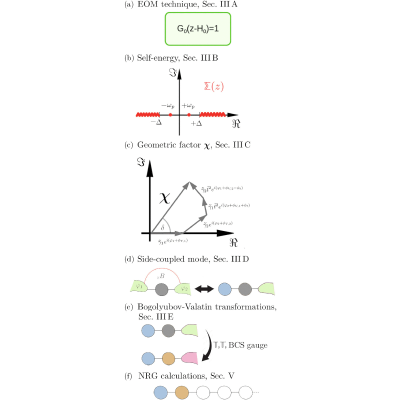

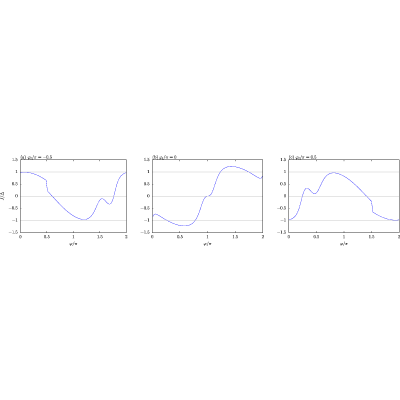

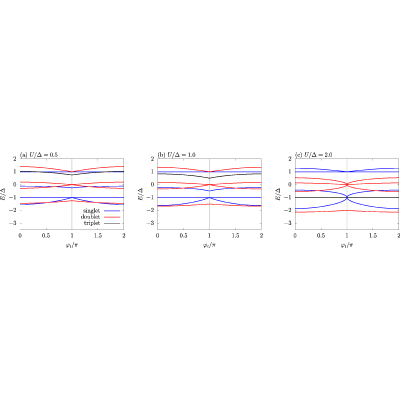

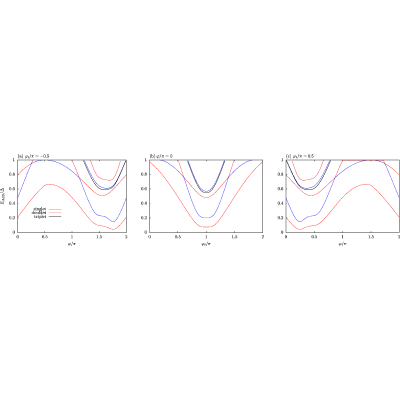

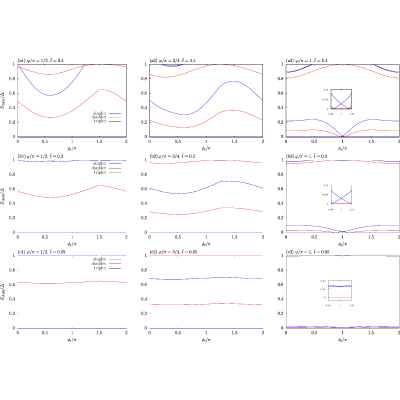

We analytically and numerically investigate an Aharonov-Bohm interferometer with two superconducting terminals and a strongly correlated quantum dot in one arm. Through a rigorous derivation, we prove that this double-path interferometer is spectrally equivalent to a simpler system: an interacting quantum dot coupled to a noninteracting side-coupled proximitized mode and a semiconductor lead. This equivalence reveals a simple interpretation of the interferometer's behavior through the competition of a geometric factor χ, a key parameter characterizing the anomalous part of the hybridization function, with the properties of the side-coupled mode. We identify the conditions for the formation of doublet chimney in the phase diagrams in more general setting. Moreover, we show how the obtained Andreev bound state spectra clearly indicate the presence of Josephson diode effect generated by interferometric phenomena.

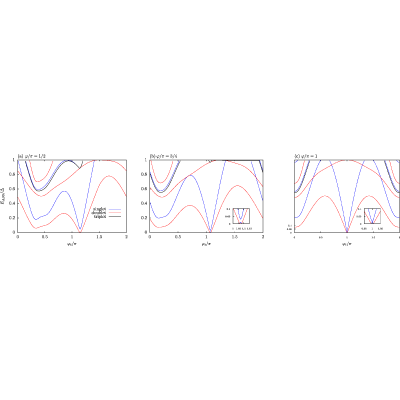

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. Y. Aharonov and D. Bohm, Significance of electromagnetic potentials in the quantum theory, Phys. Rev. 115, 485 (1959).
  2. R. G. Chambers, Shift of an electron interference pattern by enclosed magnetic flux, Phys. Rev. Lett. 5, 3 (1960).
  3. R. A. Webb, S. Washburn, C. P. Umbach, and R. B. Laibowitz, Observation of h/e Aharonov-Bohm oscillations in normal-metal rings, Phys. Rev. Lett. 54, 2696 (1985).
  4. V. Chandrasekhar, R. A. Webb, M. J. Brady, M. B. Ketchen, W. J. Gallagher, and A. Kleinsasser, Magnetic response of a single, isolated gold loop, Phys. Rev. Lett. 67, 3578 (1991).
  5. A. D. Stone and Y. Imry, Periodicity of the Aharonov-Bohm effect in normal-metal rings, Phys. Rev. Lett. 56, 189 (1986).
  6. S. Washburn and R. A. Webb, Aharonov-Bohm effect in normal metal quantum coherence and transport, Adv. Phys. 35, 375 (1986).
  7. C. W. J. Beenakker, Random-matrix theory of quantum transport, Rev. Mod. Phys. 69, 731 (1997).
  8. A. van Oudenaarden, M. H. Devoret, E. H. Visscher, Y. V. Nazarov, and J. E. Mooij, Conductance fluctuations in a metallic wire interrupted by a tunnel junction, Phys. Rev. Lett. 78, 3539 (1997).
  9. A. van Oudenaarden, M. H. Devoret, Y. V. Nazarov, and J. E. Mooij, Magneto-electric Aharonov–Bohm effect in metal rings, Nature (London) 391, 768 (1998).
  10. J. König and Y. Gefen, Aharonov-Bohm interferometry with interacting quantum dots: Spin configurations, asymmetric interference patterns, bias-voltage-induced Aharonov-Bohm oscillations, and symmetries of transport coefficients, Phys. Rev. B 65, 045316 (2002).
  11. P. Simon, O. Entin-Wohlman, and A. Aharony, Flux-dependent Kondo temperature in an Aharonov-Bohm interferometer with an in-line quantum dot, Phys. Rev. B 72, 245313 (2005).
  12. B. Kubala, D. Roosen, M. Sindel, W. Hofstetter, and F. Marquardt, Decoherence in a double-dot Aharonov-Bohm interferometer: Numerical renormalization group study, Phys. Rev. B 90, 035417 (2014).
  13. G. Blasi, F. Giazotto, and G. Haack, Hybrid normal-superconducting Aharonov-Bohm quantum thermal device, Quantum Sci. Technol. 8, 015023 (2023).
  14. Y. V. Nazarov, Aharonov-Bohm effect in the system of two tunnel junctions, Phys. Rev. B 47, 2768 (1993).
  15. Y. V. Nazarov and Y. M. Blanter, Quantum Transport: Introduction to Nanoscience (Cambridge University Press, Cambridge, UK, 2009).
  16. C. Karrasch and V. Meden, Supercurrent and multiple singlet-doublet phase transitions of a quantum dot Josephson junction inside an Aharonov-Bohm ring, Phys. Rev. B 79, 045110 (2009).
  17. G. Yi, H. Wu, W. Gong, and G. Wei, Persistent current in a superconductor/quantum-dot ring/superconductor system, Phys. Lett. A 374, 3768 (2010).
  18. P. E. Dolgirev, M. S. Kalenkov, and A. D. Zaikin, Interplay between Josephson and Aharonov-Bohm effects in Andreev interferometers, Sci. Rep. 9, 1301 (2019).
  19. Z.-Y. Zhang, Fano effect on Josephson current, J. Phys.: Condens. Matter 17, 4637 (2005).
  20. K. Osawa, S. Kurihara, and N. Yokoshi, Fano effect in a Josephson junction with a quantum dot, Phys. Rev. B 78, 224508 (2008).
  21. V. V. Val'kov, M. Y. Kagan, and S. V. Aksenov, Fano effect in Aharonov–Bohm ring with topologically superconducting bridge, J. Phys.: Condens. Matter 31, 225301 (2019).
  22. R. S. Souto, M. Leijnse, and C. Schrade, Josephson diode effect in supercurrent interferometers, Phys. Rev. Lett. 129, 267702 (2022).
  23. K. Satori, H. Shiba, O. Sakai, and Y. Shimizu, Numerical renormalization group study of magnetic impurities in superconductors, J. Phys. Soc. Jpn. 61, 3239 (1992).
  24. T. Yoshioka and Y. Ohashi, Numerical renormalization group studies on single impurity Anderson model in superconductivity: A unified treatment of magnetic, nonmagnetic impurities, and resonance scattering, J. Phys. Soc. Jpn. 69, 1812 (2000).
  25. F. Siano and R. Egger, Josephson current through a nanoscale magnetic quantum dot, Phys. Rev. Lett. 93, 047002 (2004).
  26. D. J. Luitz and F. F. Assaad, Weak-coupling continuous-time quantum Monte Carlo study of the single impurity and periodic Anderson models with s-wave superconducting baths, Phys. Rev. B 81, 024509 (2010).
  27. D. J. Luitz, F. F. Assaad, T. Novotný, C. Karrasch, and V. Meden, Understanding the Josephson current through a Kondo-correlated quantum dot, Phys. Rev. Lett. 108, 227001 (2012).
  28. T. Meng, S. Florens, and P. Simon, Self-consistent description of Andreev bound states in Josephson quantum dot devices, Phys. Rev. B 79, 224521 (2009).
  29. M. Žonda, P. Zalom, T. Novotný, G. Loukeris, J. Bätge, and V. Pokorný, Generalized atomic limit of a double quantum dot coupled to superconducting leads, Phys. Rev. B 107, 115407 (2023).
  30. K. Grove-Rasmussen, G. Steffensen, A. Jellinggaard, M. H. Madsen, R. Žitko, J. Paaske, and J. Nygård, Yu–Shiba–Rusinov screening of spins in double quantum dots, Nat. Commun. 9, 2376 (2018).
  31. V. V. Baran, E. J. P. Frost, and J. Paaske, Surrogate model solver for impurity-induced superconducting subgap states, Phys. Rev. B 108, L220506 (2023).
  32. D. Bobok, L. Frk, V. Pokorný, and M. Žonda, Scalable effective models for superconducting nanostructures: Applications to double, triple, and quadruple quantum dots, Phys. Rev. B 112, 205418 (2025).
  33. P. Kopietz, L. Bartosch, and F. Schütz, Introduction to the Functional Renormalization Group, Lecture Notes in Physics (Springer-Verlag, Berlin, Heidelberg, 2010).
  34. V. Meden, The Anderson-Josephson quantum dot-a theory perspective, J. Phys.: Condens. Matter 31 163001 (2019).
  35. C. Karrasch, A. Oguri, and V. Meden, Josephson current through a single Anderson impurity coupled to BCS leads, Phys. Rev. B 77, 024517 (2008).
  36. R. L. Klees, G. Rastelli, J. C. Cuevas, and W. Belzig, Microwave spectroscopy reveals the quantum geometric tensor of topological Josephson matter, Phys. Rev. Lett. 124, 197002 (2020).
  37. S. Kim, R. Ishiguro, M. Kamio, Y. Doda, E. Watanabe, D. Tsuya, K. Shibata, K. Hirakawa, and H. Takayanagi, π junction transition in InAs self-assembled quantum dot coupled with SQUID, Appl. Phys. Lett. 98, 063106 (2011).
  38. R. Maurand, T. Meng, E. Bonet, S. Florens, L. Marty, and W. Wernsdorfer, First order 0−π quantum phase transition in the Kondo regime of a superconducting carbon nanotube quantum dot, Phys. Rev. X 2, 011009 (2012).
  39. D. B. Szombati, S. Nadj-Perge, D. Car, S. R. Plissard, E. P. A. M. Bakkers, and L. P. Kouwenhoven, Josephson ϕ0-junction in nanowire quantum dots, Nat. Phys. 12, 568 (2016).
  40. J.-G. Liu, D. Wang, and Q.-H. Wang, Quantum impurities in channel mixing baths, Phys. Rev. B 93, 035102 (2016).
  41. P. Zalom, Rigorous Wilsonian renormalization group for impurity models with a spectral gap, Phys. Rev. B 108, 195123 (2023).
  42. P. Zalom, M. Žonda, and T. Novotný, Hidden symmetry in interacting-quantum-dot-based multiterminal Josephson junctions, Phys. Rev. Lett. 132, 126505 (2024).
  43. P. Zalom, V. Pokorný, and T. Novotný, Spectral and transport properties of a half-filled Anderson impurity coupled to phase-biased superconducting and metallic leads, Phys. Rev. B 103, 035419 (2021).
  44. L. Pavešić, R. Aguado, and R. Žitko, Strong-coupling theory of quantum-dot Josephson junctions: Role of a residual quasiparticle, Phys. Rev. B 109, 125131 (2024).
  45. P. Zalom and M. Žonda, Subgap states spectroscopy in a quantum dot coupled to gapped hosts: Unified picture for superconductor and semiconductor bands, Phys. Rev. B 105, 205412 (2022).
  46. A. Kadlecová, M. Žonda, and T. Novotný, Quantum dot attached to superconducting leads: Relation between symmetric and asymmetric coupling, Phys. Rev. B 95, 195114 (2017).
  47. T. Pruschke, R. Bulla, and M. Jarrell, Low-energy scale of the periodic Anderson model, Phys. Rev. B 61, 12799 (2000).
  48. Q. Cheng and Q.-F. Sun, Josephson diode based on conventional superconductors and a chiral quantum dot, Phys. Rev. B 107, 184511 (2023).
  49. P. Zalom, Data for PRB publication "Andreev bound state spectroscopy of a quantum-dot-based Aharonov-Bohm interferometer with superconducting terminals" [Data set], Zenodo (2026), https://doi.org/10.5281/zenodo.18384828.
