Endoscopic diamond magnetometer for cancer surgery

A.J. Newman1,2,*, S.M. Graham1,2, C.J. Stephen1,2, A.M. Edmonds3, M.L. Markham3, and G.W. Morley1,2,†

  • *Contact author: Alex.Newman@warwick.ac.uk
  • †Contact author: Gavin.Morley@warwick.ac.uk
PDF

Phys. Rev. Applied 24, 024029 – Published 12 August, 2025

DOI: https://doi.org/10.1103/znt3-988w

Abstract

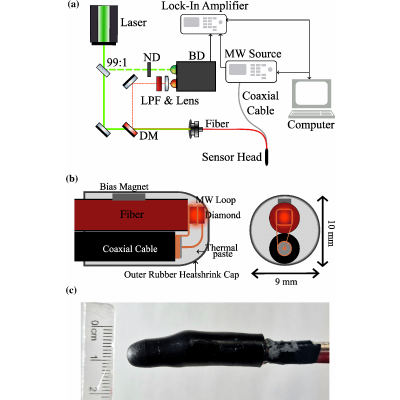

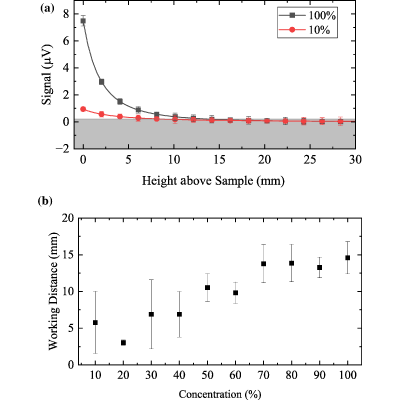

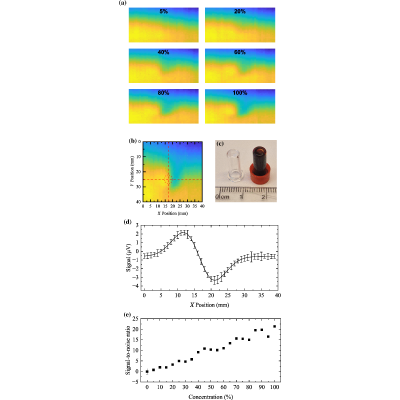

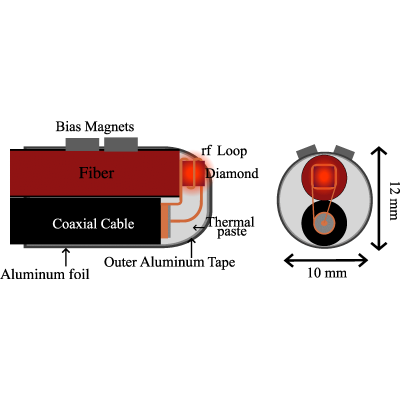

Intraoperative measurements using magnetic sensors are a valuable technique in cancer surgery for finding magnetic tracers. Here we present a fiber-coupled nitrogen-vacancy center magnetometer capable of detecting iron oxide suspension (MagTrace™ from Endomagnetics Ltd.) used in breast cancer surgeries. Detection of an iron mass as low as 0.56 mg has been demonstrated, 100 times less than that of a recommended dose at a maximum distance of 5.8 mm. Detection of an iron concentration as low as 2.8 mg/ml has also been demonstrated, 20 times less than a recommended dose. The maximum working distance from the sensor can be as large as 14.6 mm for higher concentrations. The sensor head has a maximum diameter of 10 mm which would allow it to be used for endoscopy, laparoscopy, and intraoperative surgery.

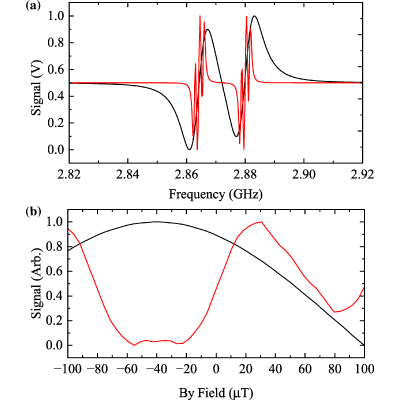

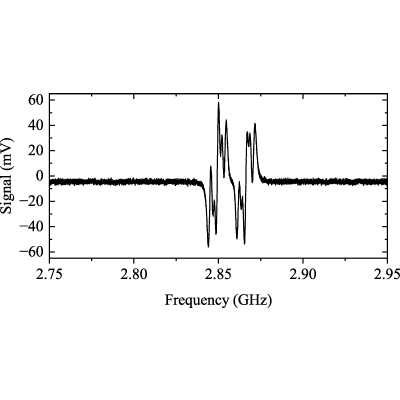

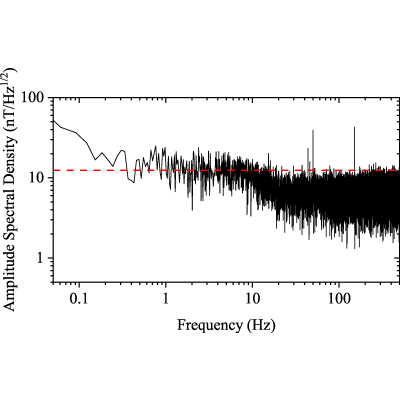

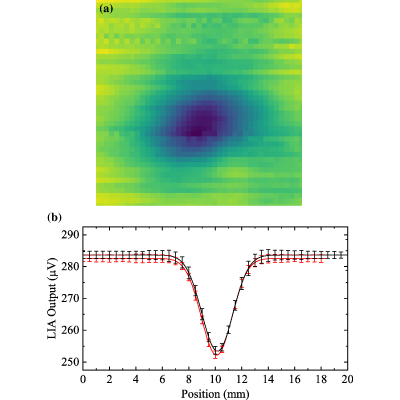

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (37)

  1. Y. Kitamoto, T. Masaki, S. B. Trisnanto, T. Ueda, and M. Abe, in Sensors, 2012 IEEE (IEEE, Taipai, Taiwan, 2012), p. 1.
  2. K. Taruno, T. Kurita, K. Enokido, S. Nakamura, M. Sekino, M. Kusakabe, and H. Takei, Sentinel lymph node biopsy using super magnetic iron oxide and an original magnetic probe in Japan, J. Clin. Oncol. 36, e12603 (2018).
  3. P. Liu, J. Tan, Y. Song, K. Huang, Q. Zhang, and H. Xie, The application of magnetic nanoparticles for sentinel lymph node detection in clinically node-negative breast cancer patients: A systemic review and meta-analysis, Cancers (Basel) 14, 5034 (2022).
  4. A. Zada, M. C. L. Peek, M. Ahmed, B. Anninga, R. Baker, M. Kusakabe, M. Sekino, J. M. Klaase, B. ten Haken, and M. Douek, Meta-analysis of sentinel lymph node biopsy in breast cancer using the magnetic technique, Br. J. Surg. 103, 1409 (2016).
  5. B. Anninga, S. H. White, M. Moncrieff, P. Dziewulski, J. L. C. Geh, J. Klaase, H. Garmo, F. Castro, S. Pinder, Q. A. Pankhurst, M. A. Hall-Craggs, and M. Douek, MELAMAG Multicentre Trialists Group, Magnetic technique for sentinel lymph node biopsy in melanoma: The melamag trial, Ann. Surg. Oncol. 23, 2070 (2016).
  6. M. Douek, J. Klaase, I. Monypenny, A. Kothari, K. Zechmeister, D. Brown, L. Wyld, P. Drew, H. Garmo, O. Agbaje, Q. Pankhurst, B. Anninga, M. Grootendorst, B. ten Haken, M. A. Hall-Craggs, A. Purushotham, and S. Pinder, and On behalf of the SentiMAG Trialists Group, Sentinel node biopsy using a magnetic tracer versus standard technique: The sentimag multicentre trial, Ann. Surg. Oncol. 21, 1237 (2014).
  7. C. Bézu, C. Coutant, A. Salengro, E. Daraï, R. Rouzier, and S. Uzan, Anaphylactic response to blue dye during sentinel lymph node biopsy, Surg. Oncol. 20, e55 (2011).
  8. S. Thevarajah, T. L. Huston, and R. M. Simmons, A comparison of the adverse reactions associated with isosulfan blue versus methylene blue dye in sentinel lymph node biopsy for breast cancer, Am. J. Surg. 189, 236 (2005).
  9. D. Albo, J. D. Wayne, K. K. Hunt, T. F. Rahlfs, S. E. Singletary, F. C. Ames, B. W. Feig, M. I. Ross, and H. M. Kuerer, Anaphylactic reactions to isosulfan blue dye during sentinel lymph node biopsy for breast cancer, Am. J. Surg. 182, 393 (2001).
  10. V. M. Cimmino, A. C. Brown, J. F. Szocik, H. A. Pass, S. Moline, S. K. De, and E. F. Domino, Allergic reactions to isosulfan blue during sentinel node biopsy—A common event, Surgery 130, 439 (2001).
  11. M. Perenyei, Z. E. Barber, J. Gibson, S. Hemington-Gorse, and T. D. Dobbs, Anaphylactic reaction rates to blue dyes used for sentinel lymph node mapping: Systematic review and meta-analysis, Ann. Surg. 273, 1087 (2021).
  12. M. M. van de Loosdrecht, L. Molenaar, E. J. G. Krooshoop, B. T. Haken, W. J. H. J. Meijerink, L. Alic, and I. A. M. J. Broeders, Laparoscopic probe for sentinel lymph node harvesting using magnetic nanoparticles, IEEE Trans. Biomed. Eng. 69, 286 (2021).
  13. J. Wise, Breast cancer: NICE recommends innovative magnetic technology for locating sentinel lymph nodes, BMJ 377, o1226 (2022).
  14. A. Inagaki, T. Suzuki, Y. Mima, and K. Kimura, Development of magnetic particle distribution imaging using magnetic field reconstruction for biopsy of the sentinel lymph node, Magnetochemistry 7, 85 (2021).
  15. S. Bai, L. Gai, Q. Zhang, Y. Kang, Z. Liu, Y. He, W. Liu, T. Jiang, Z. Du, S. Du, S. Gao, M. Zhang, and T. Li, Development of a human-size magnetic particle imaging device for sentinel lymph node biopsy of breast cancer, Front. Bioeng. Biotechnol. 12, 1327521 (2024).
  16. K. Gräfe, T. F. Sattel, K. Lüdtke-Buzug, D. Finas, J. Borgert, and T. M. Buzug, in Magnetic Particle Imaging, edited by T. M. Buzug and J. Borgert (Springer Berlin Heidelberg, Berlin, Heidelberg, 2012), p. 237.
  17. A. Kuwahata, M. Kaneko, S. Chikaki, M. Kusakabe, and M. Sekino, Development of device for quantifying magnetic nanoparticle tracers accumulating in sentinel lymph nodes, AIP Adv. 8, 056713 (2017).
  18. T. F. Sattel, M. Erbe, S. Biederer, T. Knopp, D. Finas, K. Diedrich, K. Lüdtke-Buzug, J. Borgert, and T. M. Buzug, in Medical Imaging 2012: Biomedical Applications in Molecular, Structural, and Functional Imaging, edited by R. C. Molthen and J. B. Weaver (SPIE, San Diego, 2012), Vol. 8317, p. 83170S.
  19. A. Kuwahata, S. Chikaki, A. Ergin, M. Kaneko, M. Kusakabe, and M. Sekino, Three-dimensional sensitivity mapping of a handheld magnetic probe for sentinel lymph node biopsy, AIP Adv. 7, 056720 (2017).
  20. M. Sekino, A. Kuwahata, T. Ookubo, M. Shiozawa, K. Ohashi, M. Kaneko, I. Saito, Y. Inoue, H. Ohsaki, H. Takei, and M. Kusakabe, Handheld magnetic probe with permanent magnet and Hall sensor for identifying sentinel lymph nodes in breast cancer patients, Sci. Rep. 8, 1195 (2018).
  21. Robert V. Stigliano, Ilona Danelyan, Giga Gabriadze, Levan Shoshiashvili, Ian Baker, P. J. Hoopes, Roman Jobava, and Fridon Shubitidze, Alternating magnetic field guiding system for mnp hyperthermia treatment of deep-seated cancers, Int. J. Hyperthermia 41, 2391008 (2024).
  22. Michele Wabler, Wenlian Zhu, Mohammad Hedayati, Anilchandra Attaluri, Haoming Zhou, Jana Mihalic, Alison Geyh, Theodore L. DeWeese, Robert Ivkov, and Dmitri Artemov, Magnetic resonance imaging contrast of iron oxide nanoparticles developed for hyperthermia is dominated by iron content, Int. J. Hyperthermia 30, 192 (2014).
  23. A. J. Newman, S. M. Graham, A. M. Edmonds, D. J. Twitchen, M. L. Markham, and G. W. Morley, Tensor gradiometry with a diamond magnetometer, Phys. Rev. Appl. 21, 014003 (2024).
  24. H. Clevenson, L. M. Pham, C. Teale, K. Johnson, D. Englund, and D. Braje, Robust high-dynamic-range vector magnetometry with nitrogen-vacancy centers in diamond, App. Phys. Lett. 112, 252406 (2018).
  25. H. Kumar, S. Dasika, M. Mangat, S. Tallur, and K. Saha, High dynamic-range and portable magnetometer using ensemble nitrogen-vacancy centers in diamond, Rev. Sci. Instrum. 95, 075002 (2024).
  26. J. F. Barry, J. M. Schloss, E. Bauch, M. J. Turner, C. A. Hart, L. M. Pham, and R. L. Walsworth, Sensitivity optimization for NV-diamond magnetometry, Rev. Mod. Phys. 92, 15004 (2020).
  27. J. M. Taylor, P. Cappellaro, L. Childress, L. Jiang, D. Budker, P. R. Hemmer, A. Yacoby, R. Walsworth, and M. D. Lukin, High-sensitivity diamond magnetometer with nanoscale resolution, Nat. Phys. 4, 810 (2008).
  28. S. M. Graham, A. T. M. A. Rahman, L. Munn, R. L. Patel, A. J. Newman, C. J. Stephen, G. Colston, A. Nikitin, A. M. Edmonds, D. J. Twitchen, M. L. Markham, and G. W. Morley, Fiber-coupled diamond magnetometry with an unshielded sensitivity of 30pT/Hz, Phys. Rev. Appl. 19, 044042 (2023).
  29. S.-C. Zhang, H.-B. Lin, Y. Dong, B. Du, X.-D. Gao, C. Yu, Z.-H. Feng, X.-D. Chen, G.-C. Guo, and F.-W. Sun, High-sensitivity and wide-bandwidth fiber-coupled diamond magnetometer with surface coating, Photonics Res. 10, 2191 (2022).
  30. V. M. Acosta, E. Bauch, M. P. Ledbetter, C. Santori, K.-M. C. Fu, P. E. Barclay, R. G. Beausoleil, H. Linget, J. F. Roch, F. Treussart, S. Chemerisov, W. Gawlik, and D. Budker, Diamonds with a high density of nitrogen-vacancy centers for magnetometry applications, Phys. Rev. B 80, 115202 (2009).
  31. D. M. Toyli, C. F. de las Casas, D. J. Christle, V. V. Dobrovitski, and D. D. Awschalom, Fluorescence thermometry enhanced by the quantum coherence of single spins in diamond, Proc. Natl. Acad. Sci. USA 110, 8417 (2013).
  32. M. W. Doherty, N. B. Manson, P. Delaney, F. Jelezko, J. Wrachtrup, and L. C. L. Hollenberg, The nitrogen-vacancy colour centre in diamond, Phys. Rep. 528, 1 (2013).
  33. S. Hsieh, P. Bhattacharyya, C. Zu, T. Mittiga, T. J. Smart, F. Machado, B. Kobrin, T. O. Höhn, N. Z. Rui, M. Kamrani, S. Chatterjee, S. Choi, M. Zaletel, V. V. Struzhkin, J. E. Moore, V. I. Levitas, R. Jeanloz, and N. Y. Yao, Imaging stress and magnetism at high pressures using a nanoscale quantum sensor, Science 366, 1349 (2019).
  34. S. Kang, L. Ji, J. Ma, Y. Lyu, and X. Yan, Experimental study of trocar-less laparoscopic adnexectomy assisted by magnetic anchor technique, J. Am. Coll. Surg. 231, e206 (2020).
  35. A. Kuwahata, T. Kitaizumi, K. Saichi, T. Sato, R. Igarashi, T. Ohshima, Y. Masuyama, T. Iwasaki, M. Hatano, F. Jelezko, M. Kusakabe, T. Yatsui, and M. Sekino, Magnetometer with nitrogen-vacancy center in a bulk diamond for detecting magnetic nanoparticles in biomedical applications, Sci. Rep. 10, 2483 (2020).
  36. H. C. Davis, P. Ramesh, A. Bhatnagar, A. Lee-Gosselin, J. F. Barry, D. R. Glenn, R. L. Walsworth, and M. G. Shapiro, Mapping the microscale origins of magnetic resonance image contrast with subcellular diamond magnetometry, Nat. Commun. 9, 131 (2018).
  37. K. L. Pisane, E. C. Despeaux, and M. S. Seehra, Magnetic relaxation and correlating effective magnetic moment with particle size distribution in maghemite nanoparticles, J. Magn. Magn. Mater. 384, 148 (2015).
