Toward a temperature-insensitive composite diamond clock

Sean Lourette1,2,*, Andrey Jarmola1,2, Jabir Chathanathil2, Victor M. Acosta3, A. Glen Birdwell2, Peter Blümler4, Dmitry Budker1,4,5,6, Sebastián C. Carrasco2, Tony G. Ivanov2 et al.

Shimon Kolkowitz1 and Vladimir S. Malinovsky2

  • *Contact author: slourette@berkeley.edu
PDF

Phys. Rev. Applied 25, 064046 – Published 11 June, 2026

DOI: https://doi.org/10.1103/z2sl-6gcc

Abstract

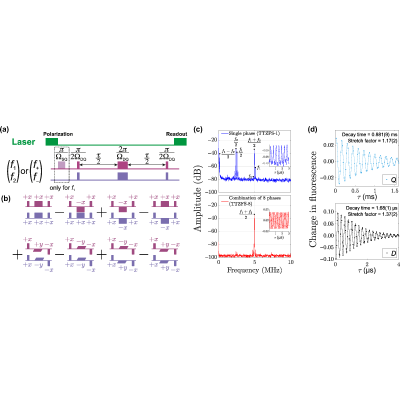

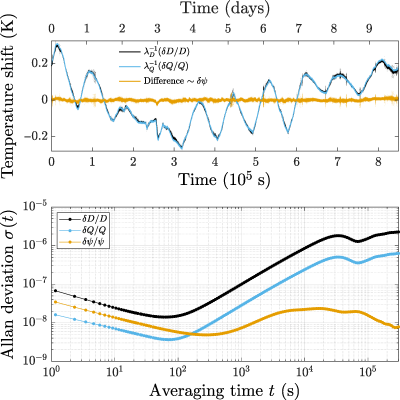

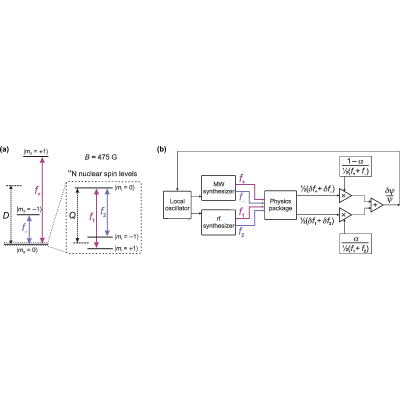

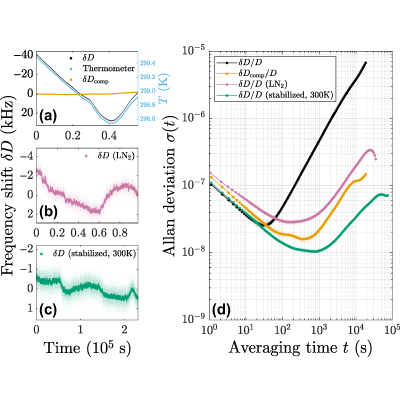

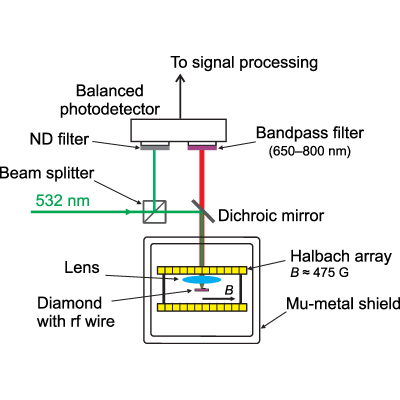

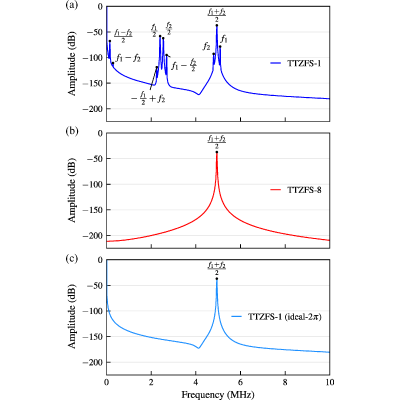

Frequency references based on solid-state spins promise simplicity, compactness, robustness, multifunctionality, ease of integration, and high densities of emitters. Nitrogen-vacancy (NV) centers in diamond are a natural candidate, but the electronic zero-field splitting (D≈2.87GHz) exhibits a large fractional temperature dependence (around 25ppb/mK), which has precluded its use as a stable clock transition. Here we show that this limitation can be overcome by forming a composite frequency reference that combines measurements of the electronic splitting D with the nuclear quadrupole splitting (Q≈4.94MHz) of the 14N nuclear spin intrinsic to the NV center. We further benchmark this composite approach against alternative strategies for mitigating temperature sensitivity, including cryogenic operation, temperature compensation, and active stabilization. By implementing a specially designed pulse sequence with an eight-phase control scheme that suppresses pulse imperfections, we interleave measurements of D and Q in a high-density NV ensemble and demonstrate a temperature-compensated composite frequency reference. The stability of this composite diamond clock is characterized over a 10-day period at room temperature through a comparison to a Rb vapor-cell clock, yielding a fractional instability below 5×10−9 for an averaging time of τ=200s and below 1×10−8 at τ=2×105s, corresponding to measured improvements by a factor of approximately 4 and approximately 200, respectively, over a clock based purely on the single frequency D for the same periods. By characterizing the residual sensitivity to magnetic fields, optical power, and radio-frequency drive amplitudes, we find that temperature is no longer the dominant source of instability. These results establish complementary electron- and nuclear-spin transitions in diamond as a viable route to thermally robust frequency metrology, providing a pathway toward compact, multifunctional solid-state clocks and quantum sensors.

View figure in article

Physics Subject Headings (PhySH)

Corrections

22 June, 2026

Correction: An inline equation in the fourth sentence of the second paragraph of Sec. III was set incorrectly and has been fixed.

Article Text

References (30)

  1. G. Santarelli, P. Laurent, P. Lemonde, A. Clairon, A. G. Mann, S. Chang, A. N. Luiten, and C. Salomon, Quantum projection noise in an atomic fountain: A high stability cesium frequency standard, Phys. Rev. Lett. 82, 4619 (1999).
  2. M. Lilley, E. Savalle, M. C. Angonin, P. Delva, C. Guerlin, C. Le Poncin-Lafitte, F. Meynadier, and P. Wolf, ACES/PHARAO: High-performance space-to-ground and ground-to-ground clock comparison for fundamental physics, GPS Solut. 25, 34 (2021).
  3. P. Cash, W. Krzewick, P. Machado, K. R. Overstreet, M. Silveira, M. Stanczyk, D. Taylor, and X. Zhang, Microsemi chip scale atomic clock (csac) technical status, applications, and future plans, in 2018 European Frequency and Time Forum (EFTF) (IEEE, Turin, Italy, 2018), pp. 65–71.
  4. B. Jaduszliwer and J. Camparo, Past, present and future of atomic clocks for GNSS, GPS Solut. 25, 27 (2021).
  5. S. Cook, T. Rosenband, and D. R. Leibrandt, Laser-frequency stabilization based on steady-state spectral-hole burning in Eu3+:Y2SiO5, Phys. Rev. Lett. 114, 253902 (2015).
  6. T. Ely, J. Prestage, R. Tjoelker, E. Burt, A. Dorsey, D. Enzer, R. Herrera, D. Kuang, D. Murphy, D. Robison, G. Seal, J. Stuart, R. Wang, and J. Seubert, Deep space atomic clock technology demonstration mission results, in 2022 IEEE Aerospace Conference (AERO) (IEEE, Big Sky, MT, USA, 2022), pp. 1–20.
  7. T. Ooi, J. F. Doyle, C. Zhang, J. S. Higgins, J. Ye, K. Beeks, T. Sikorsky, and T. Schumm, Frequency reproducibility of solid-state Th-229 nuclear clocks, Nature 650, 72 (2026).
  8. H. Kraus, V. A. Soltamov, F. Fuchs, D. Simin, A. Sperlich, P. G. Baranov, G. V. Astakhov, and V. Dyakonov, Magnetic field and temperature sensing with atomic-scale spin defects in silicon carbide, Sci. Rep. 4, 5303 (2014).
  9. J. S. Hodges, N. Y. Yao, D. Maclaurin, C. Rastogi, M. D. Lukin, and D. Englund, Timekeeping with electron spin states in diamond, Phys. Rev. A 87, 032118 (2013).
  10. J. R. Maze, P. L. Stanwix, J. S. Hodges, S. Hong, J. M. Taylor, P. Cappellaro, L. Jiang, M. V. G. Dutt, E. Togan, A. S. Zibrov, A. Yacoby, R. L. Walsworth, and M. D. Lukin, Nanoscale magnetic sensing with an individual electronic spin in diamond, Nature 455, 644 (2008).
  11. G. Balasubramanian, I. Y. Chan, R. Kolesov, M. Al-Hmoud, J. Tisler, C. Shin, C. Kim, A. Wojcik, P. R. Hemmer, A. Krueger, T. Hanke, A. Leitenstorfer, R. Bratschitsch, F. Jelezko, and J. Wrachtrup, Nanoscale imaging magnetometry with diamond spins under ambient conditions, Nature 455, 648 (2008).
  12. F. Dolde, H. Fedder, M. W. Doherty, T. Nobauer, F. Rempp, G. Balasubramanian, T. Wolf, F. Reinhard, L. C. L. Hollenberg, F. Jelezko, and J. Wrachtrup, Electric-field sensing using single diamond spins, Nat. Phys. 7, 459 (2011).
  13. V. M. Acosta, E. Bauch, M. P. Ledbetter, A. Waxman, L.-S. Bouchard, and D. Budker, Temperature dependence of the nitrogen-vacancy magnetic resonance in diamond, Phys. Rev. Lett. 104, 070801 (2010).
  14. M. W. Doherty, V. M. Acosta, A. Jarmola, M. S. J. Barson, N. B. Manson, D. Budker, and L. C. L. Hollenberg, Temperature shifts of the resonances of the NV− center in diamond, Phys. Rev. B 90, 041201(R) (2014).
  15. A. Jarmola, S. Lourette, V. M. Acosta, A. G. Birdwell, P. Blümler, D. Budker, T. Ivanov, and V. S. Malinovsky, Demonstration of diamond nuclear spin gyroscope, Sci. Adv. 7, eabl3840 (2021).
  16. V. V. Soshenko, S. V. Bolshedvorskii, O. Rubinas, V. N. Sorokin, A. N. Smolyaninov, V. V. Vorobyov, and A. V. Akimov, Nuclear spin gyroscope based on the nitrogen vacancy center in diamond, Phys. Rev. Lett. 126, 197702 (2021).
  17. A. Jarmola, I. Fescenko, V. M. Acosta, M. W. Doherty, F. K. Fatemi, T. Ivanov, D. Budker, and V. S. Malinovsky, Robust optical readout and characterization of nuclear spin transitions in nitrogen-vacancy ensembles in diamond, Phys. Rev. Res. 2, 023094 (2020).
  18. S. Lourette, A. Jarmola, V. M. Acosta, A. G. Birdwell, D. Budker, M. W. Doherty, T. Ivanov, and V. S. Malinovsky, Temperature sensitivity of 14N-V and 15N-V ground-state manifolds, Phys. Rev. Appl. 19, 064084 (2023).
  19. V. I. Yudin, A. V. Taichenachev, M. Y. Basalaev, O. N. Prudnikov, H. A. Fürst, T. E. Mehlstäubler, and S. N. Bagayev, Combined atomic clock with blackbody-radiation-shift-induced instability below 10−19 under natural environment conditions, New J. Phys. 23, 023032 (2021).
  20. V. Jacques, P. Neumann, J. Beck, M. Markham, D. Twitchen, J. Meijer, F. Kaiser, G. Balasubramanian, F. Jelezko, and J. Wrachtrup, Dynamic polarization of single nuclear spins by optical pumping of nitrogen-vacancy color centers in diamond at room temperature, Phys. Rev. Lett. 102, 057403 (2009).
  21. N. B. Manson, J. P. Harrison, and M. J. Sellars, Nitrogen-vacancy center in diamond: Model of the electronic structure and associated dynamics, Phys. Rev. B 74, 104303 (2006).
  22. D. M. Toyli, C. F. de las Casas, D. J. Christle, V. V. Dobrovitski, and D. D. Awschalom, Fluorescence thermometry enhanced by the quantum coherence of single spins in diamond, Proc. Natl. Acad. Sci. 110, 8417 (2013).
  23. M. Omar, A. Conta, A. Westerhoff, R. Hasse, G. Chatzidrosos, D. Budker, and A. Wickenbrock, Diamond-optic enhanced photon collection efficiency for sensing with nitrogen-vacancy centers, Opt. Lett. 48, 2512 (2023).
  24. J. F. Barry, M. H. Steinecker, S. T. Alsid, J. Majumder, L. M. Pham, M. F. O’Keeffe, and D. A. Braje, Sensitive ac and dc magnetometry with nitrogen-vacancy-center ensembles in diamond, Phys. Rev. Appl. 22, 044069 (2024).
  25. J. F. Barry, J. M. Schloss, E. Bauch, M. J. Turner, C. A. Hart, L. M. Pham, and R. L. Walsworth, Sensitivity optimization for NV-diamond magnetometry, Rev. Mod. Phys. 92, 015004 (2020).
  26. P. G. Westergaard, J. Lodewyck, and P. Lemonde, Minimizing the Dick effect in an optical lattice clock, IEEE Trans. Ultrason. Ferroelectr. Freq. Control. 57, 623 (2010).
  27. A. Berzins, M. Saleh Ziabari, Y. Silani, I. Fescenko, J. T. Damron, J. F. Barry, A. Jarmola, P. Kehayias, B. A. Richards, J. Smits, and V. M. Acosta, Impact of microwave phase noise on diamond quantum sensing, Phys. Rev. Res. 6, 043148 (2024).
  28. S. Lourette, A. Jarmola, J. Chathanathil, S. C. Carrasco, D. Budker, S. A. Malinovskaya, A. G. Birdwell, T. G. Ivanov, and V. S. Malinovsky, Ramsey interferometry of nuclear spins in diamond using stimulated Raman adiabatic passage, Quantum Sci. Technol. 10, 015032 (2025).
  29. S. C. Carrasco, S. Lourette, I. Sola, and V. S. Malinovsky, Dynamically enhanced two-photon spectroscopy, Phys. Rev. Lett. 134, 163601 (2025).
  30. J. Vig, Introduction to quartz frequency standards, NASA STI/Recon Technical Report N (1992).
