Integration of a GaAs-based nanomechanical phase shifter with quantum-dot single-photon sources

Celeste Qvotrup1,*, Ying Wang1,*,†, Marcus Albrechtsen1, Rodrigo A. Thomas1, Zhe Liu1, Sven Scholz2, Arne Ludwig2, and Leonardo Midolo1,‡

  • *These authors contributed equally to this work.
  • †Contact author: ying.wang@nbi.ku.dk
  • ‡Contact author: midolo@nbi.ku.dk
PDF

Phys. Rev. Applied 24, 054016 – Published 6 November, 2025

DOI: https://doi.org/10.1103/y554-z6hg

Abstract

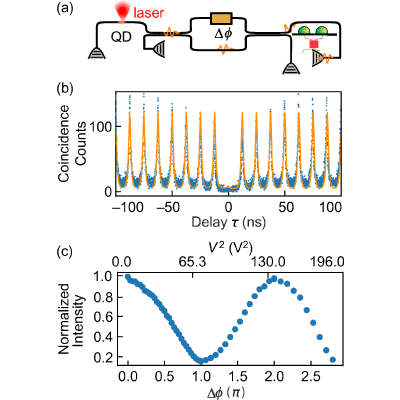

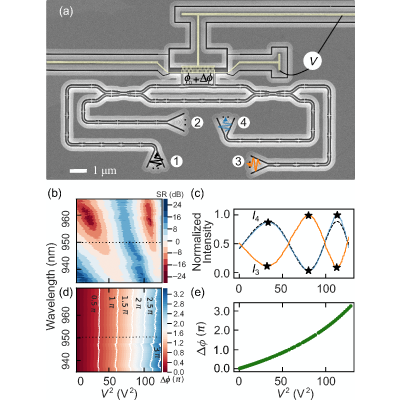

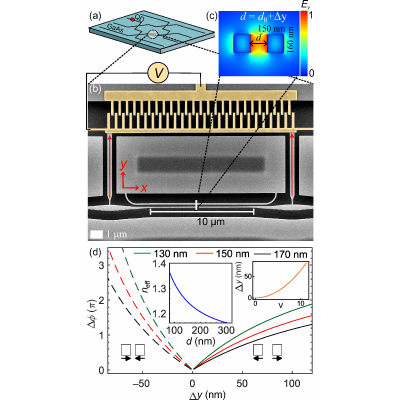

We demonstrate a small-footprint electromechanical phase shifter with a compact active length of 10μm fabricated on a suspended GaAs membrane, offering versatile integration with quantum-dot single-photon sources. The phase shifter is based on a slot waveguide, whose slot width can be controlled by electrostatic forces, enabling a large effective refractive index change Δneff>0.1. We observe up to 3π phase modulation with 10.6 V applied bias, and a figure of merit VπL=5.7×10−3Vcm. Integration with a Mach-Zehnder interferometer further allows routing of single photons with an extinction ratio of up to 24 dB at cryogenic temperatures. This device enables advanced manipulation of quantum emitters and the realization of reconfigurable quantum photonic integrated circuits.

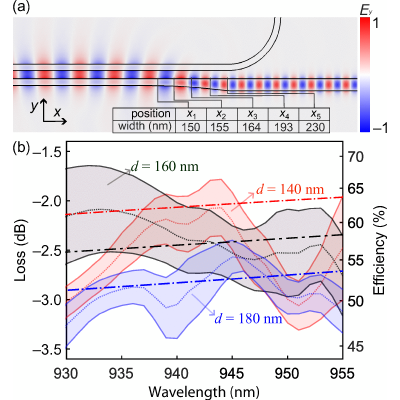

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. C. P. Dietrich, A. Fiore, M. G. Thompson, M. Kamp, and S. Höfling, GaAs integrated quantum photonics: Towards compact and multi-functional quantum photonic integrated circuits, Laser Photonics Rev. 10, 870 (2016).
  2. R. Uppu, L. Midolo, X. Zhou, J. Carolan, and P. Lodahl, Quantum-dot-based deterministic photon–emitter interfaces for scalable photonic quantum technology, Nat. Nanotechnol. 16, 1308 (2021).
  3. N. Maring, A. Fyrillas, M. Pont, E. Ivanov, P. Stepanov, N. Margaria, W. Hease, A. Pishchagin, A. Lemaître, I. Sagnes, et al., A versatile single-photon-based quantum computing platform, Nat. Photonics 18, 603 (2024).
  4. C. L. Morrison, R. G. Pousa, F. Graffitti, Z. X. Koong, P. Barrow, N. G. Stoltz, D. Bouwmeester, J. Jeffers, D. K. Oi, B. D. Gerardot, et al., Single-emitter quantum key distribution over 175 km of fibre with optimised finite key rates, Nat. Commun. 14, 3573 (2023).
  5. M. Zahidy, M. T. Mikkelsen, R. Müller, B. Da Lio, M. Krehbiel, Y. Wang, N. Bart, A. D. Wieck, A. Ludwig, M. Galili, et al., Quantum key distribution using deterministic single-photon sources over a field-installed fibre link, npj Quantum Inf. 10, 2 (2024).
  6. Y. Wang, C. F. Faurby, F. Ruf, P. I. Sund, K. Nielsen, N. Volet, M. J. Heck, N. Bart, A. D. Wieck, A. Ludwig, et al., Deterministic photon source interfaced with a programmable silicon-nitride integrated circuit, npj Quantum Inf. 9, 94 (2023).
  7. R. Uppu, F. T. Pedersen, Y. Wang, C. T. Olesen, C. Papon, X. Zhou, L. Midolo, S. Scholz, A. D. Wieck, A. Ludwig, et al., Scalable integrated single-photon source, Sci. Adv. 6, eabc8268 (2020).
  8. N. Tomm, A. Javadi, N. O. Antoniadis, D. Najer, M. C. Löbl, A. R. Korsch, R. Schott, S. R. Valentin, A. D. Wieck, A. Ludwig, et al., A bright and fast source of coherent single photons, Nat. Nanotechnol. 16, 399 (2021).
  9. C. Papon, Y. Wang, R. Uppu, S. Scholz, A. D. Wieck, A. Ludwig, P. Lodahl, and L. Midolo, Independent operation of two waveguide-integrated quantum emitters, Phys. Rev. Appl. 19, L061003 (2023).
  10. J. Sprengers, A. Gaggero, D. Sahin, S. Jahanmirinejad, G. Frucci, F. Mattioli, R. Leoni, J. Beetz, M. Lermer, M. Kamp, et al., Waveguide superconducting single-photon detectors for integrated quantum photonic circuits, Appl. Phys. Lett. 99, 181110 (2011).
  11. G. Reithmaier, J. Senf, S. Lichtmannecker, T. Reichert, F. Flassig, A. Voss, R. Gross, and J. Finley, Optimisation of NbN thin films on gaas substrates for in-situ single photon detection in structured photonic devices, J. Appl. Phys. 113, 143507 (2013).
  12. W. Bogaerts, D. Pérez, J. Capmany, D. A. Miller, J. Poon, D. Englund, F. Morichetti, and A. Melloni, Programmable photonic circuits, Nature 586, 207 (2020).
  13. N. C. Harris, Y. Ma, J. Mower, T. Baehr-Jones, D. Englund, M. Hochberg, and C. Galland, Efficient, compact and low loss thermo-optic phase shifter in silicon, Opt. Express 22, 10487 (2014).
  14. H. Nejadriahi, S. Pappert, Y. Fainman, and P. Yu, Efficient and compact thermo-optic phase shifter in silicon-rich silicon nitride, Opt. Lett. 46, 4646 (2021).
  15. T. Wood, C. Burrus, D. Miller, D. Chemla, T. Damen, A. Gossard, and W. Wiegmann, High-speed optical modulation with GaAs/GaAlAs quantum wells in a p-i-n diode structure, Appl. Phys. Lett. 44, 16 (1984).
  16. M. Thomaschewski and S. Bozhevolnyi, Pockels modulation in integrated nanophotonics, Appl. Phys. Rev. 9, 021311 (2022).
  17. L. Midolo, S. L. Hansen, W. Zhang, C. Papon, R. Schott, A. Ludwig, A. D. Wieck, P. Lodahl, and S. Stobbe, Electro-optic routing of photons from a single quantum dot in photonic integrated circuits, Opt. Express 25, 33514 (2017).
  18. Y. Wang, R. Uppu, X. Zhou, C. Papon, S. Scholz, A. D. Wieck, A. Ludwig, P. Lodahl, and L. Midolo, Electroabsorption in gated gaas nanophotonic waveguides, Appl. Phys. Lett. 118, 131106 (2021).
  19. L. Midolo, A. Schliesser, and A. Fiore, Nano-opto-electro-mechanical systems, Nat. Nanotechnol. 13, 11 (2018).
  20. C. Papon, X. Zhou, H. Thyrrestrup, Z. Liu, S. Stobbe, R. Schott, A. D. Wieck, A. Ludwig, P. Lodahl, and L. Midolo, Nanomechanical single-photon routing, Optica 6, 524 (2019).
  21. K. Van Acoleyen, J. Roels, P. Mechet, T. Claes, D. Van Thourhout, and R. Baets, Ultracompact phase modulator based on a cascade of NEMS-operated slot waveguides fabricated in silicon-on-insulator, IEEE Photonics J. 4, 779 (2012).
  22. C. Haffner, A. Joerg, M. Doderer, F. Mayor, D. Chelladurai, Y. Fedoryshyn, C. I. Roman, M. Mazur, M. Burla, H. J. Lezec, et al., Nano-opto-electro-mechanical switches operated at CMOS-level voltages, Science 366, 860 (2019).
  23. P. Edinger, A. Y. Takabayashi, C. Errando-Herranz, U. Khan, H. Sattari, P. Verheyen, W. Bogaerts, N. Quack, and K. B. Gylfason, Silicon photonic microelectromechanical phase shifters for scalable programmable photonics, Opt. Lett. 46, 5671 (2021).
  24. R. Baghdadi, M. Gould, S. Gupta, M. Tymchenko, D. Bunandar, C. Ramey, and N. C. Harris, Dual slot-mode NOEM phase shifter, Opt. Express 29, 19113 (2021).
  25. V. R. Almeida, Q. Xu, C. A. Barrios, and M. Lipson, Guiding and confining light in void nanostructure, Opt. Lett. 29, 1209 (2004).
  26. T. Grottke, W. Hartmann, C. Schuck, and W. H. Pernice, Optoelectromechanical phase shifter with low insertion loss and a 13π tuning range, Opt. Express 29, 5525 (2021).
  27. F. Beutel, T. Grottke, M. A. Wolff, C. Schuck, and W. H. Pernice, Cryo-compatible opto-mechanical low-voltage phase-modulator integrated with superconducting single-photon detectors, Opt. Express 30, 30066 (2022).
  28. R. Legtenberg, A. Groeneveld, and M. Elwenspoek, Comb-drive actuators for large displacements, J. Micromech. Microeng. 6, 320 (1996).
  29. X. Zhou, I. Kulkova, T. Lund-Hansen, S. L. Hansen, P. Lodahl, and L. Midolo, High-efficiency shallow-etched grating on GaAs membranes for quantum photonic applications, Appl. Phys. Lett. 113, 251103 (2018).
  30. J. G. Noel, Review of the properties of gold material for MEMS membrane applications, IET Circ. Dev. Syst. 10, 156 (2016).
  31. R. A. Thomas, C. Qvotrup, Z. Liu, and L. Midolo, Noise performance of on-chip nano-mechanical switches for quantum photonics applications, Adv. Quantum Technol. 8, 2400012 (2024).
  32. B. Guha, F. Marsault, F. Cadiz, L. Morgenroth, V. Ulin, V. Berkovitz, A. Lemaître, C. Gomez, A. Amo, S. Combrié, B. Gérard, G. Leo, and I. Favero, Surface-enhanced gallium arsenide photonic resonator with quality factor of 6×106, Optica 4, 218 (2017).
  33. S. Pautrel, F. Malabat, L. Waquier, M. Colombano, M. Morassi, A. Lemaitre, and I. Favero, Efficient and stable coupling to nanophotonic waveguides and resonators in stringent environments, Opt. Express 32, 26954 (2024).
  34. M. Reck, A. Zeilinger, H. J. Bernstein, and P. Bertani, Experimental realization of any discrete unitary operator, Phys. Rev. Lett. 73, 58 (1994).
  35. C. Taballione, M. C. Anguita, M. de Goede, P. Venderbosch, B. Kassenberg, H. Snijders, N. Kannan, W. L. Vleeshouwers, D. Smith, J. P. Epping, et al., 20-mode universal quantum photonic processor, Quantum 7, 1071 (2023).
  36. C. Sparrow, E. Martín-López, N. Maraviglia, A. Neville, C. Harrold, J. Carolan, Y. N. Joglekar, T. Hashimoto, N. Matsuda, J. L. O’Brien, et al., Simulating the vibrational quantum dynamics of molecules using photonics, Nature 557, 660 (2018).
  37. S. Bandyopadhyay, A. Sludds, S. Krastanov, R. Hamerly, N. Harris, D. Bunandar, M. Streshinsky, M. Hochberg, and D. Englund, Single-chip photonic deep neural network with forward-only training, Nat. Photonics 18, 1335 (2024).
  38. C. Qvotrup, Y. Wang, M. Albrechtsen, R. Thomas, Z. Liu, S. Scholz, A. Ludwig, and L. Midolo, Controlling emitter-field coupling in waveguides with nanomechanical phase shifters, Companion paper (2025).
  39. A. Tiranov, V. Angelopoulou, C. J. van Diepen, B. Schrinski, O. A. D. Sandberg, Y. Wang, L. Midolo, S. Scholz, A. D. Wieck, A. Ludwig, et al., Collective super-and subradiant dynamics between distant optical quantum emitters, Science 379, 389 (2023).
  40. University of Copenhagen, Data available at ERDA, https://erda.ku.dk/archives/bac814f36e556a10bcda98b4ecf4e1ad/published-archive.html (accessed: 2025-05-25).
