Postprocessing lattice strain in 4H-SiC

Helton Goncalves de Medeiros1,*, Agatha Christie Ulibarri1,2, Piyush Kumar1, Maria Mendes Martins1,3, Marianne Etzelmüller Bathen1,4, and Ulrike Grossner1

  • *Contact author: medeiros@aps.ee.ethz.ch
PDF

Phys. Rev. Applied 26, 014055 – Published 20 July, 2026

DOI: https://doi.org/10.1103/tnjl-xzgr

Abstract

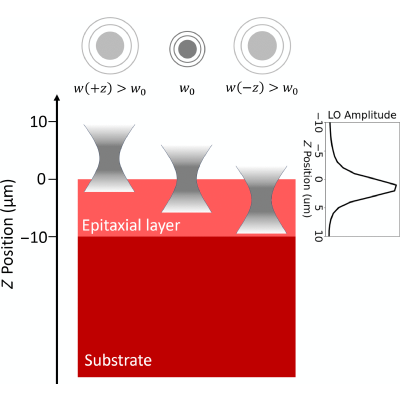

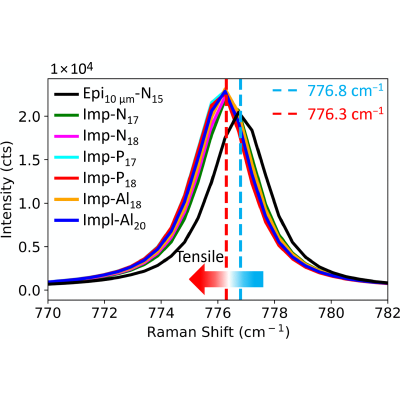

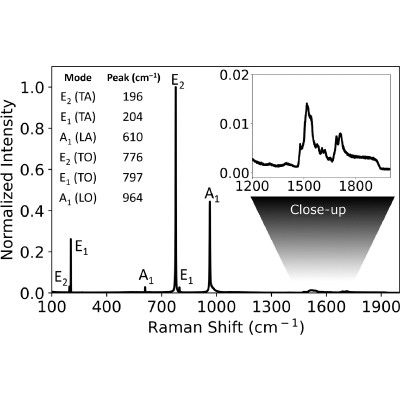

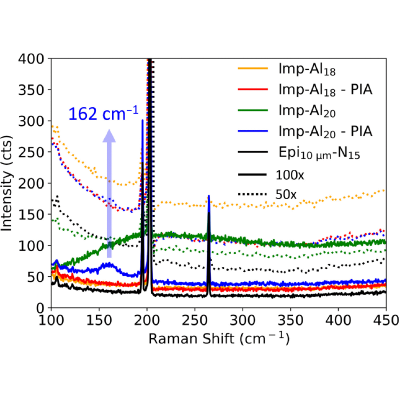

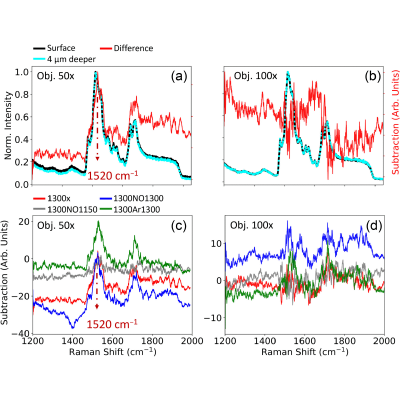

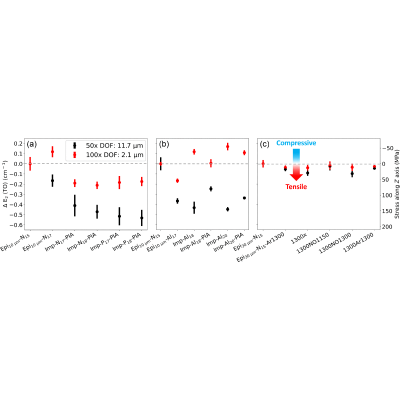

Processing steps, such as thermal oxidation, creation of p- and n-doped regions via ion implantation, and postoxidation and postimplantation annealing, are essential for successful and reliable fabrication of devices based on 4H-SiC. These processing steps are known to introduce crystalline defects or even modifications within the SiC base material that can potentially compromise device operation and reliability. In this work, we systematically study the strain introduced in the 4H-SiC crystal by SiC-specific manufacturing methods. The results show that tensile strain is present after ion implantation, thermal oxidation, and subsequent annealing processes. Interestingly, aluminum implanted samples show compressive strain near the surface in addition to the presence of an additional Raman signature, while nitrogen and phosphorus implanted samples experience tensile strain. Density functional theory calculations were performed to corroborate the experimental data and connect the type of strain to the microscopic impact that different dopants have on the SiC lattice. These results contribute to the understanding of processing-induced modifications within the crystal and show that Raman spectroscopy is a powerful tool to assess modifications to the 4H-SiC crystal.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (45)

  1. T. Kimoto, Material science and device physics in SiC technology for high-voltage power devices, Jpn. J. Appl. Phys. 54, 040103 (2015).
  2. S. Castelletto and A. Boretti, Silicon carbide color centers for quantum applications, J. Phys. Photonics 2, 022001 (2020).
  3. J.-M. Lauenstein, M. C. Casey, R. L. Ladbury, H. S. Kim, A. M. Phan, and A. D. Topper, Space radiation effects on SiC power device reliability, in Proc. IEEE Int. Rel. Phys. Symp. (IRPS) (IEEE, Monterey, CA, 2021), pp. 1–8, 10.1109/IRPS46558.2021.9405180.
  4. T. Kimoto and H. Watanabe, Defect engineering in SiC technology for high-voltage power devices, Appl. Phys. Express 13, 120101 (2020).
  5. P. Kumar, M. E. Bathen, M. I. M. Martins, T. Prokscha, and U. Grossner, Electrically active defects induced by thermal oxidation and post-oxidation annealing of n-type 4H–SiC, J. Appl. Phys. 135, 185703 (2024).
  6. S. Dhar, S. Wang, J. R. Williams, S. T. Pantelides, and L. C. Feldman, Interface passivation for silicon dioxide layers on silicon carbide, MRS Bull. 30, 288 (2005).
  7. D. M. Fleetwood, ‘Border traps’ in MOS devices, IEEE Trans. Nucl. Sci. 39, 269 (1992).
  8. D. K. Schroder, Semiconductor Material and Device Characterization (Wiley, Hoboken, NJ, 2015).
  9. T. Aichinger, G. Rescher, and G. Pobegen, Threshold voltage peculiarities and bias temperature instabilities of SiC MOSFETs, Microelectron. Rel. 80, 68 (2018).
  10. T. Kimoto, Y. Kanzaki, M. Noborio, H. Kawano, and H. Matsunami, Interface properties of metal–oxide–semiconductor structures on 4H-SiC (0001) and (1120) formed by N2O oxidation, Jpn. J. Appl. Phys. 44, 1213 (2005).
  11. P. Kumar, M. I. M. Martins, M. E. Bathen, J. Woerle, T. Prokscha, and U. Grossner, Investigation of the SiO2−SiC interface using low-energy muon-spin-rotation spectroscopy, Phys. Rev. Appl. 19, 054025 (2023).
  12. W. Fu, A. Kobayashi, H. Yano, A. Ueda, S. Harada, and T. Sakurai, Investigation of stress at SiO2/4H−SiC interface induced by thermal oxidation by confocal Raman microscopy, Jpn. J. Appl. Phys. 58, SBBD03 (2019).
  13. P. Wellmann, N. Ohtani, and R. Rupp, Wide Bandgap Semiconductors for Power Electronics: Materials, Devices, Applications (Wiley-VCH, Weinheim, 2021).
  14. A. Hallén and M. Linnarsson, Ion implantation technology for silicon carbide, Surf. Coat. Technol. 306, 190 (2016).
  15. R. Nipoti, H. M. Ayedh, and B. G. Svensson, Defects related to electrical doping of 4H−SiC by ion implantation, Mater. Sci. Semicond. Process. 78, 13 (2018).
  16. J. R. Ferraro, Introductory Raman Spectroscopy (Elsevier, Amsterdam, 2003).
  17. F. Fujie, T. Shiono, K. Murata, N. Ishibashi, Y. Mabuchi, and H. Tsuchida, Formation of basal plane dislocations by stress near epilayer/substrate interface of large-diameter SiC wafers with thick epitaxial layers, J. Appl. Phys. 135, 235701 (2024).
  18. C. A. Fisher, R. Esteve, S. Doering, M. Roesner, M. de Biasio, M. Kraft, W. Schustereder, and R. Rupp, An electrical and physical study of crystal damage in high-dose Al− and N-implanted 4H−SiC, in Materials Science Forum (Trans Tech Publications Ltd., Beach, Switzerland, 2017), Vol. 897, pp. 411–414.
  19. R. Sugie and T. Uchida, Determination of stress components in 4H−SiC power devices via Raman spectroscopy, J. Appl. Phys. 122, 195702 (2017).
  20. I. D. Wolf, Micro-Raman spectroscopy to study local mechanical stress in silicon integrated circuits, Semicond. Sci. Technol. 11, 139 (1996).
  21. G. C. Vásquez, M. E. Bathen, A. Galeckas, C. Bazioti, K. M. Johansen, D. Maestre, A. Cremades, Ø. Prytz, A. M. Moe, A. Y. Kuznetsov et al., Strain modulation of Si vacancy emission from SiC micro- and nanoparticles, Nano Lett. 20, 8689 (2020).
  22. H. Sakakima, A. Goryu, A. Kano, A. Hatano, K. Hirohata, and S. Izumi, Modeling the effect of mechanical stress on bipolar degradation in 4H−SiC power devices, J. Appl. Phys. 128, 025701 (2020).
  23. P. Kumar, M. I. M. Martins, M. E. Bathen, T. Prokscha, and U. Grossner, Al-implantation induced damage in 4H−SiC, Mater. Sci. Semicond. Process. 174, 108241 (2024).
  24. A. Raj, H. A. Witek, and H. O. Hamaguchi, Evaluating stability of a Raman spectrometer for long-time experiments, J. Raman Spectrosc. 52, 1032 (2021).
  25. S. Fukura, T. Mizukami, S. Odake, and H. Kagi, Factors determining the stability, resolution, and precision of a conventional Raman spectrometer, Appl. Spectrosc. 60, 946 (2006).
  26. K. Yokomoto, K. Shioura, M. Yabu, M. Nakano, and N. Ohtani, Novel characterization method for the nitrogen doping concentration in heavily nitrogen-doped 4H−SiC crystals by Raman scattering microscopy, Jpn. J. Appl. Phys. 59, 051003 (2020).
  27. D. Dutta, D. S. De, D. Fan, S. Roy, G. Alfieri, M. Camarda, M. Amsler, J. Lehmann, H. Bartolf, S. Goedecker, and T. A. Jung, Evidence for carbon clusters present near thermal gate oxides affecting the electronic band structure in SiC-MOSFET, Appl. Phys. Lett. 115, 102104 (2019).
  28. W. Lu, L. C. Feldman, Y. Song, S. Dhar, W. E. Collins, W. C. Mitchel, and J. R. Williams, Graphitic features on SiC surface following oxidation and etching using surface-enhanced Raman spectroscopy, Appl. Phys. Lett. 85, 3495 (2004).
  29. A. C. Ferrari and J. Robertson, Interpretation of Raman spectra of disordered and amorphous carbon, Phys. Rev. B 61, 14095 (2000).
  30. G. Kresse and J. Hafner, Ab initio molecular dynamics for liquid metals, Phys. Rev. B 47, 558 (1993).
  31. G. Kresse and J. Hafner, Ab initio molecular-dynamics simulation of the liquid-metal–amorphous-semiconductor transition in germanium, Phys. Rev. B 49, 14251 (1994).
  32. G. Kresse and J. Furthmüller, Efficiency of ab initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  33. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  34. J. W. Furness, A. D. Kaplan, J. Ning, J. P. Perdew, and J. Sun, Accurate and numerically efficient r2SCAN meta-generalized gradient approximation, J. Phys. Chem. Lett. 11, 8208 (2020).
  35. V. Žalandauskas, R. Silkinis, L. Vines, L. Razinkovas, and M. E. Bathen, Theory of the divacancy in 4H−SiC: Impact of the Jahn–Teller effect on optical properties, npj Comput. Mater. 11, 1 (2025).
  36. H. H. Woodbury and G. W. Ludwig, Electron spin resonance studies in SiC, Phys. Rev. 124, 1083 (1961).
  37. S. Greulich-Weber, M. Feege, J.-M. Spaeth, E. N. Kalabukhova, S. N. Lukin, and E. N. Mokhov, On the microscopic structures of shallow donors in 6H−SiC: Studies with EPR and ENDOR, Solid State Commun. 93, 393 (1995).
  38. A. Fukumoto, First-principles calculations of impurity states in 3C−SiC, Phys. Status Solidi B 203, 125 (1997).
  39. D. W. Feldman, J. H. Parker Jr, W. J. Choyke, and L. Patrick, Phonon dispersion curves by Raman scattering in SiC, polytypes 3C, 4H, 6H, 15R, and 21R, Phys. Rev. 173, 787 (1968).
  40. S. Nakashima and H. Harima, Raman investigation of SiC polytypes, Phys. Status Solidi (a) 162, 39 (1997).
  41. M. Yoshikawa, Y. Fujita, and M. Murakami, Stress characterization of the interface between thermal oxide and the 4H−SiC epitaxial layer using near-field optical Raman microscopy, Appl. Spectrosc. 73, 1193 (2019).
  42. F. Cerdeira, C. J. Buchenauer, F. H. Pollak, and M. Cardona, Stress-induced shifts of first-order Raman frequencies of diamond- and zinc-blende-type semiconductors, Phys. Rev. B 5, 580 (1972).
  43. K. Piskorski, M. Guziewicz, M. Wzorek, and L. Dobrzański, Investigation of Al− and N-implanted 4H-SiC applying visible and deep-UV Raman scattering spectroscopy, AIP Adv. 10, 055311 (2020).
  44. J. Muting, V. Bobal, M. G. Willinger, A. B. Zadeh, S. Reidt, L. Vines, and U. Grossner, Spatially resolved diffusion of aluminum in 4H−SiC during postimplantation annealing, IEEE Trans. Electron Devices 67, 4360 (2020).
  45. J. Woerle, B. C. Johnson, C. Bongiorno, K. Yamasue, G. Ferro, D. Dutta, T. A. Jung, H. Sigg, Y. Cho, U. Grossner et al., Two-dimensional defect mapping of the SiO2/4H−SiC interface, Phys. Rev. Mater. 3, 084602 (2019).
