Fiber-integrated N-V diamond magnetometer compatible with commercial endoscopic systems

Satbir Singh1, Hyunjong Lee1, Nhu Anh Nguyen1, Seonghyeon Kang1, Jeong Hyun Shim2, Sangwon Oh3,*, and Kwang-Geol Lee1,4,†

  • *Contact author: sangwonoh@ajou.ac.kr
  • †Contact author: kglee@hanyang.ac.kr
PDF

Phys. Rev. Applied 25, 044019 – Published 8 April, 2026

DOI: https://doi.org/10.1103/qhwp-kf51

Abstract

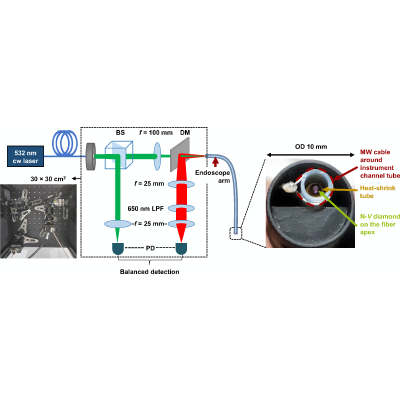

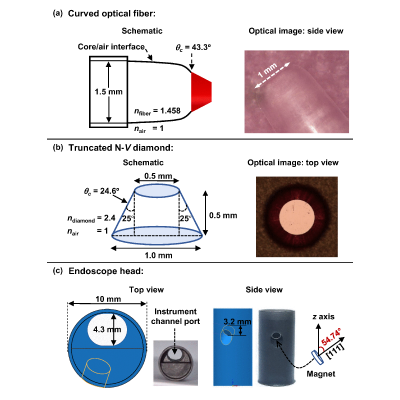

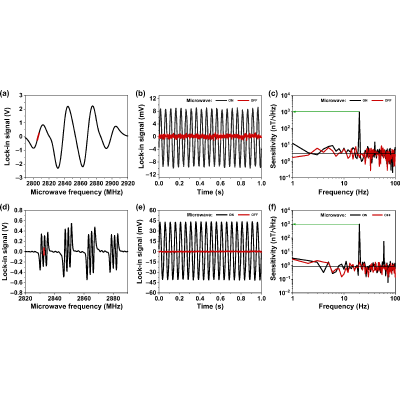

The nitrogen-vacancy (N-V) center in diamond provides a robust, solid-state platform for magnetic field measurements at room temperature. To harness its potential in inspecting inaccessible regions, here we present a compact endoscopic configuration of a N-V diamond–based magnetometer. The endoscopic magnetometer was developed by integration of a large-core optical fiber with a bulk N-V diamond for laser excitation and photoluminescence (PL) collection. The diamond and fiber were specially shaped to enhance PL collection through the fiber. Additionally, a three-dimensionally-printed endoscope head was used to facilitate alignment of the bias magnetic field along the N-V axis. A magnetic field sensitivity of approximately 3 nT/√Hz at 20 Hz was achieved by continuous-wave magnetometry measurements. The endoscope diameter was restricted to 10 mm to match the dimensions of most commercial endoscopes. The magnetic field nonuniformity caused by the small separation between the diamond and the magnet in the endoscope head limited the overall sensitivity. It could be further improved to 0.85 nT/√Hz at 20 Hz by use of a magnet placed at a sufficient distance outside the endoscope head. Our endoscopic design is mechanically stable and provides additional opportunities for integrating other functionalities into the probe head as needed.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. A. Gruber, A. Dräbenstedt, C. Tietz, L. Fleury, J. Wrachtrup, and C. von Borczyskowski, Scanning confocal optical microscopy and magnetic resonance on single defect centers, Science 276, 2012 (1997).
  2. J. R. Maze, P. L. Stanwix, J. S. Hodges, S. Hong, J. M. Taylor, P. Cappellaro, L. Jiang, M. V. Gurudev Dutt, E. Togan, A. S. ZIbrov, et al., Nanoscale magnetic sensing with an individual electronic spin in diamond, Nature 455, 644 (2008).
  3. G. Balasubramanian, I. Y. Chan, R. Kolesov, M. Al-Hmoud, J. Tisler, C. Shin, C. Kim, A. Wojcik, P. R. Hemmer, A. Krueger, et al., Nanoscale imaging magnetometry with diamond spins under ambient conditions, Nat. Mater. 7, 383 (2008).
  4. J. F. Barry, J. M. Schloss, E. Bauch, M. J. Turner, C. A. Hart, L. M. Pham, and R. L. Walsworth, Sensitivity optimization for NV-diamond magnetometry, Rev. Mod. Phys. 92, 015004 (2020).
  5. V. M. Acosta, E. Bauch, M. P. Ledbetter, A. Waxman, L. S. Bouchard, and D. Budker, Temperature dependence of the nitrogen-vacancy magnetic resonance in diamond, Phys. Rev. Lett. 104, 070801 (2010).
  6. D. M. Toyli, C. F. de las Casas, D. J. Christle, V. V. Dobrovitski, and D. D. Awschalom, Fluorescence thermometry enhanced by the quantum coherence of single spins in diamond, Proc. Natl. Acad. Sci. U.S.A. 110, 8417 (2013).
  7. N. M. Beaver and P. Stevenson, Selective temperature sensing in nanodiamonds using dressed states, Adv. Quantum Technol. 7, 2400271 (2024).
  8. F. Dolde, H. Fedder, M. W. Doherty, T. Nöbauer, F. Rempp, G. Balasubramanian, T. Wolf, F. Reinhard, L. C. L. Hollenberg, F. Jelezko, and J. Wrachtrup, Electric-field sensing using single diamond spins, Nat. Phys. 7, 459 (2011).
  9. M. Block, B. Kobrin, A. Jarmola, S. Hsieh, C. Zu, N. L. Figueroa, V. M. Acosta, J. Minguzzi, J. R. Maze, D. Budker, and N. Y. Yao, Optically enhanced electric field sensing using nitrogen-vacancy ensembles, Phys. Rev. Appl. 16, 024024 (2021).
  10. A. Jarmola, S. Lourette, V. M. Acosta, A. G. Birdwell, P. Blümler, D. Budker, T. Ivanov, and V. S. Malinovsky, Demonstration of diamond nuclear spin gyroscope, Sci. Adv. 7, 3840 (2021).
  11. T. H. Taminiau, J. Cramer, T. van der Sar, V. V. Dobrovitski, and R. Hanson, Universal control and error correction in multi-qubit spin registers in diamond, Nat. Nanotechnol. 9, 171 (2014).
  12. Z. Xu, Z.-Q. Yin, Q. Han, and T. Li, Quantum information processing with closely-spaced diamond color centers in strain and magnetic fields, Opt. Mater. Express 9, 4654 (2019).
  13. R. Katsumi, K. Takada, F. Jelezko, and T. Yatsui, Recent progress in hybrid diamond photonics for quantum information processing and sensing, Commun. Eng. 4, 85 (2025).
  14. A. Tayefeh Younesi, M. Omar, A. Wickenbrock, D. Budker, and R. Ulbricht, Towards high-sensitivity magnetometry with nitrogen-vacancy centers in diamond using the singlet infrared absorption, Phys. Rev. Appl. 23, 054019 (2025).
  15. Y. Zhang, Z. Li, Y. Feng, H. Guo, H. Wen, J. Tang, and J. Liu, High-sensitivity DC magnetic field detection with ensemble NV centers by pulsed quantum filtering technology, Opt. Express 28, 16191 (2020).
  16. A. F. L. Poulsen, J. D. Clement, J. L. Webb, R. H. Jensen, L. Troise, K. Berg-Sørensen, A. Huck, and U. L. Andersen, Optimal control of a nitrogen-vacancy spin ensemble in diamond for sensing in the pulsed domain, Phys. Rev. B 106, 014202 (2022).
  17. M. Wang, M. Caouette-Mansour, A. Solyom, and L. Childress, Comparing continuous and pulsed nitrogen-vacancy DC magnetometry in the optical-power-limited regime, J. Opt. Soc. Am. B 41, 62 (2024).
  18. J. F. Barry, M. H. Steinecker, S. T. Alsid, J. Majumder, L. M. Pham, M. F. O’Keeffe, and D. A. Braje, Sensitive ac and dc magnetometry with nitrogen-vacancy-center ensembles in diamond, Phys. Rev. Appl. 22, 044069 (2024).
  19. R. S. Said, D. W. Berry, and J. Twamley, Nanoscale magnetometry using a single-spin system in diamond, Phys. Rev. B 83, 125410 (2011).
  20. W. S. Huxter, M. L. Palm, M. L. Davis, P. Welter, C. H. Lambert, M. Trassin, and C. L. Degen, Scanning gradiometry with a single spin quantum magnetometer, Nat. Commun. 13, 3761 (2022).
  21. Y. Li, F. A. Gerritsma, S. Kurdi, N. Codreanu, S. Gröblacher, R. Hanson, R. Norte, and T. van der Sar, A fiber-coupled scanning magnetometer with nitrogen-vacancy spins in a diamond nanobeam, ACS Photonics 10, 1859 (2023).
  22. M. Zhao, Q. Lin, Q. Meng, W. Shan, L. Zhu, Y. Chen, T. Liu, L. Zhao, and Z. Jiang, All fiber vector magnetometer based on nitrogen-vacancy center, Nanomaterials 13, 949 (2023).
  23. G. Chatzidrosos, J. S. Rebeirro, H. Zheng, M. Omar, A. Brenneis, F. M. Stürner, T. Fuchs, T. Buck, R. Rölver, T. Schneemann, et al., Fiberized diamond-based vector magnetometers, Front. Photonics 2, 732748 (2021).
  24. A. Kuwahata, T. Kitaizumi, K. Saichi, T. Sato, R. Igarashi, T. Ohshima, Y. Masuyama, T. Iwasaki, M. Hatano, F. Jelezko, et al., Magnetometer with nitrogen-vacancy center in a bulk diamond for detecting magnetic nanoparticles in biomedical applications, Sci. Rep. 10, 2483 (2020).
  25. I. V. Fedotov, S. M. Blakley, E. E. Serebryannikov, P. Hemmer, M. O. Scully, and A. M. Zheltikov, High-resolution magnetic field imaging with a nitrogen-vacancy diamond sensor integrated with a photonic-crystal fiber, Opt. Lett. 41, 472 (2016).
  26. I. V. Fedotov, L. V. Doronina-Amitonova, D. A. Sidorov-Biryukov, N. A. Safronov, S. Blakley, A. O. Levchenko, S. A. Zibrov, A. B. Fedotov, S. Ya. Kilin, M. O. Scully, V. L. Velichansky, and A. M. Zheltikov, Fiber-optic magnetic-field imaging, Opt. Lett. 39, 6954 (2014).
  27. Die Fang, Yibo Wang, Xin Wang, Yaoguo Gao, Zhengfei Zhang, Mengjia Liu, Shuo Wang, Feng Xu, Zhifei Yu, Jianpei Geng, Peng Qian, Jing-Wei Fan, and Bing Chen, Robust 1-µm-resolution magnetic probe enabled by optical trapping of nanodiamonds on a tapered fiber, Nano Lett. 25, 10572 (2025).
  28. D. Duan, G. X. Du, V. K. Kavatamane, S. Arumugam, Y.-K. Tzeng, H.-C. Chang, and G. Balasubramanian, Efficient nitrogen-vacancy centers’ fluorescence excitation and collection from micrometer-sized diamond by a tapered optical fiber in endoscope-type configuration, Opt. Express 27, 6734 (2019).
  29. Man Zhao, Qijing Lin, Qingzhi Meng, Wenjun Shan, Liangquan Zhu, Yao Chen, Libo Zhao, and Zhuangde Jiang, Efficient fluorescence coupling microlens integrated fiber magnetometer probe based on nitrogen vacancy centers, Opt. Lett. 48, 4045 (2023).
  30. Shao-Chun Zhang, Hao-Bin Lin, Yang Dong, Bo Du, Xue-Dong Gao, Cui Yu, Zhi-Hong Feng, Xiang-Dong Chen, Guang-Can Guo, and Fang-Wen Sun, High-sensitivity and wide-bandwidth fiber-coupled diamond magnetometer with surface coating, Photonics Res. 10, 2191 (2022).
  31. Stefan Dix, Jonas Gutsche, Erik Waller, Georg von Freymann, and Artur Widera, Fiber-tip endoscope for optical and microwave control, Rev. Sci. Instrum. 93, 095104 (2022).
  32. S. M. Graham, A. T. M. A. Rahman, L. Munn, R. L. Patel, A. J. Newman, C. J. Stephen, G. Colston, A. Nikitin, A. M. Edmonds, D. J. Twitchen, M. L. Markham, and G. W. Morley, Fiber-coupled diamond magnetometry with an unshielded sensitivity of 30 pT/√Hz, Phys. Rev. Appl. 19, 044042 (2023).
  33. F. M. Stürner, A. Brenneis, T. Buck, J. Kassel, R. Rölver, T. Fuchs, A. Savitsky, D. Suter, J. Grimmel, S. Hengesbach, et al., Integrated and portable magnetometer based on nitrogen-vacancy ensembles in diamond, Adv. Quantum Technol. 4, 2000111 (2021).
  34. A. J. Newman, S. M. Graham, C. J. Stephen, A. M. Edmonds, M. L. Markham, and G. W. Morley, Endoscopic diamond magnetometer for cancer surgery, Phys. Rev. Appl. 24, 024029 (2025).
  35. See Supplemental Material at http://link.aps.org/supplemental/10.1103/qhwp-kf51 for analysis of the optical response of the shaped diamond-fiber assembly using a homebuilt confocal microscope and ray-tracing simulations.
  36. S. Singh, H. Lee, N. A. Nguyen, S. Kang, J. H. Shim, S. Oh, and K-G. Lee, Ray tracing PL collection simulations_COMSOL, Zenodo, https://doi.org/10.5281/zenodo.18030226 (2025).
  37. D. Le Sage, L. M. Pham, N. Bar-Gill, C. Belthangady, M. D. Lukin, A. Yacoby, and R. L. Walsworth, Efficient photon detection from color centers in a diamond optical waveguide, Phys. Rev. B 85, 121202 (2012).
  38. S. Oh, S.-J. Lee, J. H. Shim, N. W. Song, and T. T. Hien, Quantum diamond microscopy with optimized magnetic field sensitivity and sub-ms temporal resolution, J. Appl. Phys. 133, 204402 (2023).
