Tunable terahertz source on a chip with decade-long stability using layered-superconductor elliptical microcavities

Mingqi Zhang1, Shungo Nakagawa2, Yuki Enomoto2, Yoshihiko Kuzumi2, Ryuta Kikuchi2, Yuki Yamauchi2, Toshiaki Hattori3, Richard A. Klemm4, Kazuo Kadowaki2 et al.

Takanari Kashiwagi2 and Kaveh Delfanazari1,*

  • 1James Watt School of Engineering, University of Glasgow, Glasgow G12 8QQ, UK
  • 2Department of Materials Science, Institute of Pure and Applied Sciences, University of Tsukuba, 1-1-1 Tenoudai, Tsukuba, Ibaraki 305-8573, Japan
  • 3Department of Applied Physics, Institute of Pure and Applied Sciences, University of Tsukuba, 1-1-1 Tenoudai, Tsukuba, Ibaraki 305-8573, Japan
  • 4Department of Physics, University of Central Florida, 4111 Libra Drive, Orlando, Florida 32816-2385, USA

  • *Contact author: Kaveh.Delfanazari@glasgow.ac.uk
PDF

Phys. Rev. Applied 24, 054012 – Published 5 November, 2025

DOI: https://doi.org/10.1103/pwlx-4sjf

Abstract

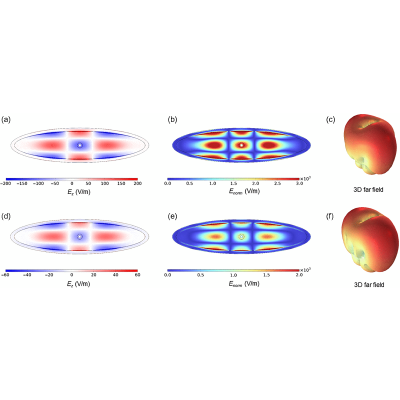

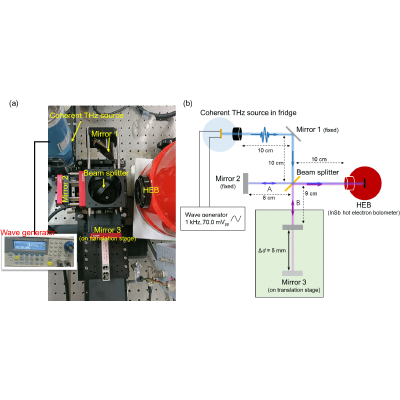

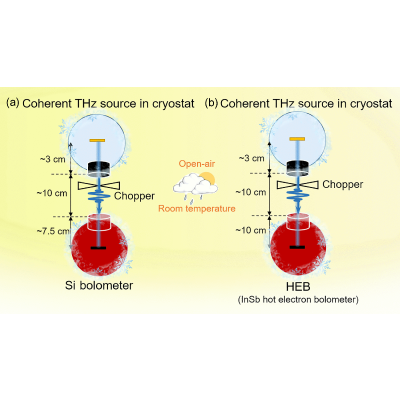

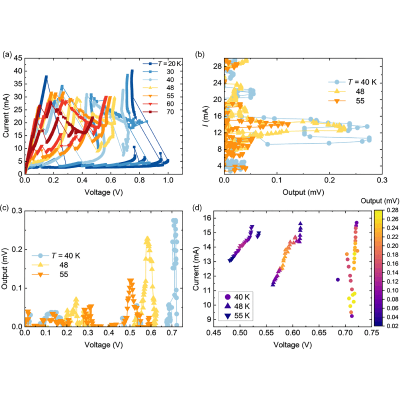

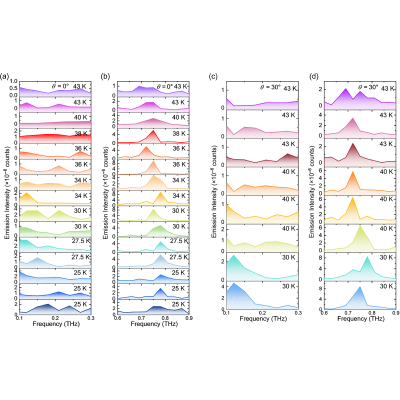

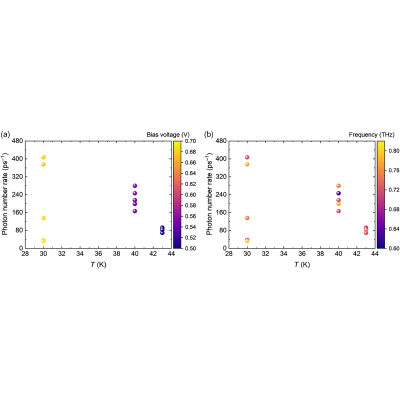

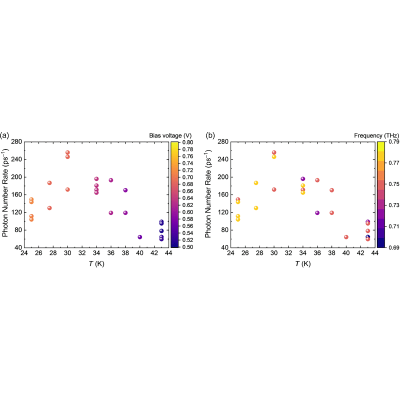

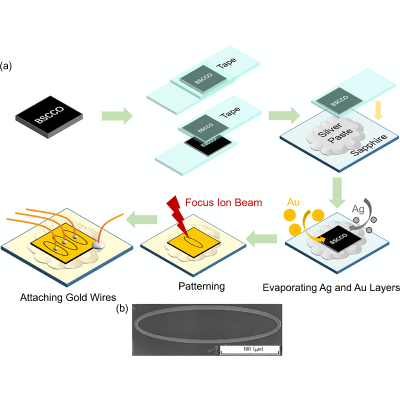

Chip-scale, electrically tunable, continuous-wave, coherent terahertz (THz) radiation sources are critical for emerging applications in sensing, imaging, spectroscopy, communications, space, and quantum technologies. Here, we demonstrate a robust source-on-a-chip THz emitter based on a layered high-temperature superconductor, engineered with an elliptical microcavity and capable of sustained coherent emission over an unprecedented operational lifetime exceeding 11 years. This compact THz source operates up to 60 K (with Tc ≈ 90 K), delivering stable radiation in the 0.7–0.8 THz range, with on-chip electrical tunability from 100 GHz to 1 THz. Coherence arises from the phase-locked oscillation of intrinsic Josephson junction arrays, resonantly coupled to transverse electromagnetic modes within the cavity, analogous to a laser cavity, yielding collective macroscopic oscillations. THz emission remains detectable across an approximately 0.5-m free-space open-air link at room temperature. We analyse the cavity-mode structure and extract THz photon generation rates up to approximately 503 photons fs−1 in cryogenic conditions and 50–260 photons ps−1 over the air. These results demonstrate, for the first time, sustained and electrically tunable coherent THz emission from superconductors over multiyear timescales, defining another class of robust, chip-integrated THz lasers with applications in scalable THz and quantum technologies.

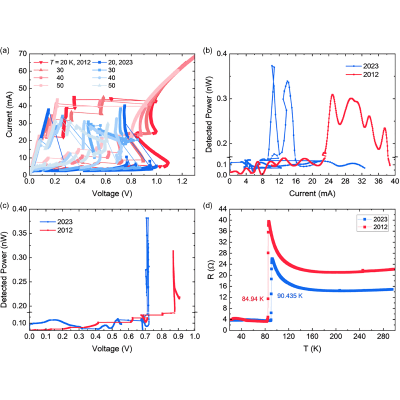

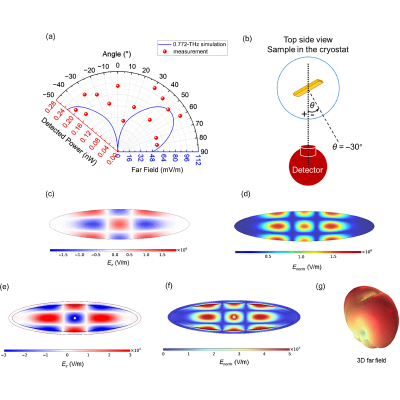

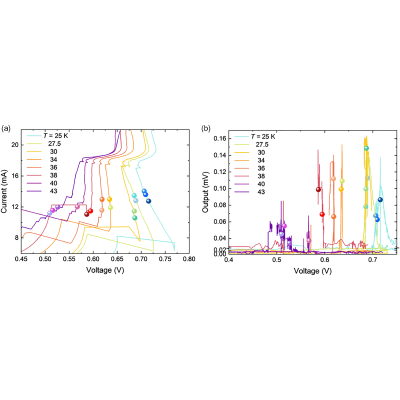

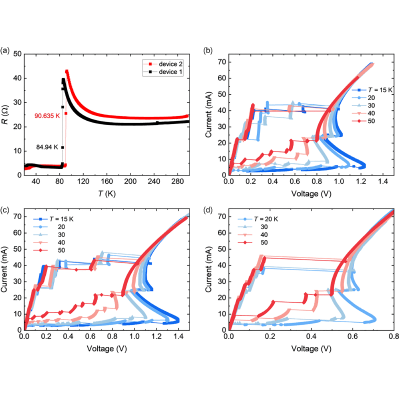

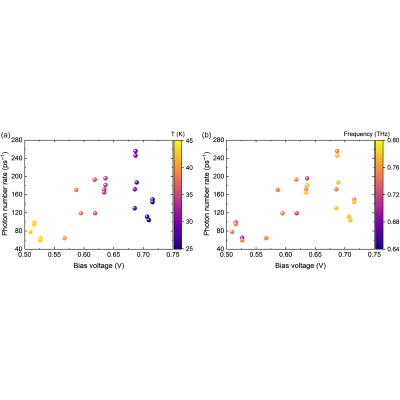

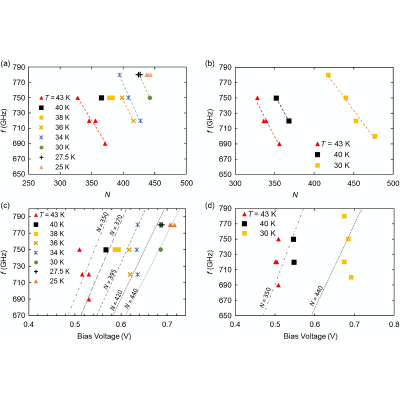

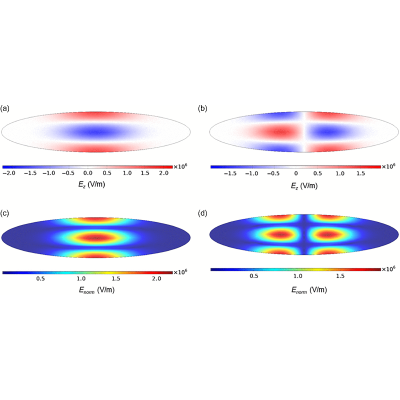

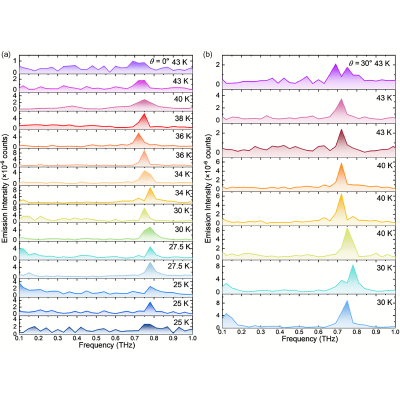

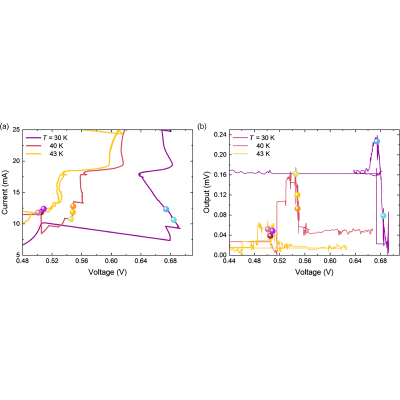

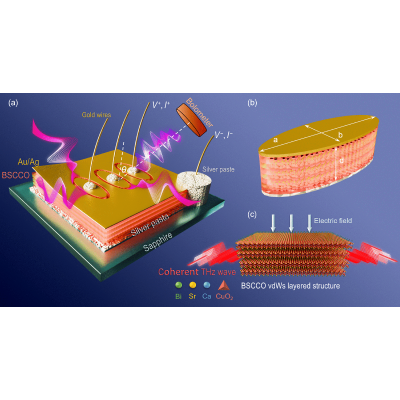

View figure in article
