High-resolution imaging of ultrasonic fields through a multimode optical fiber

Benjamin Keenlyside1,2,*, Dylan Marques1,2,3, David B. Phillips4, Edward Zhang1, Paul Beard1, and James Guggenheim1,2,3

  • *Contact author: b.p.keenlyside@bham.ac.uk
PDF

Phys. Rev. Applied 24, 054043 – Published 14 November, 2025

DOI: https://doi.org/10.1103/nrzh-hqsh

Abstract

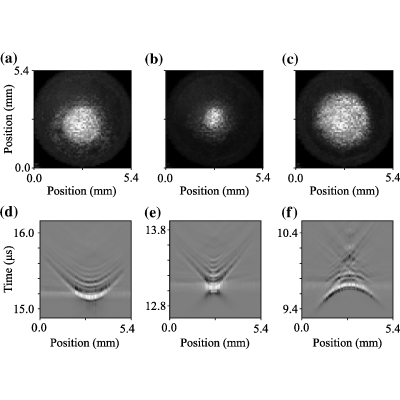

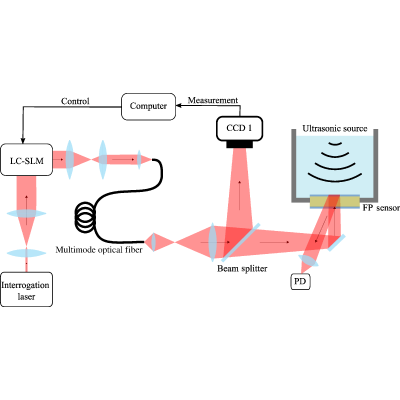

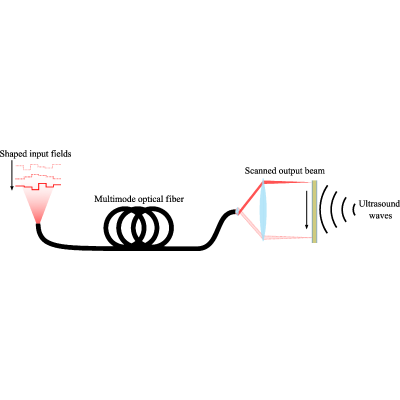

High-resolution ultrasound and photoacoustic imaging with flexible, lightweight probes is highly desirable for applications ranging from handheld clinical diagnostics to minimally invasive endoscopy and industrial inspection in confined environments. Piezoelectric transducer arrays, while widely used, face limitations in resolution, bandwidth, and scalability. To overcome these limitations, we present an approach that combines optical ultrasound detection using a Fabry-Pérot ultrasound sensor (FPUS) with light delivery through a single multimode optical fiber (MMF), utilizing wavefront shaping for beam control. This approach offers the capability to combine high-resolution imaging, a compact and flexible form factor, and software-defined reconfigurable array read-out. We present a prototype imaging system in which an FPUS is interrogated through a 200-µm-core-diameter MMF supporting ∼2000 spatial light modes, and use this system to map the ultrasound fields produced by known transducers. We demonstrate high-resolution, high-sensitivity ultrasonic field mapping, paving the way to a new class of versatile handheld imaging devices and endoscopes in medicine and industry.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. S. Sooklal and P. Chahal, Endoscopic ultrasound, Surg. Clin. 100, 1133 (2020).
  2. B. W. Drinkwater and P. D. Wilcox, Ultrasonic arrays for non-destructive evaluation: A review, NDT&E Int. 39, 525 (2006).
  3. R. Manwar, K. Kratkiewicz, and K. Avanaki, Overview of ultrasound detection technologies for photoacoustic imaging, Micromachines 11, 692 (2020).
  4. E. Zhang, J. Laufer, and P. Beard, Backward-mode multiwavelength photoacoustic scanner using a planar Fabry-Pérot polymer film ultrasound sensor for high-resolution three-dimensional imaging of biological tissues, Appl. Opt. 47, 561 (2008).
  5. J. A. Guggenheim, T. J. Allen, O. O. Ogunlade, and P. Beard, High sensitivity detectors in photoacoustic imaging: How close are we to the ultimate limits of NEP?, in Photons Plus Ultrasound: Imaging and Sensing 2025 (SPIE, 2025), pp. PC133190O.
  6. N. T. Huynh, E. Zhang, O. Francies, F. Kuklis, T. Allen, J. Zhu, O. Abeyakoon, F. Lucka, M. Betcke, J. Jaros, S. Arridge, B. Cox, A. A. Plumb, and P. Beard, A fast all-optical 3D photoacoustic scanner for clinical vascular imaging, Nat. Biomed. Eng. 9, 638 (2024).
  7. E. Martin, E. Z. Zhang, J. A. Guggenheim, P. C. Beard, and B. E. Treeby, Rapid spatial mapping of focused ultrasound fields using a planar Fabry–Pérot sensor, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 64, 1711 (2017).
  8. K. Pham, S. Noimark, N. Huynh, E. Zhang, F. Kuklis, J. Jaros, A. Desjardins, B. Cox, and P. Beard, Broadband all-optical plane-wave ultrasound imaging system based on a Fabry–Pérot scanner, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 68, 1007 (2021).
  9. E. Baumann, U. Pohle, E. Zhang, T. Allen, C. Villringer, S. Pulwer, H. Gerhardt, and J. Laufer, A backward-mode optical-resolution photoacoustic microscope for 3D imaging using a planar Fabry-Pérot sensor, Photoacoustics 24, 100293 (2021).
  10. R. Ansari, E. Z. Zhang, A. E. Desjardins, and P. C. Beard, All-optical forward-viewing photoacoustic probe for high-resolution 3D endoscopy, Light: Sci. Appl. 7, 75 (2018).
  11. R. Ansari, E. Z. Zhang, A. E. Desjardins, and P. C. Beard, Miniature all-optical flexible forward-viewing photoacoustic endoscopy probe for surgical guidance, Opt. Lett. 45, 6238 (2020).
  12. B. Keenlyside, D. Marques, N. Redgewell, M. Cherkashin, E. Zhang, P. Beard, and J. Guggenheim, Spatially resolved readout of a Fabry–Pérot ultrasound sensor interrogated through a multimode optical fiber using wavefront shaping, Appl. Phys. Lett. 123, 201108 (2023).
  13. F. Taffoni, D. Formica, P. Saccomandi, G. D. Pino, and E. Schena, Optical fiber-based MR-compatible sensors for medical applications: An overview, Sensors 10, 14105 (2013).
  14. S. Coenen and M. Decreton, Feasibility of optical sensing for robotics in highly radioactive environments, IEEE Trans. Nucl. Sci. 40, 851 (1993).
  15. Y. Choi, C. Yoon, M. Kim, T. D. Yang, C. Fang-Yen, R. R. Dasari, K. J. Lee, and W. Choi, Scanner-free and wide-field endoscopic imaging by using a single multimode optical fiber, Phys. Rev. Lett. 109, 203901 (2012).
  16. S. Ohayon, A. Caravaca-Aguirre, R. Piestun, and J. J. DiCarlo, Minimally invasive multimode optical fiber microendoscope for deep brain fluorescence imaging, Biomed. Opt. Express 9, 1492 (2018).
  17. D. Stellinga, D. B. Phillips, S. P. Mekhail, A. Selyem, S. Turtaev, T. Čižmár, and M. J. Padgett, Time-of-flight 3D imaging through multimode optical fibers, Science 374, 1395 (2021).
  18. A. M. Caravaca-Aguirre, S. Singh, S. Labouesse, M. V. Baratta, R. Piestun, and E. Bossy, Hybrid photoacoustic-fluorescence microendoscopy through a multimode fiber using speckle illumination, APL Photonics 4, 096103 (2019).
  19. S. Mezil, A. M. Caravaca-Aguirre, E. Z. Zhang, P. Moreau, I. Wang, P. C. Beard, and E. Bossy, Single-shot hybrid photoacoustic-fluorescent microendoscopy through a multimode fiber with wavefront shaping, Biomed. Opt. Express 11, 5717 (2020).
  20. D. B. Conkey, A. N. Brown, A. M. Caravaca-Aguirre, and R. Piestun, Genetic algorithm optimization for focusing through turbid media in noisy environments, Opt. Express 20, 4840 (2012).
  21. S. M. Popoff, G. Lerosey, R. Carminati, M. Fink, A. C. Boccara, and S. Gigan, Measuring the transmission matrix in optics: An approach to the study and control of light propagation in disordered media, Phys. Rev. Lett. 104, 100601 (2010).
  22. B. T. Cox and P. C. Beard, The frequency-dependent directivity of a planar fabry-pérot polymer film ultrasound sensor, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 54, 394 (2007).
  23. P. C. Beard, F. Perennes, and T. N. Mills, Transduction mechanisms of the Fabry-Pérot polymer film sensing concept for wideband ultrasound detection, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 46, 1575 (1999).
  24. D. Marques, J. Guggenheim, and P. R. Munro, Jolab a free and open-source software to simulate light propagation in optical systems, in Three-Dimensional and Multidimensional Microscopy: Image Acquisition and Processing XXVIII (SPIE, 2021), Vol. 11649.
  25. M. Dantuma, F. Lucka, S. Kruitwagen, A. Javaherian, L. Alink, R. van Meerdervoort, M. Nanninga, T. Root, B. De Santi, and J. Budisky, Fully three-dimensional sound speed-corrected multi-wavelength photoacoustic breast tomography, arXiv preprint arXiv:2308.06754 (2023).
  26. A. D. Gomes, S. Turtaev, Y. Du, and T. Čižmár, Near perfect focusing through multimode fibres, Opt. Express 30, 10645 (2022).
  27. S. A. Goorden, J. Bertolotti, and A. P. Mosk, Superpixel-based spatial amplitude and phase modulation using a digital micromirror device, Opt. Express 22, 17999 (2014).
  28. D. B. Conkey, A. M. Caravaca-Aguirre, and R. Piestun, High-speed scattering medium characterization with application to focusing light through turbid media, Opt. Express 20, 1733 (2012).
  29. B. R. Brown and A. W. Lohmann, Complex spatial filtering with binary masks, Appl. Opt. 5, 967 (1966).
  30. J. C. Rocha, T. Wright, U. G. Būtaitė, J. Carpenter, G. S. Gordon, and D. B. Phillips, Fast and light-efficient wavefront shaping with a MEMS phase-only light modulator, Opt. Express 32, 43300 (2024).
  31. S. Li, C. Saunders, D. J. Lum, J. Murray-Bruce, V. K. Goyal, T. Čižmár, and D. B. Phillips, Compressively sampling the optical transmission matrix of a multimode fibre, Light: Sci. Appl. 10, 88 (2021).
  32. N. Huynh, E. Zhang, M. Betcke, S. Arridge, P. Beard, and B. Cox, in Photons Plus Ultrasound: Imaging and Sensing 2014 (SPIE, 2014), pp. 321–325.
  33. J. Carpenter, B. J. Eggleton, and J. Schröder, Observation of Eisenbud–Wigner–Smith states as principal modes in multimode fibre, Nat. Photonics 9, 751 (2015).
  34. S.-Y. Lee, V. J. Parot, B. E. Bouma, and M. Villiger, Efficient dispersion modeling in optical multimode fiber, Light: Sci. Appl. 12, 31 (2023).
  35. Z. Wen, Z. Dong, Q. Deng, C. Pang, C. F. Kaminski, X. Xu, H. Yan, L. Wang, S. Liu, J. Tang, W. Chen, X. Liu, and Q. Yang, Single multimode fibre for in vivo light-field-encoded endoscopic imaging, Nat. Photonics 17, 679 (2023).
  36. S. P. Mekhail, in Complex Light and Optical Forces XIX (SPIE, 2025), pp. PC133930K.
  37. M. Plöschner, T. Tyc, and T. Čižmár, Seeing through chaos in multimode fibres, Nat. Photonics 9, 529 (2015).
  38. S. Li, S. A. R. Horsley, T. Tyc, T. Čižmár, and D. B. Phillips, Memory effect assisted imaging through multimode optical fibres, Nat. Commun. 12, 3751 (2021).
  39. D. E. Boonzajer Flaes, J. Stopka, S. Turtaev, J. F. de Boer, T. Tyc, and T. Čižmár, Robustness of light-transport processes to bending deformations in graded-index multimode waveguides, Phys. Rev. Lett. 120, 233901 (2018).
  40. D. M. Marques, J. A. Guggenheim, R. Ansari, E. Z. Zhang, P. C. Beard, and P. R. T. Munro, Modelling Fabry-Pérot etalons illuminated by focussed beams, Opt. Express 28, 7691 (2020).
  41. J. Czuchnowski and R. Prevedel, Adaptive optics enhanced sensitivity in Fabry-Pérot based photoacoustic tomography, Photoacoustics 23, 100276 (2021).
  42. P. C. Beard, Two-dimensional ultrasound receive array using an angle-tuned Fabry-Pérot polymer film sensor for transducer field characterization and transmission ultrasound imaging, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 52, 1002 (2005).
  43. P. Jákl, M. Šiler, J. Ježek, Á Cifuentes, J. Trägårdh, P. Zemánek, and T. Čižmár, Endoscopic imaging using a multimode optical fibre calibrated with multiple internal references, Photonics 9, 37 (2022).
