Direct observation of photon-induced vortices in superconducting films

Takeshi Jodoi1,2, Fuminori Hirayama1, Tetsuya Tsuruta1, Takahiro Kikuchi1, and Daiji Fukuda1

PDF

Phys. Rev. Applied 26, 034005 – Published 2 September, 2026

DOI: https://doi.org/10.1103/n295-rfl8

Abstract

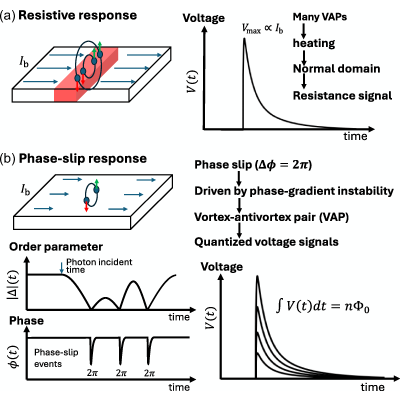

Nucleation of vortex-antivortex pairs (VAPs) is believed to play a central role in the photon detection mechanism of superconducting detectors; however, their direct dynamic observation has remained challenging. Here, we report the direct observation of photon-induced VAP dynamics in a current-carrying superconductor as quantized voltage signals following photon absorption. The observed signals are interpreted as discrete phase-slip events, where each vortex traversal induces a 2π phase change of the superconducting order parameter, resulting in a quantized voltage pulse whose time integral is given by the magnetic flux quantum Φ0. We analyze the resulting quantized signals as a function of bias current, base temperature, and input photon-number states and find that the number of VAPs generated per absorbed photon becomes effectively stabilized under specific conditions. Under these conditions, we demonstrate photon-number-resolving capability by directly counting phase-slip-induced voltage quanta. Our results reveal a detection mechanism governed by phase dynamics rather than conventional resistive transitions and represent the first demonstration of photon-number resolution based on VAP counting, enabling fast multi-photon-resolving superconducting detectors for quantum optics.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (17)

  1. C. E. Ascheron, H. J. Kölsch, and W. Skolaut, Transition-edge sensors, Cryog. Part. Detect. 99, 63 (2005).
  2. J. N. Ullom and D. A. Bennett, Review of superconducting transition-edge sensors for x-ray and gamma-ray spectroscopy, Supercond. Sci. Technol. 28, 084003 (2015).
  3. G. N. Gol’tsman, O. Okunev, G. Chulkova, A. Lipatov, A. Semenov, K. Smirnov, B. Voronov, A. Dzardanov, C. Williams, and R. Sobolewski, Picosecond superconducting single-photon optical detector, Appl. Phys. Lett. 79, 705 (2001).
  4. C. M. Natarajan, M. G. Tanner, and R. H. Hadfield, Superconducting nanowire single-photon detectors: Physics and applications, Supercond. Sci. Technol. 25, 063001 (2012).
  5. D. V. Reddy, R. R. Nerem, S. W. Nam, R. P. Mirin, and V. B. Verma, Superconducting nanowire single-photon detectors with 98% system detection efficiency at 1550 nm, Optica 7, 1649 (2020).
  6. A. D. Semenov, G. N. Gol’tsman, and A. A. Korneev, Quantum detection by current carrying superconducting film, Physica (Amsterdam) 351C, 349 (2001).
  7. A. Semenov, A. Engel, H.-W. Hübers, K. Il’in, and M. Siegel, Spectral cut-off in the efficiency of the resistive state formation caused by absorption of a single-photon in current-carrying superconducting nano-strips, Eur. Phys. J. B 47, 495 (2005).
  8. A. N. Zotova and D. Y. Vodolazov, Photon detection by current-carrying superconducting film: A time-dependent Ginzburg-Landau approach, Phys. Rev. B 85, 024509 (2012).
  9. D. Y. Vodolazov, Current dependence of the red boundary of superconducting single-photon detectors in the modified hot-spot model, Phys. Rev. B 90, 054515 (2014).
  10. J. J. Renema, G. Frucci, Z. Zhou, F. Mattioli, A. Gaggero, R. Leoni, M. J. A. de Dood, A. Fiore, and M. P. van Exter, Universal response curve for nanowire superconducting single-photon detectors, Phys. Rev. B 87, 174526 (2013).
  11. M. Hofherr, D. Rall, K. Ilin, M. Siegel, A. Semenov, H.-W. Hübers, and N. A. Gippius, Intrinsic detection efficiency of superconducting nanowire single-photon detectors with different thicknesses, J. Appl. Phys. 108, 014507 (2010).
  12. A. Engel, J. J. Renema, K. Il’in, and A. Semenov, Detection mechanism of superconducting nanowire single-photon detectors, Supercond. Sci. Technol. 28, 114003 (2015).
  13. A. D. Semenov, P. Haas, H.-W. Hübers, K. Ilin, M. Siegel, A. Kirste, T. Schurig, and A. Engel, Vortex-based single-photon response in nanostructured superconducting detectors, Physica (Amsterdam) 468C, 627 (2008).
  14. F. Mattioli, Z. Zhou, A. Gaggero, R. Gaudio, S. Jahanmirinejad, D. Sahin, F. Marsili, R. Leoni, and A. Fiore, Photon-number-resolving superconducting nanowire detectors, Supercond. Sci. Technol. 28, 104001 (2015).
  15. K. Hattori, T. Konno, Y. Miura, S. Takasu, and D. Fukuda, An optical transition-edge sensor with high energy resolution, Supercond. Sci. Technol. 35, 095002 (2022).
  16. J. R. Hook and H. E. Hall, Solid State Physics (John Wiley & Sons, New York, 2013).
  17. O. V. Dobrovolskiy, D. Y. Vodolazov, F. Porrati, R. Sachser, V. M. Bevz, M. Y. Mikhailov, A. V. Chumak, and M. Huth, Ultra-fast vortex motion in a direct-write Nb-C superconductor, Nat. Commun. 11, 3291 (2020).
