Fabrication and characterization of an adaptive thin-film electrostatic phase plate

Mathias V. Adelmark1, Payam H. Kavkani2, Ebrahim Chalangar1, Rafael Taboryski1, Andrei Lavrinenko3, Marco Beleggia1,2, and Ada-Ioana Bunea1,*

  • *Contact author: adabu@dtu.dk
PDF

Phys. Rev. Applied 25, 054007 – Published 4 May, 2026

DOI: https://doi.org/10.1103/l2fs-ctzq

Abstract

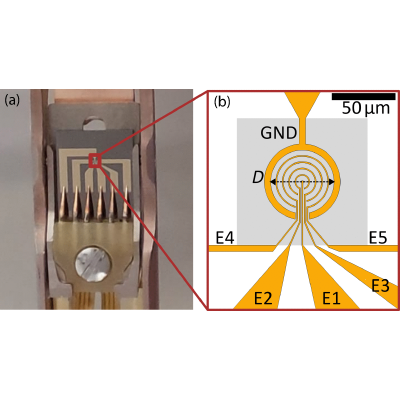

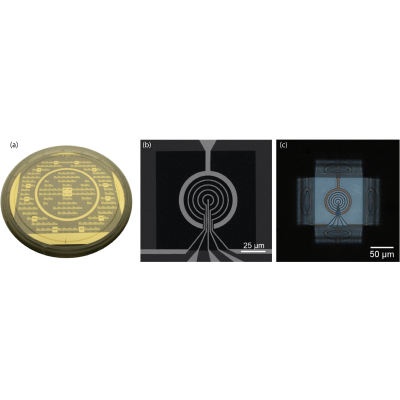

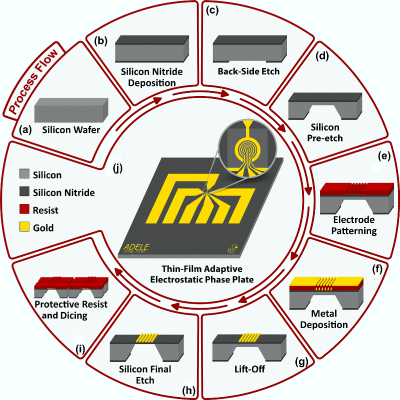

In this work, we establish a robust protocol for designing and fabricating adaptive electrostatic thin-film phase plates, as demonstrated by the first experimental realization of such a device and its characterization. A phase plate placed before the sample in a transmission electron microscope (TEM) can shape the beam to create user-configured irradiation with predesigned amplitude and phase distribution. It is, therefore, possible to use a phase plate to compensate for aberrations of the beam, which are a common problem in electron microscopy. The electron-optical index of refraction is proportional to the electric and magnetic potentials. Thus, the active part of a phase plate is designed to generate a local electric and/or magnetic field. By using a specific set of electrodes, the imprinted phase distribution of the electron beam can be adjusted externally by changing the potential applied to the electrodes. This is denoted as an adaptive electrostatic phase plate. Here, we present the design, fabrication, and characterization of an adaptive thin-film electrostatic phase plate, with gold electrodes supported on a thin silicon nitride membrane. Our design consists of six electrodes positioned as concentric and equidistant circles. We describe the fabrication of the phase plate, with particular focus on the less conventional steps involved. After careful process optimization, the fabricated phase plate features largely match the design, and approximately 95% of the 174 chips fabricated on each wafer show no visible defects in the active area. We characterize the functionality of the fabricated phase plate using both computational (comsol Multiphysics) and experimental (Fresnel imaging) methods. The phase profile reconstruction using the transport of intensity equation method generally follows the predicted phase profile. The desired quartic phase profile is partly achieved, although the presence of electrodes increase noise, and the electrode contacts introduce asymmetry. This opens up opportunities for further optimization before implementing the phase plates in a TEM for spherical aberration correction.

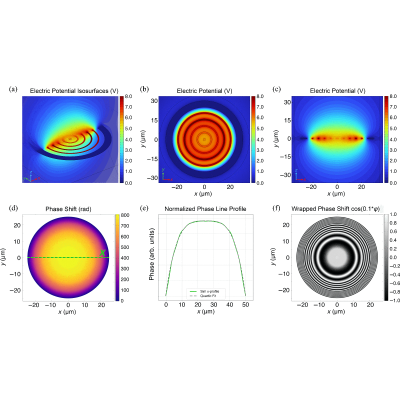

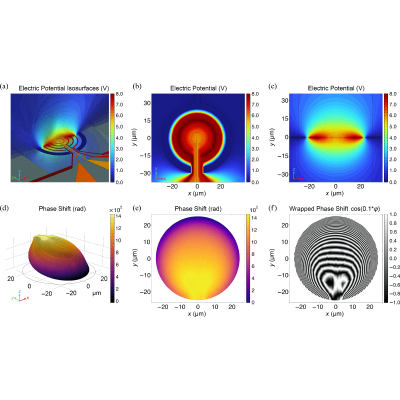

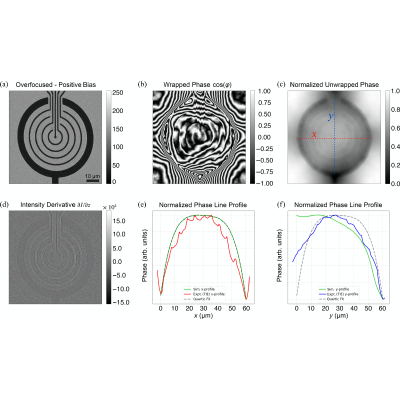

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (34)

  1. R. M. Glaeser, Invited review article: Methods for imaging weak-phase objects in electron microscopy, Rev. Sci. Instrum. 84, 111101 (2013).
  2. R. Juchtmans, L. Clark, A. Lubk, and J. Verbeeck, Spiral phase plate contrast in optical and electron microscopy, Phys. Rev. A 94, 023838 (2016).
  3. G. Račiukaitis, E. Stankevičius, P. Gečys, M. Gedvilas, C. Bischoff, E. Jäger, U. Umhofer, and F. Völklein, Laser processing by using diffractive optical laser beam shaping technique, J. Laser Micro Nanoeng. 6, 37 (2011).
  4. E. Engay, A. Bañas, A.-I. Bunea, S. D. Separa, and J. Glückstad, Interferometric detection of OAM-carrying Helico-conical beams, Opt. Commun. 433, 247 (2019).
  5. E. Engay, D. Huo, R. Malureanu, A.-I. Bunea, and A. Lavrinenko, Polarization-dependent all-dielectric metasurface for single-shot quantitative phase imaging, Nano Lett. 21, 3820 (2021).
  6. W. Ehrenberg and R. E. Siday, The refractive index in electron optics and the principles of dynamics, Proc. Phys. Soc. B 62, 8 (1949).
  7. S. M. Ribet, S. E. Zeltmann, K. C. Bustillo, R. Dhall, P. Denes, A. M. Minor, R. dos Reis, V. P. Dravid, and C. Ophus, Design of electrostatic aberration correctors for scanning transmission electron microscopy, Microsc. Microanal. 29, 1950 (2023).
  8. J. Verbeeck, G. Guzzinati, L. Clark, R. Juchtmans, R. Van Boxem, H. Tian, A. Béché, A. Lubk, and G. Van Tendeloo, Shaping electron beams for the generation of innovative measurements in the (S)TEM, C. R. Phys. 15, 190 (2014).
  9. A. H. Tavabi, P. Rosi, A. Roncaglia, E. Rotunno, M. Beleggia, P.-H. Lu, L. Belsito, G. Pozzi, S. Frabboni, P. Tiemeijer, R. E. Dunin-Borkowski, and V. Grillo, Generation of electron vortex beams with over 1000 orbital angular momentum quanta using a tunable electrostatic spiral phase plate, Appl. Phys. Lett. 121, 073506 (2022).
  10. V. Grillo, T. R. Harvey, F. Venturi, J. S. Pierce, R. Balboni, F. Bouchard, G. Carlo Gazzadi, S. Frabboni, A. H. Tavabi, Z.-A. Li, R. E. Dunin-Borkowski, R. W. Boyd, B. J. McMorran, and E. Karimi, Observation of nanoscale magnetic fields using twisted electron beams, Nat. Commun. 8, 689 (2017).
  11. K. Murata, X. Liu, R. Danev, J. Jakana, M. F. Schmid, J. King, K. Nagayama, and W. Chiu, Zernike phase contrast cryo-electron microscopy and tomography for structure determination at nanometer and subnanometer resolutions, Structure 18, 903 (2010).
  12. V. Grillo, A. H. Tavabi, F. Venturi, H. Larocque, R. Balboni, G. C. Gazzadi, S. Frabboni, P.-H. Lu, E. Mafakheri, F. Bouchard, R. E. Dunin-Borkowski, R. W. Boyd, M. P. J. Lavery, M. J. Padgett, and E. Karimi, Measuring the orbital angular momentum spectrum of an electron beam, Nat. Commun. 8, 15536 (2017).
  13. A. H. Tavabi, Paolo Rosi, Enzo Rotunno, Alberto Roncaglia, Luca Belsito, Stefano Frabboni, Giulio Pozzi, Gian Carlo Gazzadi, Peng-Han Lu, Robert Nijland, Moumita Ghosh, Peter Tiemeijer, Ebrahim Karimi, Rafal E. Dunin-Borkowski, and Vincenzo Grillo, Experimental demonstration of an electrostatic orbital angular momentum sorter for electron beams, Phys. Rev. Lett. 126, 094802 (2021).
  14. A. H. Tavabi, M. Beleggia, V. Migunov, A. Savenko, O. Öktem, R. E. Dunin-Borkowski, and G. Pozzi, Tunable Ampere phase plate for low dose imaging of biomolecular complexes, Sci. Rep. 8, 5592 (2018).
  15. M. Malac, S. Hettler, M. Hayashida, E. Kano, R. F. Egerton, and M. Beleggia, Phase plates in the transmission electron microscope: Operating principles and applications, Microscopy 70, 15 (2021).
  16. D. Roitman, R. Shiloh, P.-H. Lu, R. E. Dunin-Borkowski, and A. Arie, Shaping of electron beams using sculpted thin films, ACS Photonics 8, 3394 (2021).
  17. R. Shiloh, Y. Lereah, Y. Lilach, and A. Arie, Sculpturing the electron wave function using nanoscale phase masks, Ultramicroscopy 144, 26 (2014).
  18. R. Shiloh and A. Arie, 3D shaping of electron beams using amplitude masks, Ultramicroscopy 177, 30 (2017).
  19. C.-P. Yu, F. Vega Ibañez, A. Béché, and J. Verbeeck, Quantum wavefront shaping with a 48-element programmable phase plate for electrons, SciPost Phys. 15, 223 (2023).
  20. J. Verbeeck, A. Béché, K. Müller-Caspary, G. Guzzinati, M. A. Luong, and M. Den Hertog, Demonstration of a 2 × 2 programmable phase plate for electrons, Ultramicroscopy 190, 58 (2018).
  21. F. Vega Ibáñez, A. Béché, and J. Verbeeck, Can a programmable phase plate serve as an aberration corrector in the transmission electron microscope (TEM)?, Microsc. Microanal. 29, 341 (2023).
  22. G. Ruffato, M. Beleggia, A. H. Tavabi, E. Rotunno, L. Viani, P. Rosi, P. H. Kavkani, C. Chiari, S. Frabboni, G. C. Gazzadi, G. Pozzi, G. Bertoni, P. Tiemeijer, R. E. Dunin-Borkowski, and V. Grillo, Three-dimensional stacking of phase plates for advanced electron beam shaping, Microsc. Microanal. 31, ozae108 (2025).
  23. M. Fischbein, and M. Drndić, Sub-10 nm device fabrication in a transmission electron microscope, Nano Lett. 7, 1329 (2007).
  24. B. M. Zwickl, W. E. Shanks, A. M. Jayich, C. Yang, A. C. Bleszynski Jayich, J. D. Thompson, and J. G. E. Harris, High quality mechanical and optical properties of commercial silicon nitride membranes, Appl. Phys. Lett. 92, 103125 (2008).
  25. H. Ni, H. J. Lee, and A. G. Ramirez, A robust two-step etching process for large-scale microfabricated SiO2 and Si3N4 MEMS membranes, Sens. Actuators, A 119, 553 (2005).
  26. M. Serra Gonzalez, P. H. Kavkani, R. A. Deshpande, S. Kadkhodazadeh, and R. Taboryski, A correlative study of plasmonic metasurfaces by electron energy-loss spectroscopy and optical spectroscopy: From nanoscale hotspots to macroscale optical response, Nano Lett. 25, 11979 (2025).
  27. R. Yang, L. Mei, Y. Fan, Q. Zhang, H.-G. Liao, J. Yang, J. Li, and Z. Zeng, Fabrication of liquid cell for in situ transmission electron microscopy of electrochemical processes, Nat. Protoc. 18, 555 (2023).
  28. See supplemental material at http://link.aps.org/supplemental/10.1103/l2fs-ctzq, for details on the chip dimensions as extrapolated from Protochip E-chips; thickness measurements and the subsequent chip yield depending on thickness; details on the protection of electrodes during the final KOH etch; the image-reversal lift-off process; and the outlier correction used for the characterization of the phase plate.
  29. K. R. Williams, K. Gupta, and M. Wasilik, Etch rates for micromachining processing—Part II, J. Microelectromech. Syst. 12, 761 (2003).
  30. M. Todeschini, A. Bastos Da Silva Fanta, F. Jensen, J. B. Wagner, and A. Han, Influence of Ti and Cr adhesion layers on ultrathin Au films, ACS Appl. Mater. Interfaces 9, 37374 (2017).
  31. E. J. Kirkland, Advanced Computing in Electron Microscopy, 2nd ed. (Springer, New York Dordrecht Heidelberg London, 2010).
  32. M. Beleggia, M. A. Schofield, V. V. Volkov, and Y. Zhu, On the transport of intensity technique for phase retrieval, Ultramicroscopy 102, 37 (2004).
  33. H. Shigematsu and F. J. Sigworth, Noise models and cryo-EM drift correction with a direct-electron camera, Ultramicroscopy 131, 61 (2013).
  34. M. V. Adelmark, P. H. Kavkani, E. Chalangar, R. Taboryski, A. Lavrinenko, M. Beleggia, and A.-I. Bunea, Item—Files for “Fabrication and characterization of an adaptive thin-film electrostatic phase plate”—Technical University of Denmark—Figshare, https://doi.org/10.11583/DTU.30256696
