Rydberg atom reception of a handheld UHF frequency-modulated two-way radio

Noah Schlossberger1,*, Tate McDonald2,1, Nikunjkumar Prajapati1, and Christopher L. Holloway1

  • *Contact author: noah.schlossberger@nist.gov
PDF

Phys. Rev. Applied 25, 024031 – Published 10 February, 2026

DOI: https://doi.org/10.1103/jlrg-6889

Abstract

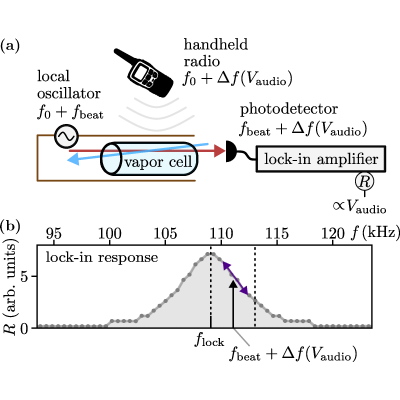

Rydberg atoms, due to their large polarizabilities and strong transition dipole moments, have been utilized as sensitive electric field sensors. While their ability to detect modulated signals has been previously demonstrated, these studies have largely been limited to laboratory-generated signals tailored specifically to atomic detection. Here, we extend the practical applicability of Rydberg sensors by demonstrating the reception of real-world frequency-modulated (FM) audio transmissions using a consumer-grade handheld two-way radio operating in the UHF band. Detection is based on the ac Stark shift induced by the radio signal in a Rydberg atomic vapor, with demodulation performed using an offset local oscillator and lock-in amplification. We successfully demodulate speech signals and evaluate the audio spectral response and reception range. We show that all consumer-accessible radio channels can be simultaneously detected, and demonstrate simultaneous reception of two neighboring channels with at least 53 dB of isolation. This work underscores the potential of Rydberg atom-based receivers for practical, real-world FM signal detection.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (39)

  1. N. Schlossberger, N. Prajapati, S. Berweger, A. P. Rotunno, A. B. Artusio-Glimpse, M. T. Simons, A. A. Sheikh, E. B. Norrgard, S. P. Eckel, and C. L. Holloway, Rydberg states of alkali atoms in atomic vapour as SI-traceable field probes and communications receivers, Nat. Rev. Phys. 6, 606 (2024).
  2. H. Q. Fan, S. Kumar, R. Daschner, H. Kübler, and J. P. Shaffer, Subwavelength microwave electric-field imaging using Rydberg atoms inside atomic vapor cells, Opt. Lett. 39, 3030 (2014).
  3. R. Cardman, L. F. Gonçalves, R. E. Sapiro, G. Raithel, and D. A. Anderson, Atomic 2D electric field imaging of a Yagi–Uda antenna near-field using a portable Rydberg-atom probe and measurement instrument, Adv. Opt. Technol. 9, 305 (2020).
  4. N. Schlossberger, T. McDonald, K. Su, R. Talashila, R. Behary, C. L. Patrick, D. Hammerland, E. E. Mikhailov, S. Aubin, I. Novikova, C. L. Holloway, and N. Prajapati, Two-dimensional imaging of electromagnetic fields via light sheet fluorescence imaging with Rydberg atoms, Opt. Lett. 50, 7312 (2025).
  5. R. Behary, K. Su, N. DeStefano, M. Vorobiov, T. Averett, A. Camsonne, S. Zhang, C. T. Fancher, N. Malvania, E. E. Mikhailov, S. Aubin, and I. Novikova, Electron beam characterization via quantum coherent electric field imaging, Phys. Rev. Res. 7, L042042 (2025).
  6. A. K. Robinson, N. Prajapati, D. Senic, M. T. Simons, and C. L. Holloway, Determining the angle-of-arrival of a radio-frequency source with a Rydberg atom-based sensor, Appl. Phys. Lett. 118, 114001 (2021).
  7. D. Richardson, J. Dee, B. N. Kayim, B. C. Sawyer, R. Wyllie, R. T. Lee, and R. S. Westafer, Study of angle of arrival estimation with linear arrays of simulated Rydberg atom receivers, APL Quantum 2, 016123 (2025).
  8. S. Yan, X. Li, X. Pang, R. Wang, W. Wen, W. Zhai, W. Cui, and Y. Gao, Measurement of Doppler frequency shift and angle of arrival with Rydberg atom-based sensors, IEEE Trans. Instrum. Meas. 74, 1 (2025).
  9. R. Talashila, W. J. Watterson, B. L. Moser, J. A. Gordon, A. B. Artusio-Glimpse, N. Prajapati, N. Schlossberger, M. T. Simons, and C. L. Holloway, Determining angle of arrival of radio frequency fields using subwavelength, amplitude-only measurements of standing waves in a Rydberg atom sensor, J. Appl. Phys. 138, 114402 (2025).
  10. R. Mao, Y. Lin, Y. Fu, Y. Ma, and K. Yang, Digital beamforming and receiving array research based on Rydberg field probes, IEEE. Trans. Antennas Propag. 72, 2025 (2024).
  11. A. Gill, A. Buikema, S. Sirisky, and H. Clevenson, Microwave phase mapping and angle-of-arrival detection using Rydberg atom-based electrometry, arXiv:2503.22864.
  12. N. Schlossberger, R. Talashila, N. Prajapati, and C. L. Holloway, Angle-of-arrival detection of radio-frequency waves via Rydberg-atom fluorescence imaging of standing waves in a glass vapor cell, Phys. Rev. Appl. 24, 024056 (2025).
  13. P. K. Elgee, K. C. Cox, J. C. Hill, P. D. Kunz, and D. H. Meyer, Electrically small Rydberg sensor for three-dimensional determination of radio-frequency k-vectors, Phys. Rev. Appl. 23, 064022 (2025).
  14. M. Chen, T. Mao, Z. Zhu, H. Feng, G. Gao, Z. Wu, W. Xiao, Z. Li, and D. Zheng, High-resolution quantum sensing with Rydberg atomic receiver: Principles, experiments and future prospects, arXiv:2506.11833.
  15. W. J. Watterson, N. Prajapati, R. Castillo-Garza, S. Berweger, N. Schlossberger, A. Artusio-Glimpse, C. L. Holloway, and M. T. Simons, An imaging radar using a Rydberg atom receiver, Appl. Phys. Lett. 127, 161101 (2025).
  16. D. S. La Mantia, M. Lei, N. Prajapati, N. Schlossberger, M. T. Simons, C. L. Holloway, J. Scherschligt, S. P. Eckel, and E. B. Norrgard, Compact blackbody-radiation atomic sensor: Measuring temperature using optically excited atoms in vapor cells, Phys. Rev. Appl. 23, 044037 (2025).
  17. N. Schlossberger, A. P. Rotunno, S. P. Eckel, E. B. Norrgard, D. Manchaiah, N. Prajapati, A. B. Artusio-Glimpse, S. Berweger, M. T. Simons, D. Shylla, W. J. Watterson, C. Patrick, A. Meraki, R. Talashila, A. Younes, D. S. La Mantia, and C. L. Holloway, Primary quantum thermometry of mm-wave blackbody radiation via induced state transfer in Rydberg states of cold atoms, Phys. Rev. Res. 7, L012020 (2025).
  18. S. Borówka, U. Pylypenko, M. Mazelanik, and M. Parniak, Continuous wideband microwave-to-optical converter based on room-temperature Rydberg atoms, Nat. Photonics 18, 32 (2024).
  19. C. Holloway, M. Simons, A. H. Haddab, J. A. Gordon, D. A. Anderson, G. Raithel, and S. Voran, A multiple-band Rydberg atom-based receiver: AM/FM stereo reception, IEEE Antennas Propag. Mag. 63, 63 (2021).
  20. C. L. Holloway, M. T. Simons, A. H. Haddab, C. J. Williams, and M. W. Holloway, A “real-time” guitar recording using Rydberg atoms and electromagnetically induced transparency: Quantum physics meets music, AIP Adv. 9, 065110 (2019).
  21. N. Prajapati, A. P. Rotunno, S. Berweger, M. T. Simons, A. B. Artusio-Glimpse, S. D. Voran, and C. L. Holloway, TV and video game streaming with a quantum receiver: A study on a Rydberg atom-based receiver’s bandwidth and reception clarity, AVS Quantum Sci. 4, 035001 (2022).
  22. M. Lei, J. Zhang, Q. Luo, Z. Zhang, M. Wang, and M. Shi, Satellite signal detection via Rydberg-atom receiver, arXiv:2506.15439.
  23. P. K. Elgee, J. C. Hill, K.-J. E. LeBlanc, G. D. Ko, P. D. Kunz, D. H. Meyer, and K. C. Cox, Satellite radio detection via dual-microwave Rydberg spectroscopy, Appl. Phys. Lett. 123, 084001 (2023).
  24. Federal Communications Commission (FCC, 47 CFR part 95 subpart B — Family Radio Service (FRS), https://www.ecfr.gov/current/title-47/chapter-I/subchapter-D/part-95/subpart-B (2023), accessed: 2025-07-13.
  25. Certain equipment, instruments, software, or materials are identified in this paper in order to specify the experimental procedure adequately. Such identification is not intended to imply recommendation or endorsement of any product or service by NIST, nor is it intended to imply that the materials or equipment identified are necessarily the best available for the purpose.
  26. R. Finkelstein, S. Bali, O. Firstenberg, and I. Novikova, A practical guide to electromagnetically induced transparency in atomic vapor, New J. Phys. 25, 035001 (2023).
  27. A. K. Mohapatra, T. R. Jackson, and C. S. Adams, Coherent optical detection of highly excited Rydberg states using electromagnetically induced transparency, Phys. Rev. Lett. 98, 113003 (2007).
  28. N. B. Delone and V. P. Krainov, AC stark shift of atomic energy levels, Phys. Usp. 42, 669 (1999).
  29. E. Robertson, N. Sibalić, R. Potvliege, and M. Jones, Arc 3.0: An expanded Python toolbox for atomic physics calculations, Comput. Phys. Commun. 261, 107814 (2021).
  30. D. H. Meyer, K. C. Cox, F. K. Fatemi, and P. D. Kunz, Digital communication with Rydberg atoms and amplitude-modulated microwave fields, Appl. Phys. Lett. 112, 211108 (2018).
  31. J. Hu, Y. Jiao, Y. He, H. Zhang, L. Zhang, J. Zhao, and S. Jia, Improvement of response bandwidth and sensitivity of Rydberg receiver using multi-channel excitations, EPJ Quantum Technol. 10, 51 (2023).
  32. B. Yang, Y. Yan, X. Li, L. Xiao, X. Li, L. Q. Chen, J. Deng, and H. Cheng, Highly sensitive microwave electrometry with enhanced instantaneous bandwidth, Phys. Rev. Appl. 21, L031003 (2024).
  33. D. Shylla, N. Prajapati, A. P. Rotunno, N. Schlossberger, D. Manchaiah, W. J. Watterson, A. Artusio-Glimpse, S. Berweger, M. T. Simons, and C. L. Holloway, Observation of asymmetric sideband generation in strongly driven Rydberg atoms, Phys. Rev. A 111, 033115 (2025).

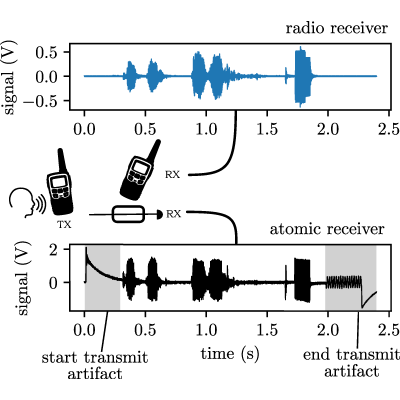

  34. See Supplemental Material at http://link.aps.org/supplemental/10.1103/jlrg-6889 for a recording of a human voice transmitted by a two-way radio and recieved using the Rydberg receiver as presented in Fig. 4.
  35. W. Yang, M. Jing, H. Zhang, L. Zhang, L. Xiao, and S. Jia, Radio frequency electric field-enhanced sensing based on the Rydberg atom-based superheterodyne receiver, Opt. Lett. 49, 2938 (2024).
  36. R. C. Brown, B. Kayim, M. A. Viray, A. R. Perry, B. C. Sawyer, and R. Wyllie, Very-high- and ultrahigh-frequency electric-field detection using high angular momentum Rydberg states, Phys. Rev. A 107, 052605 (2023).
  37. N. Prajapati, J. W. Kunzler, A. B. Artusio-Glimpse, A. P. Rotunno, S. Berweger, M. T. Simons, C. L. Holloway, C. M. Gardner, M. S. Mcbeth, and R. A. Younts, High angular momentum coupling for enhanced Rydberg-atom sensing in the very-high frequency band, J. Appl. Phys. 135, 074402 (2024).
  38. L. Patrick, N. Schlossberger, D. F. Hammerland, N. Prajapati, T. McDonald, S. Berweger, R. Talashila, A. B. Artusio-Glimpse, and C. L. Holloway, Imaging of induced surface charge distribution effects in glass vapor cells used for Rydberg atom-based sensors, AVS Quantum Sci. 7, 024401 (2025).
  39. N. Schlossberger, Data associated with “Rydberg atom reception of a handheld UHF frequency-modulated two-way radio,” National Institute of Standards and Technology, 2025, https://doi.org/10.18434/mds2-3947.
