Temporal evolution of thermoacoustic streaming around a spatially confined temperature gradient

Franziska Martens, Enrico Corato, David van Assche, Ola Jakobsson, Wei Qiu, and Per Augustsson*

  • *Contact author: per.augustsson@bme.lth.se
PDF

Phys. Rev. Applied 25, 054025 – Published 11 May, 2026

DOI: https://doi.org/10.1103/jhkv-lqlz

Abstract

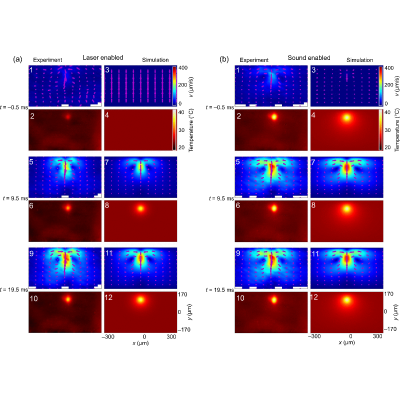

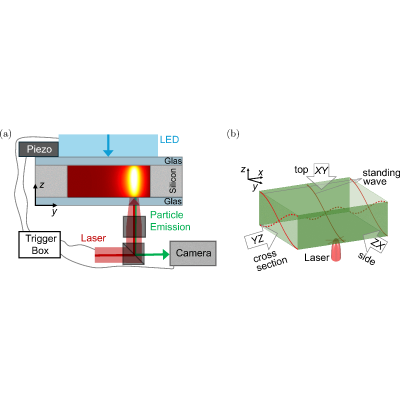

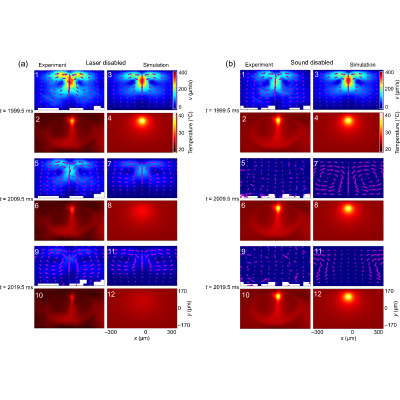

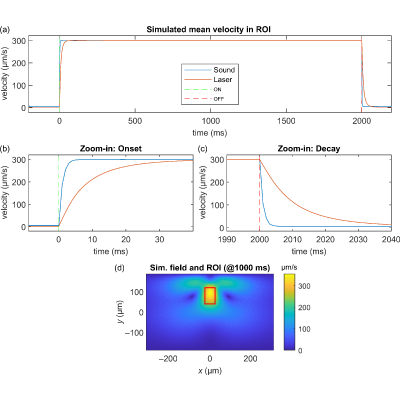

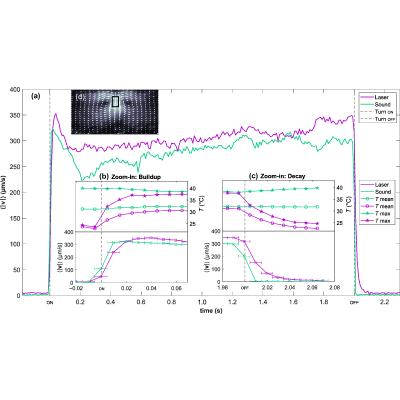

The ability to precisely control the localization of individual cells or other microscopic biological particles in aqueous suspension inside a microfluidic confinement is essential for the realization of future tools for single-cell studies in basic biology and medicine. We previously demonstrated that thermoacoustic streaming stemming from interactions of an acoustic field with a thermal gradient induced by focused light can produce fast, confined, and modular local flow fields. In this work, we study the buildup and decay of thermoacoustic streaming generated by a focused laser directed into an acoustic half-wavelength standing wave. For a pre-established sound field, we observe the timescale for buildup and decay of the thermoacoustic streaming upon activating the laser, and vice versa. For the system investigated, we find that while the buildup of thermoacoustic streaming takes only 2 ms for sound field-controlled thermoacoustic onset, laser-irradiation-controlled onset is ten times slower. This is explained by the relatively slow thermal diffusion in the system compared to the fast buildup of the acoustic resonance. Furthermore, we demonstrate how the combination of fast timing control by the sound field and the subsound-wavelength spatial control offered by the confined temperature gradient makes it possible to move a single particle a distance of 100μm at 350μm/s while leaving the trajectory of another nearby particle, less than 25μm away, unaffected.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Multimedia

References (31)

  1. Y. Luo, Q. Yin, K. Chen, Z. Deng, X. Liu, Y. Zhou, B. Zhu, W. Zhang, and Z. Ma, Superselective embolic particle guidance in vessel networks via shape-adaptive acoustic manipulation, Nat. Commun. 16, 254 (2025).
  2. M. Wu, Z. Ma, Z. Tian, J. T. Rich, X. He, J. Xia, Y. He, K. Yang, S. Yang, K. W. Leong, L. P. Lee, and T. J. Huang, Sound innovations for biofabrication and tissue engineering, Microsyst. Nanoeng. 10, 170 (2024).
  3. M. Chapman, V. Rajagopal, A. Stewart, and D. J. Collins, Critical review of single-cell mechanotyping approaches for biomedical applications, Lab Chip 24, 3036 (2024).
  4. M. Baudoin, J.-L. Thomas, R. A. Sahely, J.-C. Gerbedoen, Z. Gong, A. Sivery, O. B. Matar, N. Smagin, P. Favreau, and A. Vlandas, Spatially selective manipulation of cells with single-beam acoustical tweezers, Nat. Commun. 11, 4244 (2020).
  5. K. Olofsson, B. Hammarström, and M. Wiklund, Acoustic separation of living and dead cells using high density medium, Lab Chip 20, 1981 (2020).
  6. M. Kvåle Løvmo, S. Deng, S. Moser, R. Leitgeb, W. Drexler, and M. Ritsch-Marte, Ultrasound-induced reorientation for multi-angle optical coherence tomography, Nat. Commun. 15, 2391 (2024).
  7. S. H. Lee, B. Cha, H. G. Yi, J. Kim, J. S. Jeon, and J. Park, Acoustofluidic separation of bacteria from platelets using tilted-angle standing surface acoustic wave, Sens. Actuat. B Chem. 417, 136161 (2024).
  8. N. F. Läubli, J. T. Burri, J. Marquard, H. Vogler, G. Mosca, N. Vertti-Quintero, N. Shamsudhin, A. Demello, U. Grossniklaus, D. Ahmed, and B. J. Nelson, 3D mechanical characterization of single cells and small organisms using acoustic manipulation and force microscopy, Nat. Commun. 12, 2583 (2021).
  9. A. Link and T. Franke, Acoustic erythrocytometer for mechanically probing cell viscoelasticity, Lab Chip 20, 1991 (2020).
  10. P. Augustsson, J. T. Karlsen, H.-W. Su, H. Bruus, and J. Voldman, Iso-acoustic focusing of cells for size-insensitive acousto-mechanical phenotyping, Nat. Commun. 7, 11556 (2016).
  11. M. Rezayati Charan and P. Augustsson, Acoustophoretic characterization and separation of blood cells in acoustic impedance gradients, Phys. Rev. Appl. 20, 024066 (2023).
  12. S. Karthick, P. N. Pradeep, P. Kanchana, and A. K. Sen, Acoustic impedance-based size-independent isolation of circulating tumour cells from blood using acoustophoresis, Lab Chip 18, 3802 (2018).
  13. S. Deshmukh, Z. Brzozka, T. Laurell, and P. Augustsson, Acoustic radiation forces at liquid interfaces impact the performance of acoustophoresis, Lab Chip 14, 3394 (2014).
  14. J. T. Karlsen, P. Augustsson, and H. Bruus, Acoustic force density acting on inhomogeneous fluids in acoustic fields, Phys. Rev. Lett. 117, 114504 (2016).
  15. E. Hemachandran, S. Karthick, T. Laurell, and A. K. Sen, Relocation of coflowing immiscible liquids under acoustic field in a microchannel, Eur. Phys. Let. 125, 54002 (2019).
  16. V. K. Rajendran, S. Jayakumar, M. Azharudeen, and K. Subramani, Theory of nonlinear acoustic forces acting on inhomogeneous fluids, J. Fluid. Mech. 940, A32 (2022).
  17. J. T. Karlsen, W. Qiu, P. Augustsson, and H. Bruus, Acoustic streaming and its suppression in inhomogeneous fluids, Phys. Rev. Lett. 120, 054501 (2018).
  18. W. Qiu, J. T. Karlsen, H. Bruus, and P. Augustsson, Experimental characterization of acoustic streaming in gradients of density and compressibility, Phys. Rev. Appl. 11, 024018 (2019).
  19. J. H. Joergensen and H. Bruus, Theory of pressure acoustics with thermoviscous boundary layers and streaming in elastic cavities, J. Acoust. Soc. Am. 149, 3599 (2021).
  20. W. Qiu, J. H. Joergensen, E. Corato, H. Bruus, and P. Augustsson, Fast microscale acoustic streaming driven by a temperature-gradient-induced nondissipative acoustic body force, Phys. Rev. Lett. 127, 064501 (2021).
  21. F. Martens, W. Qiu, O. Jakobsson, C. Cierpka, A. Ehn, and P. Augustsson, Configurable thermoacoustic streaming by laser-induced temperature gradients, Phys. Rev. Appl. 23, 024043 (2025).
  22. R. Barnkob, C. J. Kähler, and M. Rossi, General defocusing particle tracking, Lab Chip 15, 3556 (2015).
  23. R. Barnkob and M. Rossi, General defocusing particle tracking: Fundamentals and uncertainty assessment, Exp. Fluids 61, 110 (2020).
  24. R. Barnkob, M. Rossi, C. Cirepka, and O. Jakobsson, Defocustracker, v2.0.0, 2025. https://defocustracking.com/ (accessed 11 March 2025). https://gitlab.com/defocustracking/defocustracker-matlab/-/tree/develop_OJ_CC?ref_type=heads.
  25. C. A. Sweden, Software for multiphysics simulations, 2024, (accessed 11 March 2025). www.comsol.com.
  26. J. S. Bach and H. Bruus, Theory of pressure acoustics with viscous boundary layers and streaming in curved elastic cavities, J. Acoust. Soc. Am. 144, 766 (2018).
  27. L. Rayleigh, A philosophical obituary: Dr. Jack Kevorkian dead at 83 leaving end of life debate in the US forever changed, Philos. Trans. R. Soc. Lond. 175, 1 (1884).
  28. P. B. Muller and H. Bruus, Theoretical study of time-dependent, ultrasound-induced acoustic streaming in microchannels, Phys. Rev. E 92, 063018 (2015).
  29. G. Werr, Z. Khaji, M. Ohlin, M. Andersson, L. Klintberg, S. S. Searle, K. Hjort, and M. Tenje, Integrated thin film resistive sensors for in situ temperature measurements in an acoustic trap, J. Micromech. Microeng. 29, 095003 (2019).
  30. F. Martens, https://doi.org/10.5878/5s28-n160 (2026).
  31. E. Corato, D. van Assche, O. Jakobsson, W. Qiu, and P. Augustsson, Thermoacoustic streaming in a linear temperature gradient, Phys. Rev. E 112, 025102 (2025).

Outline

Information

Phys. Rev. Applied 25, 054025– Published 11 May, 2026
  • Received 23 September 2025
  • Revised 3 February 2026
  • Accepted 7 April 2026
