Low-frequency cryocoolers are compressed inefficiently

Ryan Snodgrass1,2,*, Vincent Kotsubo1,2, Jens Höhne3, and Joel Ullom1,2

  • *Contact author: ryan.snodgrass@nist.gov
PDF

Phys. Rev. Applied 25, L031001 – Published 10 March, 2026

DOI: https://doi.org/10.1103/jcb9-j97v

Abstract

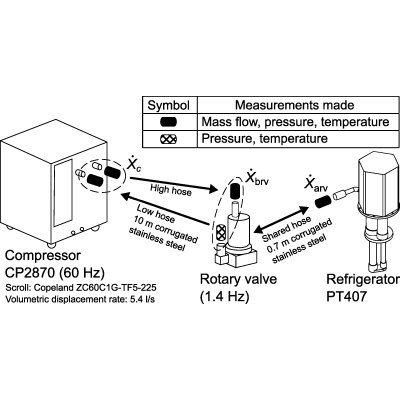

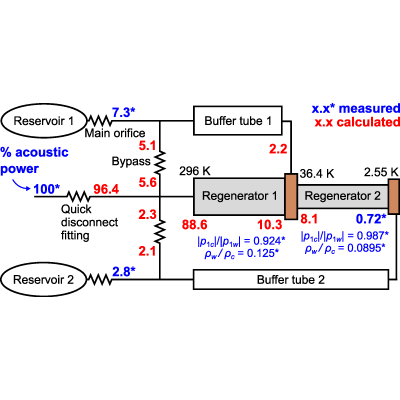

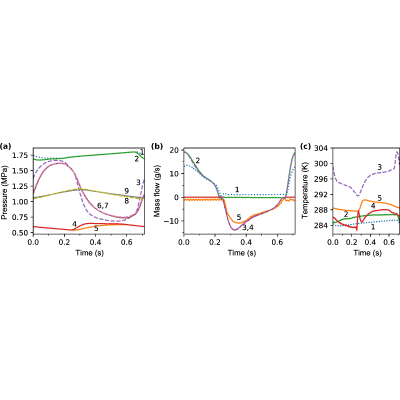

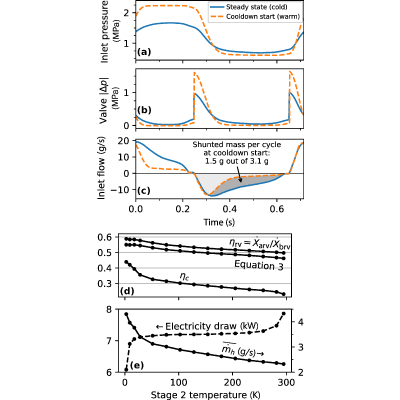

Millikelvin refrigerators are enabling tools for many fields of modern science, including quantum information processing. They are typically precooled to 4 K by low-frequency pulse-tube refrigerators, which perform a thermodynamic cycle based on compressing and expanding helium gas. Although the efficiency of these refrigerators is known to be poor, only the loss mechanisms that occur near the cold end have been sufficiently studied and characterized. Here, we combine thermoacoustic calculations with measurements from a commercial pulse-tube refrigerator to determine the efficiency of the generation and transmission of acoustic power, which the refrigerator uses to provide cooling. We find that electrical power consumed by the compressor is converted to acoustic power at a rate of only 0.24, while acoustic power is transmitted through the refrigerator at a comparatively high efficiency of 0.66. The compression process therefore dominates the portion of the system efficiency that is not limited by fluid and material properties. To show that more efficient compression is possible, we also performed measurements on a new metal-bellows compressor that converts electricity to acoustic power at factors up to 0.43. Our results show that low temperatures may be achievable with two or perhaps even three times less electricity.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (37)

  1. F. Arute, K. Arya, R. Babbush, D. Bacon, J. C. Bardin, R. Barends, R. Biswas, S. Boixo, F. G. S. L. Brandao, D. A. Buell et al., Quantum supremacy using a programmable superconducting processor, Nature 574, 505 (2019).
  2. R. Acharya, D. A. Abanin, L. Aghababaie-Beni, I. Aleiner, T. I. Andersen, M. Ansmann, F. Arute, K. Arya, A. Asfaw, N. Astrakhantsev et al., Quantum error correction below the surface code threshold, Nature 638, 920 (2025).
  3. R. C. Longsworth, Helium compressor for GM and pulse-tube expanders, in AIP Conference Proceedings (2002), Vol. 613, pp. 691–698.
  4. C. Wang, Z. Zhao, and J. Wu, Nearly isothermal compression characteristics of the helium oil-flooded scroll compressor, Appl. Therm. Eng. 251, 123597 (2024).
  5. R. Snodgrass, G. Swift, J. Ullom, and S. Backhaus, Intermediate cooling from pulse tube refrigerator regenerators operating in the real-fluid regime, Cryogenics 132, 103685 (2023).
  6. R. C. Longsworth, A modified Solvay-Cycle cryogenic refrigerator, in Advances in Cryogenic Engineering (1971), pp. 195–204.
  7. Y. L. Ju, Thermodynamic analysis of GM-type pulse tube coolers, Cryogenics 41, 513 (2001).
  8. Q. Zhao, B. Wang, W. Chao, J. Cheng, Y. Zhang, H. Zhang, and Z. Gan, Numerical simulation and exergy analysis of a single-stage GM cryocooler, Heliyon 9, e18479 (2023).
  9. T. Gao, C. Wu, X. Chen, X. Zhi, and L. Qiu, Numerical simulation and loss analysis on a two-stage GM cryocooler working at liquid helium temperatures, Cryogenics 150, 104145 (2025).
  10. D. Liu, M. Dietrich, G. Thummes, and Z. Gan, Numerical simulation of a GM-type pulse tube cryocooler system: Part II. Rotary valve and cold head, Cryogenics 81, 100 (2017).
  11. P. A. R. Ade, M. Amiri, S. J. Benton, A. S. Bergman, R. Bihary, J. J. Bock, J. R. Bond, J. A. Bonetti, S. A. Bryan, H. C. Chiang et al., A constraint on primordial b-modes from the first flight of the Spider balloon-borne telescope, Astrophys. J. 927, 174 (2022).
  12. F. Shirazi, M. A. Hossen, D. Becker, D. Schmidt, D. Swetz, D. Bennett, D. Braun, E. Gau, F. Kislat, J. Gard et al., The 511-CAM mission: A pointed 511 keV gamma-ray telescope with a focal plane detector made of stacked transition edge sensor microcalorimeter arrays, J. Astron. Telesc. Instrum. Syst. 9, 024006 (2023).
  13. N. Zhu, T. Bhandarkar, G. Coppi, A. M. Kofman, J. L. Orlowski-Scherer, Z. Xu, S. Adachi, P. Ade, S. Aiola, J. Austermann et al., The Simons Observatory Large Aperture Telescope Receiver, Astrophys. J. Suppl. Ser. 256, 23 (2021).
  14. M. K. Bhaskar, R. Riedinger, B. Machielse, D. S. Levonian, C. T. Nguyen, E. N. Knall, H. Park, D. Englund, M. Lončar, D. D. Sukachev et al., Experimental demonstration of memory-enhanced quantum communication, Nature 580, 60 (2020).
  15. G. W. Swift, Thermoacoustics: A Unifying Perspective for Some Engines and Refrigerators (Springer International Publishing AG, Cham, Switzerland, 2017), 2nd ed.
  16. See Supplemental Material at http://link.aps.org/supplemental/10.1103/jcb9-j97v for description of generalized acoustic power, methods, and supplementary results. The Supplemental Material also includes Refs. [32, 33, 34, 35, 36, 37].
  17. A. Bejan, Advanced Engineering Thermodynamics (John Wiley & Sons, Inc., New York, NY, 1997).
  18. D. Liu, M. Dietrich, G. Thummes, and Z. Gan, Numerical simulation of a GM-type pulse tube cryocooler system: Part I. Characterization of compressors, Cryogenics 81, 8 (2017).
  19. S. Zhu, P. Wu, and Z. Chen, Double inlet pulse tube refrigerators: An important improvement, Cryogenics 30, 514 (1990).
  20. D. Gedeon, DC gas flows in Stirling and pulse tube cryocoolers, Cryocoolers 9, 385 (1997).
  21. R. Snodgrass, V. Kotsubo, S. Backhaus, and J. Ullom, Dynamic acoustic optimization of pulse tube refrigerators for rapid cooldown, Nat. Commun. 15, 3386 (2024).
  22. R. Snodgrass, J. Ullom, and S. Backhaus, Optimal absorption of distributed and conductive heat loads with cryocooler regenerators, IOP Conf. Ser.: Mater. Sci. Eng. 1240, 012131 (2022).
  23. R. Snodgrass, V. Kotsubo, J. Ullom, and S. Backhaus, Leveraging real fluid effects as a tool for power flow measurements in 4 K cryocooler regenerators, Cryocoolers 21, 315 (2021).
  24. T. Nast, J. Olson, P. Champagne, J. Mix, B. Evtimov, E. Roth, A. Collaco, J. G. Weisend, J. Barclay, S. Breon et al., Development of a 4.5 K pulse tube cryocooler for superconducting electronics, in AIP Conference Proceedings (2008), Vol. 985, pp. 881–886.
  25. Y. Chao, Q. Zhao, Y. Guo, B. Wang, C. Xiong, H. Li, and Z. Gan, Acoustic power measurement of linear compressors, Cryogenics 96, 10 (2018).
  26. W. Dai, E. Luo, X. Wang, and Z. Wu, Impedance match for Stirling type cryocoolers, Cryogenics 51, 168 (2011).
  27. L. Y. Wang, Z. H. Gan, Y. X. Guo, B. Wang, and S. H. Wang, Electric-mechanical-acoustic coupling characteristics for pulse tube cryocoolers, Cryocoolers 19, 193 (2016).
  28. Q. Cao, Z. H. Gan, G. J. Liu, Z. P. Li, Y. Z. Wu, L. M. Qiu, and J. M. Pfotenhauer, Theoretical and experimental study on a pulse tube cryocooler driven with a linear compressor, Cryocoolers 15, 149 (2009).
  29. A. Zhang, Y. Wu, S. Liu, H. Zhu, Y. Zeng, Z. Jiang, and A. Kan, Effect of impedance on a compressor driving pulse tube refrigerator, Appl. Therm. Eng. 124, 688 (2017).
  30. A. J. Caughley, D. J. Haywood, C. Wang, J. G. Weisend, J. Barclay, S. Breon, J. Demko, M. DiPirro, J. P. Kelley, P. Kittel et al., A low cost pressure wave generator using diaphragms, in AIP Conference Proceedings (2008), Vol. 985, pp. 1122–1129.
  31. E. Marquardt, R. Radebaugh, and P. Kittel, Design equations and scaling laws for linear compressors with flexure springs, Cryocoolers 7, 783 (1993).
  32. A. D. Pierce, Acoustics an Introduction to its Physical Principles and Applications (Springer Nature Switzerland AG, Cham, Switzerland, 2019).
  33. R. Snodgrass, V. Kotsubo, and J. Ullom, Comparison of three methods for oscillating flow measurements in cryocoolers, Cryocoolers 23, 155 (2024).
  34. J. Höhne, Low frequency Stirling operation of a two-stage 4K cryocooler without rotary valve with a metal bellows compressor, Cryocoolers 22, 255 (2022).
  35. J. Höhne, Enhancing low-frequency Stirling cryocooler efficiency with linear metal bellows compressors, Cryocoolers 23, 193 (2024).
  36. J. Höhne, High efficiency operation of a 4K-Gifford-McMahon cryocooler without rotary valve with a metal bellows compressor, IOP Conf. Ser.: Mater. Sci. Eng. 1301, 012142 (2024).
  37. M. Lazo, R. Galvez, R. Rogers, H. Solis, E. Tapia, D. Maltes, P. Collins, J. White, C. Cavedoni, C. Yamasaki et al., Gemini helium closed cycle cooling system, in Ground-Based and Airborne Instrumentation for Astronomy II (2008), Vol. 7014, pp. 2527–2536.
