Identification and minimization of losses in microscale spin-wave transducers

Felix Kohl1,*, Björn Heinz1, Ádám Papp2,3, Róbert Erdélyi2,3, Gyorgy Csaba2,3, and Philipp Pirro1

  • *Contact author: fkohl@rptu.de
PDF

Phys. Rev. Applied 25, 054064 – Published 26 May, 2026

DOI: https://doi.org/10.1103/j5s3-zvhr

Abstract

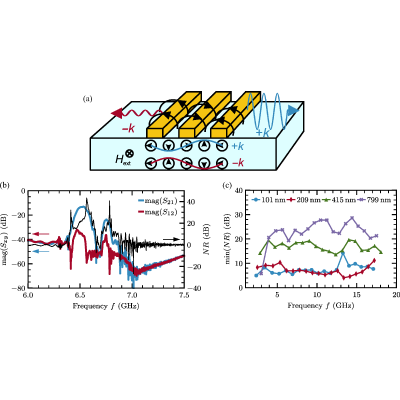

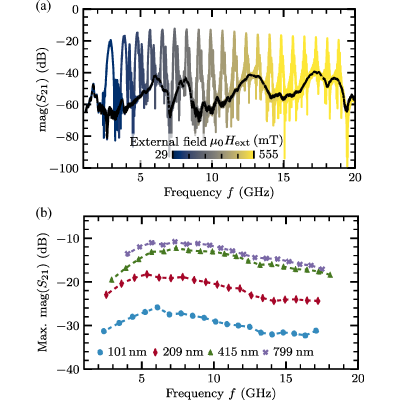

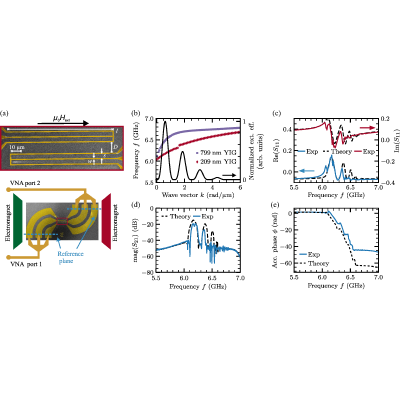

Magnonics is a promising platform for integrated radio-frequency (rf) devices, leveraging its inherent nonreciprocity and reconfigurability. However, the efficiency of spin-wave transducers driven by rf currents remains a major challenge. In this study, we systematically investigate a spin-wave transducer composed of micrometer-sized rf antennas on yttrium iron garnet films of different thickness—an ideal testbed for integrated magnonic devices. Using propagating spin-wave spectroscopy, we analyze spin-wave transmission, identifying key loss mechanisms and improving device efficiency by reducing ohmic resistance. The resulting improvements enable the reduction of insertion loss to below 10 dB in microscaled spin-wave transducers. At the same time large nonreciprocity can be exploited to achieve significant isolation on the microscale.

View figure in article

Physics Subject Headings (PhySH)

Corrections

24 August, 2026

Correction: The first name of the fifth author contained a spelling error and has been fixed.

Article Text

Supplemental Material

References (45)

  1. O. L. Balysheva, in 2021 Wave Electronics and its Application in Information and Telecommunication Systems (WECONF) (IEEE, 2021), pp. 1–5.
  2. K. Shafique, B. A. Khawaja, F. Sabir, S. Qazi, and M. Mustaqim, Internet of Things (IoT) for next-generation smart systems: A review of current challenges, future trends and prospects for emerging 5G-IoT scenarios, IEEE Access 8, 23022 (2020).
  3. S. Mahon, The 5G effect on rf filter technologies, IEEE Trans. Semicond. Manuf. 30, 494 (2017).
  4. S. Dai, S. A. Bhave, and R. Wang, Octave-tunable magnetostatic wave YIG resonators on a chip, IEEE Trans. Ultrason. Ferroelectr. Freq. Control 67, 2454 (2020).
  5. R. Aigner, G. Fattinger, M. Schaefer, K. Karnati, R. Rothemund, and F. Dumont, in 2018 IEEE International Electron Devices Meeting (IEDM) (IEEE, 2018), pp. 14.5.1–14.5.4.
  6. P. Delsing et al., The 2019 surface acoustic waves roadmap, J. Phys. D: Appl. Phys. 52, 353001 (2019).
  7. M. Hara, T. Yokoyama, T. Sakashita, S. Taniguchi, M. Iwaki, T. Nishihara, M. Ueda, and Y. Satoh, Super-high-frequency band filters configured with air-gap-type thin-film bulk acoustic resonators, Jpn. J. Appl. Phys. 49, 07HD13 (2010).
  8. A. Prabhakar and D. D. Stancil, Spin Waves: Theory and Applications (Springer New York, NY, 2009), Vol. 5.
  9. X. Han, H. Wu, and T. Zhang, Magnonics: Materials, physics, and devices, Appl. Phys. Lett. 125, 020501 (2024).
  10. B. Flebus et al., The 2024 magnonics roadmap, J. Phys.: Condens. Matter 36, 363501 (2024).
  11. D. Breitbach, M. Bechberger, B. Heinz, A. Hamadeh, J. Maskill, K. O. Levchenko, B. Lägel, C. Dubs, Q. Wang, R. Verba, and P. Pirro, Nonlinear erasing of propagating spin-wave pulses in thin-film Ga:YIG, Appl. Phys. Lett. 124, 092405 (2024).
  12. Á. Papp, W. Porod, and G. Csaba, Nanoscale neural network using non-linear spin-wave interference, Nat. Commun. 12, 6422 (2021).
  13. Q. Wang, G. Csaba, R. Verba, A. V. Chumak, and P. Pirro, Nanoscale magnonic networks, Phys. Rev. Appl. 21, 040503 (2024).
  14. Q. Wang, R. Verba, K. Davídková, B. Heinz, S. Tian, Y. Rao, M. Guo, X. Guo, C. Dubs, P. Pirro, and A. V. Chumak, All-magnonic repeater based on bistability, Nat. Commun. 15, 7577 (2024).
  15. Q. Wang, M. Kewenig, M. Schneider, R. Verba, F. Kohl, B. Heinz, M. Geilen, M. Mohseni, B. Lägel, F. Ciubotaru et al., A magnonic directional coupler for integrated magnonic half-adders, Nat. Electron. 3, 765 (2020).
  16. K. O. Levchenko, K. Davídková, J. Mikkelsen, and A. V. Chumak, Review on spin-wave RF applications, IEEE Trans. Magn. 62, 1 (2026).
  17. D. Webb, C. Vittoria, P. Lubitz, and H. Lessoff, Magnetostatic propagation in thin films of liquid phase epitaxy YIG, IEEE. Trans. Magn. 11, 1259 (1975).
  18. J. Wu, X. Yang, S. Beguhn, J. Lou, and N. X. Sun, Nonreciprocal tunable low-loss bandpass filters with ultra-wideband isolation based on magnetostatic surface wave, IEEE Trans. Microw. Theory Tech. 60, 3959 (2012).
  19. K. Davídková, K. Levchenko, F. Bruckner, R. Verba, F. Majcen, Q. Wang, M. Lindner, C. Dubs, V. Vlaminck, J. Klíma, M. Urbánek, D. Suess, and A. Chumak, Nanoscale spin-wave frequency-selective limiter for 5G technology, Phys. Rev. Appl. 23, 034026 (2025).
  20. X. Du, M. H. Idjadi, Y. Ding, T. Zhang, A. J. Geers, S. Yao, J. B. Pyo, F. Aflatouni, M. Allen, and R. H. Olsson III, Frequency tunable magnetostatic wave filters with zero static power magnetic biasing circuitry, Nat. Commun. 15, 3582 (2024).
  21. M. Bailleul, D. Olligs, and C. Fermon, Propagating spin wave spectroscopy in a permalloy film: A quantitative analysis, Appl. Phys. Lett. 83, 972 (2003).
  22. M. Vaňatka, K. Szulc, O. c. v. Wojewoda, C. Dubs, A. V. Chumak, M. Krawczyk, O. V. Dobrovolskiy, J. W. Kłos, and M. Urbánek, Spin-wave dispersion measurement by variable-gap propagating spin-wave spectroscopy, Phys. Rev. Appl. 16, 054033 (2021).
  23. V. Vlaminck and M. Bailleul, Spin-wave transduction at the submicrometer scale: Experiment and modeling, Phys. Rev. B 81, 014425 (2010).
  24. T. Devolder, G. Talmelli, S. M. Ngom, F. Ciubotaru, C. Adelmann, and C. Chappert, Measuring the dispersion relations of spin wave bands using time-of-flight spectroscopy, Phys. Rev. B 103, 214431 (2021).
  25. D. Pozar, Microwave Engineering (Wiley, Hoboken, NJ, 2012).
  26. J. Xu, Z. Liao, Q. Wang, B. Liu, X. Tang, Z. Zhong, L. Zhang, Y. Zhang, H. Zhang, and L. Jin, Enhancement of low-k spin-wave transmission efficiency with a record-high group velocity in YIG/nonmagnetic metal heterojunctions, Adv. Electron. Mater. 9, 2201061 (2023).
  27. See the Supplemental Material at http://link.aps.org/supplemental/10.1103/j5s3-zvhr for more information about the spin-wave dispersion relations, its impact on the transmission spectra and numerical calulations of the spin-wave-induced impedances.
  28. L. Körber, G. Quasebarth, A. Otto, and A. Kákay, Finite-element dynamic-matrix approach for spin-wave dispersions in magnonic waveguides with arbitrary cross section, AIP Adv. 11, 095006 (2021).
  29. L. Körber, G. Quasebarth, A. Hempel, F. Zahn, A. Otto, E. Westphal, R. Hertel, and A. Kakay, TetraX: Finite-Element Micromagnetic-Modeling Package (2022), https://doi.org/10.14278/rodare.1418.
  30. R. Erdélyi, G. Csaba, L. Maucha, F. Kohl, B. Heinz, J. Greil, M. Becherer, P. Pirro, and Á. Papp, Design rules for low-insertion-loss magnonic transducers, Sci. Rep. 15, 9806 (2025).
  31. F. Vanderveken, V. Tyberkevych, G. Talmelli, B. Sorée, F. Ciubotaru, and C. Adelmann, Lumped circuit model for inductive antenna spin-wave transducers, Sci. Rep. 12, 3796 (2022).
  32. C. Dmytro, High Frequency Behaviour of Magnetic Thin Film Elements for Microelectronics, Ph.D. thesis, Technische Universität Dresden, Dresden, 2007.
  33. A.-C. Bunea, F. Ciubotaru, F. Meng, C. Adelman, O.-G. Profirescu, and D. Neculoiu, in 2024 International Semiconductor Conference (CAS) (IEEE, 2024), pp. 101–104.
  34. P. Pirro, T. Sebastian, T. Brächer, A. A. Serga, T. Kubota, H. Naganuma, M. Oogane, Y. Ando, and B. Hillebrands, Non-Gilbert-damping mechanism in a ferromagnetic Heusler compound probed by nonlinear spin dynamics, Phys. Rev. Lett. 113, 227601 (2014).
  35. H. Wang, C. Du, P. C. Hammel, and F. Yang, Strain-tunable magnetocrystalline anisotropy in epitaxial Y3Fe5O12 thin films, Phys. Rev. B 89, 134404 (2014).
  36. M. Robbins, D. Connelly, and J. Chisum, Modeling thick metal in forward volume spin wave transducers, IEEE. Microw. Wirel. Compon. Lett. 32, 684 (2022).
  37. F. Bruckner, K. Davídková, C. Abert, A. Chumak, and D. Suess, Micromagnetic simulation and optimization of spin-wave transducers, Sci. Rep. 15, 19993 (2025).
  38. T. Schneider, A. A. Serga, T. Neumann, B. Hillebrands, and M. P. Kostylev, Phase reciprocity of spin-wave excitation by a microstrip antenna, Phys. Rev. B 77, 214411 (2008).
  39. T. Devolder, Propagating-spin-wave spectroscopy using inductive antennas: Conditions for unidirectional energy flow, Phys. Rev. Appl. 20, 054057 (2023).
  40. M. Kostylev and A. A. Stashkevich, Proposal for a microwave photon to optical photon converter based on traveling magnons in thin magnetic films, J. Magn. Magn. Mater. 484, 329 (2019).
  41. Y. Li, T.-H. Lo, J. Lim, J. E. Pearson, R. Divan, W. Zhang, U. Welp, W.-K. Kwok, A. Hoffmann, and V. Novosad, Unidirectional microwave transduction with chirality selected short-wavelength magnon excitations, Appl. Phys. Lett. 123, 022406 (2023).
  42. F. Kohl, B. Heinz, M. Wagner, C. Adelmann, F. Ciubotaru, and P. Pirro, Modeling interference of spin-waves and electromagnetic leakage in micron-scaled spin-wave transducers, Appl. Phys. Lett. 128, 162401 (2026).
  43. P. Krivosik and C. E. Patton, Hamiltonian formulation of nonlinear spin-wave dynamics: Theory and applications, Phys. Rev. B 82, 184428 (2010).
  44. M. Cocconcelli, F. Maspero, A. Micelli, A. Toniato, A. Del Giacco, N. Pellizzi, A. E. Plaza, A. Cattoni, M. Madami, R. Silvani et al., Standalone integrated magnonic devices, Adv. Mater. 37, 2503493 (2025).
  45. https://doi.org/10.5281/zenodo.18630269.
