- Physical Review Journals
All JournalsPhysics Magazine

Physical Review Applied

Reuse & Permissions

It is not necessary to obtain permission to reuse this article or its components as it is available under the terms of the Creative Commons Attribution 4.0 International license. This license permits unrestricted use, distribution, and reproduction in any medium, provided attribution to the author(s) and the published article's title, journal citation, and DOI are maintained. Please note that some figures may have been included with permission from other third parties. It is your responsibility to obtain the proper permission from the rights holder directly for these figures.

Export citation

Export citation

Choose format for download:

Download Citation
  • Open Access

First-principles analysis of hole-induced Si─H bond dissociation in silicon dioxide

Dominic Waldhoer1,2,*, Mark E. Turiansky2, Woncheol Lee2, Sokrates T. Pantelides3, Chris G. Van de Walle2, and Tibor Grasser1,†

  • *Contact author: waldhoer@iue.tuwien.ac.at
  • †Contact author: grasser@iue.tuwien.ac.at
PDF

Phys. Rev. Applied 26, 024081 – Published 27 August, 2026

DOI: https://doi.org/10.1103/fxsw-wyqq

Abstract

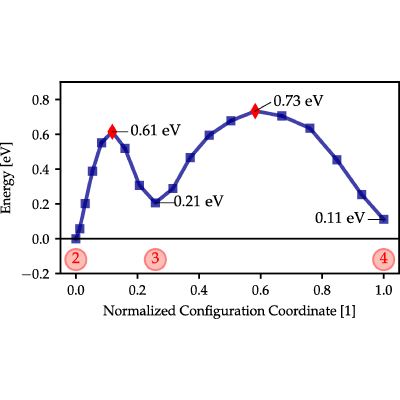

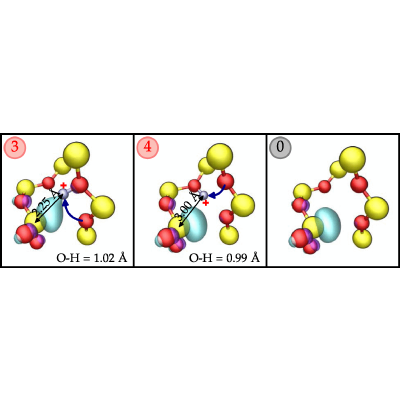

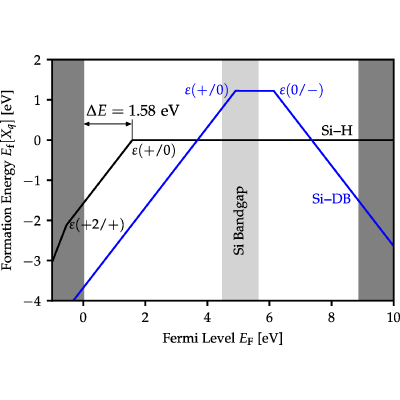

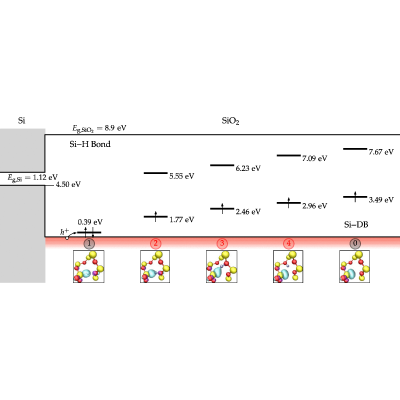

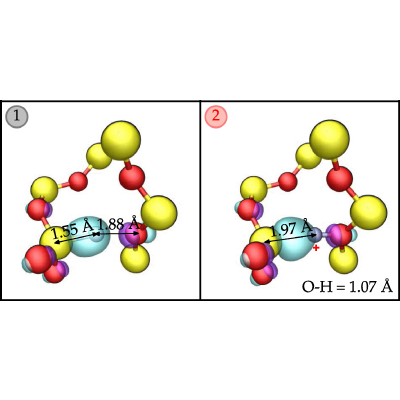

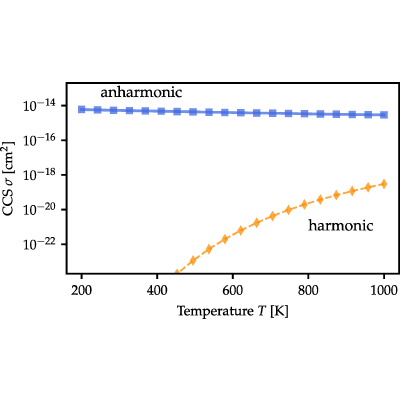

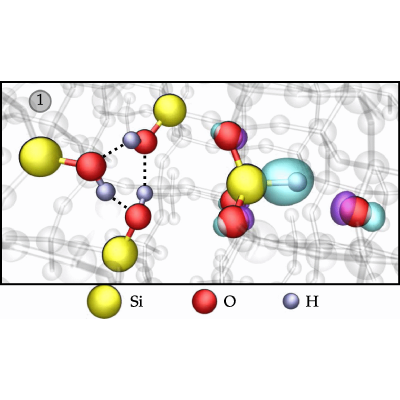

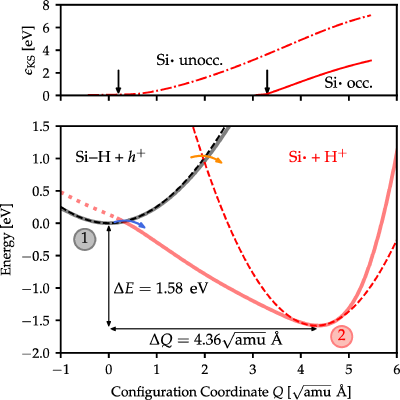

Silicon dioxide (SiO2) is arguably one of the most technologically relevant materials due to its use as a native gate dielectric in silicon-based metal-oxide-semiconductor transistors. In such devices, hydrogen is intentionally introduced during a forming gas anneal to passivate electrically active defects, which would otherwise degrade device performance. While the Si─H bonds resulting from this passivation process are highly stable and mostly chemically inert, it has been deduced from experiments and first-principles calculations that radiation-induced holes in the SiO2 valence band mediate the release of H+ from such bonds in the oxide. Here, we show through first-principles calculations combined with the theory of multiphonon emission that isolated Si─H bonds in SiO2 can be easily broken upon capturing a hole. Our calculations show that capturing holes from the SiO2 valence band leads to an efficient Si─H bond dissociation mechanism, with a large effective capture cross section of σ=6×10−15 cm2. The resulting H+ can easily diffuse away, leaving behind a neutral paramagnetic E′ center, i.e., an O3=Si· dangling bond, confirming earlier results reporting H+ release and E′ center creation upon hole injection into the SiO2 valence band.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (47)

  1. R. Chau, S. Datta, and A. Majumdar, Opportunities and challenges of III-V nanoelectronics for future high-speed, low-power logic applications, in IEEE Compound Semiconductor Integrated Circuit Symposium, 2005. CSIC’05. (IEEE, New York, 2005), p. 4.
  2. F. Roccaforte, P. Fiorenza, G. Greco, R. Lo Nigro, F. Giannazzo, F. Iucolano, and M. Saggio, Emerging trends in wide band gap semiconductors (SiC and GaN) technology for power devices, Microelectron. Eng. 187–188, 66 (2018).
  3. J. Robertson, High dielectric constant gate oxides for metal oxide Si transistors, Rep. Prog. Phys., 69, 327 (2005).
  4. K. L. Brower, P. M. Lenahan, and P. V. Dressendorfer, Defects and impurities in thermal oxides on silicon, Appl. Phys. Lett. 41, 251 (1982).
  5. P. M. Lenahan, Atomic scale defects involved in MOS reliability problems, Microelectron. Eng. 69, 173 (2003).
  6. B. Tuttle and C. G. Van de Walle, Structure, energetics, and vibrational properties of Si─H bond dissociation in silicon, Phys. Rev. B 59, 12884 (1999).
  7. A.-M. El-Sayed, Y. Wimmer, W. Goes, T. Grasser, V. V. Afanas’ev, and A. L. Shluger, Theoretical models of hydrogen-induced defects in amorphous silicon dioxide, Phys. Rev. B 92, 014107 (2015).
  8. K. Stokbro, C. Thirstrup, M. Sakurai, U. Quaade, B. Y.-K. Hu, F. Perez-Murano, and F. Grey, STM-induced hydrogen desorption via a hole resonance, Phys. Rev. Lett. 80, 2618 (1998).
  9. V. V. Afanas’ev, M. Houssa, A. Stesmans, and M. M. Heyns, Electron energy barriers between (100) Si and ultrathin stacks of SiO2, Al2O3, and ZrO2 insulators, Appl. Phys. Lett. 78, 3073 (2001).
  10. T. H. DiStefano and D. E. Eastman, The band edge of amorphous SiO2 by photoinjection and photoconductivity measurements, Solid State Commun. 9, 2259 (1971).
  11. F. B. McLean, A framework for understanding radiation-induced interface states in SiO2 MOS structures, IEEE Trans. Nucl. Sci 27, 1651 (1980).
  12. V. V. Afanas’ev and A. Stesmans, Hydrogen release related to hole injection into SiO2 layers on Si, Mater. Sci. Semicond. Process. 4, 149 (2001).
  13. P. E. Bunson, M. Di Ventra, S. T. Pantelides, D. M. Fleetwood, and R. D. Schrimpf, Hydrogen-related defects in irradiated SiO2, IEEE Trans. Nucl. Sci. 47, 2289 (2000).
  14. B. J. Mrstik and R. W. Rendell, Si−SiO2 interface state generation during X-ray irradiation and during post-irradiation exposure to a hydrogen ambient (MOSFET), IEEE Trans. Nucl. Sci. 38, 1101 (1991).
  15. S. N. Rashkeev, D. M. Fleetwood, R. D. Schrimpf, and S. T. Pantelides, Defect generation by hydrogen at the Si−SiO2 interface, Phys. Rev. Lett. 87, 165506 (2001).
  16. S. T. Pantelides, L. Tsetseris, S. N. Rashkeev, X. J. Zhou, D. M. Fleetwood, and R. D. Schrimpf, Hydrogen in MOSFETs–A primary agent of reliability issues, Microelectron. Reliab. 47, 903 (2007).
  17. S. T. Pantelides, L. Tsetseris, M. J. Beck, S. N. Rashkeev, G. Hadjisavvas, I. G. Batyrev, B. R. Tuttle, A. G. Marinopoulos, X. J. Zhou, D. M. Fleetwood, and R. D. Schrimpf, Performance, reliability, radiation effects, and aging issues in microelectronics–From atomic-scale physics to engineering-level modeling, Solid-State Electron. 54, 841 (2010).
  18. P. E. Blöchl, First-principles calculations of defects in oxygen-deficient silica exposed to hydrogen, Phys. Rev. B 62, 6158 (2000).
  19. N. Lopez, F. Illas, and G. Pacchioni, Mechanisms of proton formation from interaction of H2 with e′ and oxygen vacancy centers in SiO2: Cluster model calculations, J. Phys. Chem. B 104, 5471 (2000).
  20. R. M. Van Ginhoven, H. P. Hjalmarson, A. H. Edwards, and B. R. Tuttle, Hydrogen release in SiO2: Source sites and release mechanisms, Nucl. Instrum. Methods Phys. Res. B 250, 274 (2006).
  21. J. Godet and A. Pasquarello, Proton diffusion mechanism in amorphous SiO2, Phys. Rev. Lett. 97, 155901 (2006).
  22. S. Ling, A.-M. El-Sayed, F. Lopez-Gejo, M. B. Watkins, V. V. Afanas’ev, and A. L. Shluger, A computational study of Si–H bonds as precursors for neutral E′ centres in amorphous silica and at the Si/SiO2 interface, Microelectron. Eng. 109, 310 (2013).
  23. R. A. B. Devine and G. V. Herrera, Electric-field-induced transport of protons in amorphous SiO2, Phys. Rev. B 63, 233406 (2001).
  24. A. Alkauskas, Q. Yan, and C. G. Van de Walle, First-principles theory of nonradiative carrier capture via multiphonon emission, Phys. Rev. B 90, 075202 (2014).
  25. Z.-C. Hong, P. Yao, Y. Liu, and X. Zuo, First-principles calculations of the hole-induced depassivation of SiO2/Si interface defects, Chin. Phys. B 31, 057101 (2022).
  26. T. D. Kühne, M. Iannuzzi, M. Del Ben, V. V. Rybkin, P. Seewald, F. Stein, T. Laino, R. Z. Khaliullin, O. Schütt, F. Schiffmann et al., CP2K: An electronic structure and molecular dynamics software package-Quickstep: Efficient and accurate electronic structure calculations, J. Chem. Phys. 152, 194103 (2020).
  27. J. VandeVondele, M. Krack, F. Mohamed, M. Parrinello, T. Chassaing, and J. Hutter, Quickstep: Fast and accurate density functional calculations using a mixed Gaussian and plane waves approach, Comput. Phys. Commun. 167, 103 (2005).
  28. S. Goedecker, M. Teter, and J. Hutter, Separable dual-space Gaussian pseudopotentials, Phys. Rev. B 54, 1703 (1996).
  29. A. V. Krukau, O. A. Vydrov, A. F. Izmaylov, and G. E. Scuseria, Influence of the exchange screening parameter on the performance of screened hybrid functionals, J. Chem. Phys. 125, 224106 (2006).
  30. M. Guidon, J. Hutter, and J. VandeVondele, Auxiliary density matrix methods for Hartree-Fock exchange calculations, J. Chem. Theory Comput. 6, 2348 (2010).
  31. G. Henkelman, B. P. Uberuaga, and H. Jónsson, A climbing image nudged elastic band method for finding saddle points and minimum energy paths, J. Chem. Phys. 113, 9901 (2000).
  32. X. Zhu, K. C. Thompson, and T. J. Martínez, Geodesic interpolation for reaction pathways, J. Chem. Phys. 150, 164103 (2019).
  33. M. Boero, A. Pasquarello, J. Sarnthein, and R. Car, Structure and hyperfine parameters of E1′ centers in α-quartz and in vitreous SiO2, Phys. Rev. Lett. 78, 887 (1997).
  34. G. Will, M. Bellotto, W. Parrish, and M. Hart, Crystal structures of quartz and magnesium germanate by profile analysis of synchrotron-radiation high-resolution powder data, J. Appl. Cryst. 21, 182 (1988).
  35. J. B. Varley, J. R. Weber, A. Janotti, and C. G. Van de Walle, Dangling bonds, the charge neutrality level, and band alignment in semiconductors, J. Appl. Phys. 135, 075703 (2024).
  36. Y. Wimmer, A.-M. El-Sayed, W. Gös, T. Grasser, and A. L. Shluger, Role of hydrogen in volatile behaviour of defects in SiO2-based electronic devices, Proc. R. Soc. A. 472, 20160009 (2016).
  37. M. E. Turiansky, A. Alkauskas, M. Engel, G. Kresse, D. Wickramaratne, J.-X. Shen, C. E. Dreyer, and C. G. Van de Walle, Nonrad: Computing nonradiative capture coefficients from first principles, Comput. Phys. Commun. 267, 108056 (2021).
  38. S. Baroni, S. de Gironcoli, A. Dal Corso, and P. Giannozzi, Phonons and related crystal properties from density-functional perturbation theory, Rev. Mod. Phys. 73, 515 (2001).
  39. C. Freysoldt, B. Grabowski, T. Hickel, J. Neugebauer, G. Kresse, A. Janotti, and C. G. Van de Walle, First-principles calculations for point defects in solids, Rev. Mod. Phys. 86, 253 (2014).
  40. C. Freysoldt, J. Neugebauer, and C. G. Van de Walle, Fully Ab Initio finite-size corrections for charged-defect supercell calculations, Phys. Rev. Lett. 102, 016402 (2009).
  41. C. Freysoldt, Manual for sxdefectalign version 3.0 (2022).
  42. W. Goes, Y. Wimmer, A.-M. El-Sayed, G. Rzepa, M. Jech, A. L. Shluger, and T. Grasser, Identification of oxide defects in semiconductor devices: A systematic approach linking DFT to rate equations and experimental evidence, Microelectron. Reliab. 87, 286 (2018).
  43. R. A. Marcus and N. Sutin, Electron transfers in chemistry and biology, Biochim. Biophys. Acta 811, 265 (1985).
  44. J. R. Chelikowsky and M. Schlüter, Electron states in α-quartz: A self-consistent pseudopotential calculation, Phys. Rev. B 15, 4020 (1977).
  45. A.-M. El-Sayed, M. B. Watkins, T. Grasser, V. V. Afanas’ev, and A. L. Shluger, Hydrogen-induced rupture of strained Si─O bonds in amorphous silicon dioxide, Phys. Rev. Lett. 114, 115503 (2015).
  46. D. Waldhoer, C. Schleich, J. Michl, B. Stampfer, K. Tselios, E. G. Ioannidis, H. Enichlmair, M. Waltl, and T. Grasser, Toward automated defect extraction from bias temperature instability measurements, IEEE Trans. Electron Devices 68, 4057 (2021).
  47. D. Waldhoer, Dataset for the manuscript titled “First-Principles Analysis of Hole-Induced Si−H Bond Dissociation in Silicon Dioxide”, Zenodo, 2026, 10.5281/zenodo.18915933.

Outline

Information

Phys. Rev. Applied 26, 024081– Published 27 August, 2026
  • Received 8 March 2026
  • Accepted 10 August 2026
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article’s title, journal citation, and DOI.

Published by the American Physical Society

Sign In to Your Journals Account

Filter

Filter

Article Lookup

Enter a citation
